GM13-050-35-6.5DS3.5 - 24V
Vic-Tech
DC motor with gearbox
CW/CCW
1:35
3V DC
350g*cm
AVAILABLE
1 unit
Rohs
Product Description

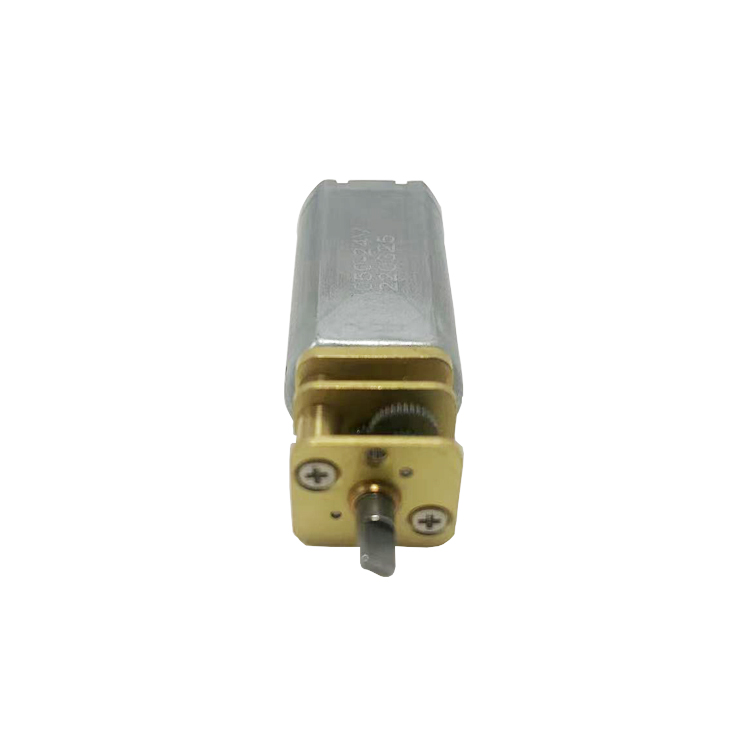

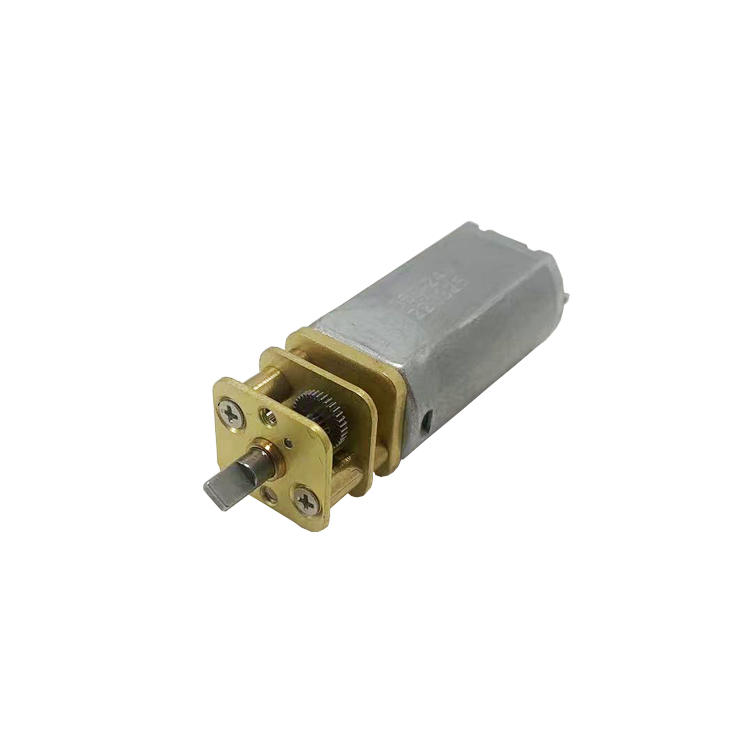

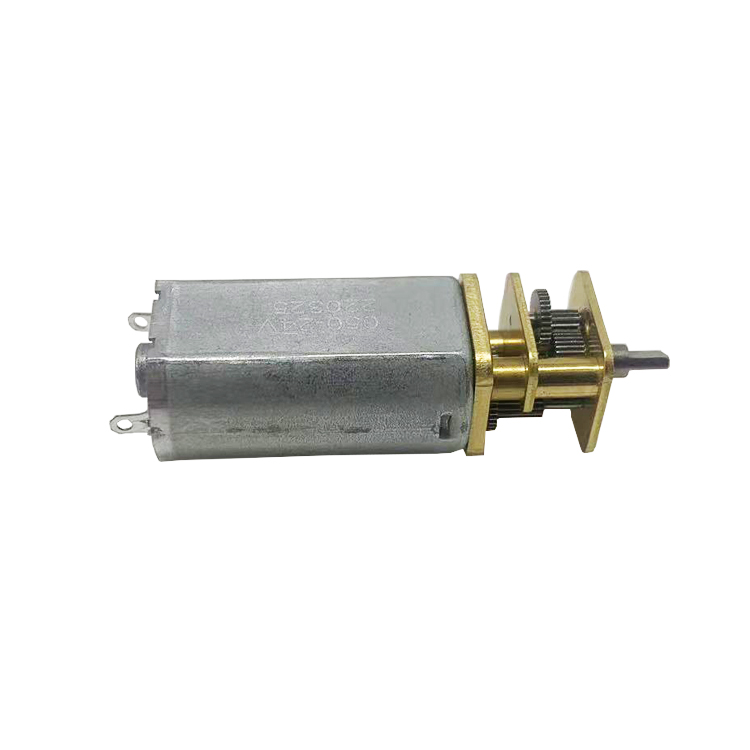

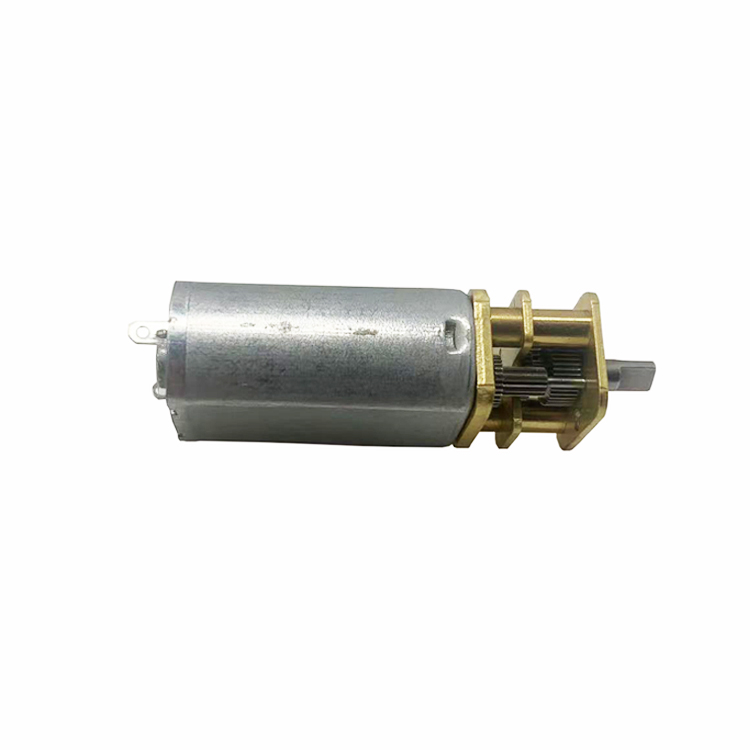

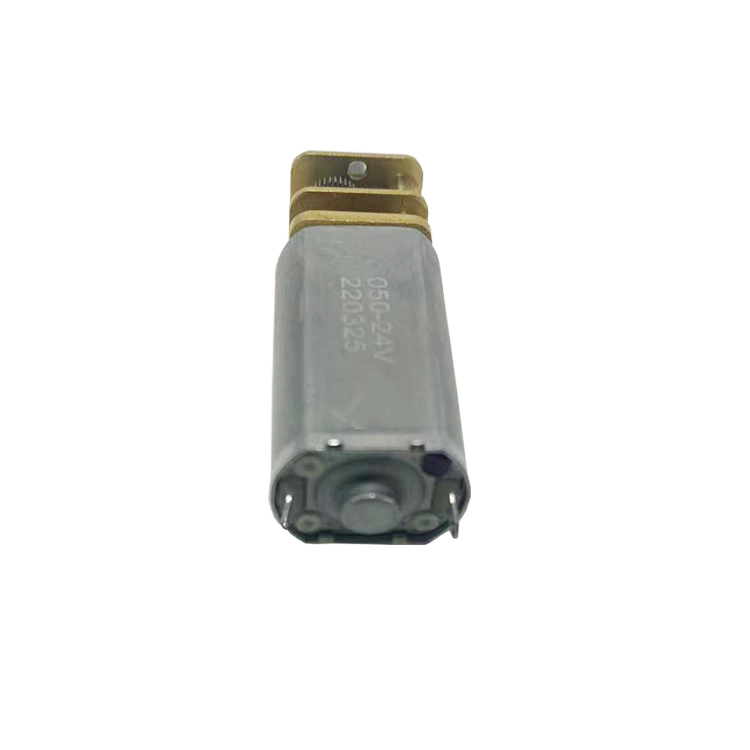

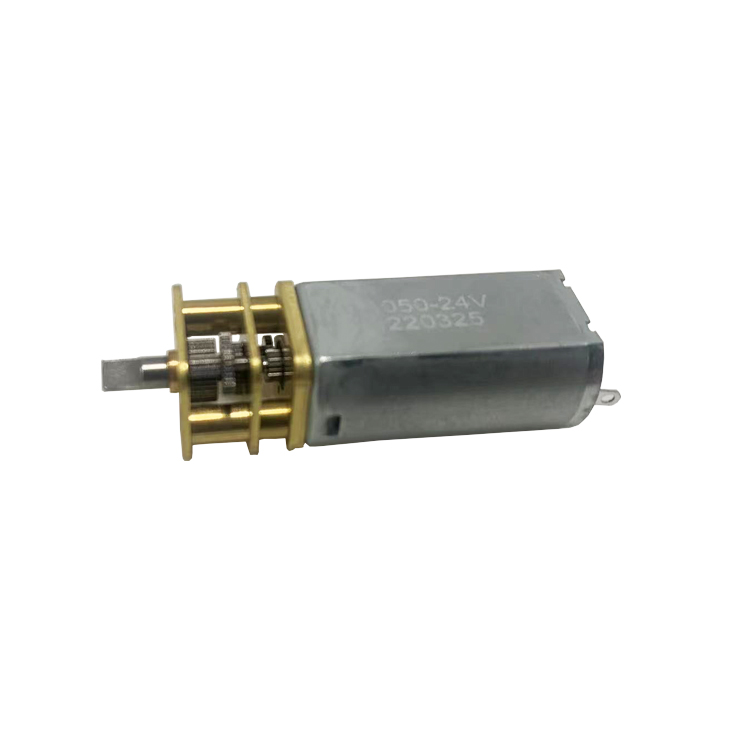

This is a DC motor with a 13*12 gearbox.

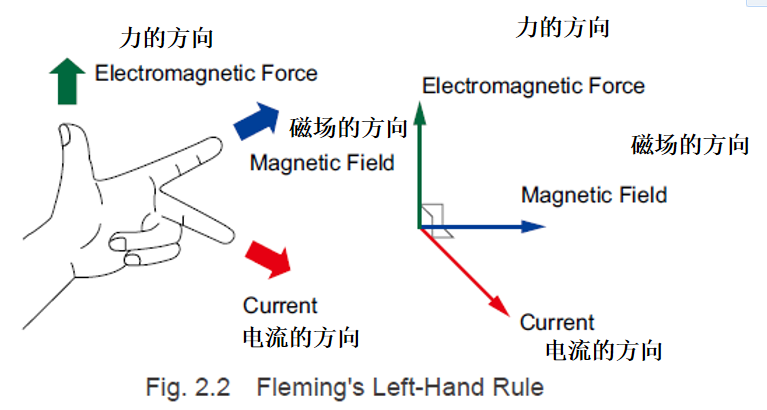

The DC motor is also a brushed DC motor and has a no-load speed of about 16,000 RPM for a single motor.
When the motor is connected to a gear box, it will run slower and the torque will be higher.
Customers can choose the gear ratio according to their needs
Parameters
| Model No. | GM13-050-35-6.5DS3.5 |
| Driving voltage | 3V DC |
| No-load speed | 16000RPM |
| Reduction ratio | 35:1 |
| Output torque | 350g.cm |
| Run direction | CW/CCW |

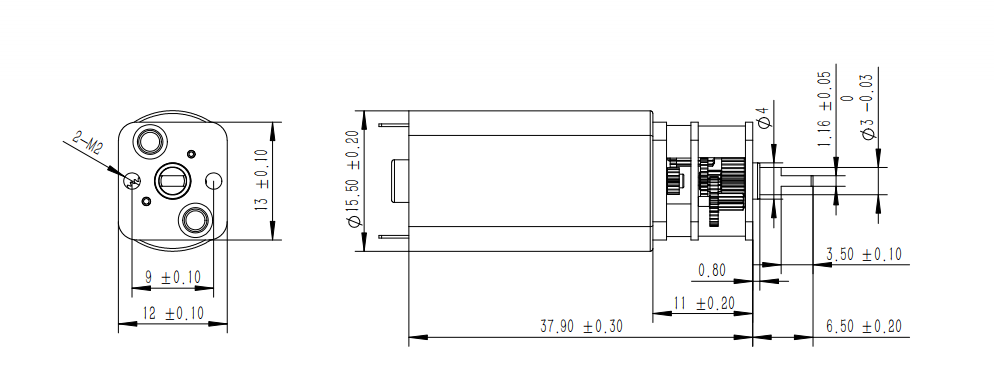

Design drawing
| Gear ratio | 2:1 | 5:1 | 10:1 | 15:1 | 20:1 | 30:1 | 36:1 | 50: | 63:1 | 67:1 | 89:1 | 100:1 |
| Precise ratio | 2.002 | 4.995 | 9.677 | 14.754 | 20.501 | 29.120 | 36.122 | 51.103 | 63.071 | 66.801 | 89.227 | 99.002 |
| Gear ratio | 23 | 20 | 13 | 18 | 15 | 12 | 20 | 20 | 14 | 17 | 14 | 13 |
| Gear levels | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
| Efficiency | 80% | 80% | 80% | 72% | 72% | 72% | 65% | 65% | 65% | 65% | 65% | 65% |
| Input and output directions | + | + | + | - | - | - | + | + | + | + | + | + |
| Gear ratio | 120:1 | 150:1 | 172:1 | 210:1 | 250:1 | 275:1 | 298:1 | 380:1 | 420:1 | 500:1 | 600:1 | 1000:1 |
| Precise ratio | 118.922 | 150.948 | 171.883 | 210.591 | 250.111 | 274.403 | 297.924 | 387:689 | 421.296 | 506.155 | 599.394 | 986.406 |
| Gear ratio | 17 | 18 | 13 | 12(15) | 13 | 12 | 12 | 12 | 12 | 18 | 16 | 12 |
| Gear levels | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 7 | 7 | 7 |
| Efficiency | 59% | 59% | 59% | 59% | 59% | 59% | 59% | 59% | 59% | 47% | 47% | 47% |
| Input and output directions | - | - | - | - | - | - | - | - | - | - | - | - |
