A micro linear stepper motor is a compact, precision device that converts electrical pulses into precise linear motion. Unlike traditional rotary stepper motors, which produce rotational movement, micro linear stepper motors generate straight-line motion, making them ideal for applications requiring high accuracy and small-scale movements. These motors are widely used in industries like robotics, 3D printing, medical devices, and automation systems due to their reliability and precision.
In this article, we’ll explore what a micro linear stepper motor is, how it works, its key components, applications, and benefits. By understanding the mechanics and advantages of micro linear stepper motors, you can make informed decisions for your projects. Let’s dive into the details of this fascinating technology.
A micro linear stepper motor is a type of stepper motor designed to produce linear motion directly, without the need for additional mechanical components like gears or belts to convert rotary motion into linear motion. The "micro" designation refers to its compact size, making it suitable for applications where space is limited, and precision is critical.
Stepper motors, in general, operate by dividing a full rotation or movement into discrete steps. A micro linear stepper motor applies this principle to linear motion, moving in small, precise increments (steps) along a straight path. Each step corresponds to a specific distance, often in the range of micrometers or millimeters, depending on the motor’s design.
· High Precision: Micro linear stepper motors offer exceptional accuracy, with step resolutions as fine as a few microns.
· Compact Size: Their small footprint makes them ideal for space-constrained applications.
· Open-Loop Control: These motors typically operate without feedback sensors, reducing complexity and cost.
· Reliability: With fewer moving parts, they are durable and require minimal maintenance.
· Customizability: Available in various sizes, step resolutions, and force ratings to suit specific needs.
To understand how a micro linear stepper motor operates, let’s break down its working mechanism into key components and processes.
A micro linear stepper motor consists of the following core elements:
· Stator: The stationary part of the motor, which contains electromagnetic coils that generate magnetic fields.

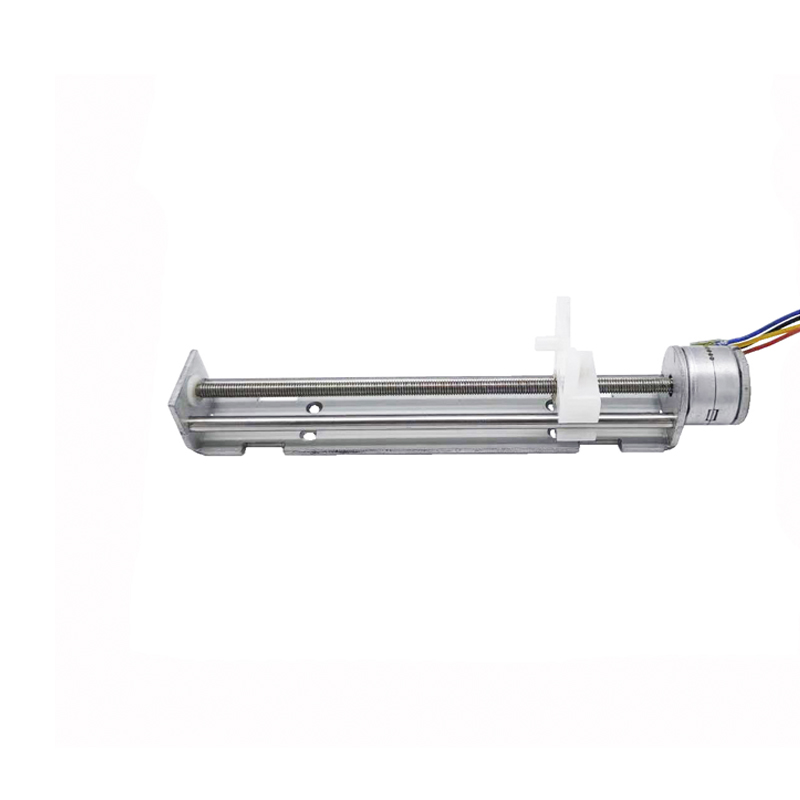

· Rotor (or Slider): The moving part, often a nut or plunger, that travels along a threaded shaft or guide.
· Threaded Shaft: Acts as the linear guide, converting rotational motion into linear motion in some designs.
· Controller/Driver: An electronic circuit that sends precise electrical pulses to control the motor’s movement.
· Coils: Wound around the stator, these coils are energized in a specific sequence to create motion.
Micro linear stepper motors work on the principle of electromagnetic actuation. The motor’s controller sends electrical pulses to the stator coils in a specific sequence, creating a magnetic field that interacts with the rotor or slider. This interaction causes the rotor to move in discrete steps along the linear path.
Each pulse corresponds to a single step, and the motor advances a fixed distance per step (e.g., 0.01 mm). By controlling the frequency and number of pulses, the motor’s speed and position can be precisely managed. This stepwise motion eliminates the need for complex feedback systems in most applications, as the motor’s position is inherently predictable based on the number of pulses sent.
There are two main types of micro linear stepper motors:
· Captive Linear Stepper Motors: The rotor is integrated into a threaded shaft, and a nut moves linearly along the shaft.
· Non-Captive Linear Stepper Motors: The rotor rotates a threaded shaft, and an external nut or load moves linearly without rotating.
· External Linear Stepper Motors: A separate linear actuator is driven by a rotary stepper motor, but this is less common in micro-scale applications.
Micro linear stepper motors are typically controlled using a stepper motor driver, which translates commands from a microcontroller (e.g., Arduino or Raspberry Pi) into precise pulse sequences. Advanced drivers support microstepping, which divides each step into smaller increments for smoother motion and higher resolution.
The versatility of micro linear stepper motors makes them indispensable in various industries. Here are some common applications:
Micro linear stepper motors are used in robotic arms and grippers for precise positioning. Their compact size and high accuracy make them ideal for tasks like pick-and-place operations or micro-assembly.
In 3D printers, micro linear stepper motors control the movement of the print head or build platform, ensuring accurate layer deposition and smooth surface finishes.
Medical equipment, such as syringe pumps, lab automation systems, and imaging devices, relies on micro linear stepper motors for precise fluid delivery or component positioning.
In small-scale CNC machines and automated systems, these motors drive linear axes with high repeatability, enabling intricate machining and manufacturing processes.
Micro linear stepper motors adjust lenses and mirrors in cameras, telescopes, and microscopes, where minute adjustments are critical for focusing and alignment.
Devices like hard disk drives, camera autofocus systems, and wearable technology use micro linear stepper motors for compact, reliable motion control.
The micro linear stepper motor offers several advantages that make it a preferred choice for precision applications:
1. High Precision and Repeatability: The stepwise motion ensures consistent positioning, with resolutions down to micrometers.
2. Compact and Lightweight: Their small size allows integration into tight spaces, such as portable devices or miniature robots.
3. Cost-Effective: Open-loop control eliminates the need for expensive feedback systems like encoders.
4. Low Maintenance: With no brushes or complex mechanical parts, these motors are durable and require minimal upkeep.
5. Energy Efficiency: They consume power only when moving, making them suitable for battery-powered applications.
6. Versatility: Available in various configurations to meet specific force, speed, and resolution requirements.
While micro linear stepper motors are highly effective, they have some limitations:
· Limited Speed: Stepper motors are generally slower than servo motors, especially at high loads.
· Heat Generation: Prolonged operation at high currents can cause overheating, requiring proper thermal management.
· Resonance Issues: At certain speeds, vibrations can affect performance, though microstepping can mitigate this.
· Load Capacity: Micro linear stepper motors are designed for low to moderate loads, making them unsuitable for heavy-duty applications.
Selecting a micro linear stepper motor depends on your project’s requirements. Consider the following factors:
· Step Resolution: Choose a motor with a step size that matches your precision needs (e.g., 0.01 mm/step).
· Force and Load: Ensure the motor’s force rating can handle the weight of your load.
· Size Constraints: Verify that the motor’s dimensions fit your application’s space limitations.
· Control System: Select a compatible driver and controller for seamless integration.
· Environment: For harsh environments, opt for motors with protective coatings or sealed designs.
· Budget: Balance performance with cost, as high-precision motors can be more expensive.
For detailed specifications, consult datasheets from reputable manufacturers like Vic-Tech motor or Moons Industries.
To get the most out of your micro linear stepper motor, follow these tips:
1. Use Microstepping: Implement microstepping to improve smoothness and resolution.
2. Proper Power Supply: Match the motor’s voltage and current ratings to avoid overheating or underperformance.
3. Tune the Driver: Adjust the driver’s current settings to optimize torque and reduce heat.
4. Lubrication: For motors with threaded shafts, use appropriate lubricants to reduce friction and wear.
5. Thermal Management: Add heat sinks or fans if operating the motor continuously at high loads.
As of 2025, advancements in micro linear stepper motor technology are driving innovation. Key trends include:
· Miniaturization: Even smaller motors for wearable devices and micro-robotics.
· Smart Control Systems: Integration with IoT and AI for adaptive motion control.
· Energy Efficiency: Improved designs to reduce power consumption in battery-powered applications.
· Hybrid Systems: Combining stepper and servo technologies for enhanced performance.
A micro linear stepper motor is a powerful tool for achieving precise linear motion in compact applications. By converting electrical pulses into controlled, stepwise movements, these motors offer unmatched accuracy and reliability for industries like robotics, 3D printing, and medical devices. Understanding their working principles, applications, and limitations can help you select the right motor for your project.
Whether you’re building a DIY robot, upgrading a 3D printer, or designing a medical device, the micro linear stepper motor is a versatile and cost-effective solution. For more information on pricing and availability, visit trusted suppliers or manufacturers like Vic-Tech Motor for additional resources.
By leveraging the precision and efficiency of micro linear stepper motors, you can take your projects to the next level in 2025 and beyond.
