SW2216
Vic-Tech

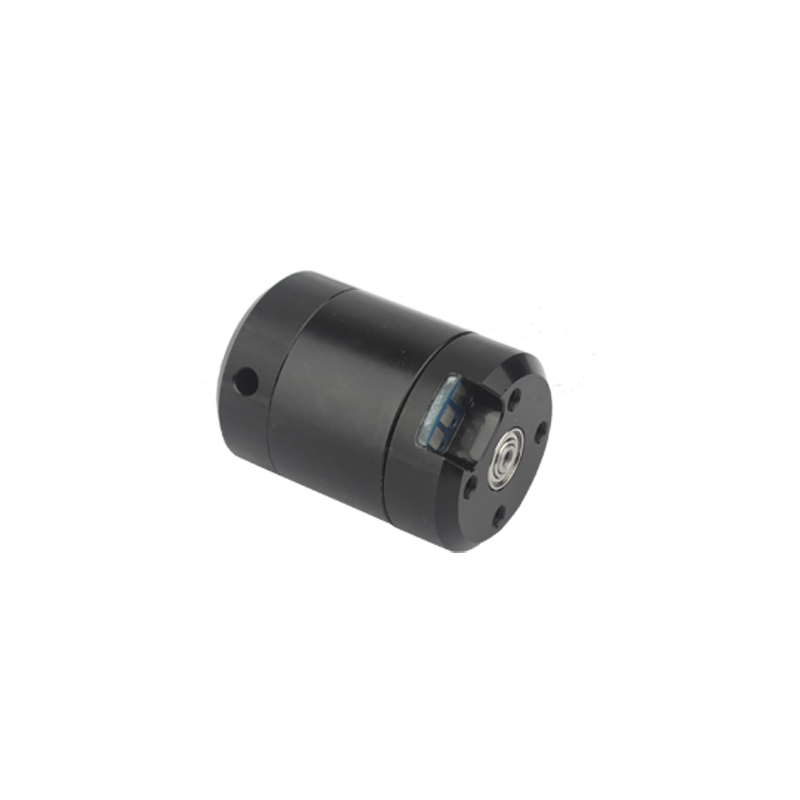

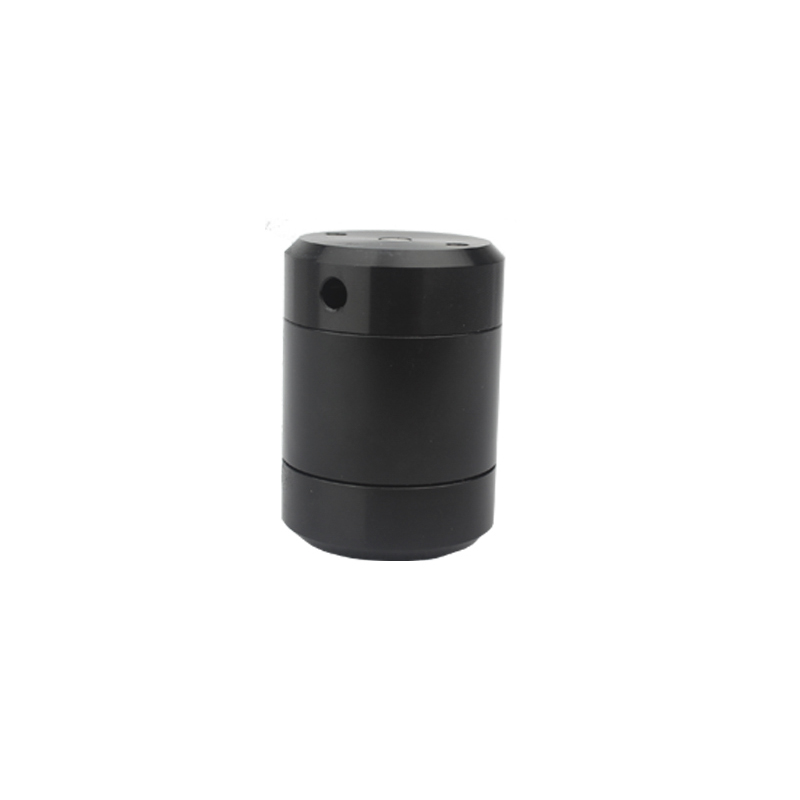

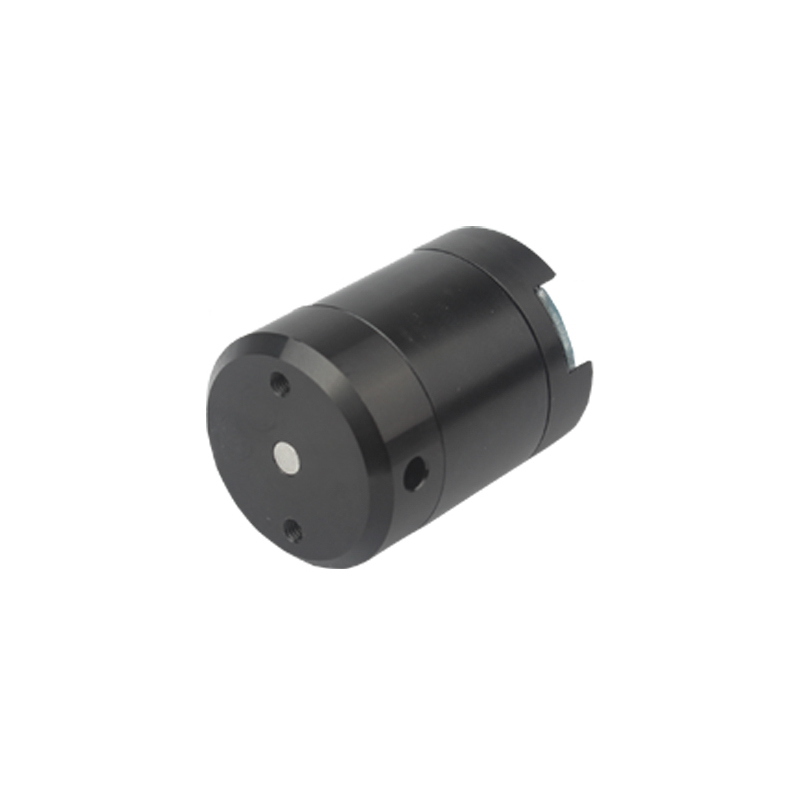

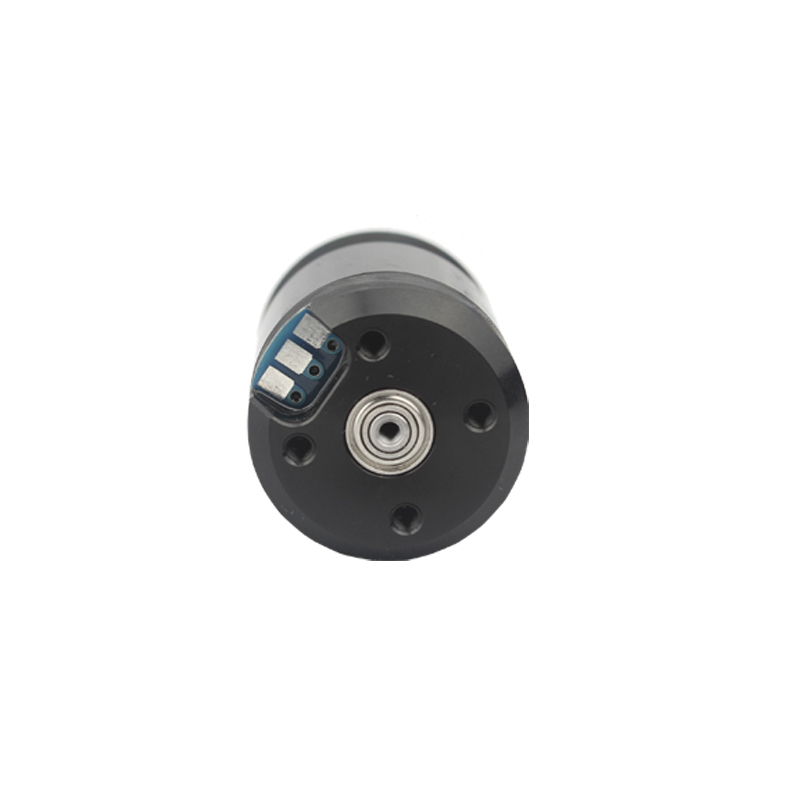

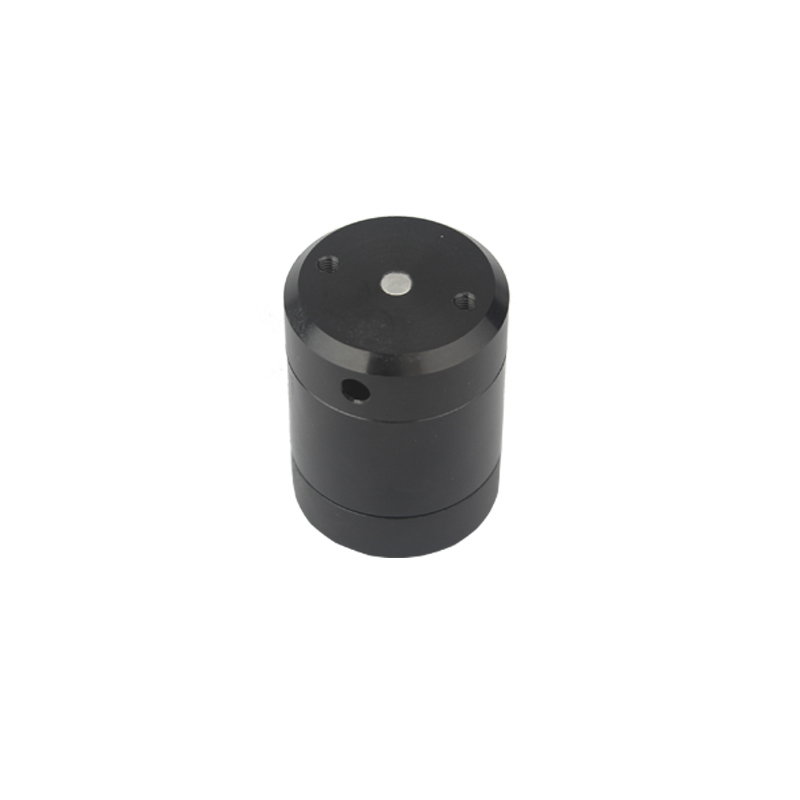

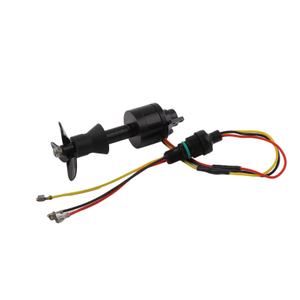

SW2216 underwater motor with propeller
About 1.5KG
76g
CW/CCW
12~24V
AVAILABLE
1 unit
Rohs
Product Description

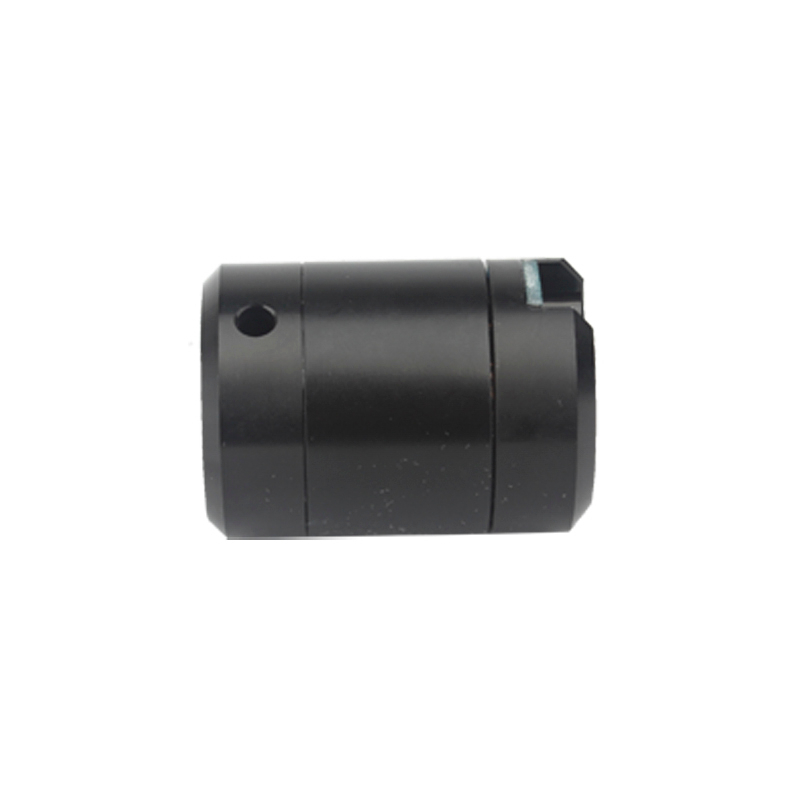

SW2216 ROV thruster 12V-24V underwater equipment brushless DC motor for model submarine underwater motor with beautiful appearance, small size, long life, low noise technology, high energy saving rate, high torque and high precision.
The motor diameter is 28mm,total length is 40mm.
The thrust is about 1.5kg.
KV value is 500-560KV,
It has a wide range of applications in precision electronic equipment, automation equipment, water and underwater equipment, model aircraft drones and intelligent robots.
Parameters
| Motor type： | Underwater brushless motor |
| Weight： | 76g |
| Underwater thrust： | About 1.5KG |
| Rated voltage： | 12~24V |
| KV value： | 500~560 |
| Unload speed： | 6500~13000 RPM |
| Rated power： | 100~350W |
| Loaded current： | 10~15A |

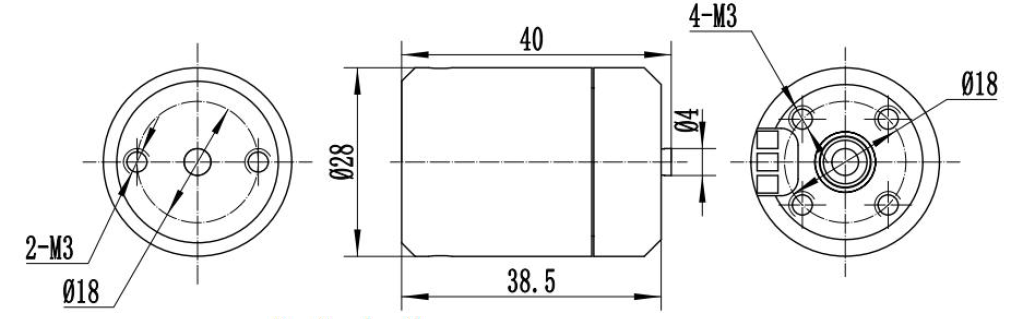

Design drawing
Customisable
Customization service:
Available in long and short shaft versions.
Available in versions with and without stand.
Available in long and short versions.
Available in clockwise and counterclockwise versions
(CW and CCW).
KV values can be customized.
Areas of application
Widely used in precision electronic instruments, automation equipment, ROV Robots Drones, model drones and intelligent robots and other fields.
Because brushless motor uses electronic commutation, so let brushless motor operation need to adapt to the motor voltage DC power supply, driver (ESC) and speed control signal.
Take a common model ESC as an example, first disconnect the power supply, connect the motor leads and speed signal line, the throttle travel to the highest (full duty cycle), connected to the power supply, you will hear the "drop" two sounds, the throttle travel quickly to the lowest position, and then you can hear the normal start of the motor "drop ---- drop" sound, the throttle travel calibration is complete, you can start the motor normally. (The operation mode of ESC may be different for different manufacturers, please refer to the manual of the corresponding ESC model or consult the ESC manufacturer for details)
Customers can use regular drone ESC (Electrical speed control) to drive this motor.
We only produce motors, and we do not provide ESC.
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
On samples and air shipping , we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
Yes, we are a manufacture, and we produces mainly stepper motors.
Our factory is located in changzhou, jiangsu. Yes, you are very welcome to visit us.
No, we don’t provide free samples. Customers won’t treat free samples fairly.
Customers pay for shipping cost. We will quote you shipping cost.
If you think you have cheaper/more convenient shipping method, we can use you shipping account.
We don’t have MOQ, and you can order only one piece sample.
But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.
We have over 20 years of experience in stepper motor industry.
We have developed many projects, we can provide full set customization from design drawing to production.
We are confident we can give you few advice/suggestions for your stepper motor project.
If you are worrying about confidential issues, yes, we can sign a NDA contract.
Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.
We do not produce drivers, we only produce stepper motors
