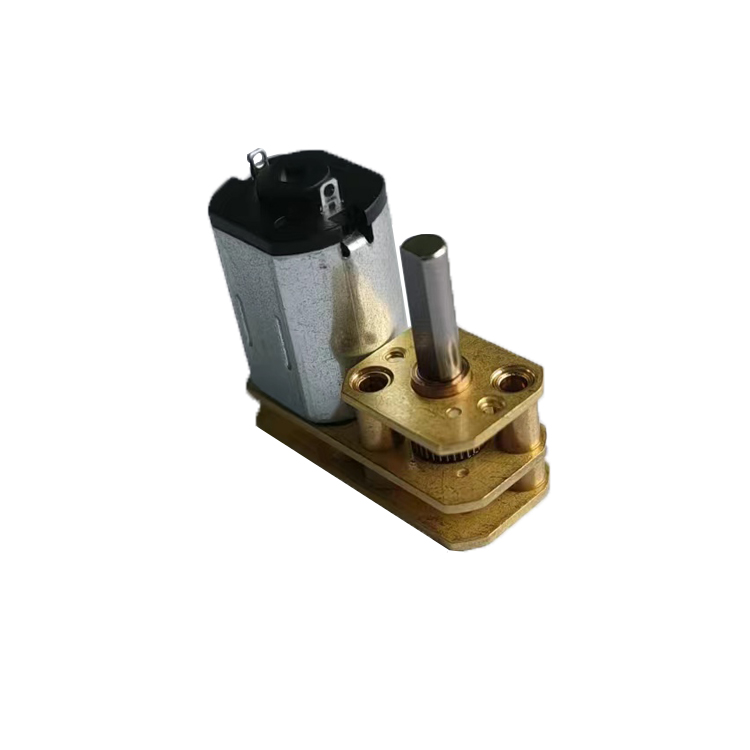

In the field of micro drive components, N20 DC motors occupy an important position due to their compact structure and cost advantages. However, the quality of products in the market varies greatly, and procurement decision-making errors may lead to a surge in product failure rates and after-sales service costs. This article will delve into the quality hazards of N20 motors and provide five strict inspection standards to help you establish a reliable quality defense line.
The current N20 motor market shows a clear polarization. The service life of high-quality motors can reach over 3000 hours, while inferior products may experience severe performance degradation in less than 500 hours. This difference mainly stems from differences in material selection, manufacturing processes, and quality control systems.
Characteristic indicators | High quality N20 motor, | poor quality N20 motor
|
Service life | 1000-3000 hours | 200-500 hours
|
Efficiency peak | 70% -75% | 45% -60%
|
Parameter consistency | no-load speed difference<± 5% | difference exceeding ± 15%
|
Noise leve | <45dB | >55dB |
Some suppliers use no-load parameters to impersonate rated parameters, and the actual output torque may be falsely labeled as 30% -50%. A more covert approach is to obtain ideal data under specific testing conditions, which differ significantly from actual operating conditions.
Request to provide a complete torque speed curve
Sampling test of no-load current at rated voltage (normal range 30-60mA)
Verify whether the locked rotor torque meets the nominal value
Electric brushes are key components that determine the lifespan of motors. Poor quality products often use low-cost metal graphite brushes instead of precious metal alloy brushes, resulting in rapid wear and unstable performance.
Significant sparks during operation
Resistance value changes with usage time
Accumulation of carbon powder leads to internal short circuit
The use of low-grade ferrite magnetic tiles instead of neodymium iron boron magnetic steel results in insufficient torque output and significant temperature changes.
A lighter weight under the same size usually indicates poor magnetic tile performance
Torque attenuation test under high temperature environment
Request suppliers to provide material certification documents
The radial runout of the shaft core exceeds the standard (>0.02mm), resulting in unstable operation, increased noise, and accelerated wear of the gearbox.
Measure shaft runout using a dial gauge (qualified standard ≤ 0.015mm)
Check the surface hardness of the shaft (HRC ≥ 45)
Observe the processing patterns and surface smoothness
The assembly problems such as excessive clearance between gearboxes and loose fit of the housing result in poor product consistency, leading to a high failure rate during batch use.
A complete performance test report must be obtained before procurement, with a focus on:
Test Item 6V Motor Standard 12V Motor Standard Test Method
Measurement under rated voltage with no-load current ≤ 50mA ≤ 40mA
No load speed 8000 ± 10% RPM 15000 ± 10% RPM laser velocimeter
Rated torque ≥ 0.8mN · m ≥ 1.2mN · m torque tester
Calculated based on peak efficiency ≥ 70% ≥ 75%
Continuous operation test: After running for 500 hours under rated conditions, the speed decay should be less than 15%
Start stop durability test: Can still start normally after 1000 start stop cycles
Environmental adaptability: Insulation resistance>100M Ω after high temperature and high humidity testing
Magnetic tile material certificate (neodymium iron boron N35 or above grade)
Electric brush material certification (silver nickel alloy or equivalent material)
Environmental compliance documents (RoHS, REACH testing reports)
Backlash angle: The third level deceleration should be ≤ 1 °
Transmission efficiency: single-stage gear>90%
Noise test: 1 meter distance ≤ 45dB
Sampling Plan: Execute according to MIL-STD-105E Normal Inspection Level II
Parameter dispersion: The difference in no-load speed within the same batch is less than ± 5%
Traceability system: complete production batch number and material traceability information
Capable of independent production line and complete process control capability
Provide detailed technical documentation and testing reports
Having complete testing equipment and quality system
The technical team can provide professional application support
Does the rotor dynamic balancing process use an automatic balancing machine
Is the assembly of the electric brush completed in a clean environment
Key position employee training and skill certification records
Statistical analysis and continuous improvement mechanism of quality data
Appearance inspection: The shell is undamaged, the shaft is rust free, and the markings are clear
Dimensional verification: Sampling inspection of key installation dimensions
No load test: current and speed are within the allowable tolerance range
Load characteristics: Sampling test torque speed curve
Noise assessment: No abnormal noise in a silent environment
Insulation test: measured with a 500V megohmmeter, resistance>100M Ω
High temperature verification: Run at full load until thermal stability is achieved, and the temperature rise meets the standard
Consumer grade (<$1.5): suitable for non critical auxiliary functions
Industrial grade ($1.5- $3): meets the needs of most automation equipment
Professional level (>$3): suitable for applications with high reliability requirements
text
Total cost=Procurement cost+(Failure rate x Single repair cost x Quantity)+After sales cost
Example analysis shows that motors with a 30% higher price but a halved failure rate can reduce the actual total cost by more than 25%.
Verify H-grade insulation material (temperature resistance of 180 ℃)
Confirm the high-temperature stability of lubricating grease (>120 ℃)
Require protection level of IP54 or above
Verify aging resistance of sealing materials
Focus on evaluating the wear resistance of electric brushes and commutators
Verify the compatibility between the starting current and the driver
Conclusion: Establish a scientific quality assurance system
By implementing strict 5 inspection standards for N20 DC motors, enterprises can effectively avoid quality risks and ensure product reliability. Suggested purchaser:
Technology first: Deeply understand the technical points of the product and establish a professional procurement team
Data driven: Establish a product quality database and use data to support decision-making
System guarantee: Improve supplier management and quality inspection system
In the precision field of micro motors, only by establishing a scientifically rigorous quality assurance system can we ensure that every N20 motor becomes a reliable power core of the product, rather than a potential quality hazard.
