Stepper Motor vs Servo Motor: The Ultimate 2024 Comparison Guide

When designing motion control systems, engineers face a critical choice: stepper motors or servo motors? Understanding the fundamental differences between these technologies could save your project thousands in unnecessary costs while optimizing performance. In this comprehensive guide, we'll dissect four key operational differences with real-world application insights.

Core Distinctions: Breaking Down the Technologies

1. Working Principle: Open-Loop vs Closed-Loop Systems

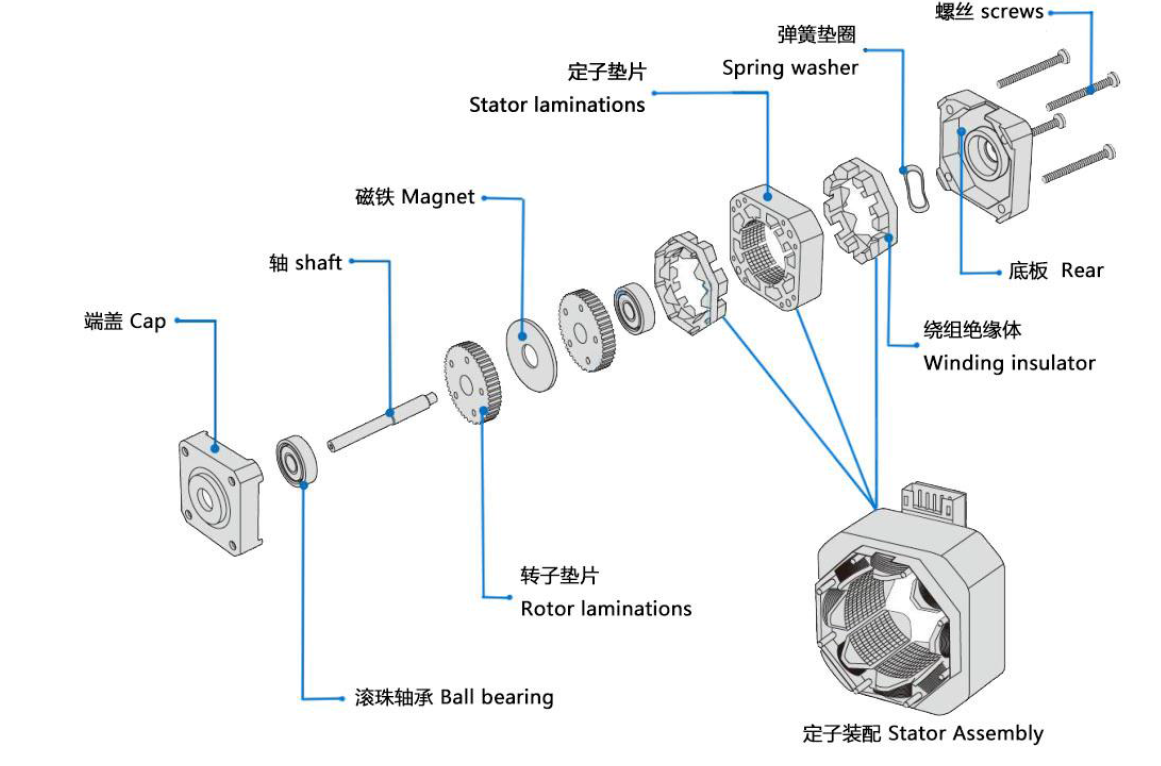

Stepper Motors:

Operate as open-loop systems, converting electrical pulses into precise angular movements. Each pulse rotates the shaft by a fixed angle (step angle), eliminating the need for position feedback.

Common Applications: 3D printers, CNC routers, medical scanners

Key Advantage: Simpler control architecture with lower implementation costs

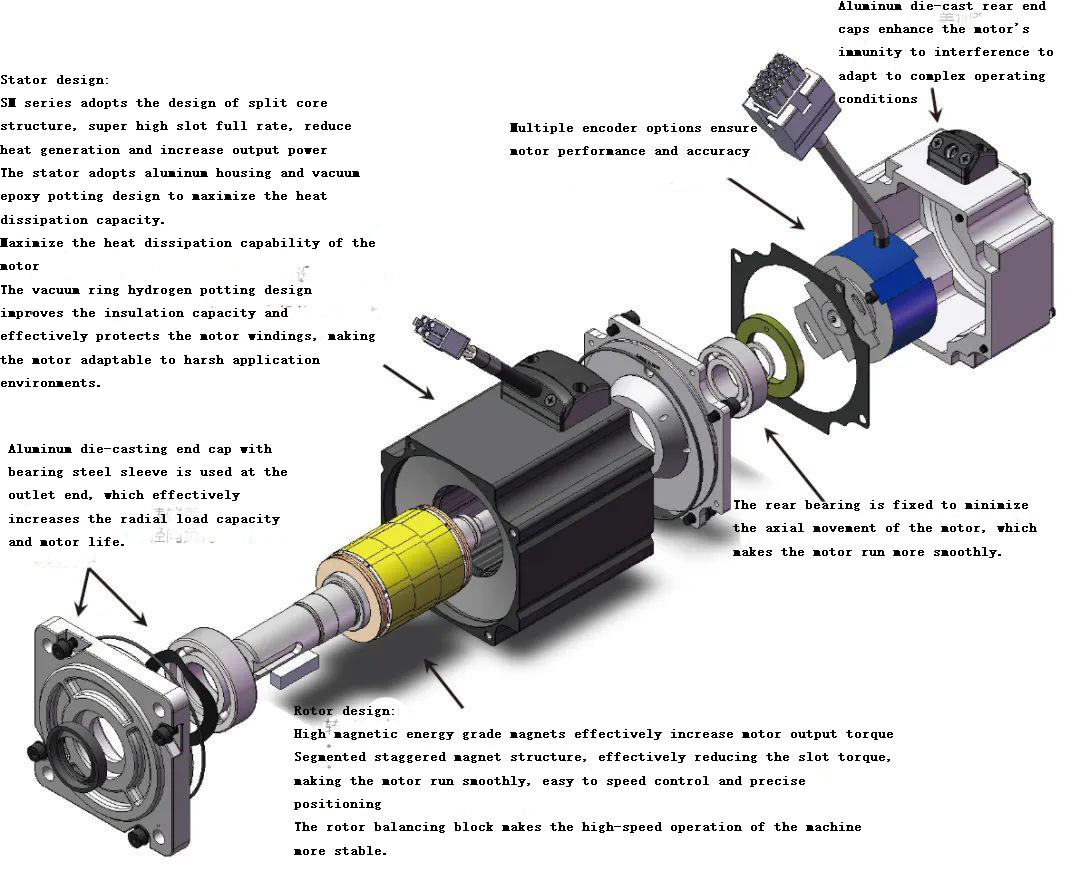

Servo Motors:

Function as closed-loop systems with integrated encoders. The motor continuously transmits position pulses to the controller, creating real-time feedback for dynamic error correction.

Critical Benefit: Auto-corrects position deviations during operation

Industrial Use Case: Robotic arms, automated manufacturing lines

2. Control Precision: Step Angles vs Encoder Resolution

Stepper Precision: Accuracy determined by step angle (typically 1.8° or 0.9°). Microstepping drivers can achieve up to 51,200 steps/revolution

Limitation: Theoretical positioning - actual accuracy varies with load torque

Servo Precision: Encoder resolution defines accuracy (commonly 16-bit = 65,536 counts/rev). Maintains ±0.01° positioning regardless of load changes

Why it Matters: Essential for semiconductor manufacturing and aerospace applications

Performance Showdown: Speed, Torque & Vibration

3. Speed-Torque Characteristics

| Parameter          | Stepper Motor                     | Servo Motor                      |

|--------------------|-----------------------------------|----------------------------------|

| Low-Speed Torque | Excellent holding torque          | Requires gearing for high torque |

| High-Speed Torque | Drops sharply above 600 RPM       | Constant torque to rated speed   |

| Overload Capacity*| None (stalls when overloaded)     | 300%+ peak torque capability     |

| Resonance Issues | Critical below 300 RPM (requires damping) | Vibration-free operation         |

4. Dynamic Response Comparison

Steppers: Prone to step loss during rapid acceleration/deceleration or sudden load changes

Servos: Maintain position synchronization under variable loads through real-time current adjustment

Cost-Benefit Analysis: When to Choose Which

Application-Specific Recommendations

Choose Stepper Motors When:

- Budget < $1,000

- Speed requirements < 800 RPM

- Position holding without power needed

- Low maintenance is critical (e.g., space equipment)

Opt for Servo Motors When:

- Operating at > 1,000 RPM

- Varying loads expected

- Precision > 0.1° required

- Energy efficiency impacts ROI

---

5.FAQs: Solving Real-World Selection Dilemmas

1. Can steppers replace servos with closed-loop control?

Yes - hybrid steppers with encoders (e.g., Trinamic) bridge 60% of performance gaps at 40% servo cost

2. Why do servos outperform in high-inertia loads?

Servo drives automatically compensate for load inertia through advanced algorithms

3. Which provides better vibration resistance?

Servo systems inherently dampen vibrations, while steppers require mechanical dampers
