To understand micro stepper motors, we first need to grasp standard stepper motors. These are electromechanical devices that translate electrical pulses into precise mechanical motion. Unlike standard DC motors, steppers move in distinct, controlled "steps." This step-by-step movement provides exceptional command over position, speed, and torque, making them indispensable for precision-critical applications like 3D printers, CNC machines, and automation systems.

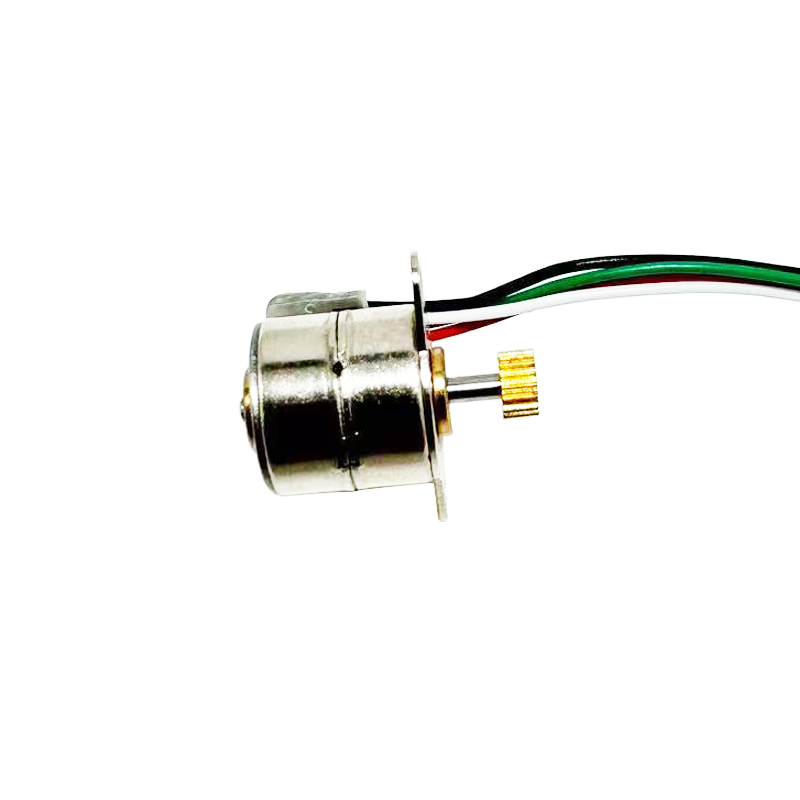

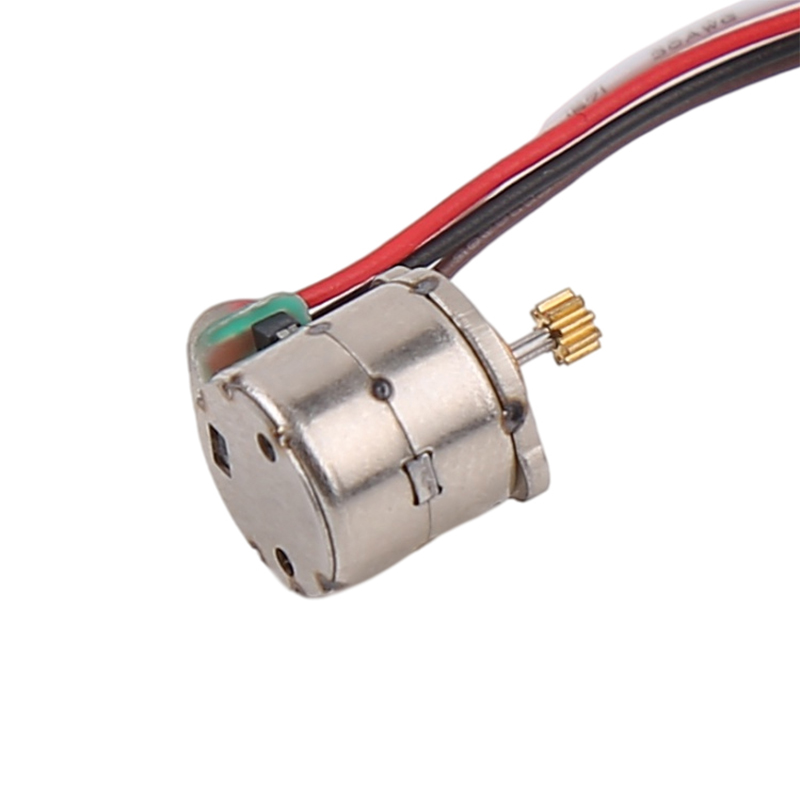

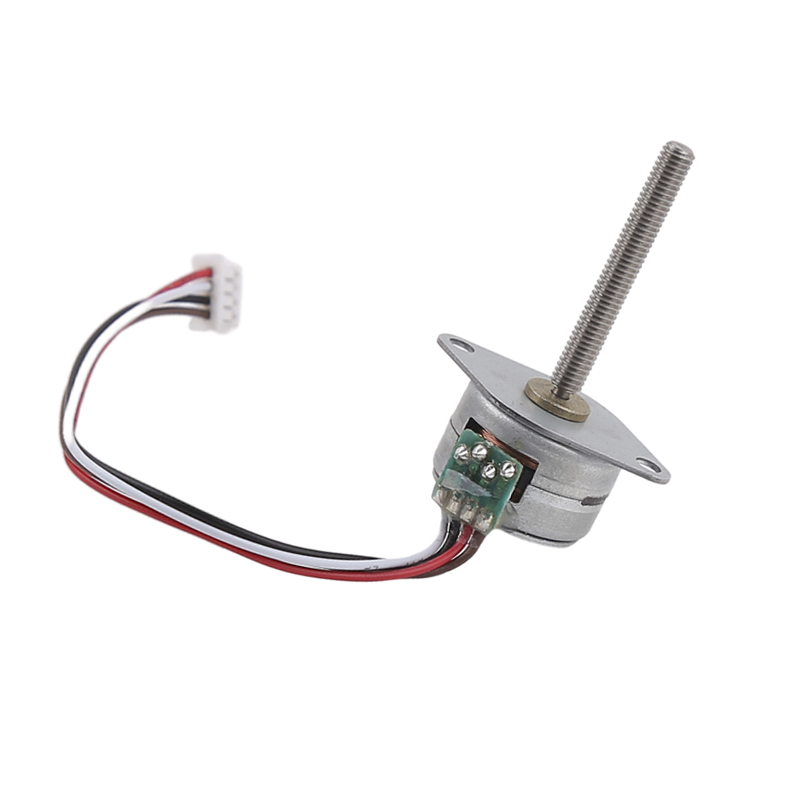

A micro stepper motor is a miniaturized version of its standard counterpart, delivering the same precision in a much smaller form factor. Typically under 20mm in diameter and weighing only a few grams, they are ideal for space-limited designs. Crucially, they retain the core advantages of traditional steppers:
Step-wise Motion Control: Offering precise angular movements (e.g., 1.8° or 0.9° per step).
High Torque Density: Significant torque output relative to their compact size.
Open-Loop Control: Operate effectively without needing feedback sensors.
Microstepping Capability: Often incorporate technology to divide physical steps into smaller increments, enabling smoother motion and finer resolution.
Micro steppers function on the same core principles as standard steppers, but with miniaturization-optimized engineering:
Electromagnetic Coils: Multiple coils are arranged within the stator in specific phases.
Pulse Signals: A driver sends sequential electrical pulses to energize these coils.
Magnetic Interaction: The energized coils create magnetic fields that interact with the rotor's permanent magnets, causing rotational movement.
Microstepping: By carefully modulating the current flowing through the coils, the motor achieves fractional steps between its full physical step positions, enabling ultra-fine positioning.
For instance, a motor with a 1.8° full step can achieve a resolution of 0.007° using 256 microsteps – a level of precision vital for tasks like camera lens focusing or precise fluid dispensing in medical pumps.
Micro steppers offer distinct benefits over other motor types in compact applications:
Precision & Accuracy: Microstepping minimizes vibration and enables sub-degree positioning, essential for lab equipment, optics, and micro-robotics.
Compact & Lightweight: Their small size and weight allow seamless integration into portable devices, wearables, and drones.
Energy Efficiency: Low power consumption and minimal heat generation extend battery life in wireless applications.
Cost-Effective Control: Open-loop operation eliminates the expense of encoders or feedback sensors.
High Low-Speed Torque: Maintain consistent torque even at slow speeds, suitable for valve control or precise conveyors.
These miniature powerhouses drive innovation across diverse sectors:
Medical Devices: Insulin pumps, ventilators, surgical robots (precise fluid handling and movement).
Consumer Electronics: Smartphone camera autofocus, gaming controller vibration, disc drives.
Industrial Automation: Miniature conveyors, sorting systems, CNC tool adjustments.
Robotics: Joints and grippers in micro-robots for delicate assembly (e.g., circuit boards).
Aerospace: Satellite antenna positioning, drone gimbal stabilization.
Key selection factors include:
Step Angle: Smaller angles (e.g., 0.9°) provide higher resolution.
Torque Requirements: Ensure sufficient torque for the application load.
Voltage & Current Ratings: Must align with the available power supply.
Environmental Conditions: Consider sealed (waterproof/dustproof) models for harsh environments.
Driven by demands for smarter, smaller, and more efficient systems, micro stepper motors are evolving:
Integrated Drivers: Motors with built-in drivers for simplified "plug-and-play" integration.
IoT Connectivity: Enabling remote monitoring, control, and diagnostics within smart factories.
Advanced Materials: Use of lighter, stronger materials like carbon fiber composites.
The micro stepper motor combines precision engineering with compact design, offering unparalleled motion control in miniature form. Whether developing advanced medical equipment or optimizing consumer gadgets, leveraging their precision, small footprint, energy efficiency, and microstepping capabilities unlocks new potential for innovation, pushing the boundaries of automation and accuracy.
