Energy efficiency comparison analysis: Which type of miniature stepper motor is more energy-efficient in battery powered portable devices?

In the design of battery powered devices such as portable medical equipment, wearable devices, and field equipment, power management directly determines the product's endurance and user experience. As the core moving component of these devices, the energy efficiency performance of micro stepper motors has become a key factor affecting the overall power consumption of the machine. Faced with various technological routes of micro stepper motors in the market, engineers urgently need to clarify: which type has more energy efficiency advantages in real battery powered scenarios?



1、 Core indicators for energy efficiency evaluation

To evaluate motor energy efficiency in battery powered equipment, it is necessary to establish a multidimensional evaluation system:



Key energy efficiency indicators:



Operating efficiency: the ratio of output mechanical power to input electrical power



Standby power consumption: power consumption when the motor remains in position



Starting current: the peak current demand of the motor from rest to operation



Voltage adaptability: Performance stability within the range of battery voltage fluctuations



Temperature coefficient: the degree to which temperature rise affects efficiency



Standardization of testing conditions:



Test environment: Room temperature 25 ℃, humidity 50%

Supply voltage: 3.7V (typical voltage of a single lithium battery)

Load conditions: 25%, 50%, 75%, 100% of rated torque

Operating modes: continuous operation, intermittent operation, and hold state

2、 Energy efficiency characteristics analysis of mainstream micro stepper motor technology

1. Permanent magnet stepper motor

Working principle: Utilizing the interaction between permanent magnet rotor and stator electromagnet

Energy efficiency characteristics:



Advantages: Simple structure, low cost, low power consumption when maintaining torque



Disadvantage: The operating efficiency is usually only 40-50%, and the efficiency decreases significantly at high speeds



Typical applications: Low power devices that are cost sensitive, such as micro printers and valve controls



2. Hybrid stepper motor

Working principle: Combining permanent magnet and variable magnetic resistance principle

Energy efficiency characteristics:



Advantages: High torque density, good step accuracy, and balanced efficiency across the entire speed range



Disadvantages: High manufacturing cost, magnetic eddy current loss leading to certain energy loss



Typical applications: Medical infusion pumps, precision instrument positioning



3. Variable reluctance stepper motor

Working principle: Based on the principle of minimum magnetic resistance, the rotor has no permanent magnets

Energy efficiency characteristics:



Advantages: Simple rotor structure, no magnet loss, theoretically high efficiency limit



Disadvantage: Requires more complex control algorithms and still requires power supply to maintain position



Typical application: Driving requirements in special environments



3、 Comparison and analysis of measured data

Efficiency torque characteristic test results:



Motor type 25% load efficiency 50% load efficiency 75% load efficiency peak efficiency

Permanent magnet stepper motor 35% 45% 48% 50%

Hybrid stepper motor 42% 55% 58% 60%

Variable reluctance stepper motor 38% 50% 52% 55%

Dynamic power consumption test (based on typical working cycle):

Motor type	25% load efficiency	50% load efficiency	75% load efficiency	peak efficiency
Permanent magnet stepper motor	35%	45%	48%	50%
Hybrid stepper motor	42%	55%	58%	60%
Variable reluctance stepper motor	38%	50%	52%	55%







Test cycle:

Start (0.5s) → Run at a constant speed (2s) → Hold (1s) → Stop (0.5s)

Test results:

-Permanent magnet type: average power consumption of 1.8W, peak current of 650mA

-Hybrid: Average power consumption of 1.5W, peak current of 550mA

-Variable magnetic reluctance: average power consumption of 1.6W, peak current of 600mA

4、 The impact of driving technology on energy efficiency

Traditional constant voltage drive:



Simple but inefficient, with high resistance loss



Suitable for applications that are extremely cost sensitive



Constant current chopper drive:



Efficiency improvement of 15-25%, currently the mainstream choice



More complex control circuits are needed



Microstep technology:



Reduce vibration losses and improve low-speed efficiency



But the driver chip itself increases static power consumption by about 5%



Advanced energy-saving technology:



Automatic standby mode: automatically reduces holding current when stationary



Dynamic current regulation: adjust the current in real-time according to the load



Resonance suppression algorithm: reducing energy loss caused by vibration



5、 Energy efficiency performance in different application scenarios

Scenario 1: Continuous operation of equipment (such as micro pumps)



Energy efficiency priority: operating efficiency>starting current>standby power consumption



Recommended choice: Hybrid stepper motor



Actual test data: In continuous 24-hour operation testing, the hybrid type saves 25% of electricity compared to the permanent magnet type



Scenario 2: Intermittent positioning equipment (such as portable detectors)



Energy efficiency priority: standby power consumption>operating efficiency>startup current



Recommended choice: Permanent magnet stepper motor with automatic current reduction function



Power saving technique: Set a reasonable current drop ratio (usually 30-50%)



Scenario 3: High dynamic response devices (such as handheld robots)



Energy efficiency priority: starting current>operating efficiency>standby power consumption



Recommended choice: Hybrid stepper motor with low rotor inertia



Optimization strategy: Adopting S-curve acceleration and deceleration to reduce peak current



6、 System level energy-saving strategy

Power management optimization:



Choose a high-efficiency DC-DC converter (efficiency>90%)



Dynamically adjust the power supply voltage according to the motor demand



Implement intelligent sleep mode to minimize standby power consumption to the greatest extent possible



Optimization of control algorithm:



c

//Example: Dynamic current adjustment algorithm

void adjust_current(int load_condition) {

switch(load_condition) {

case LIGHT_LOAD:

set_motor_current(30); //30% rated current

break;

      case MEDIUM_LOAD:

       set_motor_current(60); //60% rated current

      break;

     case HEAVY_LOAD:

        set_motor_current(100); //100% rated current

       break;

}

}

Mechanical transmission optimization:



Reduce friction losses and choose high-efficiency deceleration mechanisms



Optimize load matching to avoid "big horses pulling small cars"



Using lightweight materials to reduce motion inertia



7、 Actual case analysis

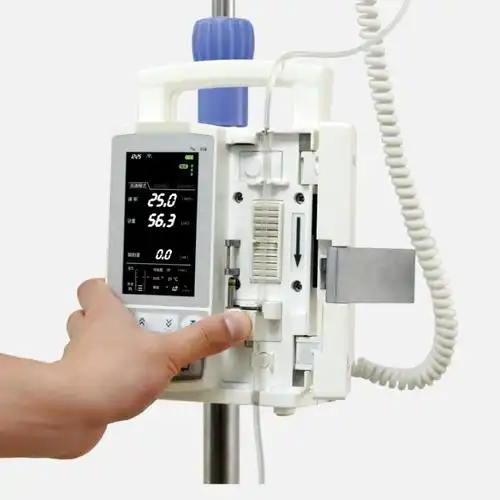

Case 1: Handheld Medical Injection Pump



Initial plan: Permanent magnet stepper motor, used for 8 hours on a single charge



Problem analysis: The power consumption for maintaining the state is too high, accounting for 40% of the total energy consumption



Improvement plan: switch to hybrid stepper motor+intelligent standby technology



Improvement result: Extended single charge usage time to 12 hours

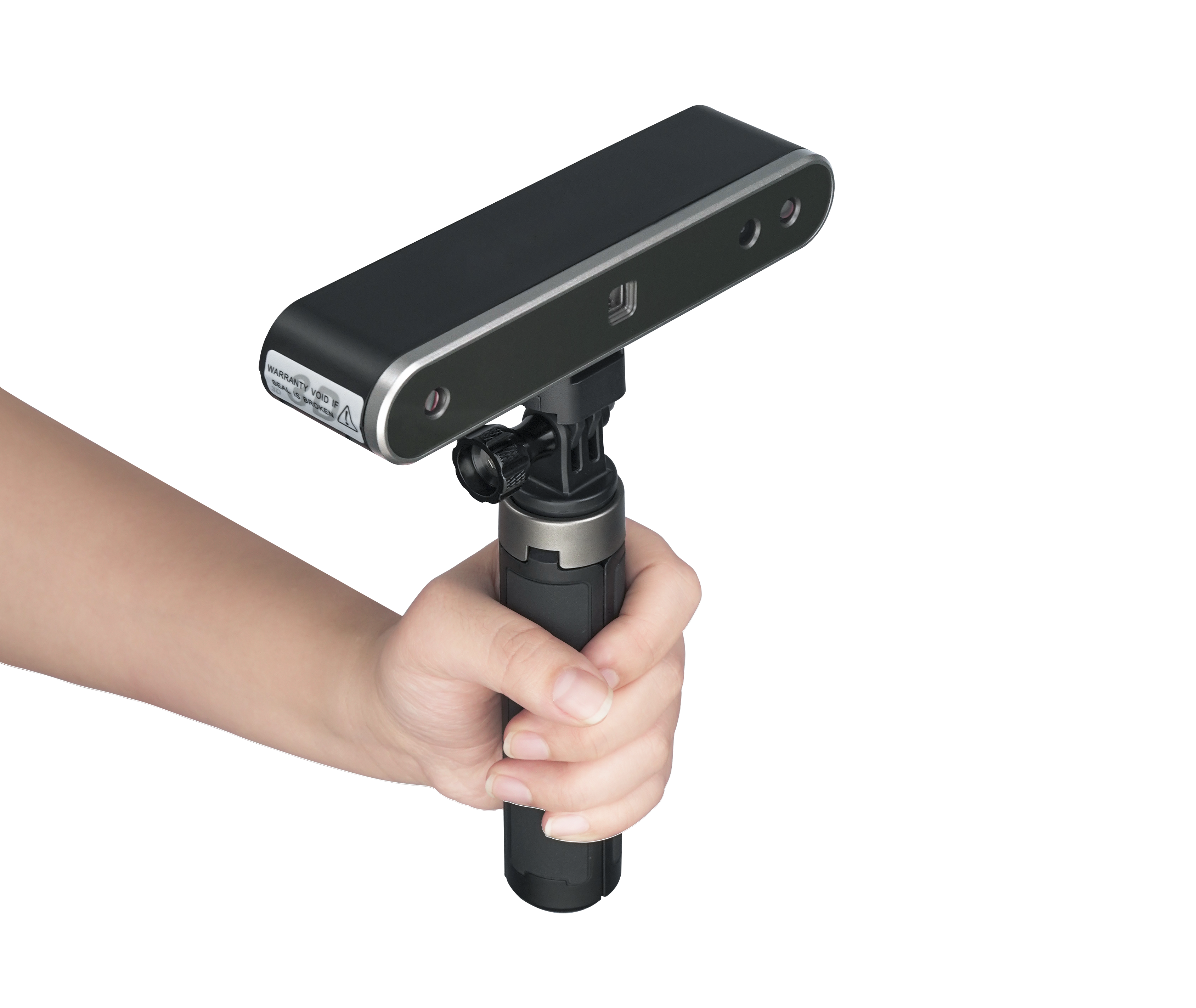

Case 2: Portable 3D Scanner



Initial plan: Traditional hybrid stepper motor, battery replacement required after 2 hours of operation



Problem analysis: Excessive peak current during acceleration process



Improvement plan: Optimize acceleration curve+choose low inductance motor



Improvement result: Working hours extended to 3.5 hours



8、 Future technological development trends

Application of new materials:



Amorphous stator core: reduces iron loss by 30-50%



High temperature superconducting winding: theoretically can significantly reduce copper loss



Nano crystalline soft magnetic materials: improving high-frequency characteristics



New structural design:



Axial magnetic field motor: improving power density and efficiency



Modular design: optimizing thermal management, indirectly improving efficiency



Integrated Drive: Reduce Line Losses



Intelligent control technology:



AI driven optimal control algorithm



Pre regulation technology based on load forecasting



Wireless Energy Management Collaboration



Conclusion and selection suggestions

After comprehensive energy efficiency comparison analysis, the following conclusions can be drawn:



Comprehensive ranking of energy efficiency:



Hybrid stepper motor: with the best comprehensive energy efficiency, especially suitable for high-precision and medium load applications



Variable reluctance stepper motor: with energy efficiency advantages under specific operating conditions, suitable for dynamic load applications



Permanent magnet stepper motor: with obvious cost advantages, suitable for price sensitive low-power applications



Selection decision matrix:



considerations	preferred choice	Key reasons
The budget is extremely limited	Permanent magnet type	The lowest cost，Meet basic energy efficiency requirements
Energy efficiency is the primary goal	hybrid	Balanced energy efficiency performance across the entire operating range
High frequency start stop application	Variable magnetic reluctance	No magnet loss, good dynamic response
Maintain position for a long time	Permanent magnet+intelligent current reduction	Maintain the state with the lowest power consumption



In the design of battery powered portable devices, motor selection needs to be finely evaluated based on specific application scenarios and work cycles. It is recommended that engineers establish an energy efficiency evaluation system at the beginning of the project, verify the true power consumption performance through prototype testing, and select the most suitable micro stepper motor solution to gain a competitive advantage for the product.
