PM25S-024-278
Vic-Tech

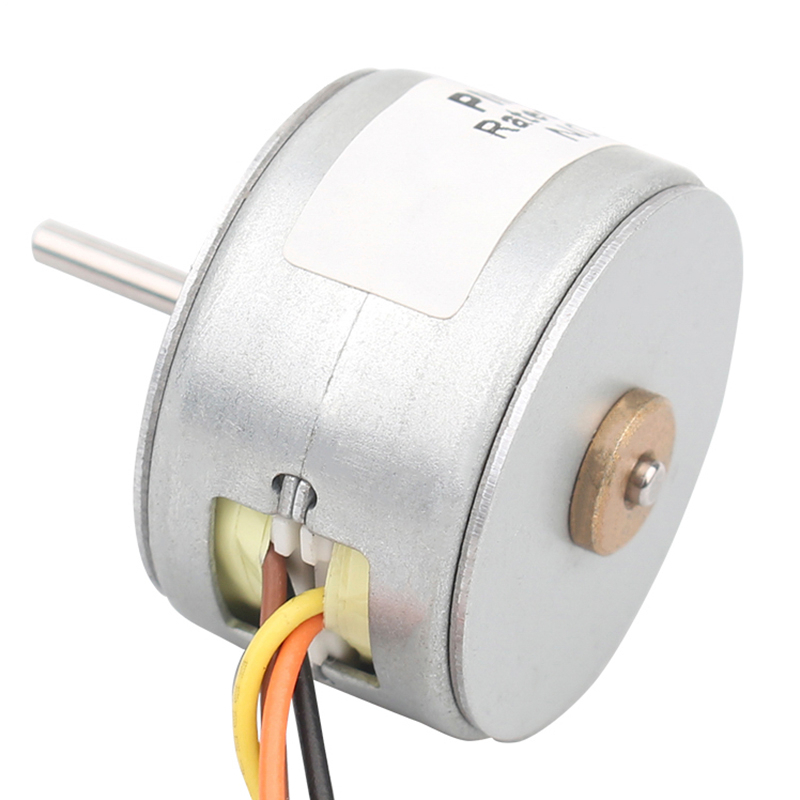

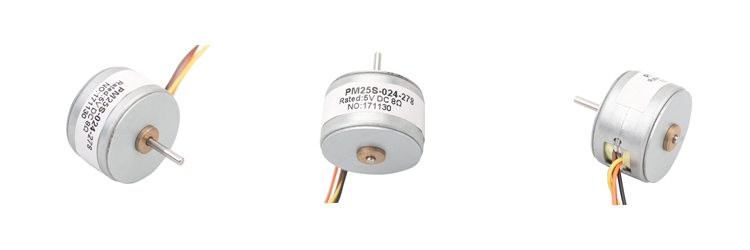

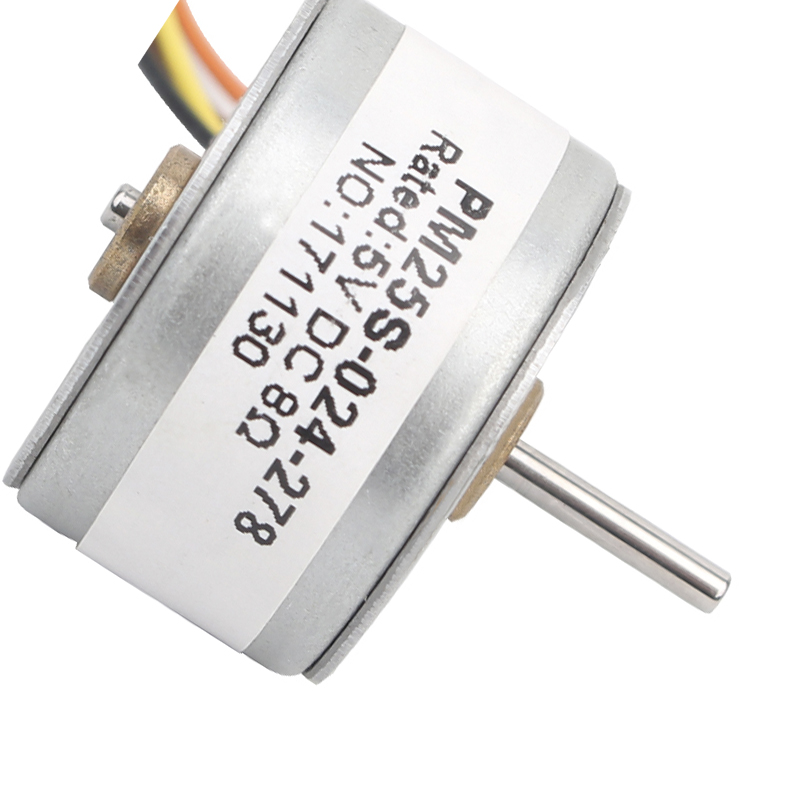

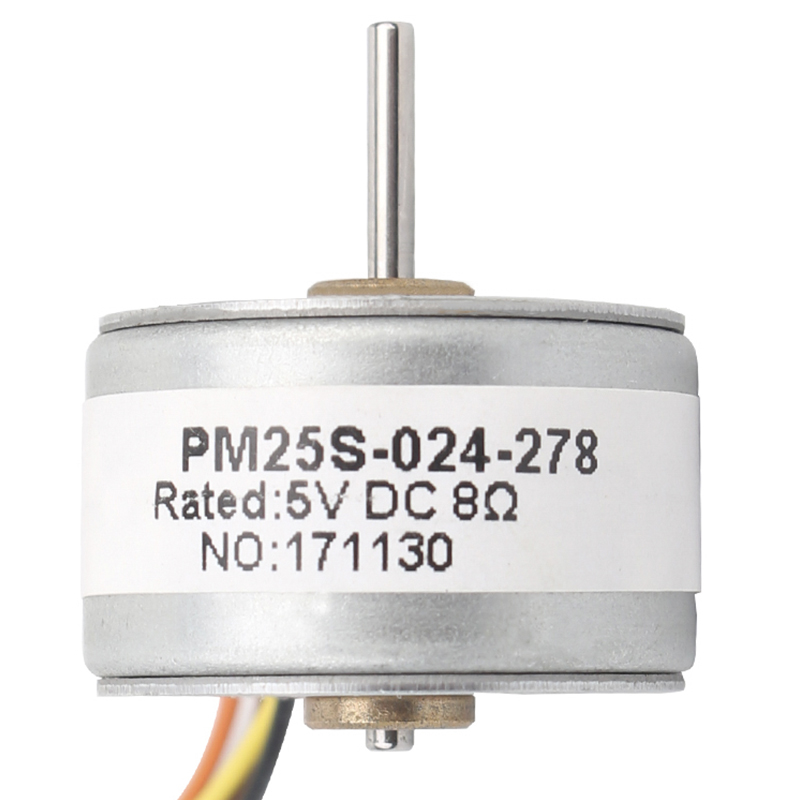

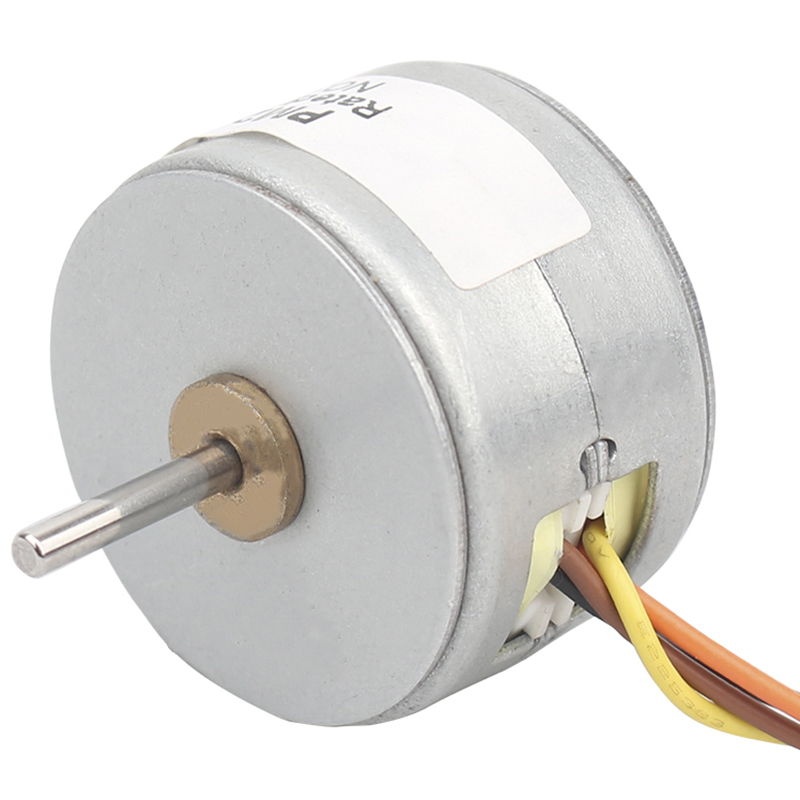

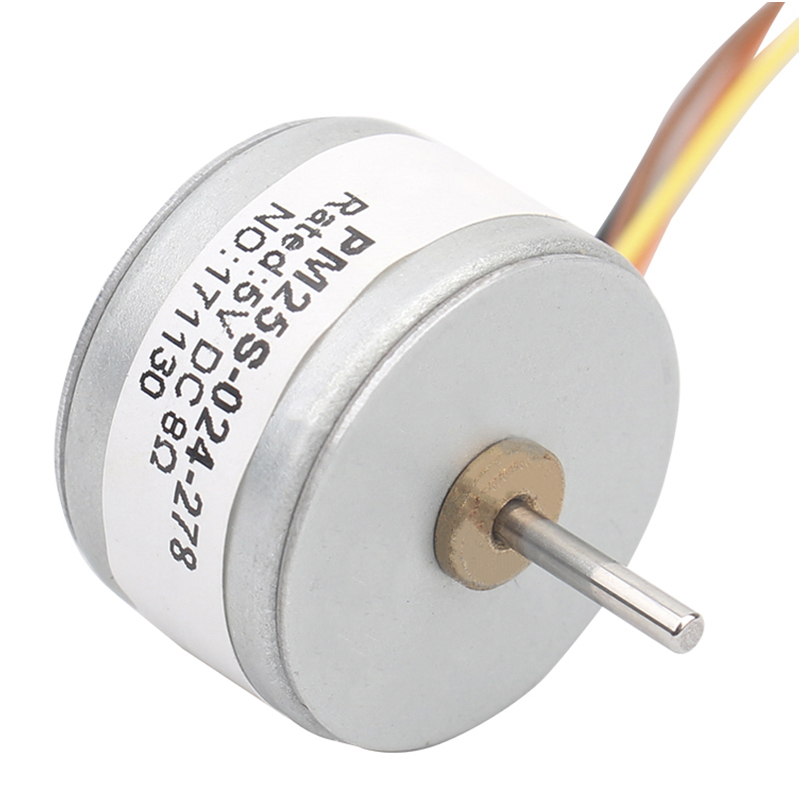

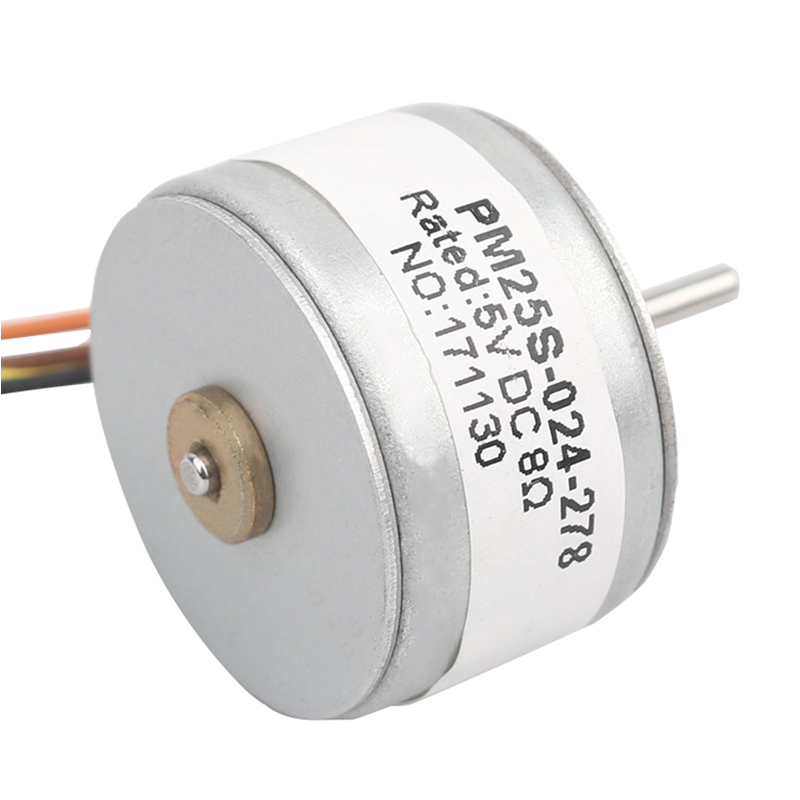

25mm Permanent magnet stepper motor
0.625A
5V DC
8Ω±10%
15°±7%
2 phases
1 unit
Rohs
Product Description

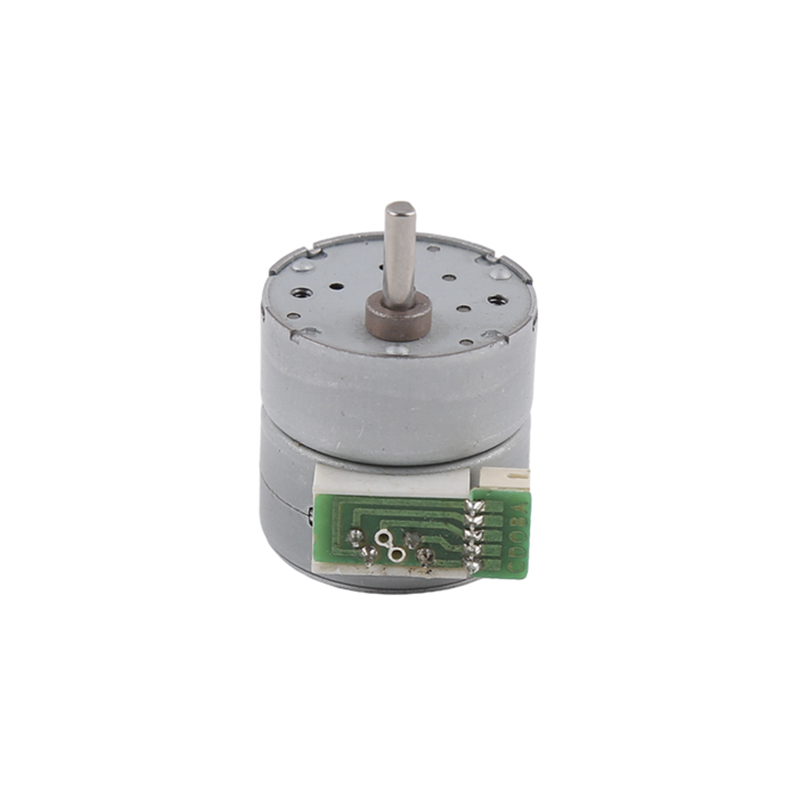

This motor is a 25mm diameter motor with a thickness of 16mm. The diameter of the motor's output shaft is 2mm.
The length can be customized according to the customer's needs. The motor's output shaft can be customized to install the screw rod and gear, D-axis, double flat shaft, etc., which can be customized according to the customer's installation needs For the installation of motor, the mounting plate with ears can also be produced.
Our team has more than 10 years experience in the design, development and production of stepper motor, so we can develop and design products according to the special needs of customers!
Parameters
Voltage | 5V DC |
No.of Phase | 2 Phase |
Step Angle | 15°±7% |
Winding Resistance（25℃） | 8Ω±10% |
Current phase | 0.625A |
Detent torque | ≤110g.cm |
Max Pull-in Rate | 300PPS |
Holding Torque | 120g.cm |
Pull-out Torque | 200pps/30g.cm |
Winding temperature | ≤65K |
Didlectric Strength | 600 VAC 1SEC 1mA |

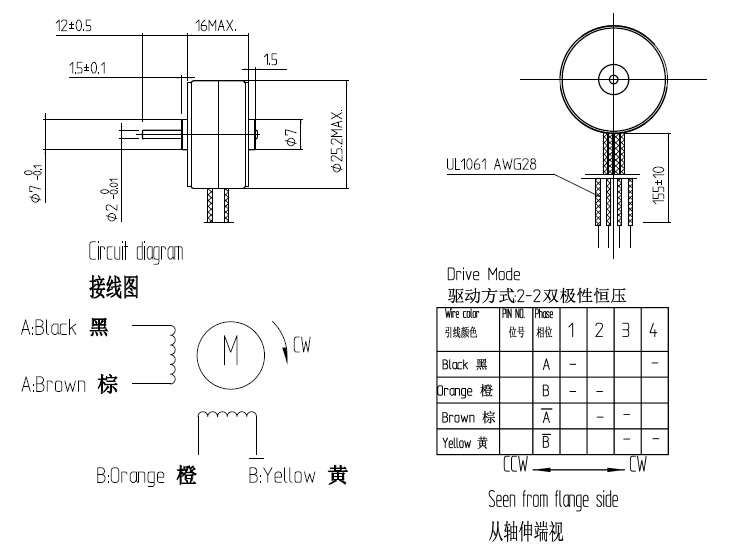

Design drawing
Customisable
Areas of application
Printer,Textile machinery,Industrial control,sanitary ware,thermostatic valve,hot water faucets,Automatic adjustment of water temperatureDoor locksAir conditioningWater purifier valve, etc.
Since steppers move in precise repeatable steps, they excel in applications requiring precise
positioning, by the number of steps the motor moves
Precise increments of movement also allow for excellent control of rotational speed for process
automation and robotics. The rotational speed is determined by the frequency of the pulses.
With control of the drive, the motor has lock function (there is current through motor windings, but
the motor does not rotate), and there is still a holding torque output.
The stepper motor has no brushes, and does not need to be commutated by brushes like a brushed
DC motor. There is no friction of the brushes, which increases the service life, has no electric sparks, and reduces electromagnetic interference.
The drive of the stepper motor is controlled by software. When the motor needs to rotate, drive will
apply the stepper motor pulses. These pulses energize stepper motor's in a specified order, thereby
causing the motor's rotor to rotate in a specified direction (clockwise or counter clockwise). So as to
realize proper rotation of the motor. Each time the motor receives a pulse from the driver, it will rotate by a step angle (with full-step drive), and the rotation angle of the motor is determined by the number of driven pulses and step angle.
