24BYJ48
Vic-Tech
Permanent magnet gearbox stepper motor
5-24
5.625°/64（1-2phase） 11.25°/64 (2-2phase)
2 phases
1 unit
Rohs
Product Description

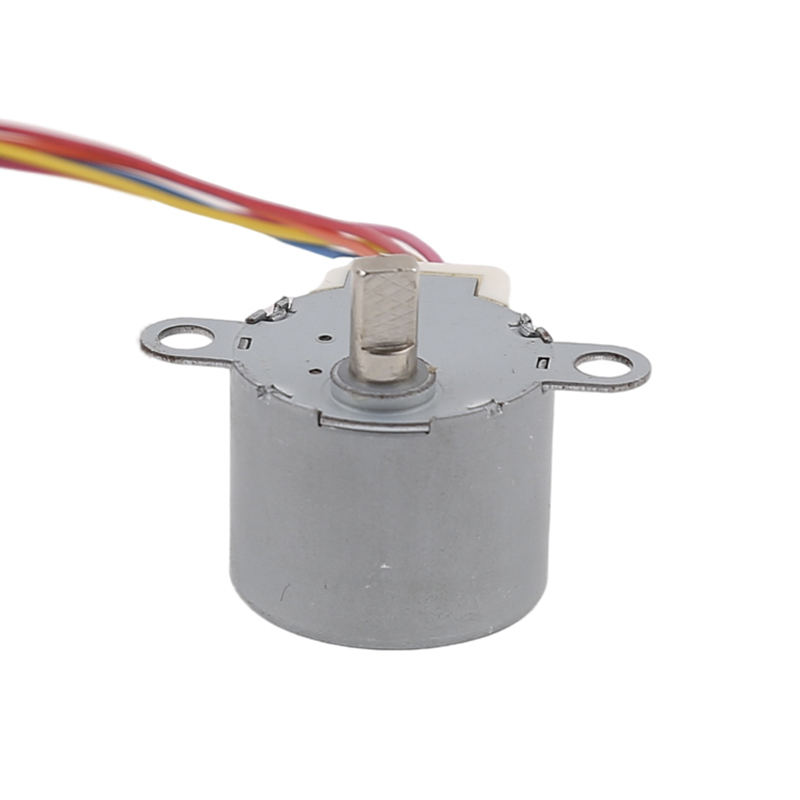

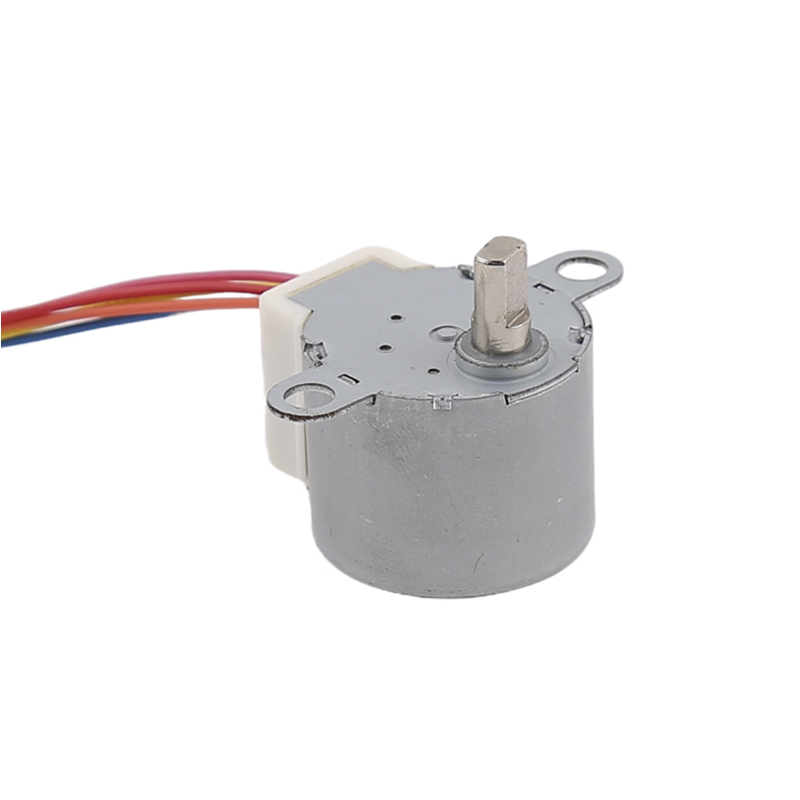

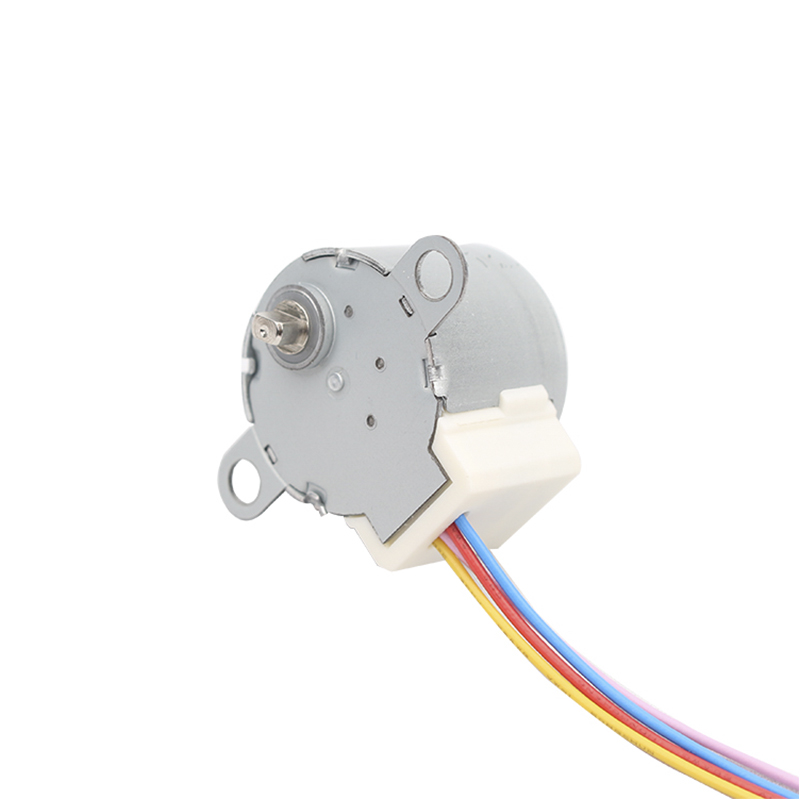

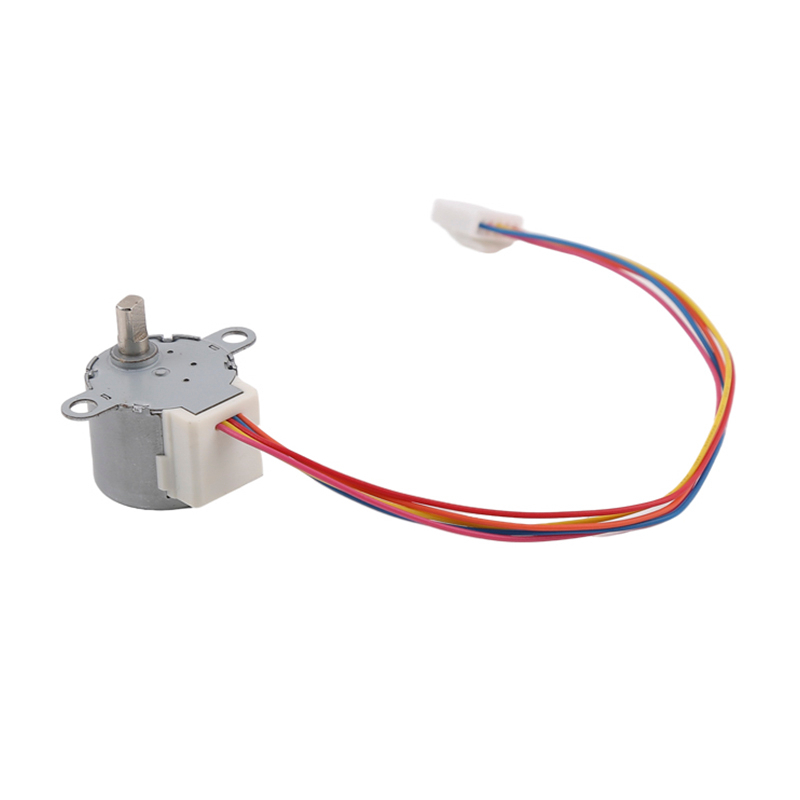

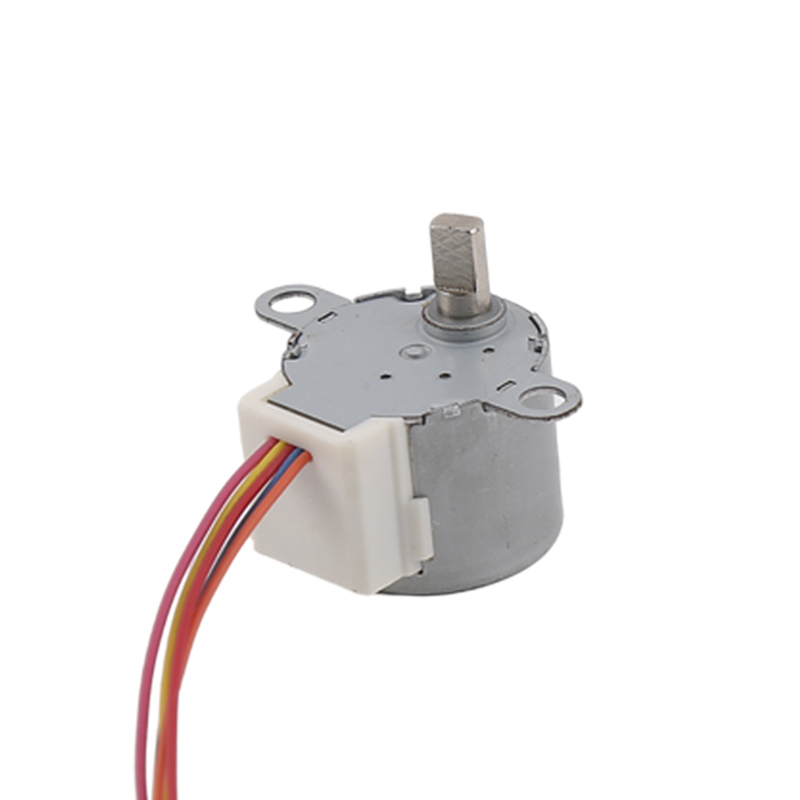

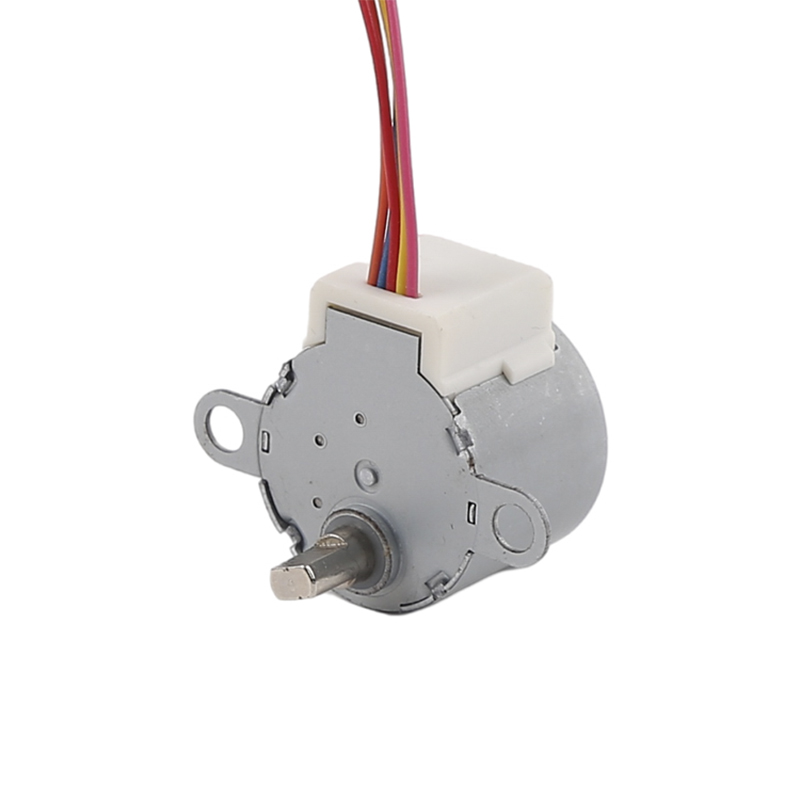

The 24BYJ48 is a 24 mm permanent magnet stepper motor with a gearbox on top.
The gearbox has gear ratios of 16:1,25:1,32:1,48.8:1,64:1,85:1 for you to choose from, depending on your speed and torque requirements.
The voltage of the motor is 5V~12V, and the motor can be excited by 1-2 phase or 2-2 phase according to your needs.
The conductor gauge is UL1061 26AWG or UL2464 26AWG for your choice.
This kind of motor is very common in all application industries because of its cheap price, especially in household appliances industry.
Also, other fields that require precise control can be realized. Due to the realization of open-loop control, low-cost position control is realized.
Parameters
Voltage (V) | Resistance（Ω） | Pull-in torque 100PPS(mN*m) | Detent torque(mN*m) | Unload pull-in Frequency(PPS) |
5 | 18 | ≥98 | ≥29.4 | ≥500 |
12 | 60 | ≥117 | ≥29.4 | ≥500 |
12 | 70 | ≥68.7 | ≥29.4 | ≥500 |
24 | 200 | ≥68.7 | ≥29.4 | ≥500 |
24 | 300 | ≥58.8 | ≥29.4 | ≥500 |

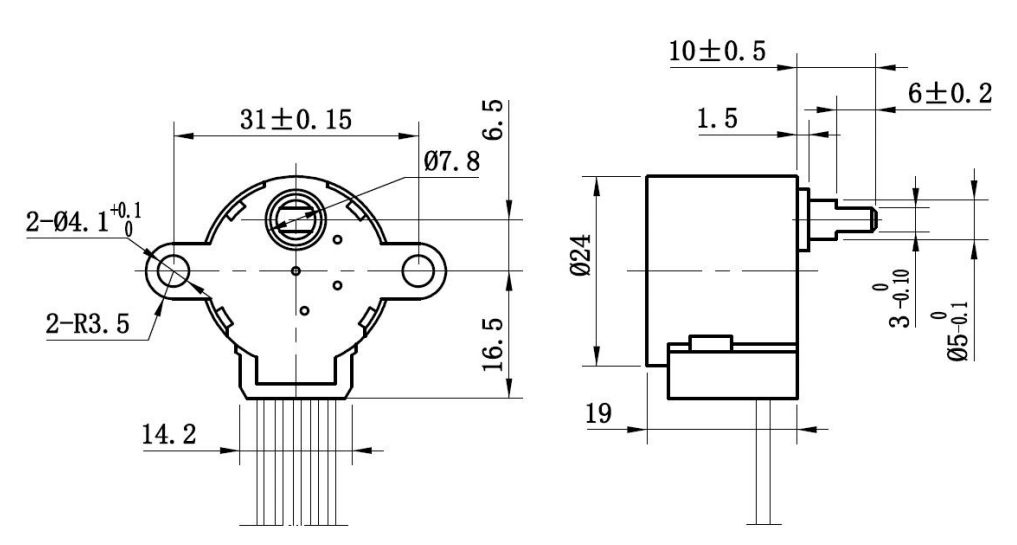

Design drawing

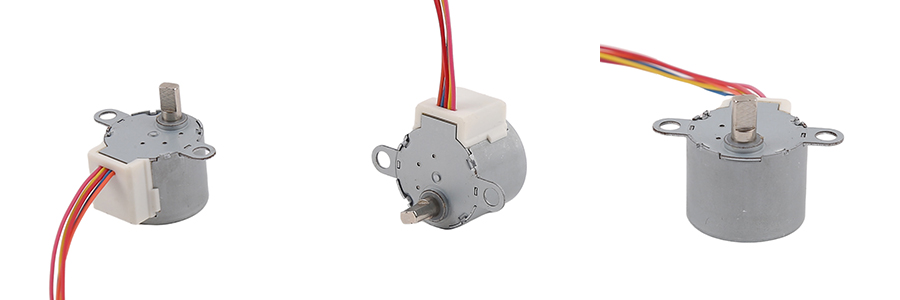

Customisable
Areas of application
The drive of the stepper motor is controlled by software. When the motor needs to rotate, drive will
apply the stepper motor pulses. These pulses energize stepper motor's in a specified order, thereby
causing the motor's rotor to rotate in a specified direction (clockwise or counter clockwise). So as to
realize proper rotation of the motor. Each time the motor receives a pulse from the driver, it will rotate by a step angle (with full-step drive), and the rotation angle of the motor is determined by the number of driven pulses and step angle.
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
On samples and air shipping , we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
Yes, we are a manufacture, and we produces mainly stepper motors.
Our factory is located in changzhou, jiangsu. Yes, you are very welcome to visit us.
No, we don’t provide free samples. Customers won’t treat free samples fairly.
Customers pay for shipping cost. We will quote you shipping cost.
If you think you have cheaper/more convenient shipping method, we can use you shipping account.
We don’t have MOQ, and you can order only one piece sample.
But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.
We have over 20 years of experience in stepper motor industry.
We have developed many projects, we can provide full set customization from design drawing to production.
We are confident we can give you few advice/suggestions for your stepper motor project.
If you are worrying about confidential issues, yes, we can sign a NDA contract.
Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.
We do not produce drivers, we only produce stepper motors
