50BYJ46-6
Vic-Tech

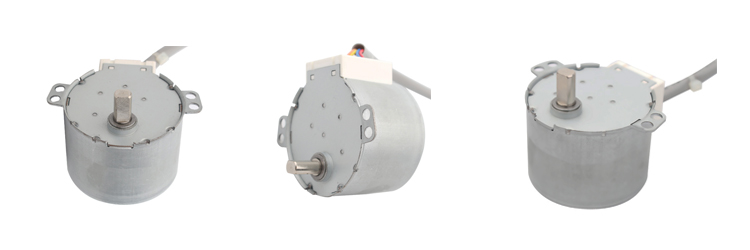

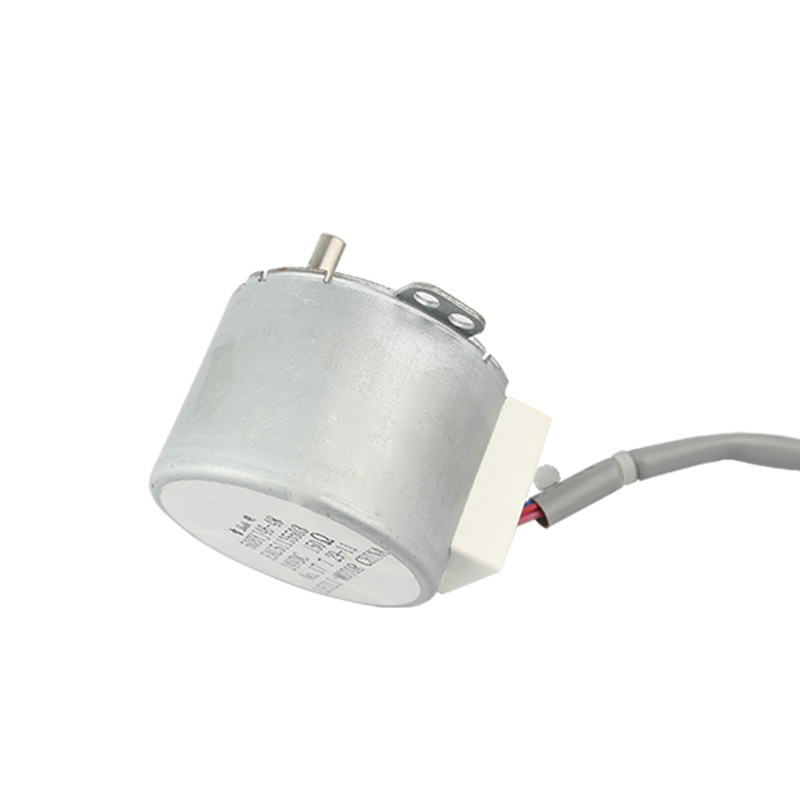

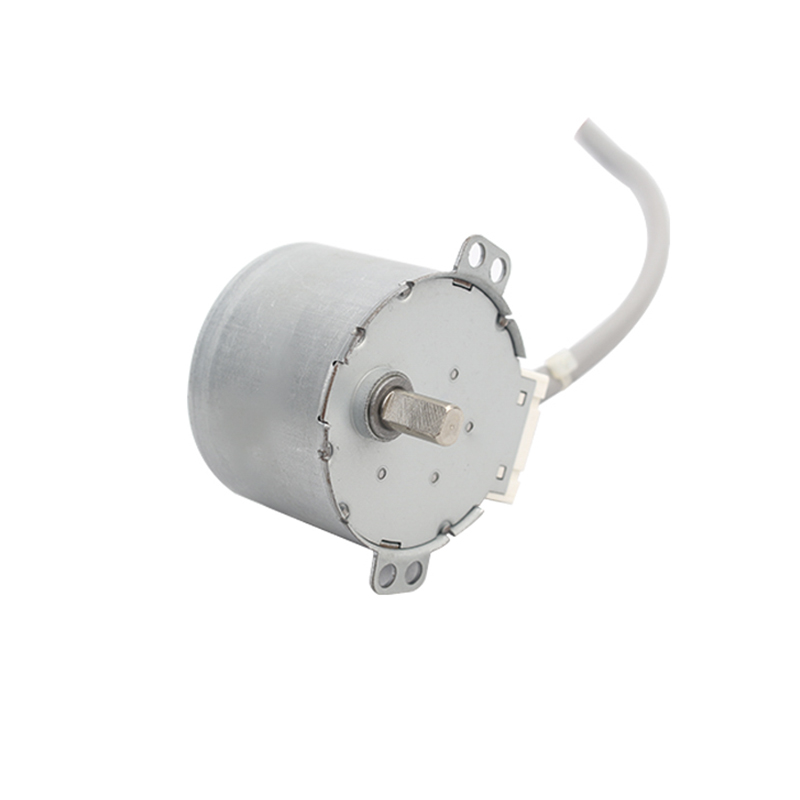

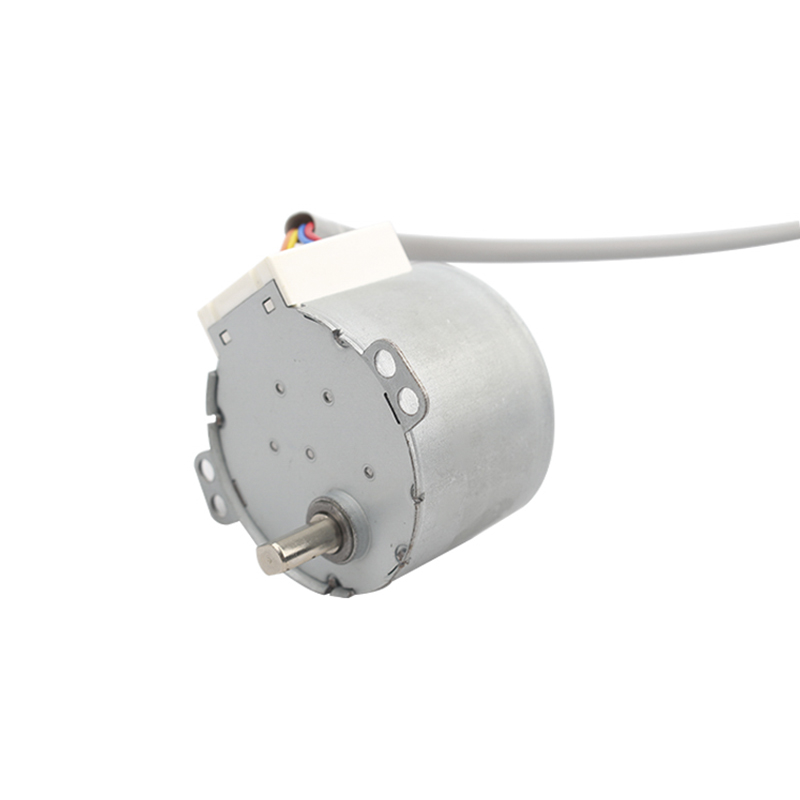

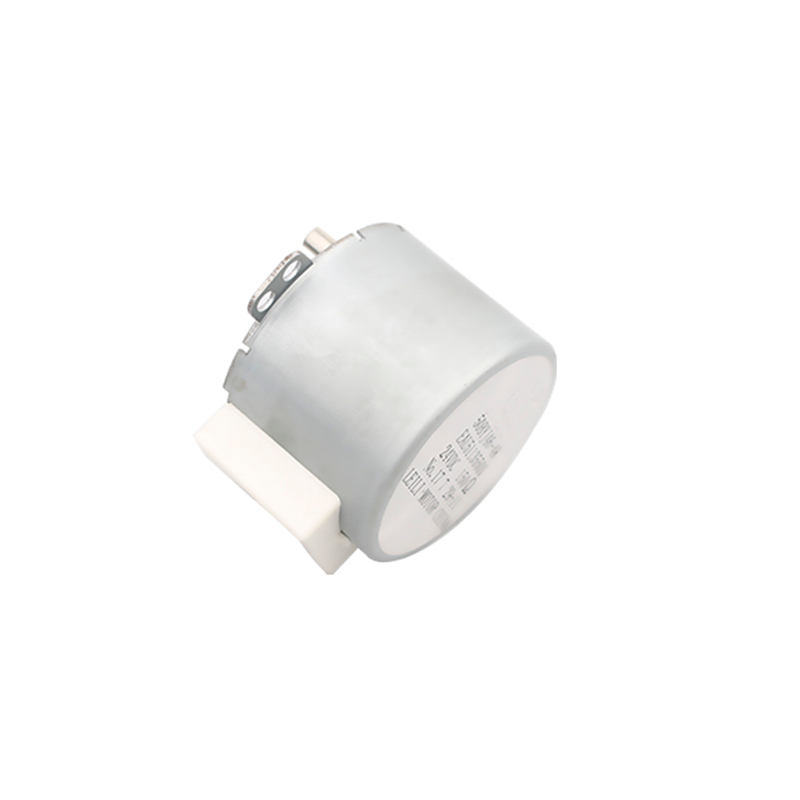

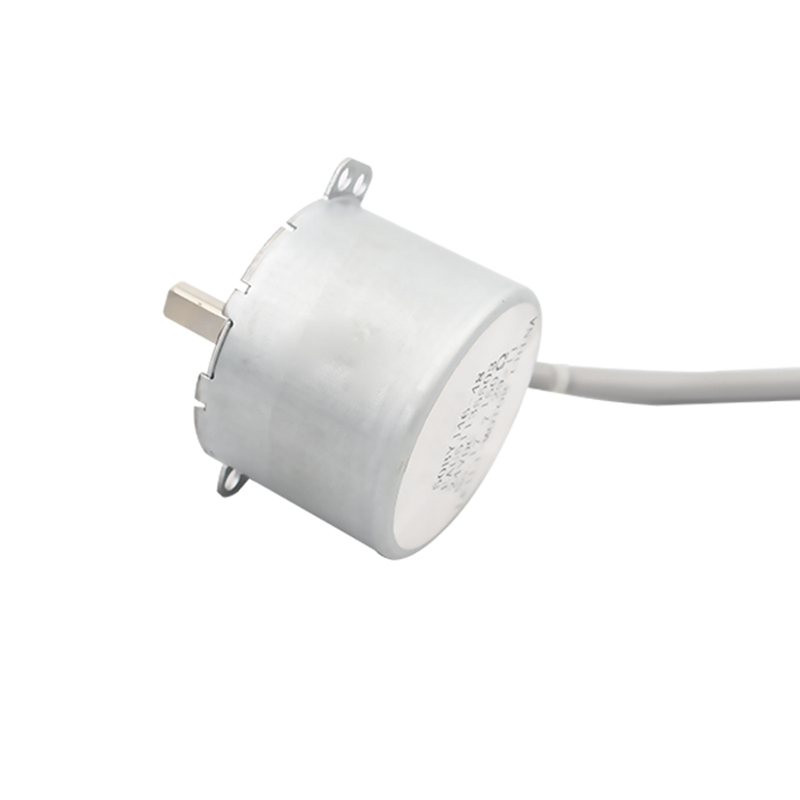

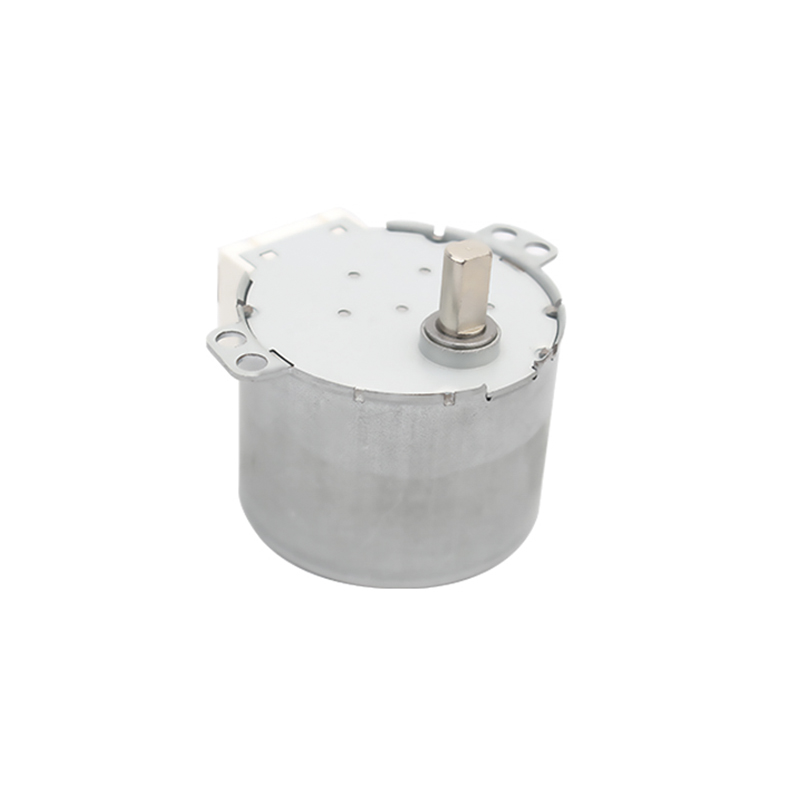

50mm Permanent magnet gearbox stepper motor
33.3:1, 43:1, 60:1, 99:1
12V
AVAILABLE
7.5°
2 phases
1 unit
Rohs
Product Description
50BYJ46 is a 50 mm diameter permanent magnet motor with gears, low noise permanent magnet stepper motor for saliva analyzer.
The motor has a gearbox gear ratio of 33.3:1, 43:1, 60:1 and 99:1, which can be selected by customers according to their requirements.
The motor is suitable for 12V DC drive, low noise, cheap and reliable performance, it has been widely used in various industry fields, and it is continuously produced every year, which makes the quality of this motor very stable and the price is much lower than other motors.
Common PM unipolar stepper motor driver is able to drive this kind of motor.
If you are interested, please feel free to contact us.
Parameters
Voltage (V) | Resistance（Ω） | Pull-in torque 100PPS(mN*m) | Detent torque (mN*m) | Unload pull-in Frequency(PPS) | Step angle (1-2phase) |
12 | 50 | ≥196 | ≥260 | ≥320 | 7.5°/33.3 |
12 | 40 | ≥200 | ≥260 | ≥350 | 7.5°/43 |
12 | 60 | ≥392 | ≥343 | ≥200 | 7.5°/60 |
12 | 70 | ≥550 | ≥600 | ≥200 | 7.5°/99 |

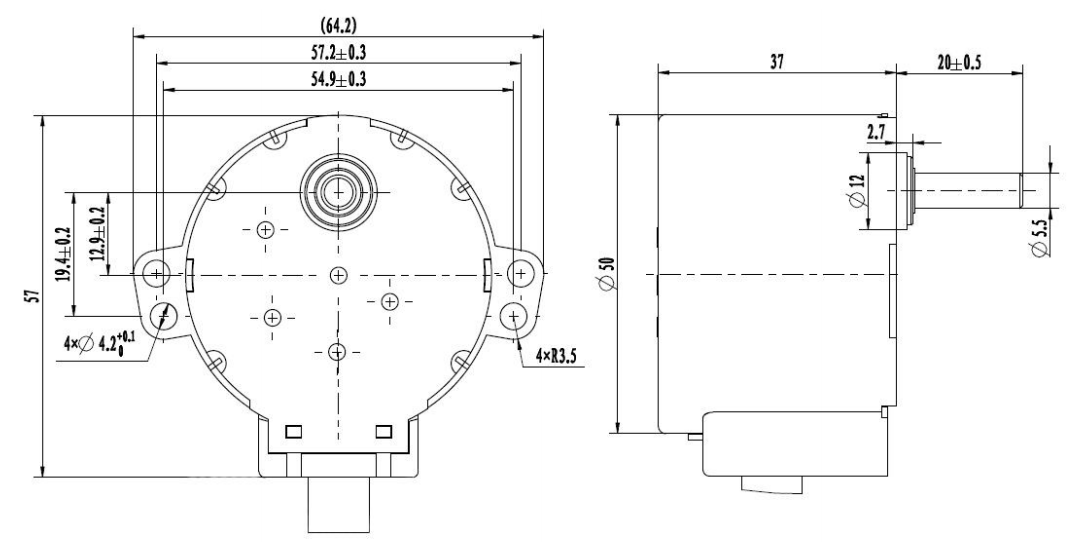

Design drawing
Customisable
Areas of application
Printer,Textile machinery,Industrial control,sanitary ware,thermostatic valve,hot water faucets,Automatic adjustment of water temperatureDoor locksAir conditioningWater purifier valve, etc.
Since steppers move in precise repeatable steps, they excel in applications requiring precise
positioning, by the number of steps the motor moves
Precise increments of movement also allow for excellent control of rotational speed for process
automation and robotics. The rotational speed is determined by the frequency of the pulses.
With control of the drive, the motor has lock function (there is current through motor windings, but
the motor does not rotate), and there is still a holding torque output.
The stepper motor has no brushes, and does not need to be commutated by brushes like a brushed
DC motor. There is no friction of the brushes, which increases the service life, has no electric sparks, and reduces electromagnetic interference.
The drive of the stepper motor is controlled by software. When the motor needs to rotate, drive will
apply the stepper motor pulses. These pulses energize stepper motor's in a specified order, thereby
causing the motor's rotor to rotate in a specified direction (clockwise or counter clockwise). So as to
realize proper rotation of the motor. Each time the motor receives a pulse from the driver, it will rotate by a step angle (with full-step drive), and the rotation angle of the motor is determined by the number of driven pulses and step angle.
