35HS
Vic-Tech

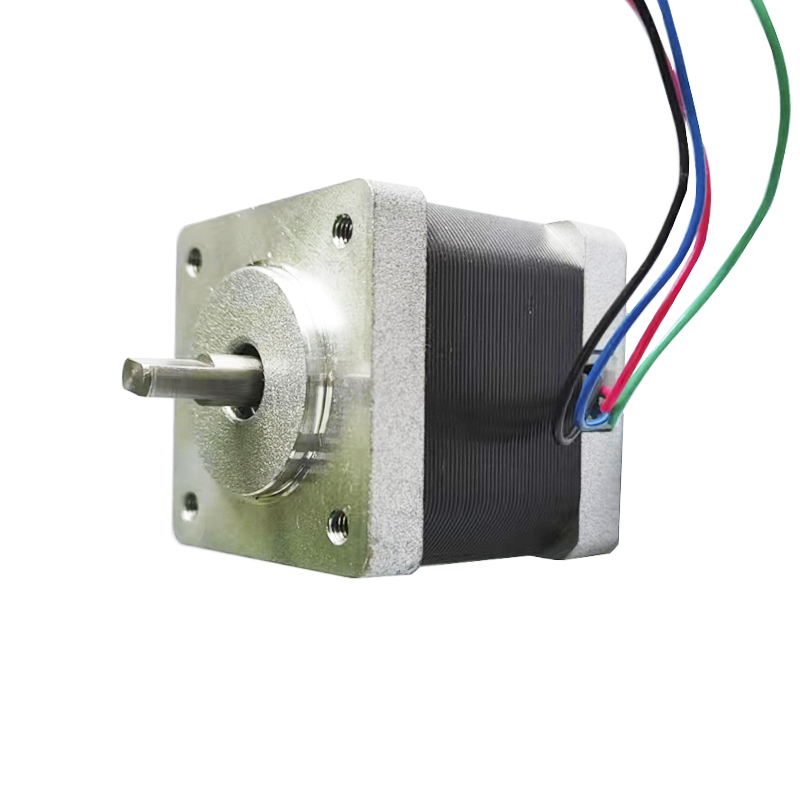

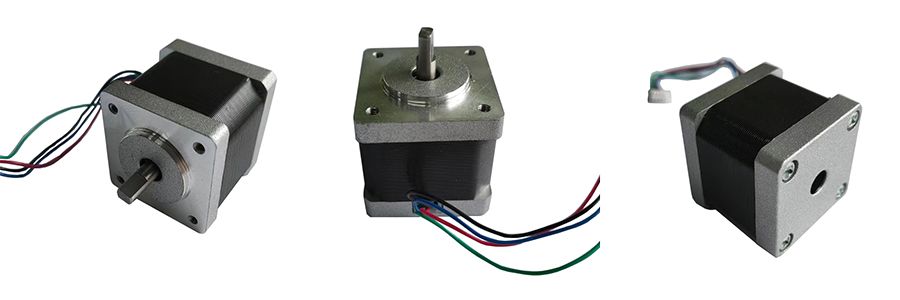

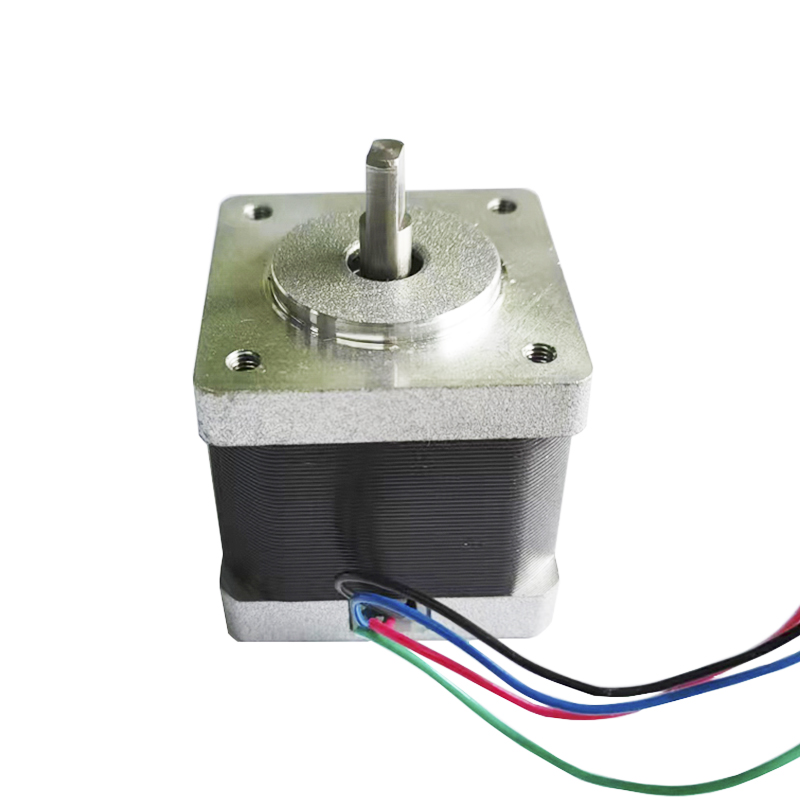

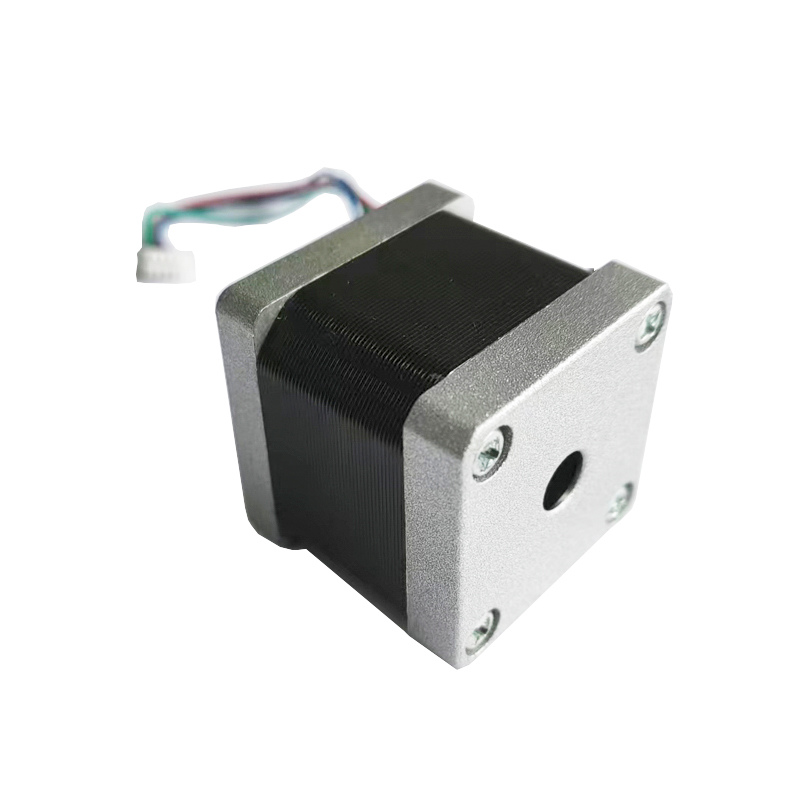

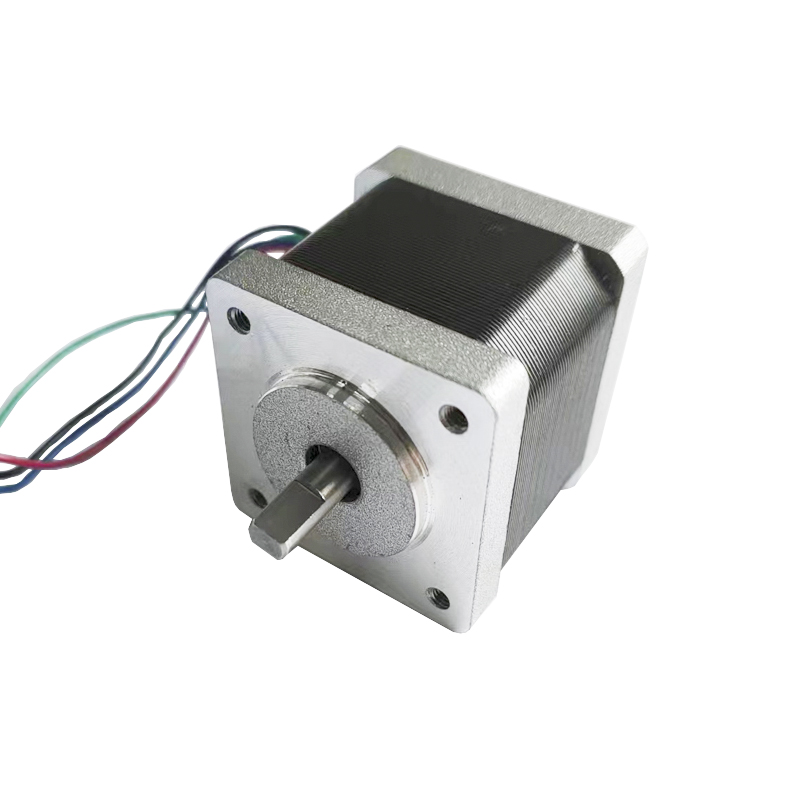

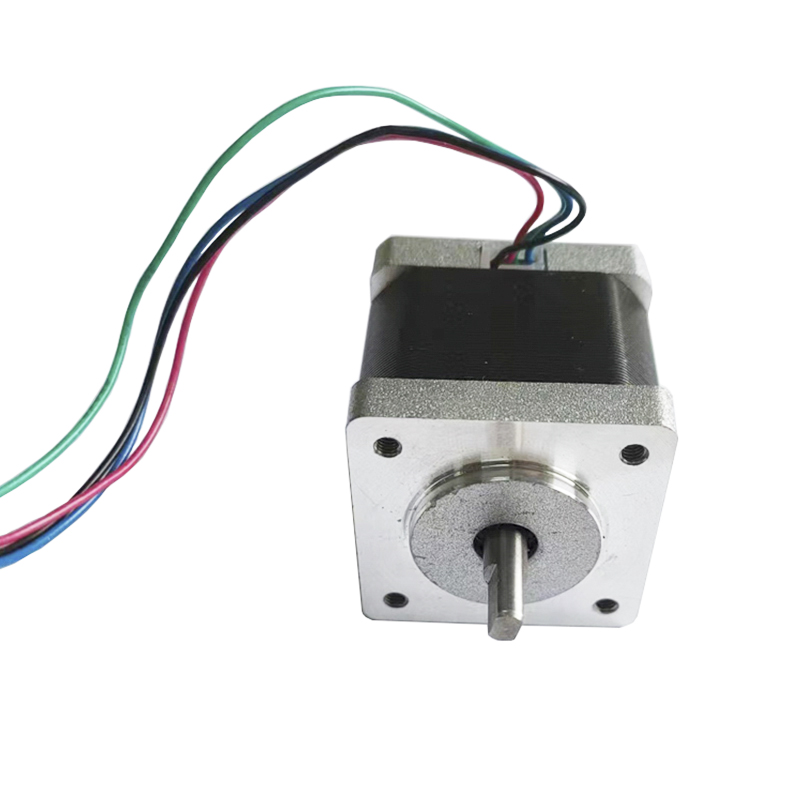

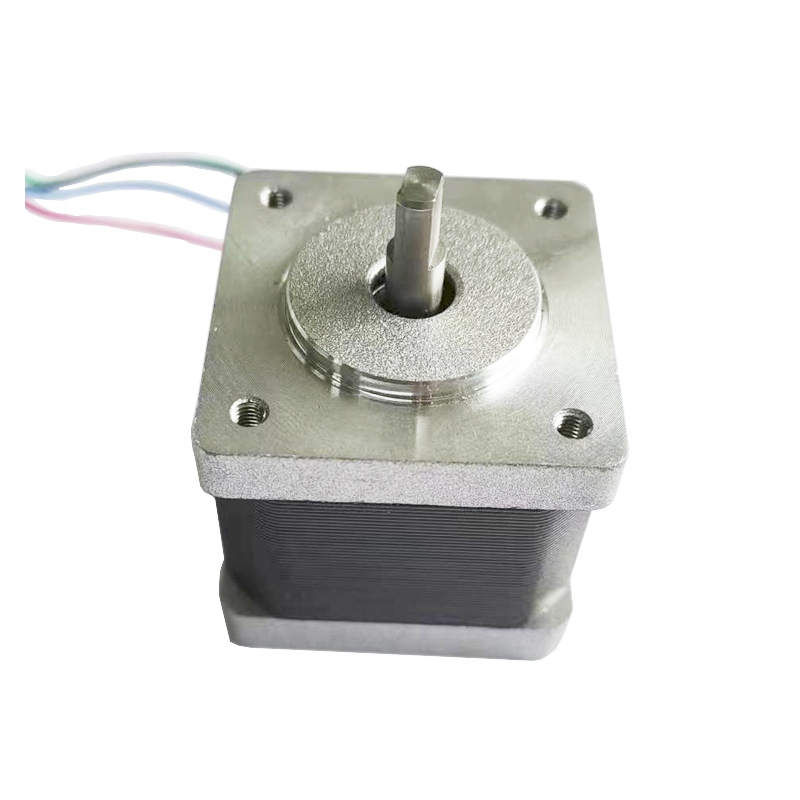

35mm NEMA14 Hybrid stepper motor
0.5~1A/phase
AVAILABLE
0.9 or 1.8 degree/step
2 phases (Bipolar)
1 unit
27~42mm
Rohs
Product Description
This is a planetary gearbox stepper motor 35mm (NEMA 14) square hybrid stepper motor.
The motor length for this product is generally between 27 and 42mm, special lengths can be customised. The longer the length, the higher the torque of the motor.
Hybrid stepper motors are generally square in shape and stepper motors can be identified by their distinctive external shape.
In addition, there are two options for the stepping angle of the motor: 0.9 degrees and 1.8 degrees.
The type of output shaft, our standard shaft is a D-shaft, this can be customised to suit the user's requirements.
The length of the lead wire and the type of connector can also be used with standard connectors, which can also be customised.
A hybrid stepper motor is available with a 1.8° step angle (200 steps/revolution) or 0.9° step angle (400 steps/revolution). or 0.9° step angle (400 steps/revolution). The stepping angle is determined by the number of teeth on the rotor blades.
It can also be fitted with a gearbox, which has different gear stages for different speed ratios and of course different lengths, the longer the length the lower the efficiency.
Parameters
Step Angle (°) | Motor length (mm) | Holding torque (g*cm) | Current /phase (A/phase) |
Resistance (Ω/phase) | Inductance (mH/phase) | No. of leads | Rotational inertia (g*cm2) | Weight (KG) |
0.9 | 27 | 1000 | 0.5 | 10 | 14 | 4 | 6 | 0.13 |
1.8 | 28 | 1000 | 0.5 | 20 | 14 | 4 | 11 | 0.13 |
0.9 | 34 | 1200 | 1 | 2 | 3 | 4 | 9 | 0.17 |
1.8 | 34 | 1400 | 1 | 2.7 | 4.3 | 4 | 13 | 0.17 |
0.9 | 40 | 1500 | 1 | 2 | 4 | 4 | 12 | 0.22 |
1.8 | 42 | 2000 | 1 | 3.8 | 3.5 | 4 | 23 | 0.22 |
Above parameters are standard products for reference, motor can be customized based on customer's requirement.

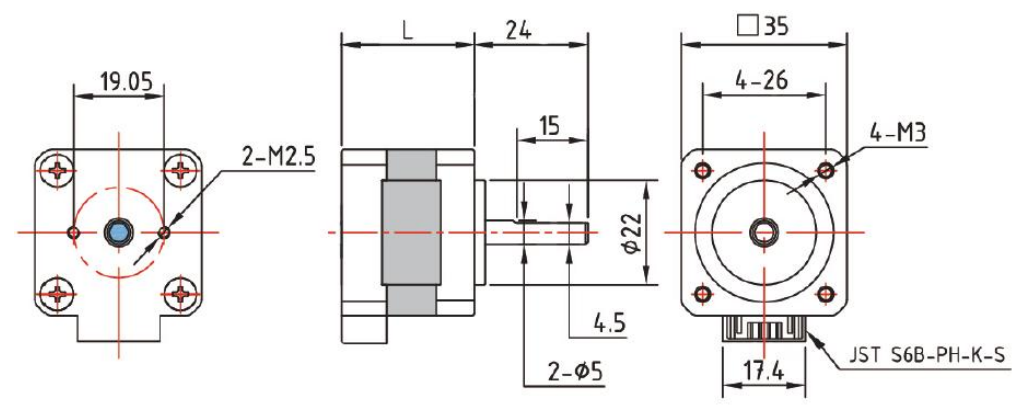

Design drawing
Customisable
Application
Due to high resolution of hybrid stepper motor’s (200 or 400 steps per revolution), they are widely used for applications requiring high precision, such as:3D printing、Industrial control(CNC, automatic milling machine, textile machinery)、Computer peripherals、Packing machine、And other automatic systems requiring high precision control.
If we have samples in stock, we can ship out samples in 3 days.
If we do not have samples in stock, we need to produce them, production time is about 20 calendar days.
For mass production, lead time depends on order quantity.
For samples, in general we accept Paypal or alibaba.
For mass production, we accept T/T payment.
For samples, we collect full payment before production.
For mass production, we can accept 50% pre-payment before production, and collect the rest 50% payment before shipment.
After we cooperate order more than 6 times, we could negotiate other payment terms such as A/S (after sight).
