35HS-PG
Vic-Tech
35mm NEMA geared stepper motor
AVAILABLE
1.8°/gear ratio
2 phases (Bipolar)
1 unit
Rohs
Product Description

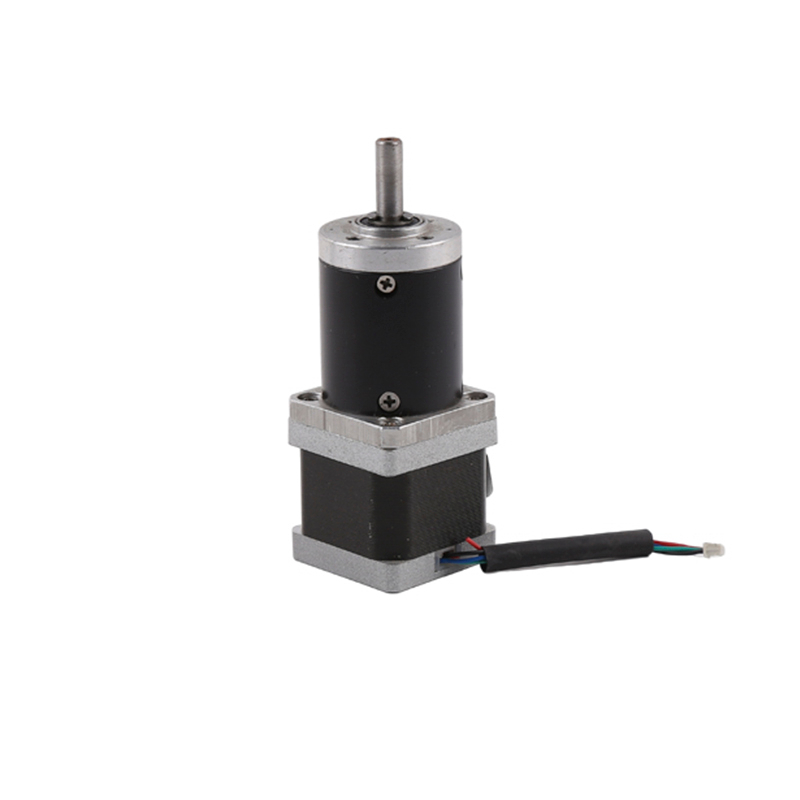

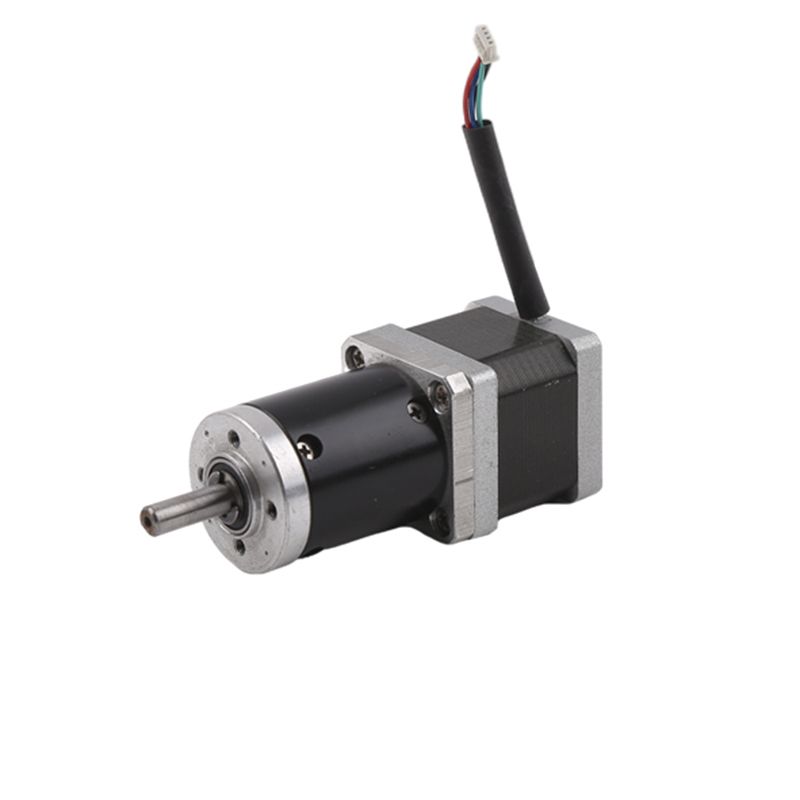

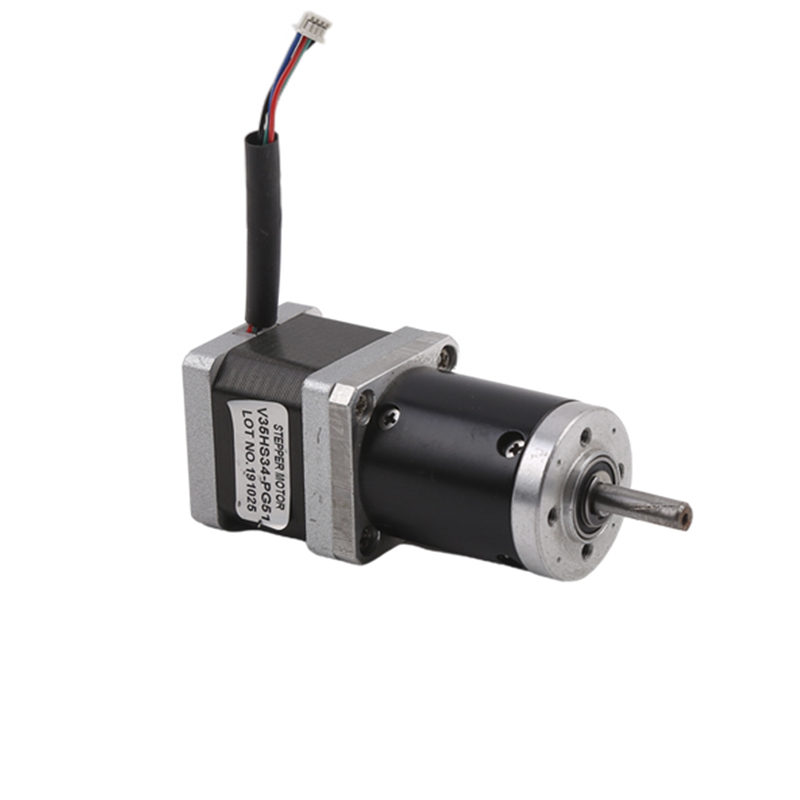

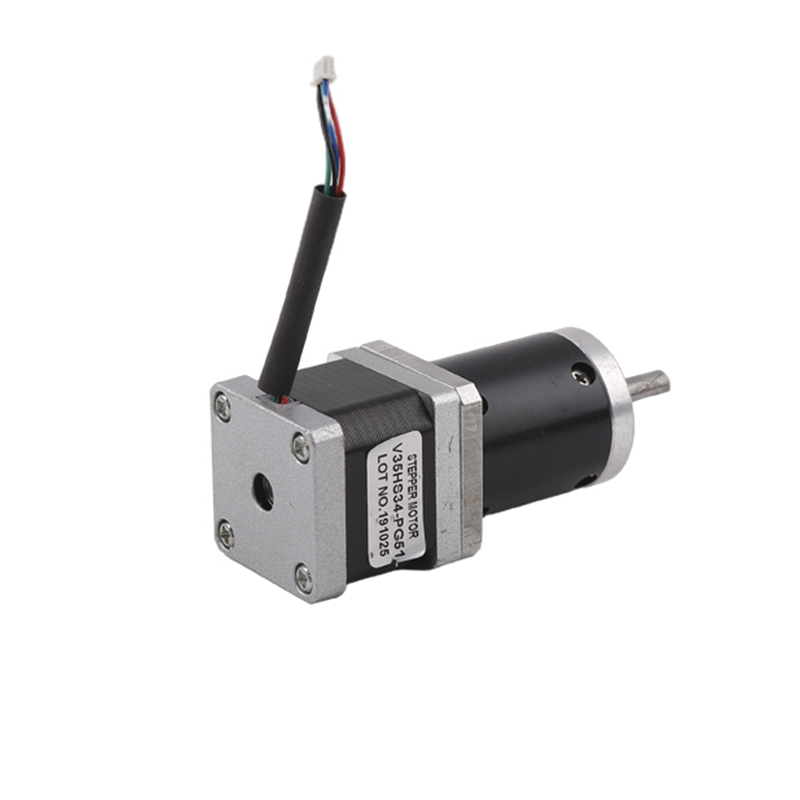

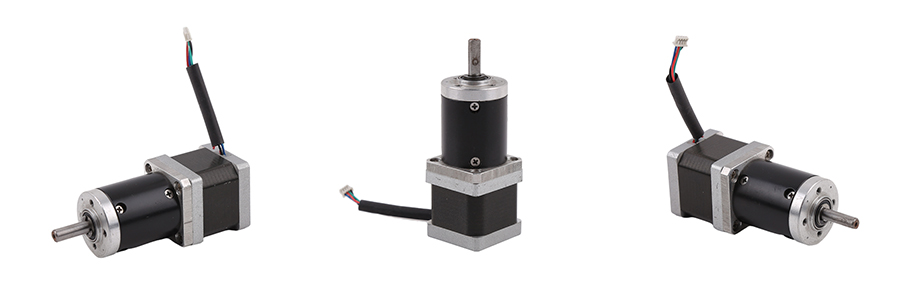

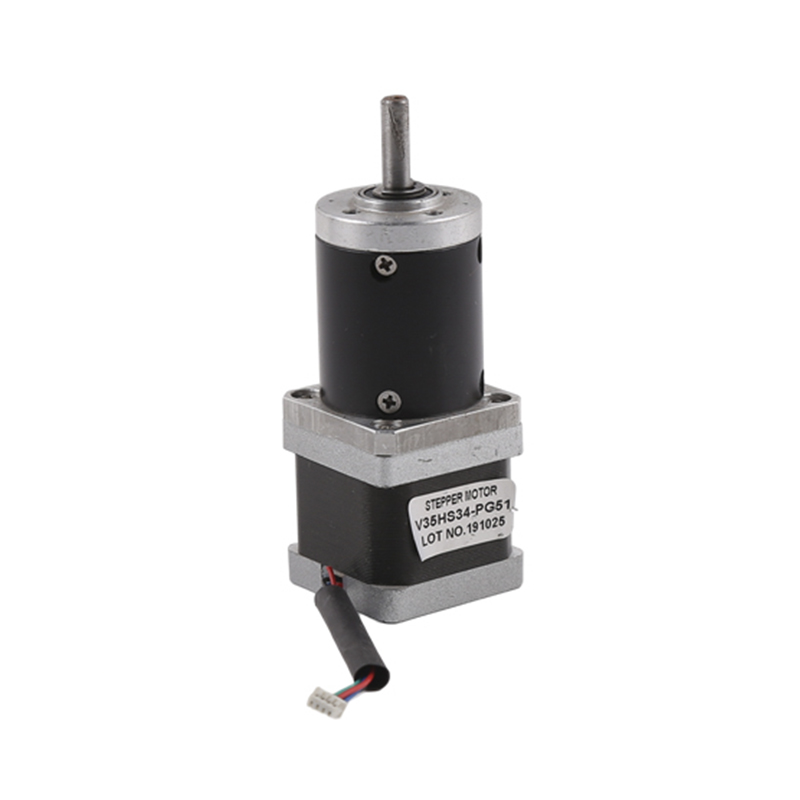

This is a high precision planetary gearbox stepper motor which is assembled from a range of 35mm (NEMA14) square hybrid stepper motors and cylindrical planetary gearboxes.
Motor lengths for this product generally range from 32.4 to 56.7mm, and special lengths can be customised. The longer the length, the higher the torque of the motor.
In addition, there are two options for the stepping angle of the motor. 0.9 degrees and 1.8 degrees, with the more common stepping angle being 1.8 degrees.
Reduction gearboxes are also available in many different speed ratios from 3.71 to 3729.5. Reduction gearboxes with different speed ratios have different gear stages and of course different lengths, the longer the length the lower the efficiency.
As the efficiency of transmitting torque varies with the number of gear stages in the gearbox, the main factors such as assembly space, required speed and torque should be considered first when selecting a motor and gearbox.
When the motor meets all these specifications, it can be initially sized and then specific details such as exit connections and output shaft shape can be considered.
If you are interested in one of our products, please send me an e-mail message.
Parameters
Gear levels | Efficiency | Gearbox length | Optional gear ratio |
1 | 90% | 32.4 | 3.71:1, 5.181:1 |
2 | 80% | 37.2 | 13.761:1,19.221:1, 26.831:1 |
3 | 72% | 43.5 | 51:1, 71.30:1, 99.55:1, 138.99:1 |
4 | 65% | 50.4 | 189.45:1,264.52:1,369.32:1,515.66:1,719.98:1 |
5 | 58% | 56.7 | 981.35:1,1370.2:1, 1913.1:1,2671:1, 3729.5:1 |
Above parameters are standard products for reference, motor can be customized based on customer's requirement.

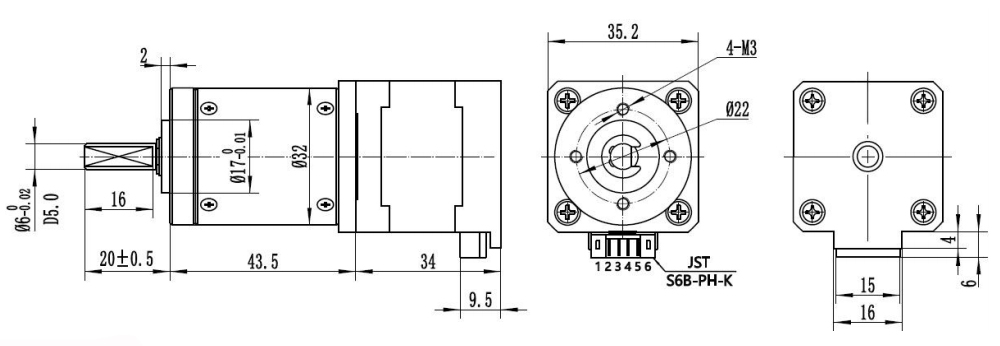

Design drawing
Customisable
Application
Due to high resolution of hybrid stepper motor’s (200 or 400 steps per revolution), they are widely used for applications requiring high precision, such as:3D printing、Industrial control(CNC, automatic milling machine, textile machinery)、Computer peripherals、Packing machine、And other automatic systems requiring high precision control.
If we have samples in stock, we can ship out samples in 3 days.
If we do not have samples in stock, we need to produce them, production time is about 20 calendar days.
For mass production, lead time depends on order quantity.
For samples, in general we accept Paypal or alibaba.
For mass production, we accept T/T payment.
For samples, we collect full payment before production.
For mass production, we can accept 50% pre-payment before production, and collect the rest 50% payment before shipment.
After we cooperate order more than 6 times, we could negotiate other payment terms such as A/S (after sight).
