Reliable motion starts with the right stepper motor. For FDM 3D printers, the motor must deliver precise positioning, stable torque, fast dynamic response, and consistent operation over long print cycles. Our NEMA Stepper Motor for 3D Printers is designed for these requirements, covering common NEMA17 and NEMA23 configurations for 3D printer manufacturers, wholesalers, maintenance suppliers, and DIY users.
With high positioning precision, low noise and vibration, pure copper windings, and stable long-time operation, these motors provide a practical motion solution for X, Y, Z, and extruder systems. As a factory-direct manufacturer, we also support OEM and ODM requirements for customers who need customized motor specifications or private-label supply.

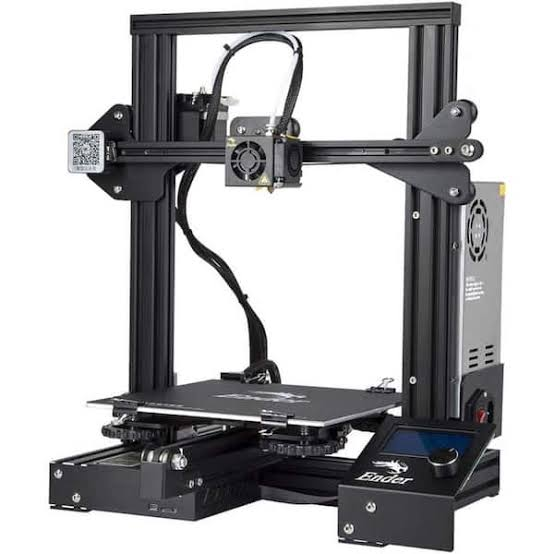

A 3D printer depends on controlled motion to produce accurate parts. The motors driving the print head, build platform, and extrusion mechanism must respond consistently to each control signal.
Poor motor performance can contribute to:
A properly selected stepper motor converts electrical pulse signals into controlled mechanical movement. This makes stepper motors a natural choice for FDM 3D printers, where repeatable positioning and relatively simple motion control are important.
Our High Precision 3D Printer Stepper Motor range is developed for applications that require stable movement without unnecessarily increasing system complexity.
We offer two commonly used motor size ranges for different 3D printer architectures and motion requirements.
Motor Type |
Typical Position in 3D Printer |
Key Considerations |
X/Y/Z axes, extruder systems |
Compact design, precise positioning, suitable for many desktop FDM printers |
|
NEMA23 Stepper Motor |
Larger printers and higher-load mechanisms |
Higher mechanical output requirements and larger machine structures |
The correct choice should be based on the actual load, acceleration, available installation space, transmission mechanism, and driver requirements rather than motor frame size alone.

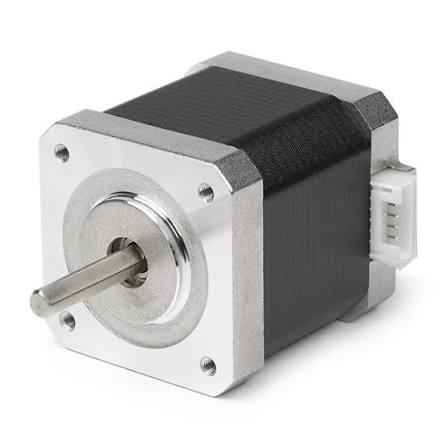

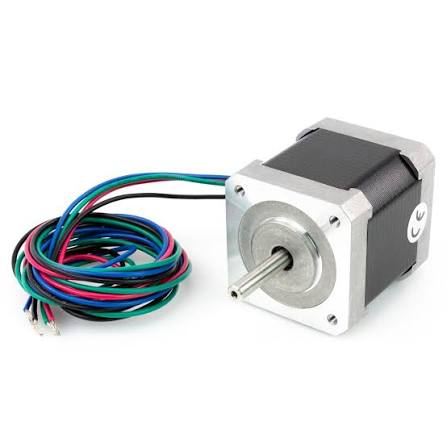

The 3D Printer NEMA17 Stepper Motor is widely used in compact and desktop FDM printer designs.
Its relatively compact form makes it suitable for motion systems where installation space and overall machine weight need to be controlled.
Typical applications include:
· X-axis movement
· Y-axis movement
· Z-axis movement
· Extruder drive systems
· Small CNC and desktop automation mechanisms
· DIY 3D printer projects
For manufacturers building standard FDM platforms, NEMA17 motors can provide a practical balance between motor size, positioning performance, and system integration.
The motor can also be matched with different transmission structures depending on the machine design, including belts, lead screws, and extrusion mechanisms.
For larger machines or mechanisms with higher mechanical requirements, a 3D Printer NEMA23 Stepper Motor can be considered.
Compared with smaller motor formats, NEMA23 is commonly selected when the motion system requires greater mechanical output and the printer structure provides sufficient installation space.
Potential applications include:
· Large-format FDM printers
· Heavy print-head mechanisms
· Larger Z-axis systems
· Industrial 3D printing equipment
· High-load motion platforms
· Customized automated equipment
The final motor selection should always be based on the actual torque, speed, acceleration, load, and transmission requirements of the printer.
3D printing requires controlled movement along multiple axes. Small positioning errors can accumulate into visible differences in the finished part.
Our stepper motors are designed to provide consistent incremental movement and responsive operation, helping the printer controller maintain accurate motion.
This makes them suitable for:
· X/Y axis positioning
· Z-axis lifting
· Extruder movement
· Automated calibration mechanisms
· Precision motion assemblies
For applications where positioning performance is critical, the motor should be selected together with the driver, transmission system, and mechanical structure.
Motor noise and vibration can affect the operating experience of desktop and professional 3D printers.
A Quiet 3D Printer Stepper Motor can help reduce unwanted mechanical noise and vibration when properly matched with the driver and motion system.
This is particularly useful for:
· Desktop 3D printers
· Office environments
· Educational laboratories
· Prototyping workshops
· Home maker spaces
Low vibration is also important because excessive mechanical vibration can influence print quality, particularly during rapid changes in direction or acceleration.
3D printing can involve extended operating cycles. A printer may run continuously for many hours depending on the model being produced.
For this reason, motor stability is an important consideration for both machine manufacturers and replacement-part suppliers.
Our motors use pure copper windings to support consistent electrical performance and stable operation.
When the motor is correctly matched to the driver, load, current setting, and operating conditions, it can provide reliable motion throughout extended printing cycles.
3D printers frequently change speed and direction during printing.
The motor therefore needs to respond effectively to changing pulse frequencies and motion commands.
Fast dynamic response is valuable for:
· Rapid acceleration and deceleration
· Direction changes
· Short-distance positioning
· Extruder movement
· High-frequency motion commands
The overall dynamic response of a 3D printer depends on the complete motion system, including the motor, driver, mechanical transmission, load, and control parameters.
The winding is one of the key electrical components inside a stepper motor.
Our 3D printer stepper motors use pure copper windings, supporting consistent electrical characteristics and reliable operation.
For B2B customers, winding material is also an important consideration when evaluating long-term supply quality.
A consistent motor construction helps manufacturers maintain more predictable performance across production batches and replacement orders.
The X-axis controls horizontal movement of the print head or tool assembly.
The motor must provide controlled positioning and responsive directional changes throughout the printing process.
The Y-axis typically moves the print bed or print-head assembly depending on the printer architecture.
Stable motor operation helps maintain repeatable movement during long printing cycles.
Z-axis movement requires controlled vertical positioning of the print platform or print head.
Stepper motors can be integrated with lead-screw-based mechanisms for controlled vertical movement.
The extruder motor controls filament feeding into the hot end.
Consistent motor movement is important because unstable filament feeding can affect extrusion consistency and ultimately influence print quality.
Selecting between NEMA17 and NEMA23 should be based on the machine's actual mechanical requirements.
Selection Factor |
NEMA17 |
NEMA23 |
Motor Size |
More compact |
Larger |
Installation Space |
Suitable for compact machines |
Requires more space |
Typical Printer Type |
Desktop and standard FDM printers |
Larger-format and higher-load systems |
Motion Applications |
X/Y/Z, extruder |
Higher-load axes and customized systems |
System Design |
Compact motion architecture |
Larger mechanical structures |
Selection Priority |
Size, compatibility, positioning |
Load, output requirements, mechanical structure |
There is no universal motor size for every 3D printer. Engineers should evaluate the complete motion system before selecting the motor.
For OEM manufacturers and replacement-part suppliers, the following parameters should be reviewed before ordering.
Determine whether the application requires a NEMA17, NEMA23, or another frame configuration.
Calculate the actual mechanical load, including:
· Moving mass
· Belt or lead-screw transmission
· Acceleration
· Friction
· Vertical-axis load
The selected motor should provide sufficient torque for the application's operating conditions.
The required motor speed depends on the printer's movement speed and transmission ratio.
High-speed applications require careful matching of the motor and driver.
Check the motor's electrical requirements against the selected stepper driver, including:
· Operating current
· Voltage
· Wiring configuration
· Microstepping requirements
Confirm:
· Frame size
· Shaft dimensions
· Shaft length
· Mounting hole pattern
· Overall motor length
These details are particularly important when replacing an existing motor.
For overseas wholesalers and 3D printer manufacturers, purchasing directly from the motor manufacturer can simplify product development and supply management.
Our factory-direct supply supports:
· NEMA17 and NEMA23 motor options
· OEM production
· ODM development
· Customized electrical specifications
· Customized shaft requirements
· Customized motor dimensions
· Bulk orders
· Replacement motor supply
· Project-based motor selection support
For wholesalers and maintenance resellers, consistent product specifications are important for repeat purchasing. For 3D printer manufacturers, customized motor configurations can help match the motor to a specific printer architecture.
Different 3D printer designs may require different motor configurations.
Instead of selecting an off-the-shelf motor solely by frame size, manufacturers can provide the application requirements so the motor configuration can be evaluated accordingly.
OEM and ODM projects may involve requirements related to:
· Motor size
· Torque
· Current
· Voltage
· Shaft configuration
· Cable length
· Connector
· Mounting structure
· Motor body length
· Packaging and labeling
This approach is suitable for manufacturers developing new 3D printer models as well as companies looking for alternative motor suppliers.
For B2B customers, motor purchasing is not only about the unit price. Product consistency, communication, customization capability, and long-term supply are also important.
Factory-direct sourcing can provide:
· Direct technical communication
· More efficient customization
· Better control over production specifications
· Support for OEM/ODM projects
· Competitive manufacturing costs
· More direct handling of bulk orders
Our goal is to provide a practical motor solution based on the customer's actual application rather than simply supplying a standard motor.
Choose the motor according to your printer's mechanical architecture, load, speed, and driver configuration. OEM and ODM customization is available for project-specific requirements.
NEMA17 and NEMA23 motors can serve common replacement and new-machine applications. Stable specifications and factory-direct supply can support repeat purchasing.
When replacing an existing motor, confirm the frame size, shaft configuration, electrical parameters, and mounting dimensions before ordering.
NEMA17 motors are commonly considered for compact DIY FDM printer projects, while larger machines may require a larger motor configuration depending on the mechanical load.
A NEMA stepper motor can drive the X, Y, and Z axes as well as the extruder mechanism of an FDM 3D printer. The exact motor size depends on the printer's mechanical design and load requirements.
Yes. NEMA17 is commonly used in compact and standard FDM 3D printer motion systems. The final selection should consider torque, speed, installation dimensions, and driver compatibility.
NEMA23 can be considered for larger-format printers or motion mechanisms with higher mechanical requirements and sufficient installation space. Motor selection should be based on the actual load and motion requirements.
The motors are designed for stable operation, including extended printing cycles. Actual operating performance depends on the selected motor, driver settings, mechanical load, cooling, and operating conditions.
Yes. OEM and ODM services can support application-specific requirements such as shaft configuration, electrical specifications, cable or connector requirements, dimensions, and other project-related specifications.
Compare the required torque, printer size, moving load, operating speed, available installation space, and driver configuration. The correct choice should be based on the complete motion system rather than frame size alone.
· NEMA Stepper Motor for 3D Printers provides controlled and repeatable motion for FDM printer axes and extrusion systems.
· NEMA17 is suitable for many compact and standard FDM printer applications.
· NEMA23 can be considered for larger machines and higher-load motion systems.
· High positioning precision, low vibration, stable operation, and fast dynamic response are important for 3D printer motion.
· Pure copper windings support consistent electrical performance.
· Motor selection should consider torque, speed, driver compatibility, dimensions, and mechanical load.
· Factory-direct OEM and ODM support can help 3D printer manufacturers develop application-specific motor solutions.
Whether you are sourcing motors for a new FDM printer, purchasing replacement components, distributing 3D printer parts, or developing a customized motion platform, the motor should be selected according to the complete mechanical and electrical requirements.
Our NEMA17 and NEMA23 3D printer stepper motors are available for B2B and project-based applications, with factory-direct supply and OEM/ODM support.
Welcome to contact us for a customized stepper motor solution for your 3D printer project.
