Underwater Motor for Underwater Robotics and Subsea Equipment

Underwater robots operate in an environment where ordinary motors quickly encounter problems. Water ingress, hydrostatic pressure, saltwater corrosion, temperature changes, limited maintenance access, and long operating cycles can all affect motor reliability.

For ROVs, AUVs, underwater inspection robots, and subsea robotic equipment, the motor must continue producing predictable mechanical output while operating in a confined or fully submerged environment. A motor failure at the surface may be inconvenient; a motor failure hundreds of meters underwater can interrupt an inspection mission and require costly recovery or deployment operations.

Our Underwater Motor for Underwater Robotics is designed for underwater motion systems where waterproof construction, reliable rotation, compact integration, and application-specific customization are important.

The motor can be configured for underwater robotic propulsion, underwater actuators, inspection mechanisms, positioning systems, and other marine equipment. Depending on the application, the motor can be integrated with a gearbox, propeller, shaft, or customized mechanical transmission.

Why Underwater Robotics Requires a Specialized Motor

An underwater robot may operate in conditions that are significantly different from those of conventional industrial automation equipment.

An ROV used for subsea inspection may remain underwater for hours while cameras, manipulators, lights, sensors, and propulsion systems continuously operate. An AUV may travel autonomously along a predefined route and cannot rely on an operator to immediately diagnose a motor problem.

Deep-sea applications introduce another consideration: hydrostatic pressure increases with depth. The motor housing, seals, electrical connections, and rotating interfaces must therefore be considered as part of the complete underwater mechanical system.

Saltwater creates additional corrosion concerns, while suspended particles, marine growth, and repeated immersion can affect mechanical interfaces.

For this reason, selecting an underwater motor should start with the actual operating environment rather than simply choosing a standard motor with a waterproof label.

Core Advantages of Our Underwater Motor

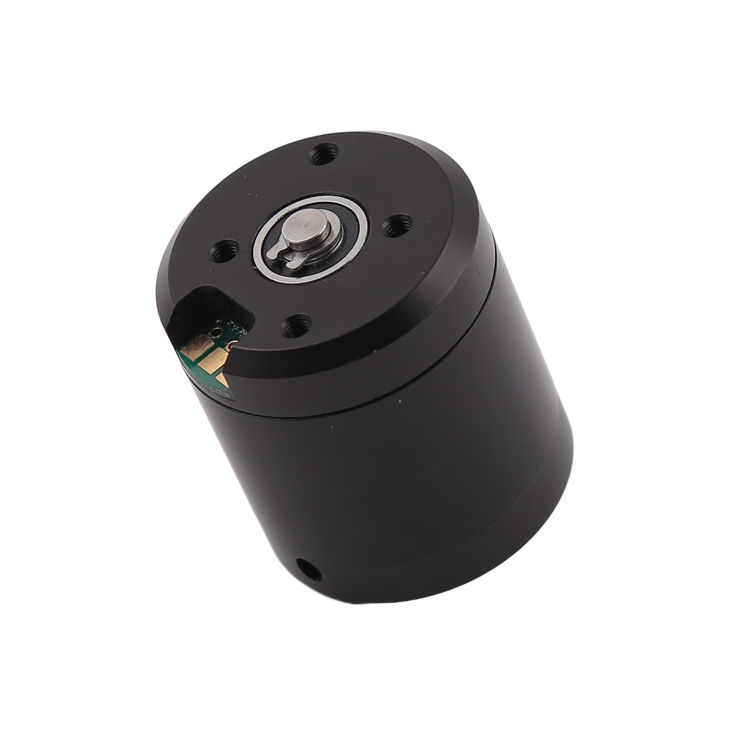

1. Designed for Submerged Operation

The motor is intended for applications where the motor assembly is exposed to water or installed inside an underwater robotic system.

A suitable waterproof motor design helps protect internal electrical components from water exposure while allowing the motor to deliver controlled rotational output to the connected mechanism.

For underwater robot manufacturers, the important consideration is not only whether the motor can operate underwater, but also how the motor integrates with:

· Sealing structures

· Motor housing

· Shaft interface

· Bearings

· Cables and connectors

· Gearboxes

· Propellers

· Robotic mechanisms

The final waterproofing and pressure capability should always be specified according to the intended depth and operating environment.

2. Suitable for ROV and AUV Motion Systems

ROVs and AUVs require multiple types of controlled motion.

A propulsion motor may drive a thruster, while smaller motors can operate mechanical actuators, valves, inspection mechanisms, camera positioning systems, or other onboard equipment.

Our subsea motor can be customized around the mechanical and electrical requirements of the application rather than being limited to one fixed configuration.

Typical requirements may include:

· Continuous or intermittent operation

· Low-speed high-torque movement

· Compact installation

· Controlled rotation

· Gear reduction

· Customized shaft output

· Integration with robotic mechanisms

3. Compact Integration for Confined Robotic Structures

Space is often limited inside underwater robots.

An ROV may need to accommodate batteries, control electronics, cameras, sonar, sensors, buoyancy components, thrusters, manipulators, and communication equipment within a compact frame.

A compact underwater motor for robotics can help engineers integrate additional motion functions without significantly increasing the size of the mechanical assembly.

For example, a small motor can be used to rotate an underwater camera, adjust a sensor platform, actuate a valve, or move a compact mechanical linkage.

4. Corrosion-Conscious Design

Saltwater exposure can accelerate corrosion of unsuitable metals and mechanical components.

For marine applications, material selection and surface treatment therefore need to be considered alongside motor performance.

Depending on the application, engineers may need to evaluate:

· Housing materials

· Shaft materials

· Fasteners

· Bearing configuration

· Sealing components

· Surface treatment

· Cable materials

· Connector construction

The appropriate configuration depends on the water type, exposure duration, depth, temperature, and required service life.

This application-oriented approach is particularly important for marine engineering suppliers developing equipment for coastal, offshore, and deep-water environments.

5. Custom Torque and Speed for Underwater Mechanisms

Not every underwater motor application requires high-speed rotation.

An underwater robotic actuator may need relatively low-speed movement with sufficient torque to move a valve, manipulator linkage, camera platform, or inspection mechanism.

A gearbox can be integrated when the application requires:

· Higher output torque

· Lower output speed

· Controlled mechanical movement

· Specific output shaft dimensions

· Compact transmission

For example, a motor may drive a reduction gearbox connected to an underwater actuator. The gearbox then converts the motor's rotational speed into the required mechanical output.

This approach allows engineers to select the motor and transmission based on the actual load instead of oversizing the motor simply to obtain sufficient output torque.

Underwater Motor Specification Table

The following parameters can be customized according to the underwater robotic application.

Note: Underwater motor specifications should be finalized according to actual depth, water type, operating duration, load, temperature, sealing structure, and mechanical interface. Waterproof capability should not be assumed from a generic motor specification alone.

Applications in Underwater Robotics

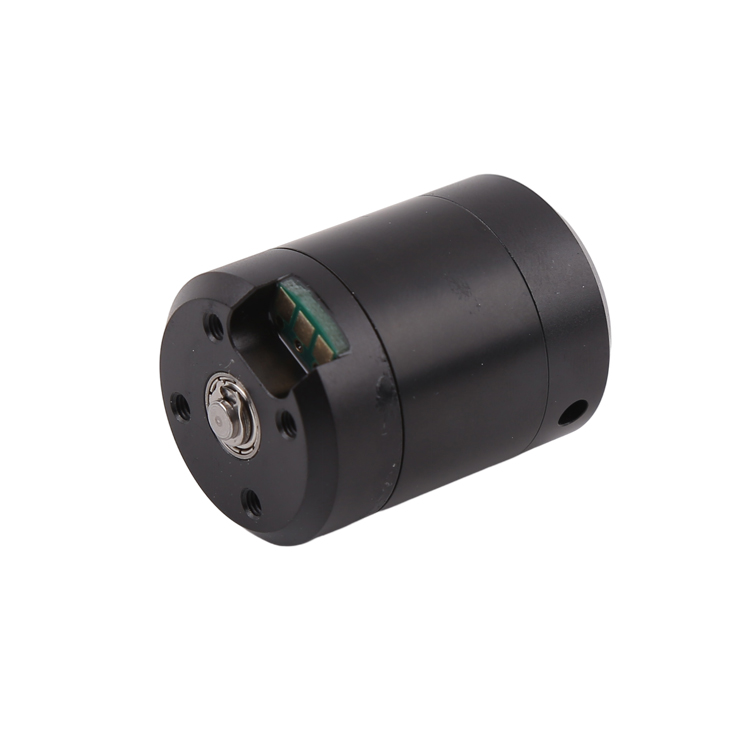

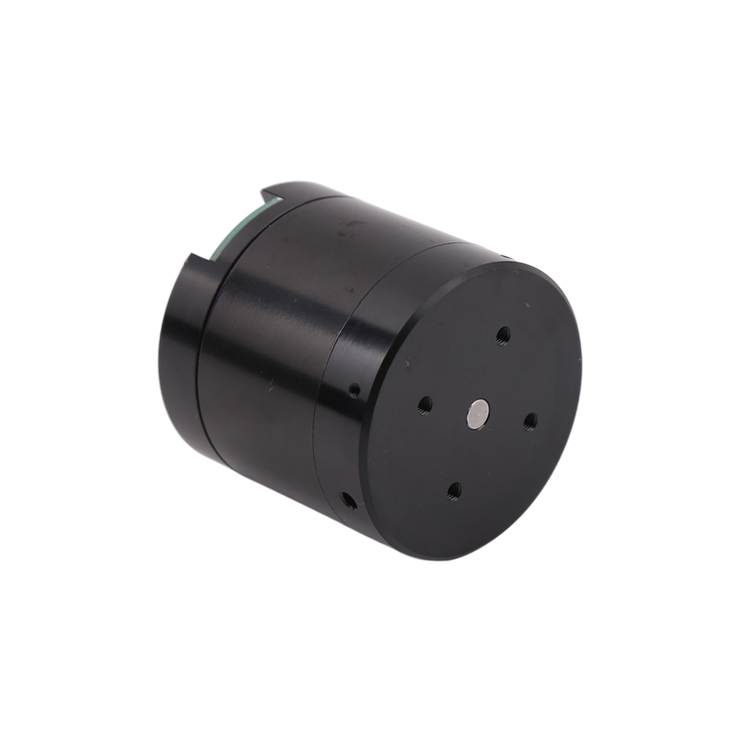

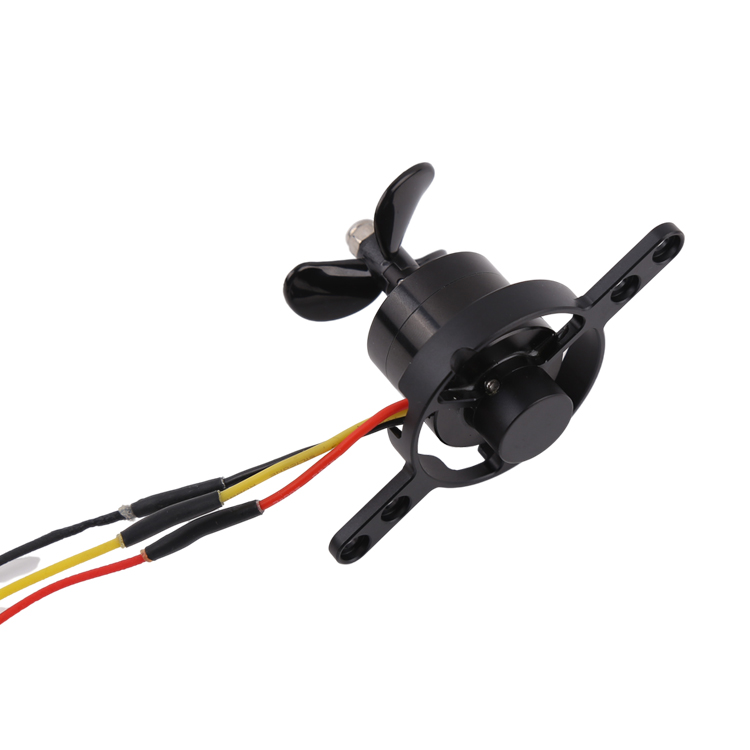

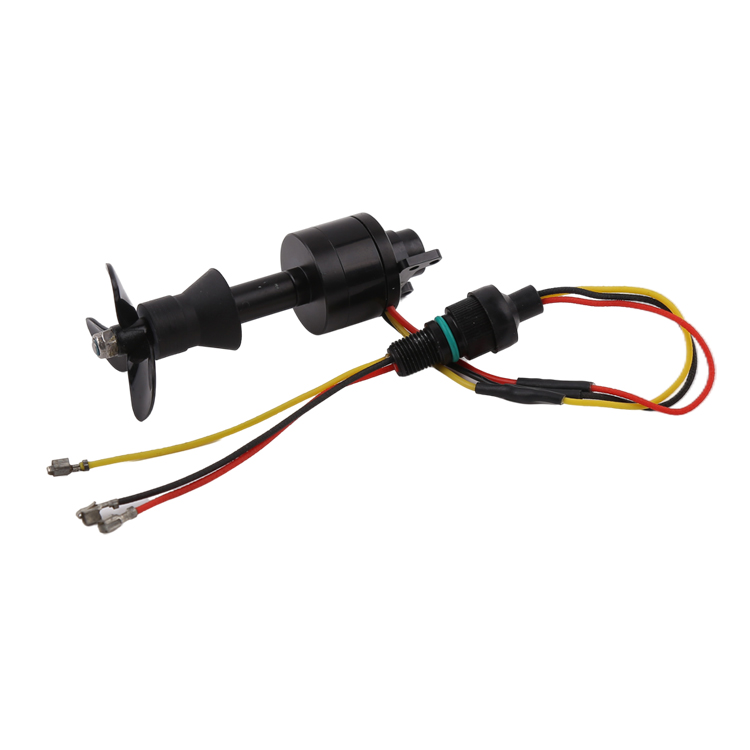

ROV Underwater Thruster Systems

ROVs use electrically powered propulsion systems to control movement underwater.

Thrusters can generate forward/reverse thrust, vertical movement, or directional control depending on the vehicle configuration.

For these applications, an underwater thruster motor must work reliably while exposed to the surrounding underwater environment. Motor selection should consider required thrust, propeller characteristics, operating speed, power consumption, and the pressure and sealing requirements of the complete thruster assembly.

AUV Propulsion and Auxiliary Motion

Autonomous Underwater Vehicles operate without continuous physical connection to an operator.

An AUV may travel along an underwater survey route while collecting sonar, imaging, environmental, or scientific data.

Because an AUV cannot normally be serviced during a mission, propulsion and actuator reliability are important design considerations.

In addition to primary propulsion, compact motors can also be used for auxiliary mechanisms such as sensor positioning, camera adjustment, valve actuation, or other controlled movements.

Underwater Robotic Manipulators

Subsea manipulators require controlled mechanical movement to handle objects or operate equipment underwater.

Depending on the manipulator architecture, motors may drive joints, gripping mechanisms, or auxiliary positioning systems.

A customized underwater robotic actuator motor can be matched to the required torque, speed, shaft configuration, and mechanical transmission.

For higher-load mechanisms, a geared motor configuration can provide the required output torque while keeping the motor assembly compact.

Underwater Camera and Sensor Positioning

Inspection ROVs commonly carry cameras and sensors that need to observe different directions.

A small underwater motor can drive a pan, tilt, rotation, or positioning mechanism, allowing the sensor platform to change orientation.

This application places particular emphasis on compact size, controlled movement, sealing, and repeatable operation.

Underwater Inspection Equipment

Subsea inspection equipment can be used around offshore structures, pipelines, underwater infrastructure, ship hulls, and marine installations.

A motor may operate a scanning mechanism, positioning system, rotating probe, or other inspection component.

In these systems, the motor must be selected together with the mechanical structure and expected underwater exposure conditions.

Buyer-Oriented Benefits

For R&D Institutions

Research teams often develop specialized underwater robots where standard commercial motors do not perfectly match the prototype.

A customizable underwater motor allows engineers to define the electrical and mechanical interface around the experimental platform.

We can work from technical drawings, motor samples, load requirements, or prototype specifications.

For Underwater Robot Manufacturers

For ROV and AUV manufacturers, motor compatibility with the complete robotic architecture is critical.

The motor can be developed around requirements such as:

· Available battery voltage

· Required torque and speed

· Installation space

· Shaft configuration

· Gear reduction

· Cable routing

· Waterproofing requirements

· Continuous or intermittent duty

This helps simplify integration during the mechanical design stage.

For Marine Engineering Suppliers

Marine equipment suppliers may need motors for multiple subsea systems rather than one standard application.

OEM/ODM customization allows the motor configuration to be adapted for different underwater equipment, actuator assemblies, and marine engineering projects.

FAQ

1. What is an underwater motor used for?

An underwater motor provides mechanical rotation or actuation for submerged equipment. Typical applications include ROV propulsion, AUV systems, underwater robotic actuators, camera positioning, valves, inspection mechanisms, and marine equipment.

2. Can this motor be used in seawater?

It can be developed for seawater applications, but the required housing, sealing, materials, cable configuration, and corrosion protection should be determined according to the specific environment and depth.

3. Can you customize an underwater motor for an ROV?

Yes. ROV projects can require different voltage, torque, speed, shaft dimensions, mounting structures, and cable configurations. These parameters can be customized according to the ROV design.

4. Can the motor work at deep-sea depths?

Depth capability depends on the complete motor construction, housing, sealing system, materials, and pressure requirements. Please provide the intended operating depth so the motor configuration can be evaluated accordingly.

5. Can a gearbox be integrated with the underwater motor?

Yes. A gearbox can be considered when the underwater mechanism requires higher output torque, lower speed, or a specific output configuration.

6. How should I select an underwater motor?

Start with the required operating depth, water type, voltage, speed, torque, duty cycle, installation space, shaft configuration, and mechanical load. For thruster applications, propeller and thrust requirements should also be considered.

Factory Capability for Customized Underwater Motors

Underwater robotics projects often involve non-standard mechanical interfaces. A standard catalog motor may therefore require additional modification before it can be integrated into the robot.

Our factory supports OEM and ODM underwater motor development, allowing B2B customers to specify the motor around their actual equipment.

Customization can cover:

· Motor dimensions

· Rated voltage

· Speed and torque

· Shaft diameter and length

· Mounting configuration

· Gearbox and gear ratio

· Cable length

· Connector configuration

· Housing design

· Waterproofing requirements

· Application-specific mechanical interfaces

For prototype projects, customers can provide a drawing, existing motor sample, actuator requirements, or basic load information for evaluation.

For production projects, the motor can then be optimized around the final mechanical assembly and required operating conditions.

Get a Customized Underwater Motor Solution

Selecting a motor for an underwater robot is not simply a matter of choosing a waterproof motor with the required wattage.

The real design questions are: How deep will the robot operate? What type of water will it encounter? What load must the motor drive? How long will it operate continuously? What shaft and mounting interface does the robot require?

These conditions determine the appropriate motor architecture, sealing approach, materials, gearbox, and electrical configuration.

If you are developing an ROV, AUV, underwater inspection robot, subsea actuator, or marine engineering system, send us your motor requirements, technical drawing, operating depth, torque/speed requirements, or existing motor sample.

We can evaluate the application and provide a customized underwater motor solution for your robotic or marine equipment project.
