As smart glasses move toward more compact and integrated optical designs, IPD adjustment has become an important mechanical consideration for wearable device engineers. A smart glasses optical system may need to adjust the distance between the left and right optical paths to match different users while keeping the overall device lightweight and compact.
The challenge is that the available installation space inside smart glasses is extremely limited. The motor must fit within a small mechanical structure while providing controlled movement for the optical adjustment mechanism. At the same time, wearable products can be sensitive to motor noise, vibration, power consumption, mechanical tolerance, and long-term reliability.

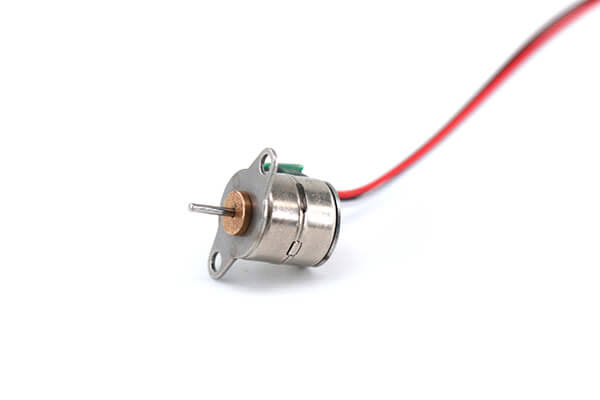

Our micro stepper motor for smart glasses IPD adjustment is designed for OEM manufacturers and engineering teams developing AR glasses, smart glasses, AR/VR optical systems, and other compact wearable devices. A micro stepper motor can provide controlled incremental movement for mechanisms that require repeatable adjustment, while its compact form factor allows engineers to integrate motorized motion into space-constrained optical assemblies.
As a direct micro motor manufacturer, we support application-specific customization based on your mechanical and electrical requirements. Instead of selecting a motor based only on a standard model, our engineering team can evaluate requirements such as available installation space, required movement, shaft configuration, operating conditions, and control architecture for your smart glasses project.
IPD, or interpupillary distance, refers to the distance between the centers of a user's pupils. In a motorized smart glasses design, an actuator can be used to move an optical module or related mechanism so that the optical paths can be adjusted according to the user's requirements.
For wearable hardware engineers, this creates several design challenges.
The actuator needs to provide controlled mechanical movement without occupying excessive space. It also needs to work with the optical mechanism and control system without introducing unnecessary complexity.
A micro stepper motor for IPD adjustment can be considered when the design requires electronically controlled incremental movement rather than simple continuous rotation.
Key considerations include:
Compact motor size for restricted internal space
Controlled incremental rotation
Compatibility with a mechanical transmission
Integration with a miniature optical adjustment mechanism
Low mechanical vibration and noise requirements
Custom shaft and mounting configurations
Compatibility with the product's electrical system
Repeatable operation during product use
The motor should ultimately be evaluated as part of the complete IPD adjustment mechanism rather than as an isolated component.
Space is one of the primary challenges in smart glasses mechanical design.
Unlike conventional equipment, wearable devices have limited room for motors, gears, guides, optical modules, batteries, electronics, and structural components. Increasing the size of the actuator can affect the overall product architecture.
A miniature stepper motor for smart glasses can provide a compact rotary motion source for an IPD adjustment mechanism. Depending on the mechanical design, the motor can be combined with gears, lead screws, cams, linkages, or other transmission components to convert rotary motion into the required optical movement.
Motor body dimensions
Installation orientation
Shaft position
Shaft diameter and length
Mounting structure
Cable or connector location
Available clearance around moving components
Relationship between motor and optical module
A motor that fits the available space but cannot provide the required mechanical output is not a suitable solution. The objective is to achieve an appropriate balance between motor size, mechanical output, movement requirements, and system integration.
An IPD adjustment mechanism may require the optical components to move by a defined amount in response to an electronic command.
A stepper motor operates by converting electrical input pulses into incremental angular movement. This makes it suitable for mechanisms where the controller needs to command a defined sequence of motor movement.
For example, the motor can drive a mechanical transmission that converts rotary movement into lateral movement of an optical module.
The final positioning performance depends on the complete mechanical system. Motor step resolution is only one part of the system. Gear ratio, transmission design, mechanical tolerance, backlash, friction, coupling and optical assembly accuracy can all affect the final position.
For this reason, a smart glasses stepper motor should be selected together with the IPD mechanism rather than according to step angle alone.
The terms AR glasses, smart glasses, AR/VR eyewear, and wearable optical devices can describe different product architectures. However, they share a common requirement for compact and integrated motion-control components.
Motorized IPD adjustment
Optical module positioning
Lens positioning
Diopter adjustment mechanisms
Focus adjustment
Small optical shutters
Mechanical aperture adjustment
Compact wearable actuators
The exact application depends on the optical architecture and mechanical transmission used by the product.
For example, an AR glasses IPD adjustment motor may rotate a transmission component that moves the optical module horizontally. Another product may use a miniature motor to control a screw-driven mechanism for optical positioning.
The motor configuration should therefore be developed around the actual mechanism.
Electronic IPD adjustment can provide a way for a smart glasses system to control optical spacing through an electronic interface rather than relying exclusively on manual adjustment.
A typical system may include:
Control system → Motor driver → Micro stepper motor → Mechanical transmission → Optical module
The controller determines the required movement, while the motor generates rotary motion. The transmission then converts the motor movement into the mechanical displacement required by the optical system.
This architecture can be useful for smart glasses that need programmable or electronically controlled optical adjustment.
However, the motor itself does not determine the final IPD accuracy. The complete system needs to account for the relationship between motor movement and optical displacement.
Important engineering factors include:
Required optical displacement
Motor step resolution
Transmission ratio
Mechanical backlash
Friction
Structural stiffness
Position repeatability
Assembly tolerance
Control algorithm
This system-level approach is especially important for wearable optical products because small mechanical errors can affect the user's optical experience.
Noise is another important consideration when integrating a micro motor for smart glasses.
A motor installed close to the user's head can be more noticeable than the same motor installed inside industrial equipment. Gear transmission, motor vibration, resonance and mechanical coupling can all contribute to audible or tactile effects.
For this reason, smart glasses developers should evaluate the motor under realistic operating conditions rather than relying solely on unloaded motor testing.
Noise-related considerations may include:
Motor operating speed
Acceleration and deceleration
Stepper motor excitation
Gear transmission
Mechanical resonance
Mounting structure
Housing material
Optical module coupling
A suitable motor configuration should be evaluated together with the complete IPD adjustment mechanism.
IPD is not the only potential application for miniature motion components in smart glasses.
Depending on the optical design, a diopter adjustment stepper actuator may be used to move or adjust optical components for vision correction. Similarly, a miniature actuator may be integrated into a focusing or lens-positioning mechanism.
Potential applications include:
Adjusting the horizontal spacing between optical paths or optical modules.
Providing controlled movement for an optical component associated with vision correction.
Moving an optical element to change the optical focus position.
Providing controlled movement of a lens or optical assembly.
Supporting mechanical alignment or adjustment during operation or calibration.
Each application has different force, displacement, speed and positioning requirements, so the motor should be selected according to the actual mechanism.
Selecting a micro stepper motor for AR glasses should begin with the mechanical requirements of the optical system.
Determine how much physical movement is required to achieve the desired IPD adjustment range.
The relationship between motor rotation and optical displacement depends on the transmission mechanism.
Calculate the torque required to move the optical assembly under actual operating conditions.
Consider:
Optical module mass
Friction
Transmission efficiency
Spring force
Guide resistance
Acceleration requirements
Mechanical end stops
Avoid selecting a motor based solely on its maximum or nominal torque specification.
Determine how quickly the IPD mechanism needs to complete its adjustment.
For wearable products, fast movement is not necessarily the only objective. Controlled and smooth movement may be more important depending on the user interface and optical system.
Measure the available installation envelope before selecting the motor.
Important dimensions include the motor body, shaft, mounting area and surrounding clearance.
If the motor drives a gear or screw mechanism, backlash can affect repeatability and final optical positioning.
The transmission should therefore be evaluated together with the motor.
The motor needs to be compatible with the wearable device's electrical architecture and motor driver.
Relevant requirements may include:
Operating voltage
Current
Phase configuration
Driver type
Wiring
Connector
Control interface
Specific values should be determined from the selected motor design and the customer's system requirements rather than assumed in advance.
Standard motors may not always meet the requirements of a wearable optical mechanism.
A smart glasses OEM may have a very specific combination of requirements, such as a restricted motor envelope, a special shaft, a particular mounting orientation, or a customized electrical configuration.
As a direct micro motor manufacturer, we support customized motor development for wearable device applications.
Depending on the project, customization can be evaluated for:
Motor dimensions
Shaft diameter
Shaft length
Shaft configuration
Mounting structure
Voltage
Winding configuration
Cable length
Connector
Gear or transmission integration
Rotation requirements
The exact customization scope depends on the motor platform and project requirements.
For engineering teams developing new AR glasses or smart glasses products, early motor evaluation can help identify potential mechanical integration issues before the final housing and optical structure are fixed.
For a new smart glasses IPD adjustment motor, sample evaluation is an important part of the development process.
The motor should be tested with the actual mechanical transmission and optical assembly to evaluate:
Mechanical fit
Movement range
Movement smoothness
Noise and vibration
Transmission performance
Position repeatability
Electrical compatibility
Thermal behavior under the intended operating cycle
Testing the motor independently can provide useful information, but system-level testing is necessary to understand the actual performance of the complete IPD adjustment mechanism.
Our engineering team can work from application drawings, preliminary specifications, existing motor samples or mechanical requirements to discuss an appropriate motor configuration.
For wearable hardware development, communication between the motor supplier and the mechanical engineering team can have a direct impact on product integration.
Working directly with a manufacturer allows project teams to discuss the motor at the engineering level, including:
Mechanical dimensions
Shaft requirements
Electrical configuration
Transmission requirements
Customization feasibility
Prototype development
Production requirements
As a manufacturer rather than a reseller, we can support OEM projects from motor specification evaluation through sample testing and production planning.
This is particularly useful when the micro stepper motor for smart glasses needs to be adapted to a proprietary IPD mechanism.
A micro stepper motor can provide controlled rotary movement for compact mechanisms in smart glasses, including IPD adjustment, optical positioning, focus adjustment and other miniature motion-control applications.
Yes, a stepper motor can be considered for an electronically controlled IPD adjustment mechanism when its torque, movement, size and control characteristics match the mechanical design. The final positioning performance depends on the motor and the complete transmission system.
Yes. Depending on the selected motor platform, shaft diameter, shaft length, shaft profile and other mechanical characteristics can be evaluated for customization.
Yes. As a direct micro motor manufacturer, we can discuss customized motor requirements for AR glasses and wearable optical applications. Customers can provide mechanical drawings, installation dimensions, movement requirements or an existing motor specification for engineering evaluation.
The actuator used for IPD adjustment in smart glasses needs to fit within a highly constrained mechanical environment while providing controlled and repeatable movement. Motor selection should therefore consider the complete optical and mechanical system, including movement range, transmission design, available space, load, noise, control requirements and assembly tolerances.
Our micro stepper motor for smart glasses IPD adjustment is intended for wearable device engineers, AR/VR hardware developers, smart glasses OEMs and project purchasing teams looking for a compact motor solution.
As a direct manufacturer, we support custom micro stepper motor development according to application requirements rather than limiting projects to standard configurations.
Send us your IPD adjustment range, available motor space, required movement, mechanical drawings, shaft requirements and electrical specifications. Our engineering team can evaluate the application and discuss a suitable motor configuration for prototype testing and volume production.
Contact us for a custom micro stepper motor solution for smart glasses IPD adjustment and other wearable optical mechanisms.
