For years, machine designers had a fairly straightforward choice when selecting a motor. If the application was cost-sensitive and did not require feedback, an open-loop stepper motor was often enough. If
positioning accuracy, dynamic response, and closed-loop control were critical, a servo motor was the more advanced—but also more expensive—option.
Now, there is another increasingly attractive choice: the closed-loop stepper motor.
Closed-loop stepper systems combine the familiar advantages of stepper motors with encoder-based feedback. The motor can monitor its actual position, detect conditions such as stall or lost steps, and adjust operation when the commanded movement does not match the actual position.
This makes the technology particularly attractive for applications that need more control than a conventional open-loop stepper can provide, but do not necessarily justify the cost and complexity of a full servo system.
From 3D printers and small CNC machines to compact automation equipment, closed-loop stepper motors are finding a practical place in the market.
The growth of closed-loop stepper technology is closely related to a common problem faced by equipment manufacturers: how to improve motion reliability without significantly increasing system cost.
Traditional open-loop stepper motors have an important limitation. The controller assumes that the motor has followed every commanded step. If the mechanical load becomes too high, acceleration is too aggressive, or the motor enters an unfavorable operating condition, the motor may lose synchronization.
The controller does not necessarily know that this has happened.
For simple applications, this may not be a serious issue. But in equipment where positioning errors can affect the final product, an unnoticed lost step can create downtime, rejected parts, or the need to restart a process.

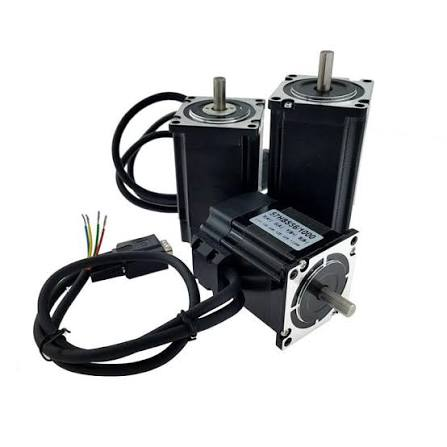

A closed-loop stepper motor with encoder feedback approaches the problem differently.
The encoder monitors the motor's actual position and provides feedback to the control system. When the detected position differs from the expected position, the system can respond accordingly.
This additional feedback layer is one of the main reasons closed-loop stepper motors are becoming an attractive upgrade from traditional open-loop designs.
The appeal of closed-loop stepper technology becomes clearer when comparing the three approaches.
Feature |
Open-Loop Stepper |
Closed-Loop Stepper |
Servo Motor |
Position Feedback |
No |
Yes, via encoder |
Yes |
Lost-Step Detection |
Generally unavailable |
Available |
Available |
Control Complexity |
Low |
Moderate |
Higher |
System Cost |
Lower |
Medium |
Higher |
Positioning Control |
Good for suitable loads |
Improved reliability |
High-performance |
Standstill Holding |
Strong |
Strong |
Application-dependent |
Energy Efficiency |
Application-dependent |
Can reduce unnecessary current |
Generally efficient |
Typical Applications |
Printers, simple automation |
CNC, 3D printing, compact automation |
High-speed/high-dynamic automation |
System Integration |
Simple |
Relatively simple |
More complex |
This does not mean that a closed-loop stepper should replace every open-loop stepper or servo motor.
Instead, it fills a useful middle position.
For a basic mechanism where occasional positioning variation is acceptable, an open-loop stepper may remain the most economical choice. For high-speed industrial machinery requiring extremely dynamic response, a servo system may still be the better solution.
But when equipment manufacturers need better motion reliability, feedback, and fault detection without moving all the way to a servo architecture, a closed-loop stepper can make more sense.
The encoder is the key component that changes an ordinary stepper system into a closed-loop system.
In an open-loop configuration, the controller sends pulses to the motor and assumes the rotor follows the commanded movement.
In a closed-loop system, the encoder provides information about the motor's actual position.
This creates a feedback loop:
Command → Motor Movement → Encoder Feedback → Position Comparison → Correction
If the motor encounters a sudden increase in mechanical load, for example, the actual position may begin to differ from the commanded position.
Instead of simply continuing to send pulses as if nothing happened, the controller can identify the position error and take corrective action.
For equipment manufacturers, this provides an additional layer of protection against motion errors.
It is particularly useful when the mechanical load is not completely predictable.
One of the most practical benefits of a closed-loop stepper motor is lost-step detection.
A conventional stepper motor does not inherently know whether it has completed the commanded movement. If the load exceeds available torque, the rotor can fall behind the commanded position.
This becomes a problem in applications such as CNC machining or automated positioning, where even a small positioning error can affect the finished result.
With encoder feedback, the controller can compare commanded movement with actual movement.
This allows the system to identify abnormal conditions such as:
·
Position deviation
Motor stall
Excessive load
Lost synchronization
Unexpected mechanical resistance
Depending on the driver and control architecture, the system can then respond through correction, alarm, or protective control.
That difference can be significant for machine builders looking to improve reliability without redesigning the entire motion-control architecture.
Another reason closed-loop stepper motors are attracting attention is energy management.
Traditional stepper systems may maintain relatively high current even when the motor does not require the same level of torque. A closed-loop system has access to actual motor-position information and can adjust current according to operating conditions.
In some applications, this can reduce unnecessary power consumption and heat generation.
Industry data often cites energy savings of around 40% for closed-loop stepper systems compared with conventional open-loop operation, although the actual result depends heavily on motor size, load, driver strategy, duty cycle, and application conditions.
For equipment operating for long periods, reducing unnecessary current can have additional benefits:
Lower motor temperature
Reduced cabinet heat
Lower cooling requirements
Improved operating efficiency
Potentially longer component life
Energy efficiency should therefore be evaluated at the system level rather than treated as a fixed characteristic of every closed-loop stepper motor.
3D printing is one of the applications where closed-loop stepper motors can provide a practical upgrade path.
Traditional FDM printers commonly use stepper motors to control axes and extruders because they offer simple positioning control and strong low-speed torque.
However, as printers become faster and more sophisticated, motion errors become increasingly important.
A closed-loop stepper motor can monitor actual motor movement and help identify situations where the commanded position and actual position do not match.
Potential applications include:
X/Y/Z axis positioning
Extruder drive systems
High-speed FDM printers
Industrial desktop 3D printers
Automated printing systems
For manufacturers, the advantage is not simply "more precision." It is more reliable motion control without automatically moving to a full servo architecture.

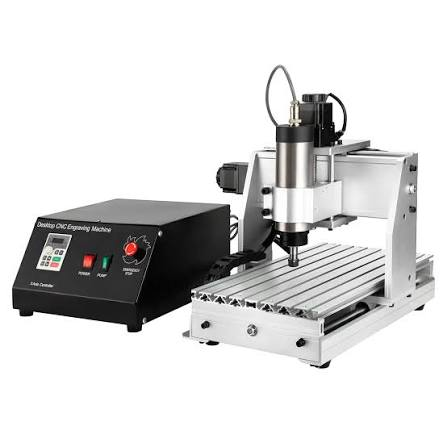

Small CNC equipment occupies another important position between hobby machinery and industrial automation.
A machine may require more positioning reliability than a basic open-loop stepper system can comfortably provide, while the performance requirements may not justify a complete servo solution.
This is where a closed-loop stepper motor for CNC can be useful.
Consider a compact CNC machine performing repeated movements under changing cutting loads. When the cutting resistance increases, the motor may experience a temporary increase in torque demand.
Encoder feedback gives the control system visibility into the motor's actual position.
For small CNC manufacturers, this can provide a useful balance between:
Cost + positioning reliability + control complexity
Closed-loop stepper motors are also finding applications in compact automation equipment.
Examples include:
Pick-and-place mechanisms
Labeling machines
Packaging equipment
Inspection equipment
Small linear stages
Dispensing systems
Laboratory automation
Compact material-handling equipment
These machines often require controlled positioning but operate at a scale where a full servo system may add unnecessary cost and complexity.
A closed-loop stepper can provide feedback while maintaining the familiar mechanical and control characteristics of stepper-based systems.

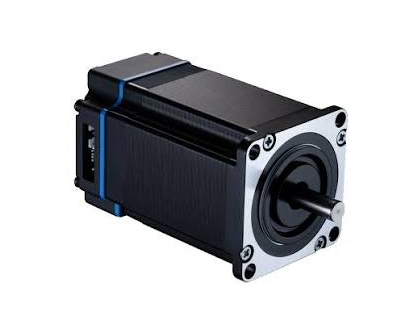

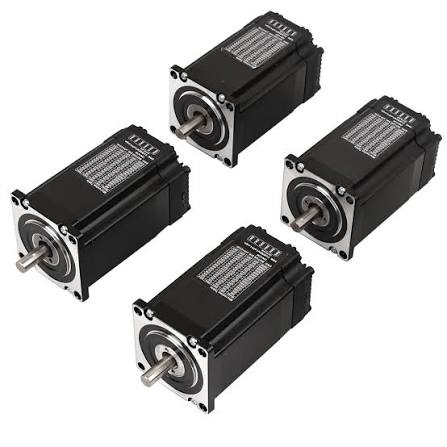

Another trend worth watching is the development of integrated closed-loop stepper motors.
Instead of installing the motor, encoder, and driver as separate components, manufacturers can integrate multiple functions into a single motor-drive unit.
This approach can simplify machine design.
An integrated unit may reduce:
Control cabinet space
Wiring requirements
Connector count
Installation time
Commissioning work
For machine builders, fewer separate components can also make system integration more straightforward.
The trend becomes even more interesting when integrated motion products support industrial communication networks such as EtherCAT or EtherNet/IP.
Instead of treating the motor as an isolated actuator, the motor-drive unit becomes part of the machine's networked motion-control architecture.
Industrial automation is moving toward increasingly connected equipment.
Traditional pulse-and-direction control remains widely used, but network-based motion control is becoming more common as machine architectures become more distributed.
Closed-loop stepper motors with integrated network communication can connect directly to the machine control system.
For OEMs, this can simplify communication between:
PLC → Network → Integrated Driver → Motor → Encoder Feedback
The result is a more integrated motion-control architecture with fewer standalone components.
EtherCAT and EtherNet/IP integrated stepper solutions are particularly interesting for compact automation equipment where installation space, wiring, and commissioning time matter.
Selecting a closed-loop stepper motor should begin with the application rather than simply choosing a motor based on frame size.
Calculate the actual load torque, acceleration requirements, friction, and transmission losses.
Do not select the motor based only on static holding torque.
Stepper torque decreases as speed increases. Make sure the selected motor can provide sufficient torque throughout the required speed range.
Encoder selection should match the application's positioning and feedback requirements.
Higher encoder resolution is not automatically better if the mechanical system cannot take advantage of it.
The motor, encoder, and driver need to work as a complete system.
Check:
Motor current
Encoder interface
Control mode
Communication protocol
Alarm functions
Position correction strategy
Encoder feedback does not eliminate mechanical backlash, shaft compliance, coupling errors, or transmission inaccuracies.
The complete mechanical system still determines final positioning performance.
For OEMs, the growth of closed-loop stepper technology is not simply about replacing one motor with another.
It represents a broader shift in how motion systems are designed.
A conventional open-loop stepper can remain highly effective when the application is predictable and cost is the primary consideration.
A servo remains the right choice when high speed, acceleration, dynamic response, and sophisticated feedback control are essential.
But there is a large group of machines between these two extremes.
For these applications, a closed-loop stepper motor can provide a practical combination of:
Encoder feedback
Lost-step detection
Position correction
Strong low-speed torque
Moderate system cost
Simpler integration than many servo systems
Potential energy savings
That middle ground is precisely where the technology is gaining traction.
Closed-loop stepper motors combine stepper motor technology with encoder feedback.
They can detect position errors and help identify lost steps or stall conditions.
They provide a practical alternative between conventional open-loop steppers and higher-cost servo systems.
3D printers, small CNC machines, and compact automation equipment are important application areas.
Integrated motor-driver designs can simplify wiring and machine integration.
EtherCAT and EtherNet/IP versions are helping move stepper motors toward networked industrial automation.
Actual energy savings depend on motor, driver, load, and operating conditions rather than a fixed percentage for every application.
Not for every application. Open-loop steppers remain attractive for simple, cost-sensitive systems. Closed-loop models become more valuable when lost-step detection, feedback, and motion reliability are important.
They are generally positioned as a more economical alternative to servo systems for applications that do not require full servo-level dynamic performance. Actual system cost depends on the motor, driver, encoder, controller, and application.
They can detect position deviation and, depending on the control system, correct or respond to it. They should not be described as physically incapable of losing steps under every overload condition.
Yes. They can be used for axis positioning and extrusion applications where feedback and motion reliability are valuable, particularly in higher-performance or industrial 3D printing systems.
It is a motor system that combines the motor, encoder, and driver electronics into a more integrated unit. Some versions also support industrial communication protocols such as EtherCAT or EtherNet/IP.
The rise of closed-loop stepper motors does not mean that open-loop steppers or servo motors are becoming obsolete. Instead, it reflects a more segmented motion-control market.
When a basic stepper motor is not reliable enough but a servo system is excessive for the application, closed-loop technology offers another option.
For 3D printer manufacturers, CNC equipment builders, automation OEMs, and motion-control integrators, this middle ground can be particularly valuable: better feedback and motion reliability without automatically taking on the cost and complexity of a complete servo architecture.
For projects requiring a customized closed-loop stepper motor, encoder configuration, integrated driver, EtherCAT or EtherNet/IP communication, motor size, torque, speed, and mechanical interface can be developed according to the actual equipment requirements.
If you are upgrading an open-loop stepper system or evaluating a cost-effective alternative to servo motors, contact us with your load, speed, torque, encoder, and communication requirements for a customized closed-loop stepper motor solution.
