Micro stepper motors can play an important role in the next generation of humanoid robots, especially in compact joints, robotic hands, facial mechanisms, camera systems, and other low-to-medium load motion applications where precise positioning and compact dimensions are critical. They are not a universal replacement for high-performance servo actuators, but when properly matched to the mechanical requirement, micro stepper motors can provide a practical combination of positioning accuracy, controllability, torque, and compact packaging.
As humanoid robots move beyond laboratory demonstrations into manufacturing, logistics, healthcare, education, inspection, and service applications, actuator selection is becoming an increasingly important engineering issue. A humanoid robot must carry its own motors, gearboxes, sensors, electronics, batteries, and structural components while still producing controlled and repeatable movement.
This creates a difficult design trade-off: how can engineers achieve sufficient mechanical output without making the robot too heavy, large, expensive, or difficult to control?
For some mechanisms, the answer may be a compact stepper-based actuator.
Humanoid robots have a fundamentally different mechanical architecture from conventional industrial automation equipment.
A traditional industrial robot is usually mounted on a rigid base and operates within a predictable workspace. A humanoid robot must move its entire body. It needs to walk, balance, manipulate objects, interact with its surroundings, and potentially work for extended periods using a limited battery capacity.
Every actuator therefore affects the overall robot.
A heavier motor can increase joint load. A larger gearbox can reduce available installation space. A motor with insufficient torque can cause positioning errors or stall under load. A motor that generates excessive heat can reduce operating time or require additional cooling.
Engineers typically evaluate several parameters simultaneously:
·
l Continuous and peak torque
l Motor and gearbox dimensions
l Output speed
l Torque-to-weight ratio
l Positioning accuracy
l Backlash
l Thermal performance
l Power consumption
l Control complexity
l Feedback requirements
l Expected operating cycle
This is why there is no single "best motor" for an entire humanoid robot.
A large dynamic joint may require a high-performance servo actuator, while a small positioning mechanism may benefit from a micro stepper motor.
A micro stepper motor is a miniature stepper motor designed to convert electrical pulse signals into controlled angular movement.
Instead of simply rotating continuously like a conventional DC motor, a stepper motor divides rotation into discrete steps. The controller can command the motor to move a defined number of steps, making this technology useful for positioning applications.

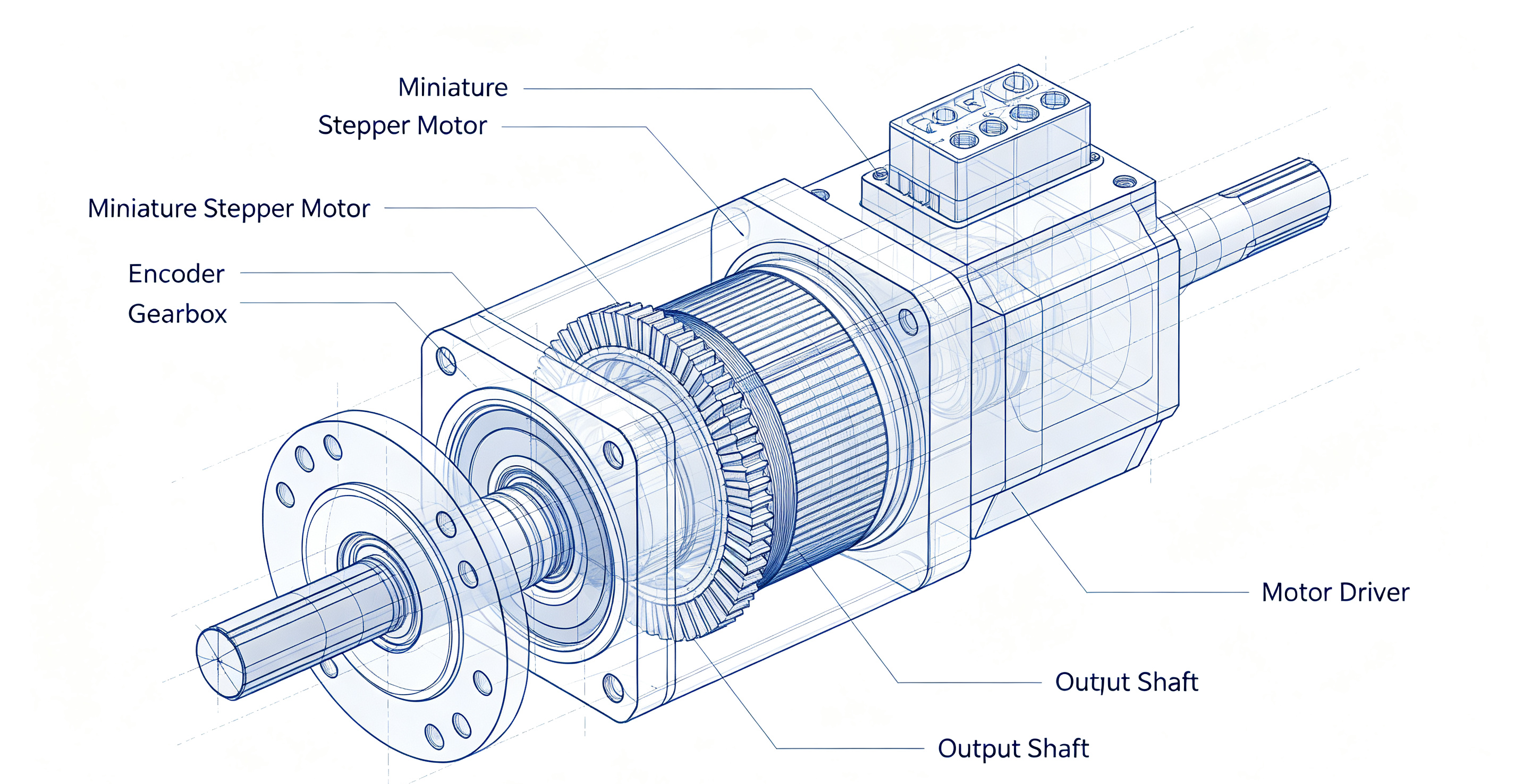

Depending on the design, a micro stepper motor can be integrated with:
l A precision gearbox
l Lead screw
l Linear guide
l Encoder
l Custom output shaft
l Mounting flange
l Specialized winding
l Integrated connector
This modular approach allows engineers to adapt the motor to different robotic mechanisms.
For example, a small stepper motor may directly drive a mechanism when speed and torque requirements are modest. If more output torque is required, a gearbox can be added. If linear movement is needed, the motor can be combined with a lead screw to create a compact linear actuator.
The main advantage of using a miniature stepper motor in a humanoid robot is not simply its size.
The value comes from the combination of compact mechanical packaging and controlled positioning.
Stepper motors are naturally suited to incremental movement.
A controller can send pulses corresponding to a desired movement, allowing the motor to move in controlled angular increments. With suitable driver technology and mechanical transmission, this can provide fine motion for small robotic mechanisms.
Potential applications include:
l Finger positioning
l Small wrist mechanisms
l Camera adjustment
l Eye movement
l Facial mechanisms
l Small grippers
l Internal positioning systems
For mechanisms where repeatable movement is more important than extremely fast acceleration, this can be useful.
Humanoid robots have strict space constraints.
A robotic hand, for example, may need several actuators inside a relatively small structure. Installing a conventional industrial motor in every finger would be impractical.
A micro stepper motor allows designers to distribute multiple small actuators throughout the mechanism.
This is particularly useful for:
l Robotic fingers
l Thumb mechanisms
l Wrist modules
l Neck mechanisms
l Small joints
l Sensor positioning systems
Miniaturization also helps engineers keep wiring, mechanical transmissions, and structural components within the robot's available envelope.
Many humanoid robot mechanisms do not need high rotational speed.
A finger, camera, eyelid, or small linkage may need to move slowly and accurately rather than rotate at thousands of revolutions per minute.
Stepper motors can perform well in these operating conditions because they provide controlled incremental movement and useful holding torque at low speed.
This makes them worth considering for applications where:
precision + low speed + compact size
are more important than maximum dynamic performance.
This depends heavily on the application.
The torque produced by the motor itself is limited by its electromagnetic size, winding design, magnetic circuit, current, and thermal conditions. However, engineers can increase available output torque by integrating a reduction gearbox.
The basic relationship is:
Output Torque ≈ Motor Torque × Gear Ratio × Gear Efficiency
For example, a higher reduction ratio can significantly increase the available output torque while simultaneously reducing output speed.
This creates an important design trade-off.
Gear Ratio | Output Torque | Output Speed | Typical Consideration |
Low | Lower | Higher | Faster small mechanisms |
Medium | Higher | Lower | General positioning |
High | Much higher | Much lower | High-force compact mechanisms |
A micro geared stepper motor can therefore be useful when a humanoid mechanism needs more torque than a miniature motor can provide directly.
However, increasing the gear ratio does not solve every problem. Engineers also need to consider gearbox efficiency, backlash, mechanical strength, noise, and the required output speed.
The most promising applications are generally smaller mechanisms rather than the robot's primary weight-bearing joints.
Humanoid hands are one of the clearest potential applications.
A robotic hand may have many independently controlled degrees of freedom, creating a strong demand for compact actuators.
Micro stepper motors can potentially be used for:
l Finger flexion and extension
l Thumb positioning
l Small grippers
l Tendon-driven mechanisms
l Linkage systems
l Fine manipulation
Consider a robotic hand designed to handle small electronic components.
The actuator needs to move the finger to a repeatable position while applying controlled force through the mechanical transmission. A miniature stepper motor may be suitable if the required torque, speed, and duty cycle are within its operating range.
For higher loads, the motor can be paired with a gearbox or other transmission.
The wrist presents another potential application.
A humanoid wrist needs to rotate within a compact mechanical structure while maintaining sufficient torque to position the hand and the object being held.
A motor selection process might look at:
l Required wrist torque
l Maximum rotational speed
l Available diameter
l Available motor length
l Gear ratio
l Backlash
l Positioning resolution
l Duty cycle
If the load is relatively low and the movement is controlled, a geared stepper configuration can be considered.
For high-speed or highly dynamic wrist applications, however, a servo actuator may be more appropriate.
Humanoid robots designed for human interaction may contain many small mechanisms that do not require large amounts of torque.
Micro stepper motors can potentially drive:
l Eye positioning mechanisms
l Eyelid movement
l Mouth mechanisms
l Small facial linkages
l Neck positioning
l Camera orientation
These applications emphasize compactness and repeatability.
For example, a camera inside a humanoid head may need controlled pan or tilt movement. A miniature motor with suitable gearing can provide the necessary mechanical motion without occupying excessive internal space.
Humanoid robots depend heavily on cameras, force sensors, depth sensors, and other perception systems.
Some sensors need mechanical adjustment.
Potential applications include:
l Camera tilt
l Optical alignment
l Sensor calibration
l Small inspection mechanisms
l Internal lens adjustment
In these situations, the actuator does not necessarily need the dynamic performance required by a walking joint.
A compact motor with accurate positioning can be a more appropriate engineering solution.
For most advanced humanoid designs, a conventional micro stepper motor would not be the first choice for the primary hip, knee, or ankle actuator.
These joints experience substantially higher mechanical and dynamic demands.
During walking, the actuator may need to handle:
l Robot body weight
l Acceleration and deceleration
l Sudden changes in load
l Impact forces
l Balance corrections
l Continuous repetitive operation
Engineers therefore need to consider peak torque, continuous torque, response time, thermal capacity, encoder feedback, and mechanical compliance.
Servo-based actuator architectures are generally better suited to these demanding applications.
This does not make stepper technology irrelevant.
Instead, it highlights an important engineering principle:
The actuator should be selected according to the motion requirement of each joint, not according to the robot's overall category.
A humanoid robot can potentially use several different actuator technologies at the same time.
One of the most interesting developments for precision robotic applications is combining a micro stepper motor with an encoder.
A conventional stepper motor can operate in an open-loop configuration. The controller sends commands, but it does not directly measure whether the rotor actually reached the commanded position.
An encoder adds feedback.

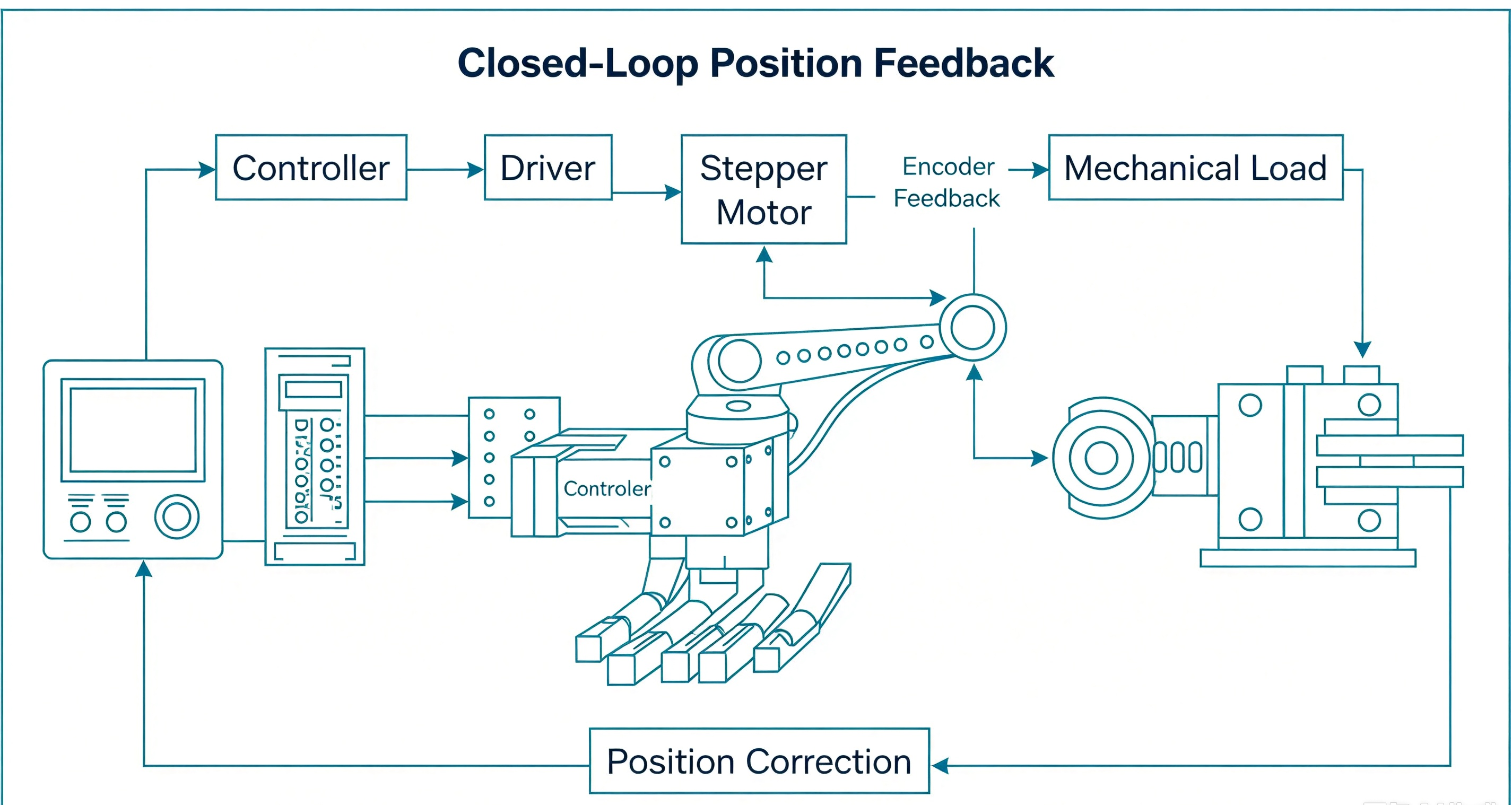

A typical closed-loop architecture can be represented as:
Controller → Driver → Micro Stepper Motor → Mechanical Load → Encoder → Controller
The feedback signal allows the system to monitor actual shaft movement.
This can help detect:
l Missed steps
l Position errors
l Unexpected resistance
l Mechanical interference
l Changes in operating conditions
For humanoid robots, encoder-equipped stepper motors may be particularly interesting in compact mechanisms where engineers want the simplicity and size advantages of stepper technology but also need position feedback.
The two technologies solve different engineering problems.
Feature | Micro Stepper Motor | Servo Motor |
Position control | Good | Excellent |
Feedback | Optional | Usually integrated |
Low-speed operation | Strong | Strong |
Dynamic response | Moderate | High |
Control complexity | Lower | Higher |
Small mechanism integration | Excellent | Application dependent |
High-load dynamic joints | Limited | Better suited |
Holding torque | Useful at low speed | Application dependent |
Cost | Generally lower | Generally higher |
Typical humanoid use | Small mechanisms | Major joints |
This comparison should not be interpreted as a simple "stepper versus servo" decision.
For a robotic finger, a micro stepper motor may be sufficient.
For a knee joint supporting the robot during walking, the engineering requirements are fundamentally different.
Choosing a motor for humanoid robotics requires more than checking the motor's rated torque.
l Required output torque
l Load inertia
l Gear ratio
l Output speed
l Acceleration
l Available installation space
l Shaft configuration
l Positioning accuracy
l Repeatability
l Step angle
l Required travel
l Movement frequency
l Operating cycle
l Rated voltage
l Phase current
l Winding resistance
l Driver compatibility
l Power consumption
l Encoder requirements
l Operating temperature
l Vibration
l Dust exposure
l Noise restrictions
l Expected service life
A practical selection process should begin with the load and movement requirements and then work backward toward the motor specification.
Humanoid Robot Application | Main Requirement | Potential Solution |
Robotic finger | Compact size + positioning | Micro stepper motor |
Thumb mechanism | Torque + compact packaging | Micro geared stepper motor |
Eye movement | Small size + repeatability | Micro stepper motor |
Camera positioning | Precision + controlled speed | Micro geared stepper motor |
Small wrist mechanism | Torque + positioning | Geared stepper or servo |
Elbow joint | Dynamic torque | Servo actuator |
Knee joint | Peak torque + response | High-torque servo actuator |
Hip joint | Torque density + dynamic control | Integrated servo actuator |
The exact solution will depend on the robot's mechanical design, load, speed, control strategy, and operating cycle.
Miniature motors have limited surface area for heat dissipation.
Running excessive current for extended periods can increase temperature and reduce available continuous torque.
Engineers should therefore consider:
l Actual operating current
l Duty cycle
l Ambient temperature
l Motor mounting
l Heat transfer through the mechanical structure
Stepper motors can experience resonance under certain speed and load conditions.
Possible approaches include:
l Microstepping
l Optimized acceleration profiles
l Proper driver selection
l Mechanical damping
l Appropriate gear reduction
The final solution should be tested under the actual load rather than evaluated only under no-load conditions.
If a gearbox is used, backlash becomes an important consideration.
For a humanoid robot, excessive backlash can affect:
l Finger positioning
l Wrist accuracy
l Camera alignment
l Repeatability
l Fine manipulation
When selecting a geared motor, engineers should evaluate both torque multiplication and the resulting mechanical positioning performance.
The future is unlikely to be dominated by one actuator technology.
Instead, humanoid robots will probably use different motor architectures for different functions.
High-performance servo actuators may handle major load-bearing joints.
Micro geared stepper motors may handle compact positioning mechanisms.
Encoder-equipped micro stepper motors may serve applications that require feedback without the complexity of a full servo architecture.
Linear stepper actuators may control small linear mechanisms, while other specialized actuators can handle compliant or high-speed motion.
This distributed approach gives robot designers greater freedom to optimize each subsystem.
As manufacturing technology improves, micro stepper motors may also benefit from:
l Smaller mechanical dimensions
l Higher torque density
l Improved magnetic circuit design
l More efficient windings
l Lower mechanical backlash
l Integrated encoders
l More compact gearboxes
l Improved thermal performance
The result could be a broader range of miniature motion solutions for next-generation humanoid robots.
l Micro stepper motors can play a valuable role in humanoid robots, particularly in compact, precision-oriented mechanisms.
l Their potential applications include robotic fingers, facial mechanisms, camera positioning, small wrist systems, and sensor adjustment.
l A gearbox can increase output torque when the application can accept lower output speed.
l Encoder integration can provide position feedback and improve motion monitoring.
l Micro stepper motors are generally not a direct replacement for high-performance servo actuators in major weight-bearing joints.
l The right motor should be selected based on torque, speed, load inertia, duty cycle, installation space, accuracy, backlash, and feedback requirements.
l A humanoid robot may benefit from using multiple actuator technologies rather than relying on one motor type for every joint.
Yes. Micro stepper motors can be used in compact robotic mechanisms where controlled positioning, small dimensions, and repeatable movement are important. They are generally more suitable for smaller mechanisms than high-load walking joints.
Yes, depending on the required finger force, speed, and mechanical design. A gearbox, lead screw, tendon, or linkage can be added to achieve the required output characteristics.
They can be suitable for smaller, lower-load joints and positioning mechanisms. High-load joints such as hips, knees, and ankles typically require actuators with greater dynamic torque, thermal capacity, and response performance.
An encoder provides feedback about the actual motor position. This allows the control system to detect position errors or missed steps and can be useful when open-loop stepper control is not sufficient.
Yes. A reduction gearbox can increase output torque while reducing output speed. The actual output depends on the motor torque, gear ratio, and gearbox efficiency.
Start with the mechanical requirements: load torque, speed, acceleration, duty cycle, available space, positioning accuracy, and environmental conditions. Then select the motor, gearbox, and encoder configuration that meets those requirements with an appropriate safety margin.
Micro stepper motors are unlikely to replace every actuator in the next generation of humanoid robots, but they can become an important part of the overall motion architecture.
The key is using them where their characteristics provide a genuine engineering advantage. Robotic fingers, small joints, facial mechanisms, camera systems, sensor positioning modules, and other compact mechanisms can benefit from their combination of small size, controlled movement, and relatively simple control.
For more demanding joints, engineers may need servo-based actuator systems capable of handling higher dynamic loads and rapid feedback. In between these two categories, micro geared stepper motors and encoder-equipped stepper motors can provide additional design options for compact robotic systems.
As humanoid robots become more capable and more compact, actuator manufacturers will face increasing pressure to deliver motors that fit tighter spaces without sacrificing mechanical performance. Customized motor dimensions, windings, gear ratios, shaft configurations, and encoder options can help equipment designers match the actuator to the actual mechanical requirement.
For robotics companies developing a new humanoid platform or a specific robotic mechanism, the most effective approach is to evaluate the complete motion system—including motor, gearbox, transmission, driver, and feedback—rather than selecting a motor based on torque alone.
Welcome to contact us for a customized stepper motor solution. We can support motor selection, gearbox configuration, encoder integration, and application-specific design based on your robot's size, load, speed, and positioning requirements.
