Micro stepper motors achieve useful torque in very small packages through optimized magnetic circuits, efficient winding design, appropriate current control, and careful thermal management. When an application needs even more output torque at low speed, a micro stepper motor can also be paired with a precision gearbox to increase mechanical advantage without substantially increasing the motor diameter.
For engineers designing compact medical devices, laboratory equipment, optical instruments, robotics, and automation systems, the challenge is not simply finding the smallest motor. The real challenge is finding a motor that fits the available space while still providing enough torque, positioning accuracy, speed, and thermal performance.
This is where the design of a micro stepper motor becomes important. Stepper motors naturally provide useful torque at low speed and can operate with relatively simple open-loop control, which is one reason they remain common in precision motion applications.

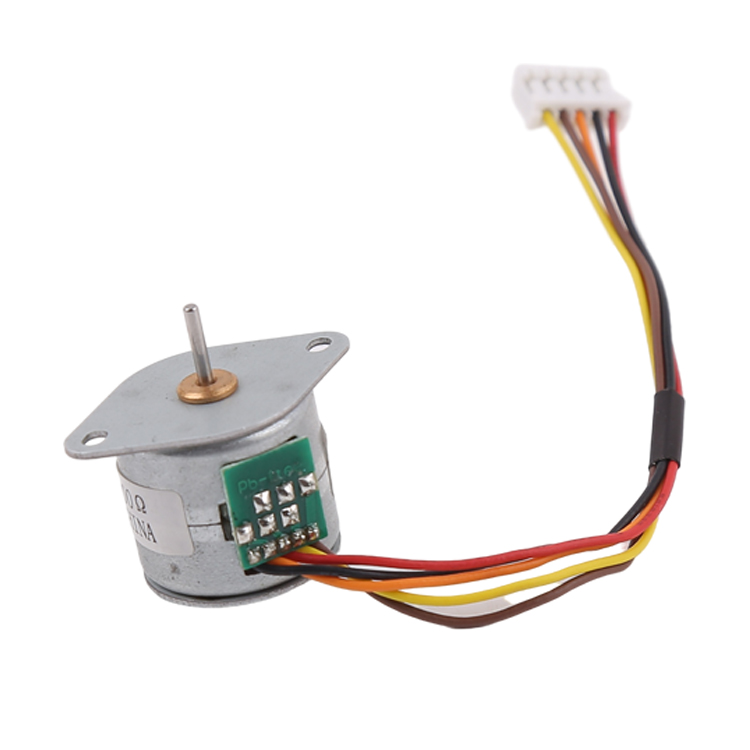

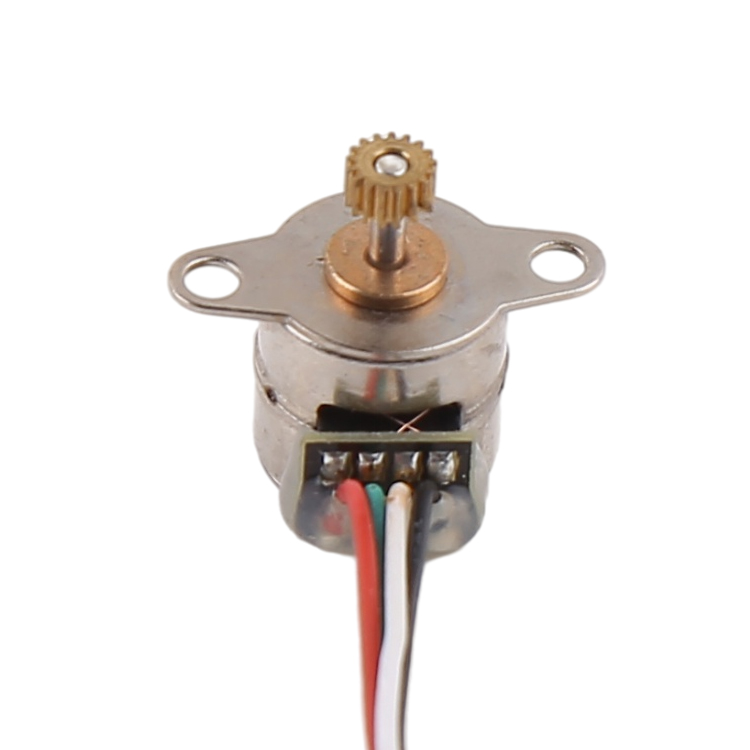

A micro stepper motor is a miniature stepper motor designed for applications where installation space, weight, and controlled movement are critical.
Like a conventional stepper motor, it converts electrical pulses into incremental rotational movement. Depending on the design, miniature stepper motors may use permanent-magnet, variable-reluctance, or hybrid structures. Hybrid designs are often selected when higher torque and finer positioning are required.

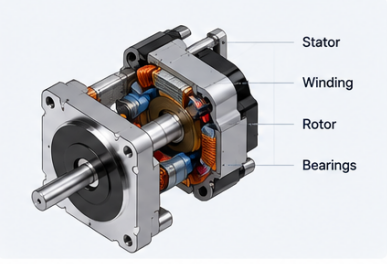

l Stator and precision winding structure
l Rotor and magnetic circuit
l Shaft and bearings
l Motor driver
l Optional gearbox or encoder
l Mounting and connection components
The motor itself generates rotational torque, while the driver determines how electrical current is applied to the windings.
For applications requiring smoother movement, microstepping can divide a full step into smaller commanded positions. This can reduce vibration and improve motion smoothness, although microstepping should not be confused with a proportional increase in the motor's available mechanical torque.
Motor miniaturization creates several engineering trade-offs.
As the motor becomes smaller, there is less physical space for:
l Copper windings
l Magnetic material
l Rotor diameter
l Stator teeth
l Heat-dissipation surfaces
l Mechanical bearings and support structures
This means engineers must extract as much useful torque as possible from a limited volume.
Motor torque depends heavily on the magnetic field generated inside the motor. Reducing the motor diameter reduces the available magnetic and electromagnetic volume.
The design therefore has to make efficient use of the available magnetic circuit rather than simply adding more material.
Heat is another major constraint.
A compact motor has less surface area through which heat can escape. If winding current is increased too aggressively, copper losses increase and the motor temperature can rise quickly.
For this reason, the torque specification engineers actually need to evaluate is often continuous torque under the application's real duty cycle, rather than only the maximum or holding torque listed on a datasheet.

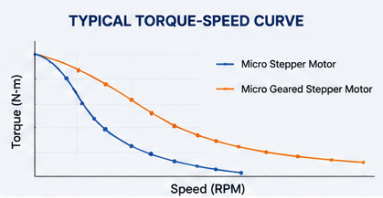

Stepper motors are particularly useful at low speed, but available torque generally decreases as rotational speed rises. Therefore, a motor that provides sufficient holding torque may not necessarily provide the same torque during acceleration or high-speed operation.
This is why engineers should evaluate the complete torque-speed curve, not just one torque number.
One of the most important ways to increase torque in a miniature motor is to optimize its magnetic circuit.
Engineers can improve torque density through:
l Optimized stator tooth geometry
l Improved rotor magnet design
l Reduced magnetic leakage
l Appropriate air-gap control
l Better magnetic flux distribution
l Higher-performance magnetic materials
The objective is to generate useful electromagnetic torque without significantly increasing the motor's external dimensions.
For hybrid micro stepper motors, the rotor and stator geometry can also support higher holding torque and finer positioning compared with simpler miniature motor structures.
The winding is another important factor.
A miniature motor has limited space for copper, so engineers need to balance:
l Winding resistance
l Current
l Number of turns
l Copper fill factor
l Temperature rise
l Required torque
Simply increasing current is not always the answer. Higher current increases copper losses and can create thermal problems.
A better approach is to design the winding and magnetic circuit together so the motor can produce the required torque within its allowable temperature range.
The motor driver has a direct effect on how smoothly a micro stepper motor operates.
Microstepping uses controlled current waveforms to divide a full step into smaller commanded increments. This can reduce vibration, resonance, and audible noise while improving motion smoothness.
However, engineers should distinguish between:
Position command resolution ≠ guaranteed mechanical accuracy
Mechanical factors such as friction, load, backlash, rotor detent characteristics, manufacturing tolerances, and system stiffness still affect actual positioning performance.
When the motor itself cannot provide enough torque within the required package size, a gearbox can be added.
The basic relationship is:
Output Torque ≈ Motor Torque × Gear Ratio × Gear Efficiency
For example, a higher reduction ratio can trade rotational speed for greater output torque.
This approach is particularly useful for:
l Miniature actuators
l Robotic joints
l Medical pumps
l Small gripping mechanisms
l Compact positioning systems
l Low-speed mechanisms
Geared stepper motors are already used in applications requiring fine positioning and controlled metering, including compact medical equipment.
The value of a micro stepper motor becomes clearer when looking at actual equipment requirements.
Compact medical equipment often needs controlled movement inside a limited enclosure.
Syringe and infusion pumps
l Drug dispensing mechanisms
l Laboratory pipetting systems
l Diagnostic instruments
l Optical adjustment mechanisms
In a pump, for example, the motor may drive a lead screw that moves a syringe plunger. The design needs controlled low-speed movement, repeatability, and sufficient force to overcome mechanical resistance.
Stepper motors are also used in medical applications because their pulse-based positioning can simplify control architecture.
Robotics is another area where motor size directly affects system design.
Micro stepper motors can be considered for:
Robotic grippers
l Small joints
l Camera gimbals
l Sensor positioning
l Micro-robotic mechanisms
l Laboratory robots
In small robotic systems, the motor must fit inside a restricted mechanical envelope while still generating enough torque to move the mechanism.
For applications requiring higher force at a controlled speed, combining a micro stepper motor with gear reduction can provide a practical solution.
Optical systems often require small, repeatable adjustments.
Typical examples include:
l Lens positioning
l Focus mechanisms
l Filter adjustment
l Sensor alignment
l Microscope stages
Here, the key requirement may not be maximum torque. Instead, engineers may prioritize low-speed controllability, repeatability, compact dimensions, and low vibration.
Micro stepper motors can also be used in small automation mechanisms such as:
l Dispensing equipment
l Labeling mechanisms
l Feeding systems
l Pick-and-place modules
l Electronic assembly equipment
Stepper motors are widely used in industrial automation because they provide controlled movement and can be integrated with digital controllers relatively easily.
Selecting a motor based only on its outer dimensions is risky. The motor needs to be matched to the complete mechanical load.
l Required output torque
l Operating speed
l Acceleration and deceleration
l Holding torque
l Torque-speed curve
l Rated current
l Voltage
l Step angle
l Motor dimensions
l Shaft load
l Duty cycle
l Operating temperature
l Available installation space
For a compact application, it is also important to calculate the actual load torque instead of simply selecting the motor with the largest published torque value.
Parameter | What It Tells You | Why It Matters |
Holding Torque | Torque available at standstill | Important for maintaining position |
Operating Torque | Torque available during motion | Determines whether the motor can move the load |
Speed | Rotational operating range | Affects machine cycle time |
Step Angle | Basic angular movement per step | Influences positioning resolution |
Rated Current | Required winding current | Affects torque and heat |
Torque-Speed Curve | Torque available at different speeds | Essential for real-world sizing |
Motor Diameter | Radial installation size | Determines mechanical compatibility |
Motor Length | Axial installation size | Important in space-limited equipment |
Temperature Rise | Heating under operation | Affects continuous-duty reliability |
Gear Ratio | Mechanical reduction | Useful when higher output torque is required |
Motor Type | Main Advantage | Main Limitation | Typical Use |
Micro Stepper Motor | Precise incremental motion and simple control | Torque decreases at higher speed | Positioning, optics, laboratory equipment |
Micro Geared Stepper Motor | Higher output torque at low speed | Gearbox adds length and potential backlash | Compact actuators, pumps, robotics |
Micro DC Gear Motor | Simple continuous rotation | Position control usually requires feedback | Small drives and actuators |
Micro Servo Motor | Closed-loop position control | Higher system complexity and cost | Robotics and high-performance positioning |
BLDC Motor | High efficiency and speed | Requires more sophisticated control | High-speed compact equipment |
The right choice depends on the application's priorities rather than simply choosing the motor with the highest torque.
When the available installation space is fixed, engineers can consider several approaches.
l Select a suitable magnetic structure
l Optimize winding parameters
l Match current to the thermal limit
l Choose the correct motor length
l Use an appropriate driver
l Add a precision gearbox
l Select an appropriate gear ratio
l Use a lead screw where linear force is required
l Reduce unnecessary mechanical friction
l Use appropriate acceleration profiles
l Apply microstepping when smoother movement is required
l Avoid operating continuously near the motor's thermal limit
l Consider encoder feedback when missed-step detection is important
The best solution is usually a system-level design, rather than simply increasing motor current.
Stepper motors can experience resonance in certain speed ranges.
Possible countermeasures include:
l Microstepping
l Optimized acceleration profiles
l Appropriate driver selection
l Mechanical damping
l Avoiding problematic operating speeds
Microstepping is widely used to reduce vibration and improve smoothness in precision motion systems.
For ultra-compact motors, thermal performance can become the limiting factor.
Engineers should consider:
l Continuous versus intermittent operation
l Ambient temperature
l Motor mounting conditions
l Rated current
l Available cooling path
l Required safety margin
A smaller step angle or higher microstep setting does not automatically guarantee higher system accuracy.
The complete motion system—including the motor, driver, transmission, bearings, mechanical structure, and load—determines final positioning performance.
Micro stepper motors achieve higher torque density through optimized magnetic circuits, winding design, current control, and thermal management.
l Smaller motor dimensions create tighter limits on magnetic volume and heat dissipation, making motor design and application sizing critical.
l A torque-speed curve is more useful for motor selection than relying on holding torque alone.
l Microstepping can improve smoothness and reduce vibration, but commanded microstep resolution should not be treated as guaranteed positioning accuracy.
l When the motor itself cannot provide sufficient torque, a precision gearbox can trade speed for higher output torque.
l Medical equipment, robotics, optical instruments, laboratory automation, and compact industrial equipment are practical application areas for miniature stepper motors.
l Custom motor dimensions, winding specifications, gear ratios, shafts, and electrical parameters can be matched to specific equipment requirements.
A micro stepper motor achieves useful torque through an optimized magnetic circuit, rotor and stator geometry, winding design, and controlled current. When additional output torque is required, a gearbox can increase mechanical advantage.
Not in a simple proportional sense. Microstepping primarily improves commanded motion resolution and smoothness and can reduce vibration. The motor's available mechanical torque remains determined by its electromagnetic and thermal characteristics.
A micro stepper motor directly drives the output shaft, while a micro geared stepper motor adds a reduction gearbox. The geared version generally provides higher output torque and lower output speed but may introduce additional length and mechanical backlash.
Common applications include medical equipment, laboratory automation, optical instruments, robotics, compact automation equipment, camera mechanisms, and other space-constrained positioning systems.
Start with the required load torque, speed, acceleration, duty cycle, installation dimensions, temperature conditions, and positioning requirements. Then compare the motor's torque-speed curve with the actual mechanical load.
Yes. Depending on the manufacturer and application, customization can include motor dimensions, winding, voltage, current, shaft configuration, step angle, connector, gearbox, and encoder integration.
A micro stepper motor does not achieve useful torque simply because it is small. High performance in an ultra-compact package comes from carefully balancing electromagnetic design, winding characteristics, current control, thermal limits, and mechanical transmission.
For engineers, the key is to define the actual operating point first: How much torque is required, at what speed, for how long, and within what installation space? Once these requirements are clear, the motor structure, winding, driver, and optional gearbox can be selected around the application rather than around a single headline specification.
