Choosing the right motor can determine whether a compact motion system delivers reliable, repeatable performance or becomes a source of noise, positioning errors, and costly redesigns.
When engineers compare a micro stepper motor vs. micro DC gear motor, the decision is rarely as simple as choosing the motor with the highest torque or smallest size. These two motor technologies use fundamentally different approaches to motion control.
A micro stepper motor is designed around controlled incremental movement, making it an excellent choice for precise positioning, repeatability, and controlled low-speed motion. A micro DC gear motor, on the other hand, is typically better suited to continuous rotation, variable-speed operation, compact power transmission, and applications where smooth movement and efficiency are priorities.
So, which motor is better for precision motion?
The answer depends on your application. This guide compares micro stepper motors and micro DC gear motors across precision, torque, speed, control, noise, efficiency, size, cost, and typical applications to help engineers and product designers make the right choice.
Before looking at the technical details, the following comparison provides a quick overview.
Feature | Micro Stepper Motor | Micro DC Gear Motor |
Motion Principle | Incremental step-based movement | Continuous rotary movement |
Positioning | Excellent | Requires feedback for higher precision |
Repeatability | Very high in controlled applications | Good with encoder feedback |
Low-Speed Torque | Strong | Increased through gear reduction |
Speed Control | Excellent at controlled speeds | Excellent for variable-speed operation |
Holding Torque | Available without continuous rotation | Generally requires power or brake mechanism |
Noise & Vibration | Can require optimization | Generally smooth and quiet |
Efficiency | Moderate | Generally higher for continuous motion |
Control System | Stepper driver required | Simple voltage/PWM control |
Feedback | Optional depending on application | Often useful for precision positioning |
Best Application | Positioning, indexing, metering | Continuous rotation, speed control |
System Cost | Motor + driver may increase cost | Often simpler and economical |
There is no universal winner. The right motor depends on whether your priority is positioning accuracy or smooth continuous movement.

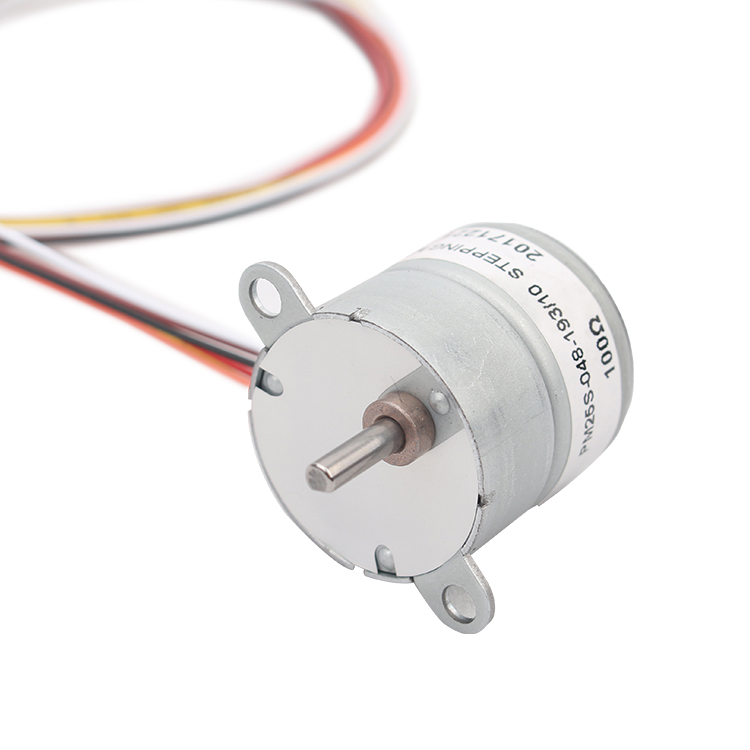

A micro stepper motor is a compact stepper motor designed to convert electrical pulses into controlled angular movement.
Instead of rotating continuously like a conventional DC motor, a stepper motor moves through defined steps. Each electrical pulse commands the motor to move by a specific increment.
For applications requiring accurate and repeatable positioning, this operating principle offers a major advantage.
Typical micro stepper motor applications include:
l Medical pumps
l Syringe pumps
l Laboratory automation
l Optical positioning systems
l 3D printers
l Small CNC equipment
l Valve actuators
l Camera mechanisms
l Diagnostic instruments
l Precision dispensing systems
A micro stepper motor can also be combined with microstepping technology. Microstepping divides a full step into smaller commanded increments, helping create smoother movement and reducing vibration.
However, it is important to distinguish resolution from absolute accuracy. A motor with a high microstepping resolution does not automatically achieve the same level of mechanical positioning accuracy.
Actual system accuracy also depends on the driver, mechanical transmission, load, backlash, coupling, and control system.

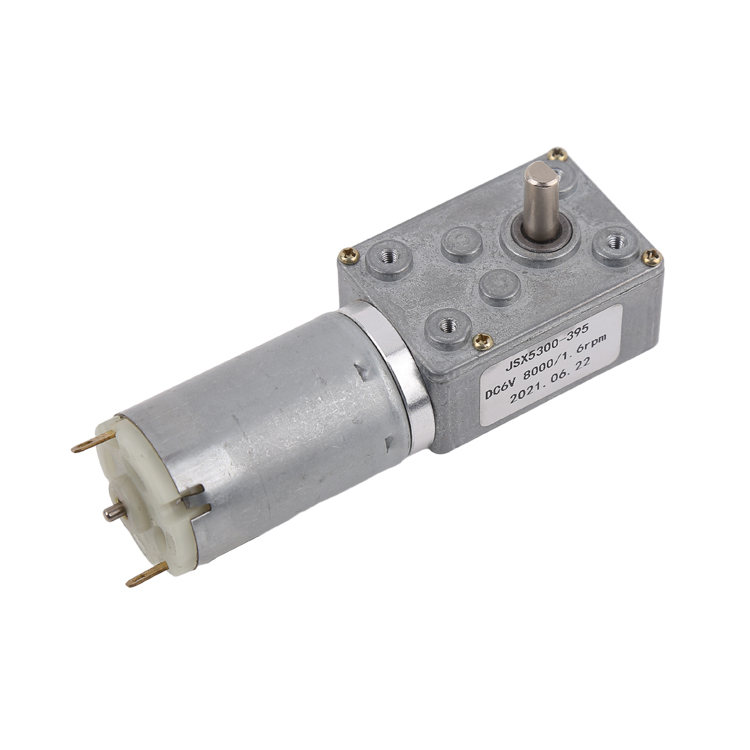

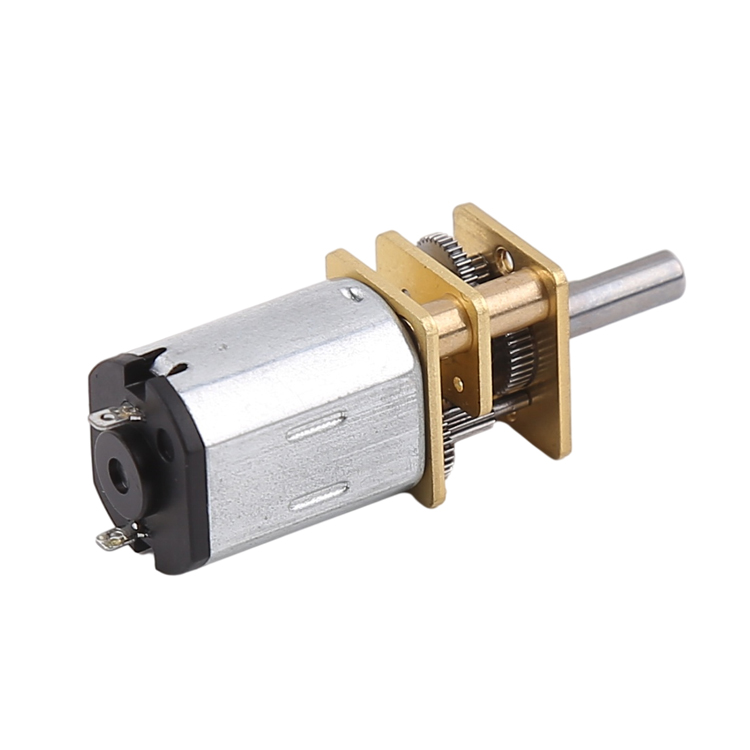

A micro DC gear motor combines a compact DC motor with a gearbox.
The DC motor provides continuous rotation, while the gearbox reduces speed and increases output torque.
This combination is particularly useful when the application requires:
l Continuous rotation
l Variable speed
l Compact size
l Higher output torque
l Smooth operation
l High efficiency
l Simple motor control
Micro DC gear motors are widely used in compact consumer products, smart locks, robotics, portable devices, actuators, small appliances, automotive mechanisms, and other space-constrained systems.
Unlike a stepper motor, a basic DC gear motor does not inherently know its angular position.

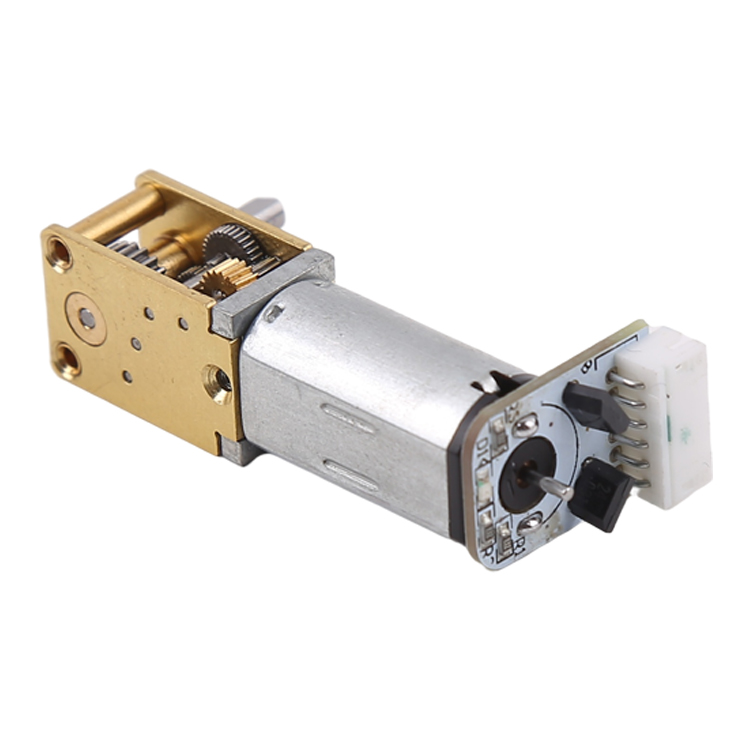

If precise positioning is required, an encoder can be added to create a feedback-controlled system.
This makes the comparison between a micro stepper motor and a micro DC gear motor particularly important for engineers developing precision products.
When precision is the primary requirement, a micro stepper motor often has an advantage because its movement is directly associated with commanded electrical pulses.
For example, if the controller sends a defined number of step pulses, the motor is expected to move a corresponding angular distance.
This makes stepper motors particularly attractive for open-loop positioning systems.
A DC gear motor typically relies on feedback when high positioning accuracy is required.
The system may use:
DC Motor → Gearbox → Encoder → Controller
The encoder measures actual shaft position, and the controller continuously adjusts motor operation.
This feedback architecture can provide excellent positioning performance, but it also increases system complexity.
For straightforward positioning and indexing:
Micro stepper motor = usually the simpler solution.
For dynamic positioning with continuous speed changes and closed-loop feedback:
Micro DC gear motor = potentially better suited.
The best option depends on the required accuracy, speed, load, and control architecture.
Torque is one of the most important selection parameters.
A micro stepper motor typically provides strong torque at low speeds and can maintain holding torque while energized.
This is useful for applications where the motor must resist an external load while maintaining position.
A micro DC gear motor uses mechanical reduction to increase output torque.
The gearbox can significantly increase torque at the output shaft while reducing rotational speed.
Torque Requirement | Better Starting Point |
High holding torque | Micro stepper motor |
Low-speed positioning | Micro stepper motor |
High output torque in compact size | Micro DC gear motor |
Continuous rotation under load | Micro DC gear motor |
Static positioning | Micro stepper motor |
Dynamic movement | Either, depending on control system |
However, motor selection should never be based on holding torque alone.
Engineers should evaluate the torque-speed curve and actual operating conditions.
Acceleration, friction, transmission losses, duty cycle, and external loads all affect the required motor torque.
Micro DC gear motors generally have an advantage when the application requires continuously variable speed.
A DC motor can be controlled using voltage or PWM, allowing relatively straightforward speed adjustment.
Micro stepper motors excel at controlled positioning and low-speed motion, but their torque decreases as speed increases.
This makes them less suitable for applications that require:
l Very high rotational speed
l Continuous high-speed operation
l Rapid variable-speed changes
On the other hand, a stepper motor can be ideal when the application requires a predictable sequence of movements rather than continuous rotation.
For example, an automated dispenser may need to rotate a specific distance, stop, hold position, and then repeat.
That is a natural application for a micro stepper motor.
One important difference between these technologies is holding torque.
A powered stepper motor can maintain a commanded position without continuously rotating.
This is valuable for applications such as:
l Valves
l Medical pumps
l Optical positioning
l Linear actuators
l Camera mechanisms
l Laboratory instruments
l Precision adjustment mechanisms
A conventional DC gear motor generally does not provide the same inherent position-holding behavior.
To hold a precise position, the system may require an encoder, closed-loop control, brake, or other mechanical solution.
Therefore, if your product must repeatedly move → stop → hold → move again, a micro stepper motor may provide a simpler architecture.
Noise is an important factor in compact motion systems.
Stepper motors can produce audible noise and vibration, particularly when operating near resonance or when driven without appropriate current control and microstepping.
Fortunately, motor-driver optimization can significantly improve performance.
Potential solutions include:
l Microstepping
l Optimized acceleration profiles
l Appropriate driver selection
l Current optimization
l Mechanical damping
l Proper coupling alignment
Micro DC gear motors generally provide smooth continuous rotation, although gearbox design, bearing quality, gear profile, and motor speed can all influence acoustic performance.
For a quiet consumer product, a carefully designed DC gear motor may be preferable.
For a precision instrument, however, a properly optimized micro stepper motor can still provide excellent motion performance.
Efficiency can become especially important in portable and battery-powered products.
A DC gear motor generally consumes power primarily when it is rotating and producing mechanical output.
A stepper motor can consume current even while holding position.
Therefore, for applications that spend long periods rotating continuously, a micro DC gear motor may provide better energy efficiency.
For applications requiring frequent positioning and short motion cycles, the efficiency difference should be evaluated based on the actual duty cycle rather than motor type alone.
Consider:
l Operating time
l Standby time
l Holding time
l Load
l Speed
l Supply voltage
l Driver efficiency
l Battery capacity
A motor that appears more efficient in a catalog may not necessarily consume less energy in the complete application.
Both technologies can be manufactured in extremely compact packages.
However, the total system size should be considered.
A micro stepper motor may require an external driver.
A micro DC gear motor may require an encoder and controller when high precision is needed.
Therefore, compare the entire motion system:
Motor + Driver + Controller + Gearbox + Encoder + Mechanical Transmission
rather than comparing motor dimensions alone.
For highly space-constrained products, customized motors can also provide significant advantages.
Manufacturers can optimize:
l Motor diameter
l Motor length
l Shaft size
l Shaft length
l Gear ratio
l Connector position
l Cable direction
l Mounting holes
l Winding specifications
l Encoder integration
This can make a customized micro motor more valuable than a standard catalog product.
The control architecture is another major difference.
A typical stepper motor system includes:
Controller → Stepper Driver → Micro Stepper Motor
The controller sends pulses and direction signals to command motor movement.
A DC gear motor system may look like:
Controller → Motor Driver → DC Gear Motor
For higher precision:
Controller → Closed-Loop Driver → DC Gear Motor + Encoder
The stepper solution can therefore be simpler when open-loop positioning is acceptable.
The DC gear motor solution becomes more sophisticated when encoder feedback is added, but it also provides the ability to monitor actual shaft position.
Medical equipment often requires precise and repeatable movement.
Applications such as syringe pumps, infusion mechanisms, laboratory analyzers, diagnostic equipment, and automated dispensing systems may benefit from stepper motor technology.
A micro stepper motor for medical equipment can provide controlled low-speed motion, repeatability, and holding torque in a compact package.
A micro DC gear motor can also be useful in medical products where smooth continuous movement or variable speed is more important.
The correct choice depends on the equipment's risk assessment, motion profile, control architecture, environmental requirements, and validation requirements.
For medical OEM projects, motor selection should be based on actual system testing rather than catalog specifications alone.
Application | Recommended Motor | Why |
Syringe Pump | Micro Stepper Motor | Precise displacement control |
Infusion Mechanism | Micro Stepper Motor | Controlled low-speed movement |
Laboratory Automation | Micro Stepper Motor | Positioning and repeatability |
Optical Positioning | Micro Stepper Motor | Fine positioning |
3D Printer | Micro Stepper Motor | Accurate incremental movement |
Smart Lock | Micro DC Gear Motor | Compact torque transmission |
Robotic Gripper | Micro DC Gear Motor | Smooth dynamic movement |
Portable Device | Micro DC Gear Motor | Efficiency and compact size |
Small Fan/Actuator | Micro DC Gear Motor | Continuous rotation |
Precision Valve | Micro Stepper Motor | Position control and holding torque |
A micro stepper motor is usually a strong choice when your application requires:
l Precise positioning
l High repeatability
l Controlled incremental movement
l Strong low-speed torque
l Holding torque
l Predictable indexing
l Open-loop control
l Fine adjustment
l Compact precision motion
Typical examples include medical pumps, laboratory instruments, optical systems, automation equipment, and precision actuators.
If the product moves to a specific position, stops, holds, and repeats, a stepper motor should be one of the first technologies you evaluate.
A micro DC gear motor may be a better option when your application requires:
l Continuous rotation
l Variable speed
l Smooth movement
l High efficiency
l Compact output torque
l Battery-powered operation
l Simple speed control
l Dynamic movement
If your application behaves more like:
Start → Rotate → Adjust Speed → Continue Running → Stop
a micro DC gear motor may be the more practical choice.
If precise positioning is required, adding an encoder can turn the system into a closed-loop motion solution.
The answer should not be based solely on unit price.
Instead, evaluate the total system cost.
A micro stepper motor may require a more sophisticated driver but can eliminate the need for an encoder in some positioning applications.
A micro DC gear motor may have a lower motor cost, but adding an encoder, controller, feedback system, and additional development effort can increase the total cost.
Consider these factors:
Selection Factor | Micro Stepper Motor | Micro DC Gear Motor |
Precision Positioning | ★★★★★ | ★★★★ |
Holding Position | ★★★★★ | ★★ |
Variable Speed | ★★★ | ★★★★★ |
Continuous Rotation | ★★★ | ★★★★★ |
Low-Speed Torque | ★★★★★ | ★★★★ |
Energy Efficiency | ★★★ | ★★★★★ |
Control Simplicity for Positioning | ★★★★★ | ★★★ |
Smooth Continuous Motion | ★★★★ | ★★★★★ |
Compact Torque Output | ★★★★ | ★★★★★ |
Open-Loop Operation | ★★★★★ | ★★ |
These ratings are general engineering guidance rather than universal specifications. Actual performance depends on the motor design, gearbox, driver, load, and application.
A motor may physically fit your product but still fail to provide sufficient torque or thermal performance.
Always check the complete mechanical and electrical requirements.
Maximum torque does not tell you how the motor performs across the operating speed range.
Always review the torque-speed curve.
Microstepping improves command resolution and motion smoothness, but it does not automatically eliminate mechanical errors.
A micro DC gear motor can provide high output torque, but gearbox backlash may affect positioning accuracy.
If precision is critical, evaluate the gearbox's backlash and repeatability.
The motor is only one component.
Driver selection, mechanical transmission, controller, encoder, load, and mounting conditions can all affect final performance.
For OEM products, inconsistent motor performance can result in higher development costs, quality problems, and supply-chain risk.
The lowest unit price is not always the lowest total cost.
A practical selection process can be divided into six steps.
Determine whether the application requires:
l Positioning
l Continuous rotation
l Indexing
l Linear movement
l Variable speed
l Holding
Determine:
l Required torque
l Speed
l Acceleration
l Radial load
l Axial load
l Friction
l Transmission ratio
Specify:
l Positioning accuracy
l Repeatability
l Resolution
l Backlash
l Encoder requirements
Measure:
l Maximum diameter
l Maximum length
l Shaft dimensions
l Mounting pattern
l Connector location
l Available installation space
Consider:
l Voltage
l Current
l Driver
l Controller
l Duty cycle
l Battery capacity
Prototype testing should replicate the actual:
l Load
l Speed
l Temperature
l Duty cycle
l Acceleration
l Mechanical configuration
This is the most reliable way to determine whether a micro stepper motor or micro DC gear motor is suitable.
Standard motors can be an excellent solution when your requirements match an existing design.
However, OEM products often have unique constraints.
A customized micro motor can be developed around your actual product requirements rather than forcing the product design to fit a standard motor.
Customization options may include:
l Custom winding
l Custom shaft
l Custom mounting
l Custom gear ratio
l Integrated encoder
l Special connector
l Custom cable
l Reduced motor length
l Low-noise optimization
l Special operating voltage
For high-volume products, customization can also help improve mechanical integration and reduce unnecessary components.
The key is to work with a motor manufacturer that can support the project from sample development to validation and mass production.
Selecting the right motor is only the beginning.
A capable motor supplier should be able to support you with:
l Motor selection
l Engineering consultation
l Technical drawings
l Sample production
l Motor customization
l Gearbox development
l Encoder integration
l Performance testing
l Quality control
l Production scaling
l Long-term supply
For B2B and OEM customers, this support can significantly reduce development time.
Instead of purchasing a motor based solely on a catalog specification, you can develop a solution around the actual requirements of your product.
So, which is better for precision motion: a micro stepper motor or a micro DC gear motor?
If your primary requirement is precise positioning, repeatability, low-speed control, indexing, and holding torque, a micro stepper motor is often the better starting point.
If your priority is smooth continuous rotation, variable speed, compact torque transmission, and energy efficiency, a micro DC gear motor may be the better solution.
For applications requiring advanced dynamic positioning, a micro DC gear motor with an encoder can provide closed-loop control. For applications where predictable incremental movement is the priority, a micro stepper motor can provide a simpler and highly effective solution.
Ultimately, the best motor is not the one with the highest specification.
It is the motor that best matches your load, speed, precision, size, control system, operating environment, and cost target.
If you are currently comparing a micro stepper motor vs. micro DC gear motor for a new product, share your required torque, speed, dimensions, voltage, positioning accuracy, and duty cycle with an experienced motor manufacturer. The right engineering partner can help you select the motor, optimize the configuration, develop samples, and move efficiently toward mass production.
Need help choosing the right micro motor? Contact our engineering team for a customized recommendation and OEM/ODM solution.
