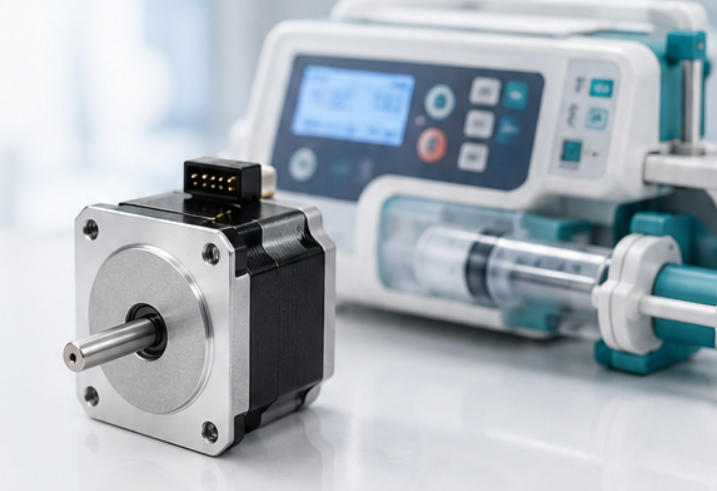

Selecting the right stepper motor for medical equipment is not simply a matter of choosing the correct frame size or torque rating. Medical devices often require precise positioning, repeatable motion, compact dimensions, low noise, stable thermal performance, and long-term reliability.

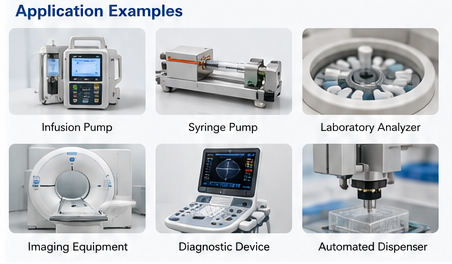

Whether you are developing an infusion pump, syringe pump, laboratory analyzer, diagnostic system, imaging equipment, or automated medical device, the motor directly affects the performance of the entire motion system.
The right medical stepper motor should match the application's mechanical load, speed, positioning accuracy, duty cycle, environmental conditions, and control system. A motor that performs well in an industrial application may not be the best choice for a compact or noise-sensitive medical device.
This guide explains how to select a stepper motor for medical equipment and what engineers, OEMs, and purchasing teams should evaluate before placing an order.
Stepper motors convert electrical pulses into controlled mechanical movement. Their ability to move in predictable increments makes them suitable for applications where positioning and repeatability are more important than extremely high rotational speed.

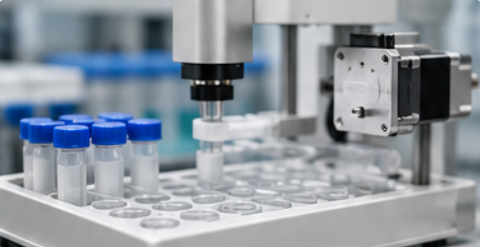

Medical equipment commonly requires controlled rotary or linear motion. Examples include moving a syringe plunger, positioning a sample, adjusting an optical component, indexing a tray, or controlling an actuator.
Stepper motors can provide these functions with a relatively straightforward control architecture. They are particularly attractive for applications that require:
l Precise positioning
l Repeatable movement
l High holding torque at low speed
l Compact mechanical integration
l Controlled acceleration and deceleration
l Reliable repetitive operation
l Cost-effective motion control
Industry guidance on medical motion systems consistently highlights accuracy, compact size, smooth movement, low noise, reliability, and quality as important selection criteria.
However, not every medical application needs the same motor. The correct selection starts with understanding the actual requirements of the equipment.
A good motor selection begins with the application rather than the motor catalog.
Ask the following questions:
l What load does the motor need to move?
l What is the required speed?
l What acceleration is required?
l How much torque is needed?
l What positioning accuracy is required?
l How frequently does the motor operate?
l Does the motor need to hold position?
l How much installation space is available?
l What level of noise and vibration is acceptable?
l What operating temperature range is expected?
l Will the motor operate continuously or intermittently?
These requirements determine whether a standard stepper motor, geared stepper motor, linear stepper motor, closed-loop stepper motor, or customized motor is appropriate.
For medical equipment manufacturers, defining these parameters early can prevent costly redesigns later.
Torque is one of the most important parameters when selecting a stepper motor for medical equipment.
A common mistake is choosing a motor simply because it fits a standard NEMA frame size. However, two motors with the same mounting dimensions can have significantly different torque characteristics.
1. Static load
2. Friction
3. Acceleration requirements
4. Transmission losses
5. External disturbances
6. Mechanical resistance during operation
A practical design approach is to maintain a reasonable torque margin rather than operating the motor continuously at its maximum capability. One engineering reference recommends selecting a motor with approximately 20% more torque than the application's calculated requirement, although the appropriate margin depends on the specific system and risk assessment.
Parameter | Why It Matters |
Holding Torque | Determines the motor's ability to maintain position |
Running Torque | Indicates available torque while rotating |
Pull-in Torque | Important during startup |
Pull-out Torque | Helps prevent loss of synchronization |
Torque-Speed Curve | Shows actual performance at operating speed |
Peak Torque | Important for acceleration and temporary load changes |
Do not select a motor based only on its maximum holding torque.

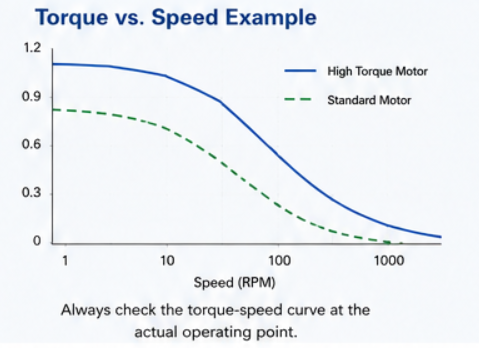

For medical equipment, the torque-speed curve at the actual operating point is often more useful than a single torque number.
Positioning accuracy is another critical factor.
Common stepper motor step angles include:
l 1.8°
l 0.9°
l Custom step angles for specialized applications
A smaller step angle provides finer inherent positioning resolution. Microstepping can further divide each motor step into smaller commanded increments and can help improve motion smoothness and reduce vibration.
However, microstepping resolution should not be confused with absolute positioning accuracy.
For example, increasing the driver to a very high microstepping level does not automatically mean that the mechanical system will achieve the same proportional increase in real-world accuracy.
Actual positioning performance also depends on:
l Motor step-angle accuracy
l Mechanical backlash
l Lead screw accuracy
l Coupling alignment
l Load variation
l Driver performance
l Resonance
l Control algorithm
Therefore, when selecting a precision stepper motor for medical equipment, evaluate the complete motion system, not just the motor's nominal resolution.
Medical equipment often operates at relatively controlled speeds rather than requiring maximum RPM.
For example, an infusion mechanism may prioritize extremely stable low-speed movement, while a laboratory automation system may require faster indexing.
Stepper motors generally provide strong torque at low speeds, making them suitable for controlled positioning and metering applications.
The important question is not:
“How fast can this motor rotate?”
Instead, ask:
“Can this motor provide sufficient torque and stable movement throughout my actual operating speed range?”
A motor may have excellent holding torque but lose substantial torque as speed increases.
Always request a torque-speed curve when evaluating a motor for a new medical device.
A motor installed inside laboratory equipment may need to operate quietly because excessive vibration can interfere with measurements or create an uncomfortable user experience.
In patient-facing equipment, noise can also affect perceived product quality and patient comfort.
Potential sources of motor noise include:
l Step transitions
l Mechanical resonance
l Bearing noise
l Detent torque
l Driver current ripple
l Poor mechanical alignment
l Structural vibration
Microstepping and optimized motor-driver combinations can help reduce vibration and audible noise.
When evaluating a medical device motor, ask the supplier for information about:
l Noise level
l Vibration characteristics
l Recommended driver
l Resonance range
l Microstepping performance
l Bearing configuration
For sensitive equipment, it is better to evaluate an actual prototype than to rely only on catalog specifications.
Medical devices are often becoming smaller and more compact. That means there may be less room for natural heat dissipation.
A motor that generates excessive heat can affect:
l Nearby sensors
l Plastic components
l Electronics
l Lubricants
l Mechanical tolerances
l Patient-contact surfaces
Motor temperature depends on several factors, including winding resistance, operating current, duty cycle, ambient temperature, mechanical load, and driver settings.
A smaller motor is not automatically a better motor.
The goal is to achieve the best balance between:
Size + Torque + Efficiency + Temperature + Reliability
When requesting samples, test the motor under the actual load and duty cycle rather than evaluating temperature only under no-load conditions.
Medical equipment designers often work under strict space constraints.
Portable medical devices, laboratory instruments, handheld systems, and compact diagnostic equipment may have very limited internal space.
The motor's:
l Diameter
l Length
l Mounting pattern
l Shaft diameter
l Shaft length
l Connector position
l Cable exit
l Housing shape
can all affect system integration.
An important point is that a standard NEMA size defines certain mounting dimensions but does not necessarily define the motor's overall length. Therefore, two motors with the same nominal frame size can have different packaging requirements.
For compact medical equipment, a customized motor may therefore provide a better solution than an off-the-shelf product.

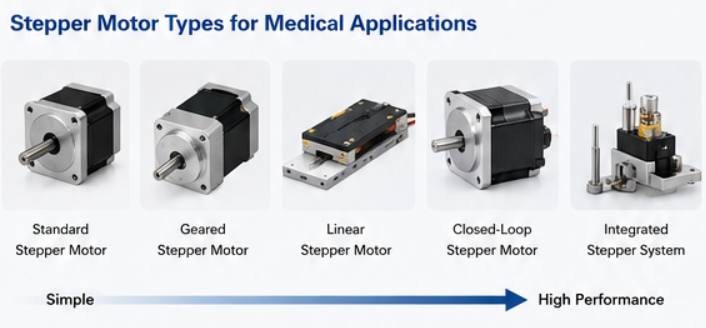

The best stepper motor for medical equipment depends heavily on the type of movement required.
Motor Type | Best For | Main Advantage |
Standard Stepper Motor | Rotary positioning | Simple and economical |
Geared Stepper Motor | Low-speed, high-resolution movement | Higher output torque and resolution |
Linear Stepper Motor | Direct linear motion | Eliminates some transmission components |
Closed-Loop Stepper Motor | Higher positioning confidence | Feedback and error detection |
Integrated Stepper System | Compact equipment | Simplified system integration |
Customized Stepper Motor | OEM medical equipment | Optimized dimensions and performance |
Geared stepper motors can be particularly useful where very fine output resolution and controlled low-speed movement are required, including certain pump and metering applications.
Closed-loop solutions may be worth considering when the application requires feedback, stall detection, or additional control reliability.
The correct choice should be based on the application's risk, motion profile, and control requirements—not simply on which motor technology is more advanced.
A stepper motor does not work independently.
Motor performance depends on the combination of:
Motor + Driver + Controller + Mechanical Transmission + Load
For example, selecting a high-performance motor but pairing it with an unsuitable driver can result in:
l Excessive vibration
l Poor torque
l Increased temperature
l Missed steps
l Unstable operation
l Unnecessary acoustic noise
The driver should be matched to the motor's voltage, current, inductance, operating speed, and microstepping requirements.
For demanding medical applications, it is often more effective to work with a motor supplier that can help evaluate the complete motion system rather than simply supplying a motor from a catalog.
Medical equipment may operate for years and perform thousands or millions of motion cycles.
Therefore, reliability should be evaluated before price.
Important factors include:
l Bearing life
l Winding quality
l Insulation system
l Magnetic material stability
l Shaft strength
l Manufacturing consistency
l Operating temperature
l Duty cycle
l Mechanical load
l Quality control
Supplier-provided reliability data can help engineers evaluate whether a motor is appropriate for the expected operating conditions.
For OEM projects, it is also useful to request sample testing, endurance testing, production consistency data, and traceability information.
A reliable motor supplier should be able to explain not only how the motor performs when new, but also how performance is maintained over its expected service life.
Medical equipment frequently contains sensitive electronics, sensors, communication interfaces, and measurement circuits.
The motor and driver can generate electrical noise that may interfere with nearby electronics if the overall system is poorly designed.
When evaluating a motor system, consider:
l Driver switching characteristics
l Cable routing
l Shielding
l Grounding
l Current control
l Connector design
l Electromagnetic compatibility requirements
The motor itself is only one part of the EMC strategy.
The equipment manufacturer remains responsible for the final system-level compliance, but choosing components with consistent electrical characteristics and working with an experienced supplier can reduce development risk.
The operating environment should be defined before selecting the motor.
l High or low temperatures
l Humidity
l Cleaning chemicals
l Disinfectants
l Continuous operation
l Shock and vibration
l Dust
l Cleanroom environments
l Sterilization processes
Not every motor is suitable for every medical environment.
If the motor will be exposed directly to cleaning, sterilization, or unusual environmental conditions, discuss materials, insulation, bearings, housing, coatings, and sealing requirements with the supplier before finalizing the design.
Standard products can be a good starting point, but OEM medical equipment frequently has requirements that do not fit standard catalog specifications.
Customization may include:
l Custom shaft dimensions
l Custom winding
l Special mounting configuration
l Reduced motor length
l Integrated gearbox
l Integrated encoder
l Hollow shaft
l Special connector
l Custom cable length
l Special housing
l Low-noise design
l Modified electrical parameters
For example, customized or modular motor designs can help designers reduce installation space and simplify mechanical integration in compact medical devices.
A customized motor can be especially valuable when the motor is part of a new product platform rather than a simple replacement component.
Choosing the motor is only half of the decision.
For medical equipment manufacturers, supplier capability can have a major impact on development time, product consistency, and long-term supply.
Before selecting a supplier, evaluate:
Supplier Capability | Why It Matters |
OEM/ODM Experience | Supports application-specific designs |
Engineering Support | Reduces motor selection and integration risk |
Customization | Allows optimization of size and performance |
Quality Control | Improves production consistency |
Sample Support | Enables prototype validation |
Testing Capability | Helps verify performance before mass production |
Stable Capacity | Reduces supply-chain risk |
Documentation | Supports engineering and quality processes |
Long-Term Support | Important for medical product lifecycles |
A supplier that only provides a datasheet may be sufficient for a simple industrial replacement.
For a new medical device, however, you may need a partner capable of supporting motor selection, prototyping, customization, testing, and volume production.
Before sending an RFQ to a motor manufacturer, prepare the following information:
l Available motor diameter and length
l Mounting dimensions
l Shaft dimensions
l Required output torque
l Mechanical transmission
l Axial and radial load
l Required backlash
l Installation orientation
l Operating speed
l Acceleration
l Deceleration
l Positioning accuracy
l Repeatability
l Travel distance
l Motion frequency
l Continuous or intermittent operation
l Supply voltage
l Current limit
l Driver type
l Step angle
l Microstepping requirement
l Connector configuration
l Cable requirements
l Operating temperature
l Storage temperature
l Humidity
l Cleaning requirements
l Sterilization requirements
l Vibration and shock
l Noise limitations
l Prototype quantity
l Target annual volume
l Required delivery time
l Customization requirements
l Quality documentation
l Long-term supply expectations
Providing this information allows the manufacturer to recommend a motor based on the actual application instead of simply quoting the nearest catalog model.
For a quick engineering evaluation, use the following framework:
Requirement | Recommended Direction |
Compact equipment | Short-body or customized stepper motor |
Precise low-speed movement | High-resolution stepper or geared stepper |
Direct linear movement | Linear stepper motor |
Low noise | Microstepping + optimized motor/driver |
High holding torque | Appropriately sized hybrid stepper |
Feedback required | Closed-loop stepper |
Limited installation space | Customized housing or shaft |
High repeatability | Precision motor + optimized mechanical transmission |
High cycle count | Motor with verified bearing and endurance performance |
OEM production | Custom motor development |
More torque does not automatically mean better performance.
An oversized motor can increase cost, power consumption, and thermal load.
A smaller motor may fit the equipment but fail to provide sufficient torque or thermal performance.
Motor and driver performance must be evaluated together.
Microstepping increases command resolution, but actual positioning accuracy also depends on mechanical and electrical factors.
Real performance should be tested under the actual load, speed, duty cycle, and environmental conditions.
For medical equipment, inconsistent quality can create much higher costs during validation, production, or field service.
The right stepper motor does more than generate movement.
A properly matched motor can help manufacturers achieve:
l More precise fluid delivery
l More consistent sample handling
l Smaller equipment dimensions
l Lower mechanical noise
l More stable positioning
l Reduced system complexity
l Better energy management
l More predictable long-term operation
l Faster product development
Stepper motors are already used across medical and laboratory applications because they can provide controlled positioning, repeatability, and strong low-speed torque in relatively compact packages.
The key is not simply choosing a “medical-grade motor.” The motor must be engineered around the actual requirements of the medical device.
The best stepper motor for medical equipment is the one that provides the right balance of precision, torque, speed, size, noise, temperature, reliability, and integration requirements.
Start by defining the application's actual motion profile. Then evaluate torque and speed, positioning accuracy, motor dimensions, thermal performance, noise, electrical characteristics, environmental conditions, and expected service life.
For standard applications, an existing stepper motor platform may provide an economical and reliable solution. For compact or highly specialized medical devices, a custom stepper motor can offer greater flexibility in dimensions, winding, shaft design, gearing, feedback, and mechanical integration.
Most importantly, treat the motor as part of the complete motion system rather than an isolated component.
If you are developing a new medical device and need help selecting a suitable medical stepper motor, provide your required torque, speed, dimensions, voltage, duty cycle, and application details. An experienced motor manufacturer can use these parameters to recommend the appropriate motor configuration, validate prototypes, and develop a customized solution for volume production.
