Micro stepper motors with encoders combine the compact size and precise incremental motion of stepper technology with real-time position feedback. This makes them a practical choice for compact medical equipment, laboratory automation, optical instruments, robotics, and precision automation systems where detecting missed steps and verifying actual motor position matter.
As equipment becomes smaller, engineers face a familiar problem: there is less space for the actuator, but the motion requirements are becoming more demanding. A motor may need to deliver repeatable positioning, controlled low-speed movement, and reliable operation while fitting into a very limited mechanical envelope.
A micro stepper motor with encoder addresses this challenge by adding feedback to a compact stepper motor system. Instead of assuming that every commanded step has been completed, the controller can compare the commanded motion with the encoder's actual position feedback. This allows the system to detect position errors and, depending on the control architecture, correct them or trigger an alarm.

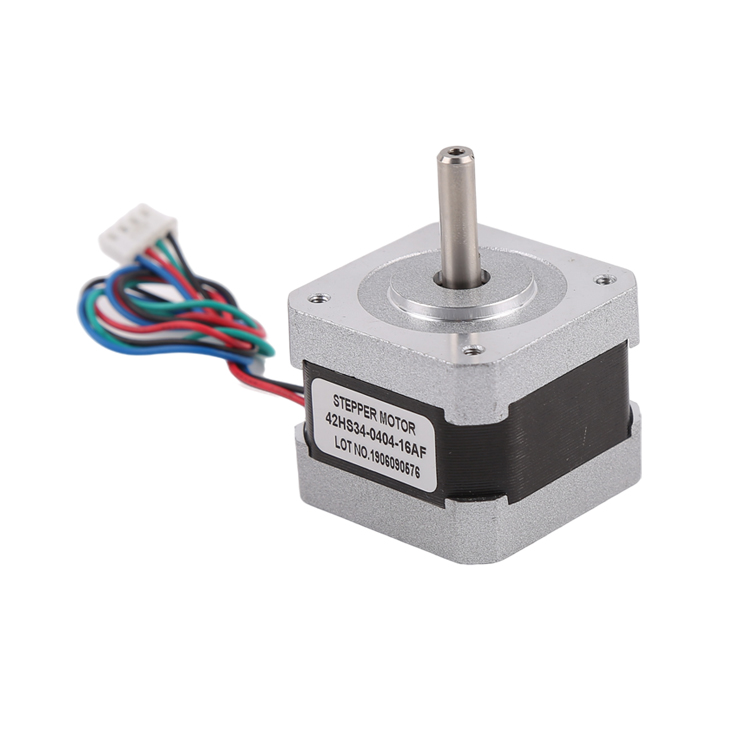

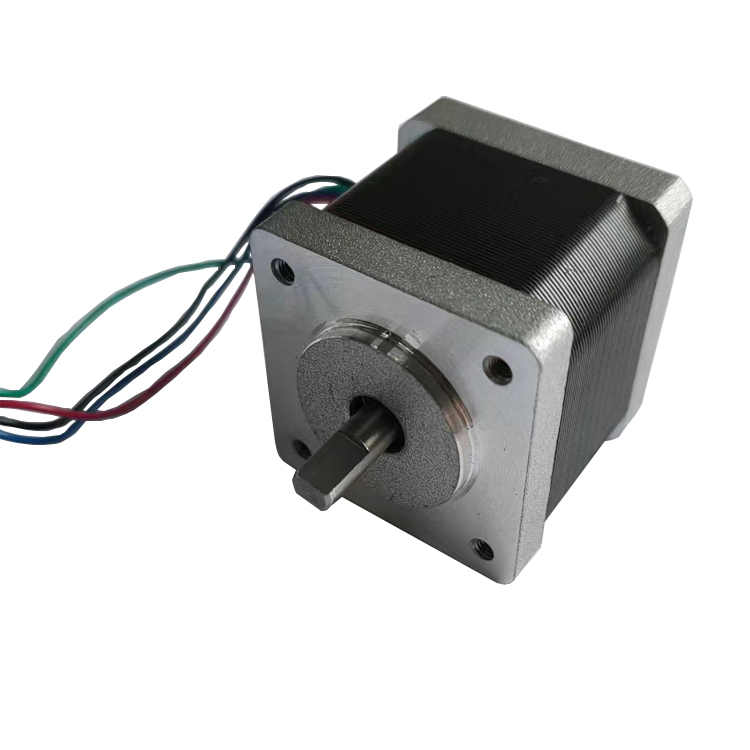

A conventional stepper motor normally operates in open loop. The controller sends pulse signals and assumes the rotor follows the commanded position.
This approach is attractive because the control system can be relatively simple. However, if the motor encounters excessive load, aggressive acceleration, resonance, or another mechanical problem, the rotor can fall behind the commanded position without the controller knowing.

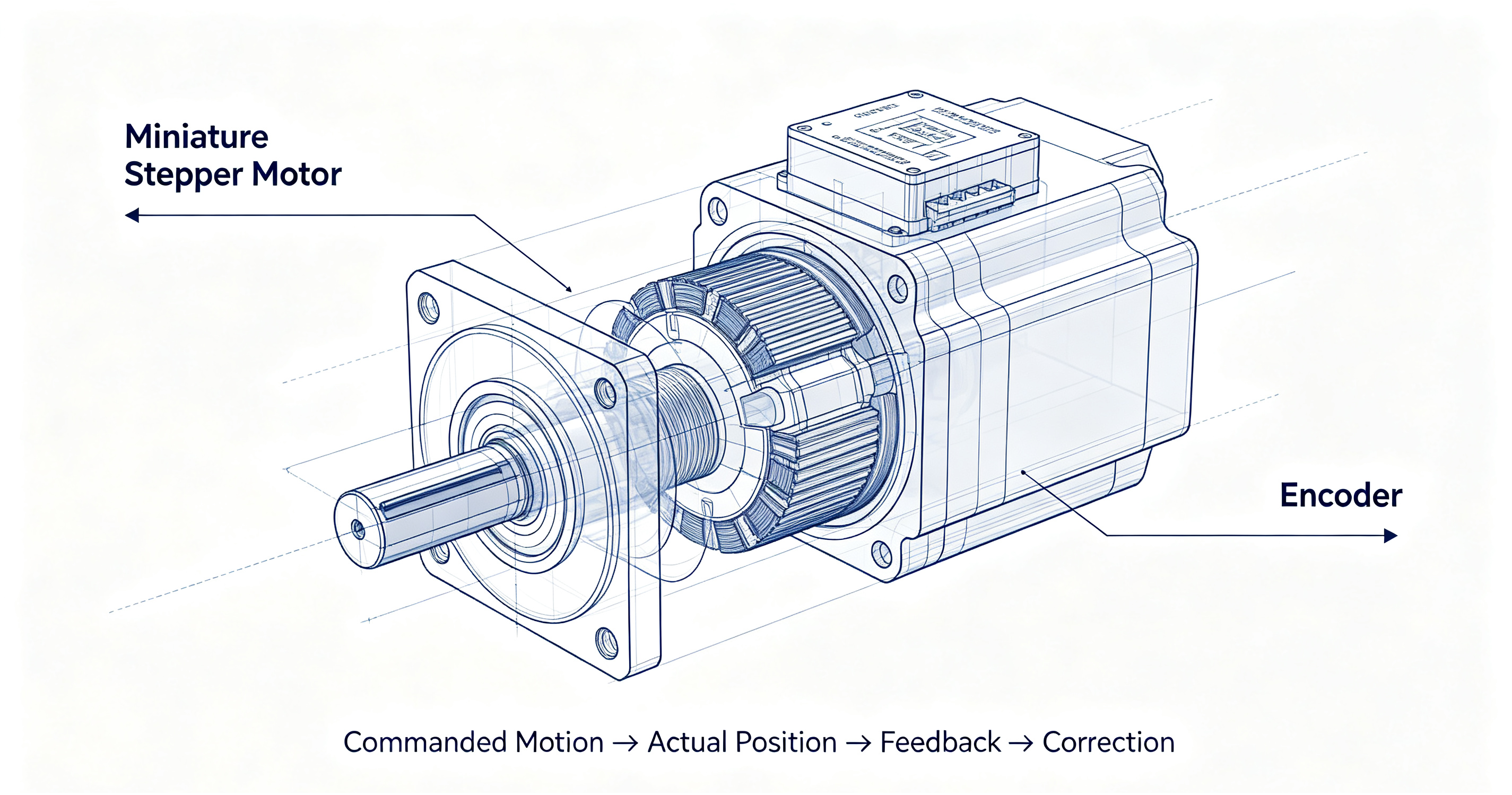

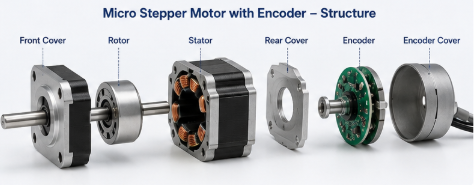

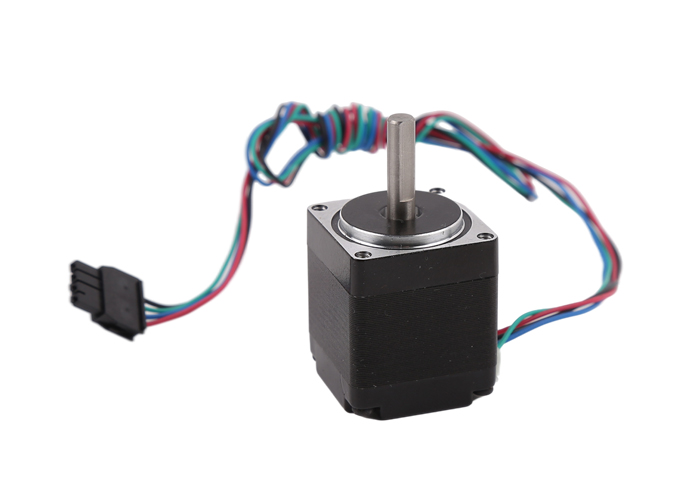

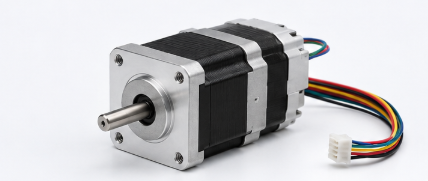

A micro stepper motor with encoder adds a position-sensing device, typically mounted on the motor shaft or rear shaft.
The basic system consists of:
l Miniature stepper motor — generates controlled rotational movement
l Encoder — measures actual shaft rotation or position
l Motor driver — controls winding current and motor motion
l Controller — processes commands and feedback
l Mechanical transmission — optional gearbox, lead screw, belt, or other mechanism
The encoder does not replace the stepper motor's basic stepping function. Instead, it provides feedback that allows the control system to determine whether the motor actually followed the commanded motion.
For a properly sized open-loop stepper motor, an encoder may not be necessary. But as the consequences of a positioning error become more serious, feedback becomes more valuable.
Consider a compact dispensing system. If the motor misses several steps during one movement, the controller may continue operating from the wrong assumed position. That error can then carry into subsequent movements.

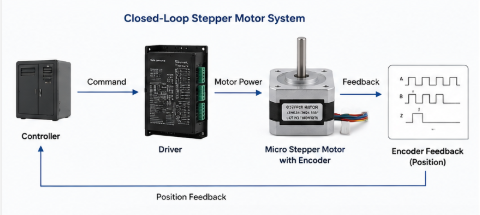

With encoder feedback, the system can compare:
Commanded Position → Actual Position → Position Error → Correction or Alarm
This is particularly useful in automated equipment where an unnoticed position error can lead to defective products, incorrect dispensing, or machine downtime.
The biggest advantage is that feedback can be integrated without switching to a much larger servo system.
For compact equipment, this can simplify mechanical design when there is limited room around the motor.
Potential applications include:
l Miniature positioning stages
l Optical adjustment mechanisms
l Laboratory instruments
l Medical devices
l Robotic mechanisms
l Semiconductor handling equipment
The exact benefit depends on the encoder type, resolution, controller, mechanical transmission, and overall system design.
An open-loop stepper system assumes that the motor has followed the commanded pulses.
An encoder provides another layer of information: did the shaft actually move as expected?
If the measured position differs from the commanded position, the controller can identify a following error. Depending on the driver architecture, the system may compensate for the error, stop the machine, or generate an alarm.
This is one reason encoder-equipped stepper motors are increasingly considered for applications where reliability is more important than the simplicity of a basic open-loop system.
Real machines rarely operate under perfectly constant loads.
A mechanism may encounter:
l Changing friction
l Variable payloads
l Acceleration and deceleration
l Mechanical resistance
l Unexpected obstruction
l Different operating speeds
An encoder allows the control system to observe the motor's actual movement instead of relying entirely on the commanded pulse count.
This can be particularly useful for pick-and-place mechanisms, compact linear stages, dispensing equipment, and robotic actuators.
A servo system may be unnecessary for some applications, particularly when the required speed and dynamic performance are moderate.
A micro stepper motor with encoder can provide a middle ground between a basic open-loop stepper and a more complex servo system.
Feature | Open-Loop Micro Stepper | Micro Stepper with Encoder | Servo Motor |
Position Feedback | No | Yes | Yes |
Missed-Step Detection | No | Yes | Yes |
Control Complexity | Low | Moderate | Higher |
Low-Speed Motion | Very good | Very good | Good |
High-Speed Performance | Application dependent | Application dependent | Generally strong |
Compact Integration | Excellent | Excellent | Application dependent |
Typical Cost | Lower | Moderate | Higher |
Best Fit | Basic positioning | Precision + feedback | Dynamic/high-performance motion |
The goal is not to replace every servo with a stepper motor. Instead, the encoder-equipped stepper can be considered when the application needs feedback without the full complexity of a servo architecture.
Compact medical and laboratory equipment often requires repeatable movement within a small enclosure.
Applications can include:
l Syringe pumps
l Dispensing mechanisms
l Automated samplers
l Laboratory positioning systems
l Diagnostic equipment
l Pipetting mechanisms
For example, a syringe pump may use a stepper motor to drive a lead screw and control plunger displacement. Position feedback can provide additional verification of motor movement when dispensing accuracy and process reliability are important.
Stepper motors are already used in applications such as syringe pumps, autosamplers, and other precision medical equipment.
Optical equipment often requires small adjustments that must be repeatable.
A micro stepper motor with encoder can be considered for:
l Lens positioning
l Focus adjustment
l Filter positioning
l Sensor alignment
l Optical stages
In these applications, the motor's size, resolution, repeatability, and vibration characteristics may be more important than maximum rotational speed.
Robotic systems increasingly require compact actuators for joints, grippers, and positioning mechanisms.
Potential applications include:
Robotic grippers
l Small robotic joints
l Camera positioning
l Sensor adjustment
l Laboratory robots
l Compact inspection mechanisms
An encoder becomes particularly useful when the robot needs to verify whether a commanded movement has actually occurred.
Semiconductor equipment places demanding requirements on positioning and repeatability.
Micro stepper motors with encoders can be considered for:
l Wafer handling mechanisms
l Sensor positioning
l Inspection equipment
l Optical adjustment
Compact linear stages
In such systems, the motor should be evaluated as part of the complete motion assembly rather than as an isolated component.
The encoder should not be selected separately from the motor. The motor, encoder, driver, and mechanical load need to work as one system.
l Required output torque
l Operating speed
l Acceleration
l Motor dimensions
l Holding torque
l Encoder resolution
l Encoder output type
l Supply voltage
l Rated current
l Duty cycle
l Operating temperature
l Shaft configuration
l Available installation space
l Required positioning performance
Parameter | What to Check | Why It Matters |
Encoder Type | Incremental or absolute | Determines feedback method |
Resolution | PPR/CPR or equivalent specification | Affects feedback resolution |
Output | A/B, line driver, etc. | Must match the controller |
Size | Encoder diameter and length | Critical for miniature applications |
Speed Rating | Maximum encoder operating speed | Must match motor speed |
Voltage | Encoder supply requirement | Must match the control system |
Environmental Rating | Temperature, vibration, etc. | Determines suitability for the application |
For example, compact encoder-equipped stepper motor products are available with different encoder resolutions and output configurations, allowing engineers to match the feedback device to the host controller and application requirements.
This is an important point for engineers.
A higher encoder resolution provides more feedback counts, but it does not automatically make the entire machine more accurate.
Final positioning performance also depends on:
l Motor accuracy
l Gearbox backlash
l Lead screw accuracy
l Bearing clearance
l Mechanical stiffness
l Load
l Controller tuning
l Thermal expansion
l Assembly tolerances
Similarly, increasing microstepping does not automatically produce proportional improvements in absolute positioning accuracy. Microstepping primarily helps create smoother commanded motion, while encoder feedback provides information about actual shaft movement.
Therefore, engineers should specify the required system-level accuracy and repeatability first, then select the motor and encoder accordingly.
A standard micro stepper motor can be an excellent choice when the load is predictable and the consequences of a missed step are low.
An encoder-equipped version becomes more attractive when:
l Load conditions change frequently
l Position errors are unacceptable
l The machine must detect stalls
l The mechanism operates continuously
l Automatic error correction is required
l The application requires additional motion verification
The key question is not simply “Does a stepper motor need an encoder?”
It is:
“What happens if the motor does not reach the commanded position?”
If the answer is costly downtime, product defects, or an unsafe machine state, encoder feedback may justify the additional system complexity.
Micro stepper motors with encoders combine compact stepper technology with position feedback for more reliable precision motion.
l An encoder allows the system to compare commanded movement with actual motor position.
l Encoder feedback can detect missed steps and, depending on the control architecture, support correction or fault handling.
l The technology is suitable for medical devices, laboratory equipment, optical systems, robotics, semiconductor equipment, and compact automation.
l Encoder resolution should be selected based on the complete motion system rather than treated as a direct measurement of machine accuracy.
l When choosing a motor, engineers should consider torque, speed, dimensions, encoder resolution, output type, duty cycle, and mechanical transmission together.
l For applications that need feedback but do not require the full performance of a servo system, an encoder-equipped stepper can provide a practical motion-control option.
It is a miniature stepper motor equipped with an encoder that provides feedback about the motor shaft's actual movement or position. The feedback can be compared with the commanded position by the control system.
No. A properly sized open-loop stepper can work well when the load and operating conditions are predictable. An encoder becomes more useful when the application needs position verification, missed-step detection, or additional reliability.
An encoder does not automatically change the motor's inherent mechanical accuracy. Instead, it provides feedback that allows the control system to detect position errors and, where supported, correct them.
The appropriate resolution depends on the required positioning performance, motor speed, controller, transmission ratio, and mechanical accuracy. Higher resolution is not necessarily better if the rest of the mechanical system cannot use that information effectively.
In some applications, yes. It can be a practical option when the required speed, acceleration, and dynamic performance are within the stepper system's capabilities. For high-speed or highly dynamic motion, a servo may remain the better choice.
Yes. Depending on the application, customization can include motor dimensions, winding specifications, shaft configuration, encoder type and resolution, connector, voltage, current, gearbox, and other mechanical or electrical requirements.
A micro stepper motor with encoder offers engineers a compact way to add position feedback to precision motion systems. The combination is particularly useful when a standard open-loop stepper provides the required basic motion, but the application also needs to know whether the motor actually reached its commanded position.
For equipment manufacturers, the best solution starts with the application rather than a standard motor model. Load torque, speed, installation space, required repeatability, encoder resolution, controller compatibility, and operating environment should all be evaluated before selecting the final configuration.
