PM35L-048-376- 120G
Vic-Tech
35mm geared stepper motor
400 mA/phase
3.7-139
12V DC
30Ω±7%
AVAILABLE
7.5 degree
2 phases
1unit
Rohs
Product Description

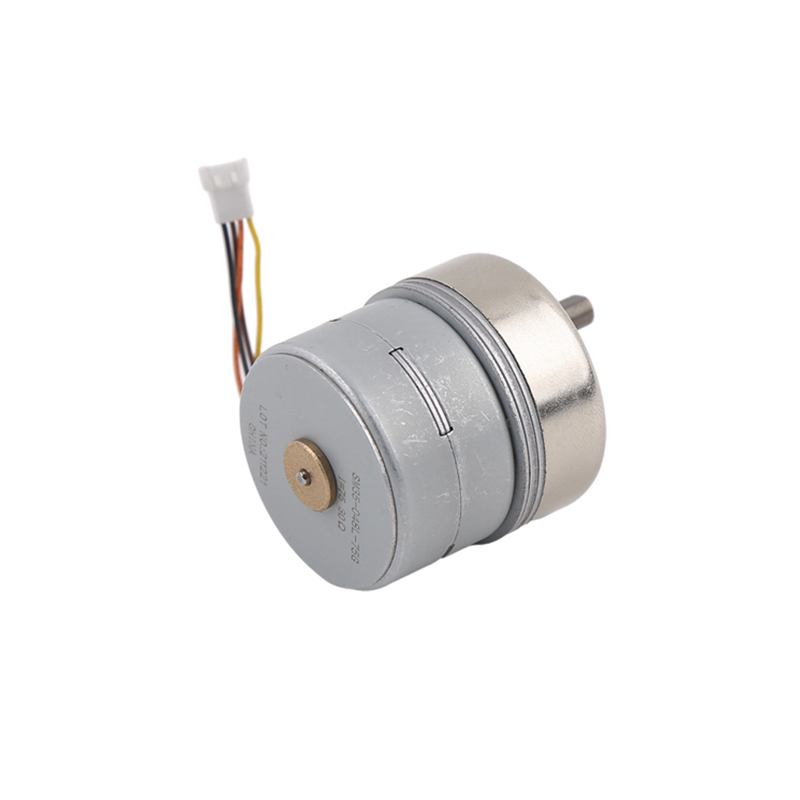

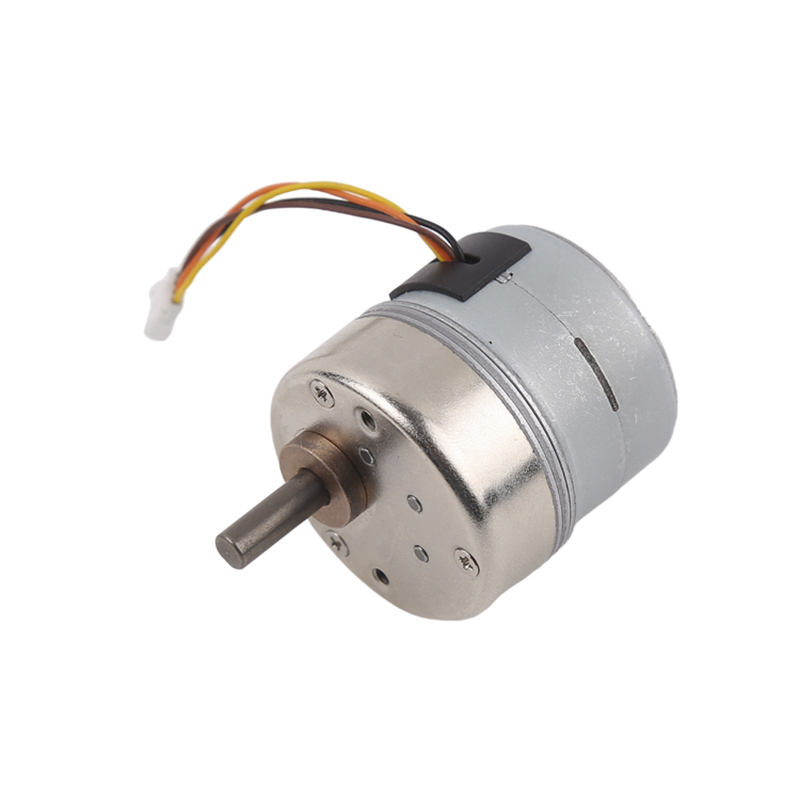

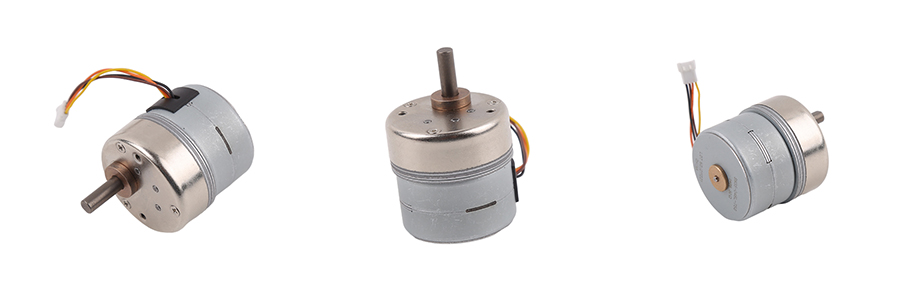

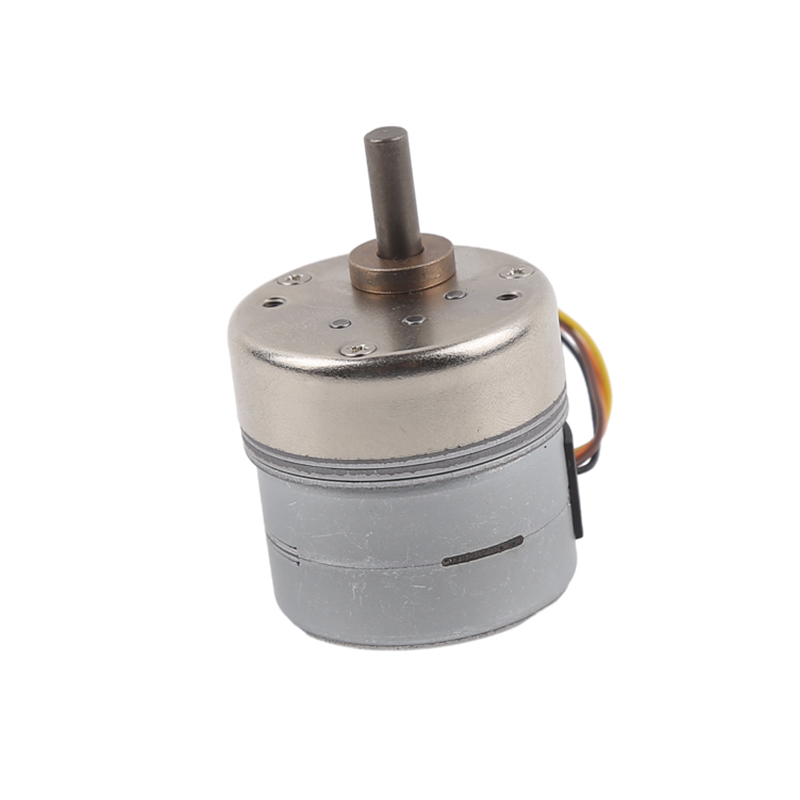

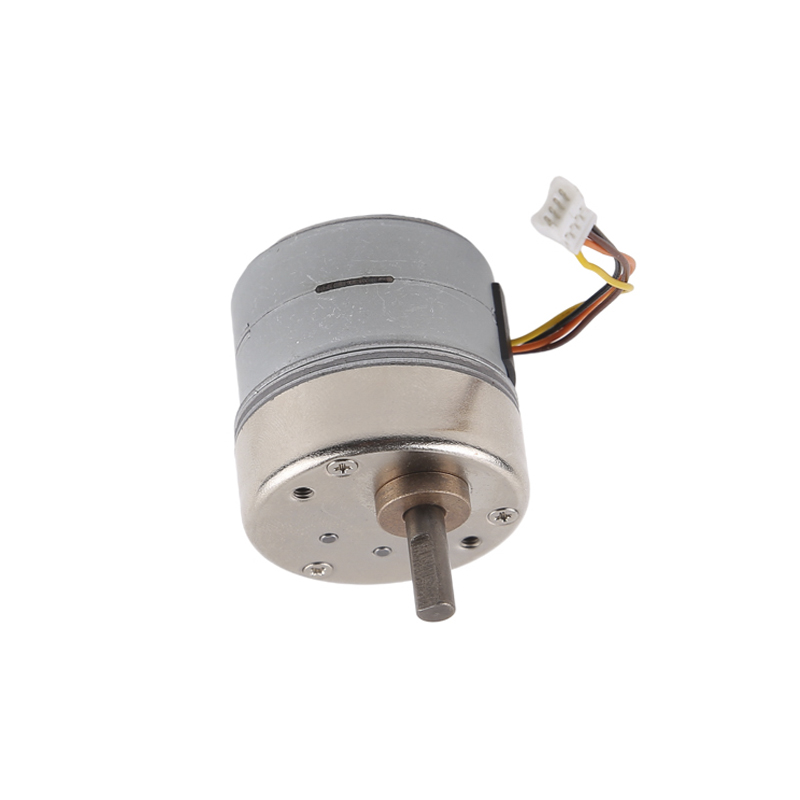

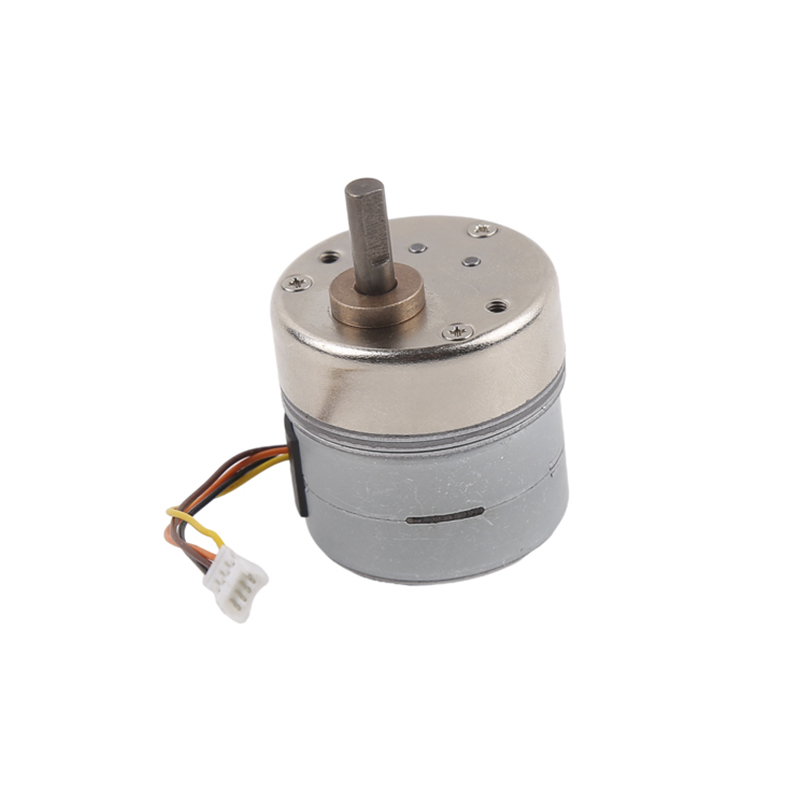

This motor is a 35mm diameter high torque decelerating stepping motor with a body height of 35.8mm.
The output shaft of the motor can be customized to install gears and synchronous pulleys.
After the stepping motor is equipped with a gearbox, the step angle is further subdivided to increase the load torque and control more accurately.
Conventional gear reduction ratios include 3.7, 3.82, 5.2, 5.36, 13.7, 14.62, 19.2, 20.51, 26.85, 28.77, 51, 71100139.
Suitable gear reduction ratios can be recommended according to customer needs.
The output part of the motor is usually a connecting line, or a customized socket.
The mission of the motor is more than 10,000 hours, and the life of the gear is more than 2000 hours.
Parameters
Product Name | 35mm Geared stepper motor |
Model | PM35L-048-376- 120G |
Resistance | 30Ω±7% |
Current Per Phase | 400 mA/phase |
Type | Permanent Magnet |
Phase | 2 |
Certification | ROHS |
Holding Torque | 9000g.cm / 200PPS |
Diameter | 35mm |
Rated voltage | 12 V |
Pull in Rate | 400pps |
Geaar ratio | 3.7-139 |
weight | 180g |
OEM & ODM SERVICE | AVAILABLE |
Number of gear trains | 1 | 2 | 3 |
Gear ratioi | 3.7 | 13.7 | 51 |
3.82 | 14.62 | 71 * | |
5.2 * | 19.2 * | 100 * | |
5.36 | 20.51 | 139 * | |
26.85 * | |||
28.77 | |||
Length of gearbox(mm) | 30.9 | 37.5 | 44.1 |
All gears are metal, and the gear reduction ratio marked with * can be customized as plastic gears, which have the advantages of low noise and cheaper price.

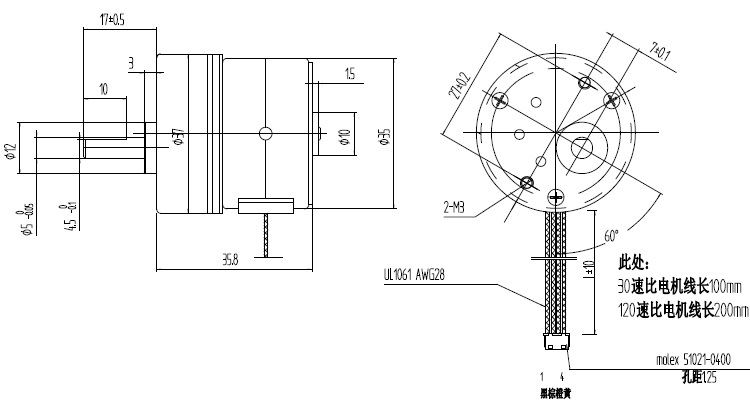

Design drawing
The gear box has high precision, high efficiency and low noise, which makes the product have good reliability.
The power input position of the stepper motor can be in the form of FPC, FFC, PCB cable, etc.
The output shaft of the motor can adopt various output structures, such as circular shaft, D-shaft and wire bar.
Customisable
