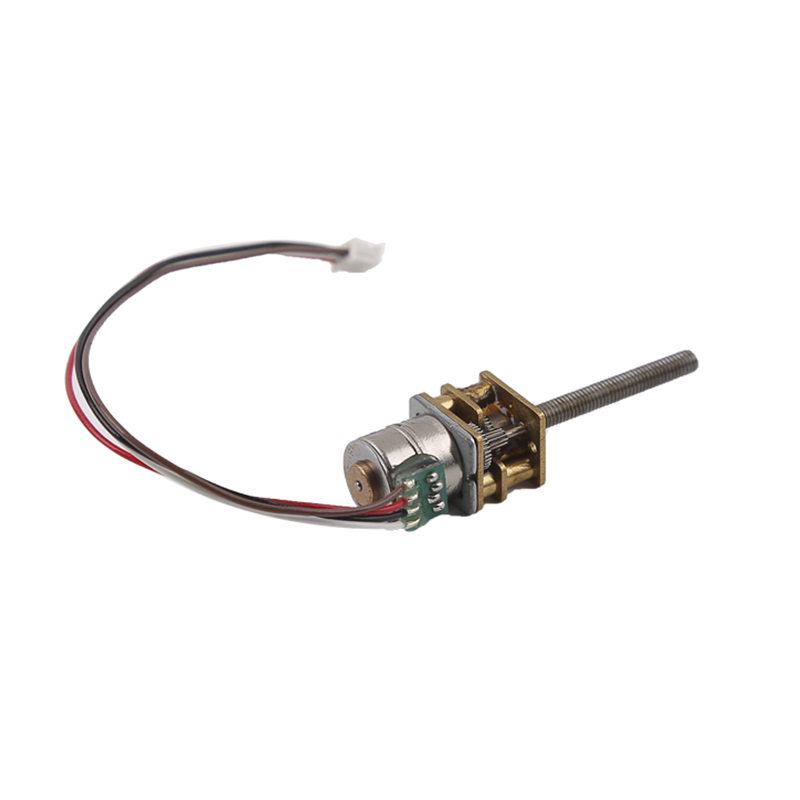

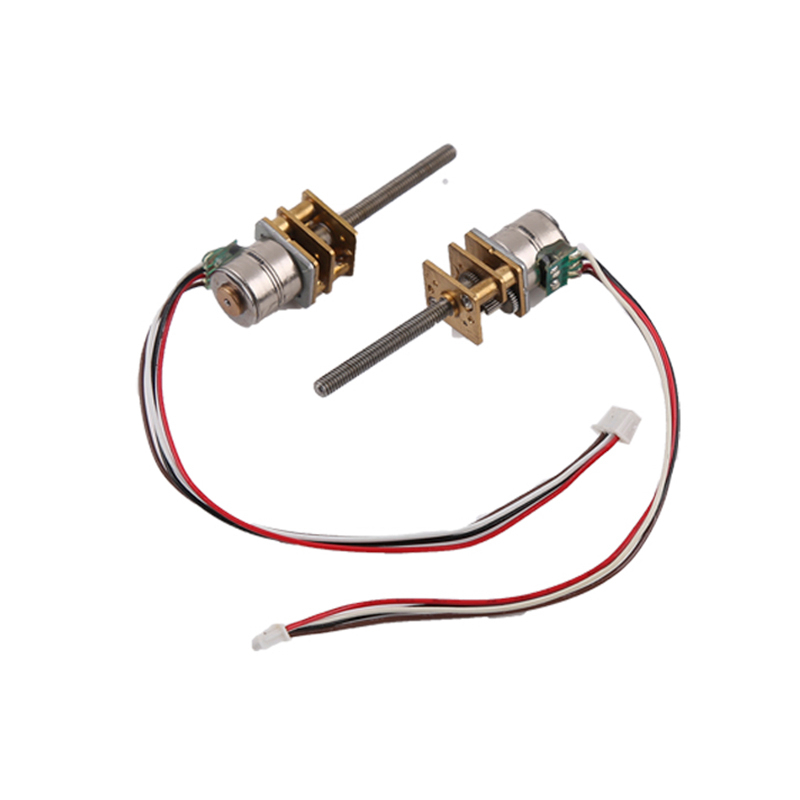

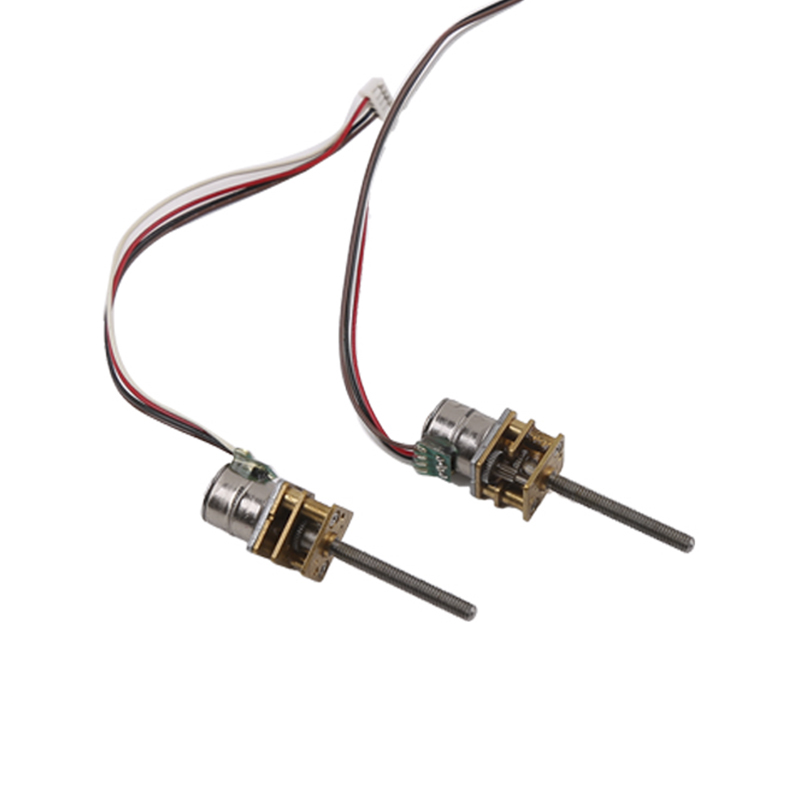

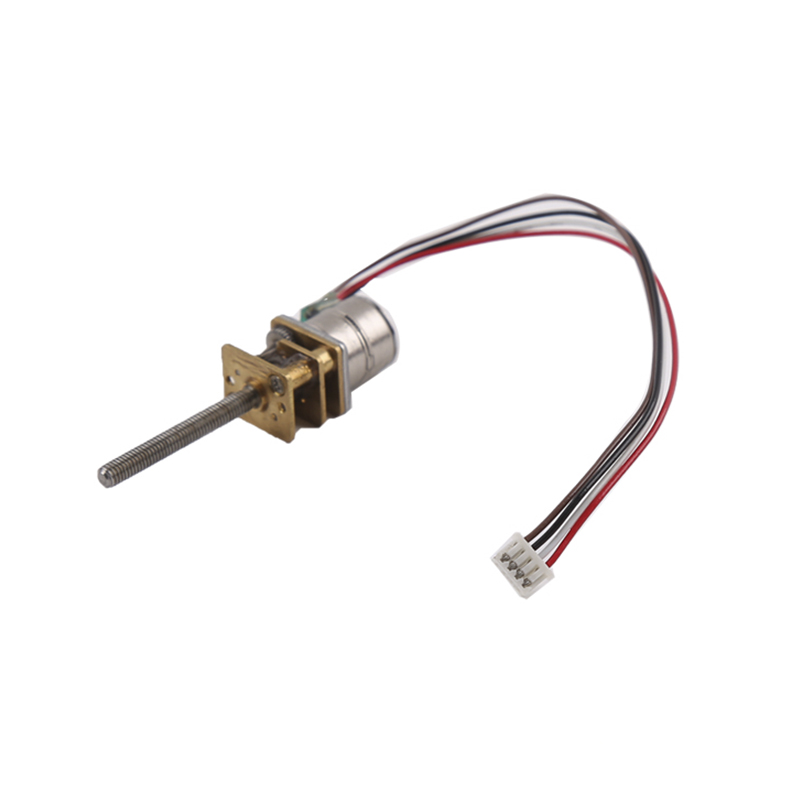

SM10-816G
10mm geared stepper motor
31Ω±10%
AVAILABLE
18 degree
2 phases
M3
1unit

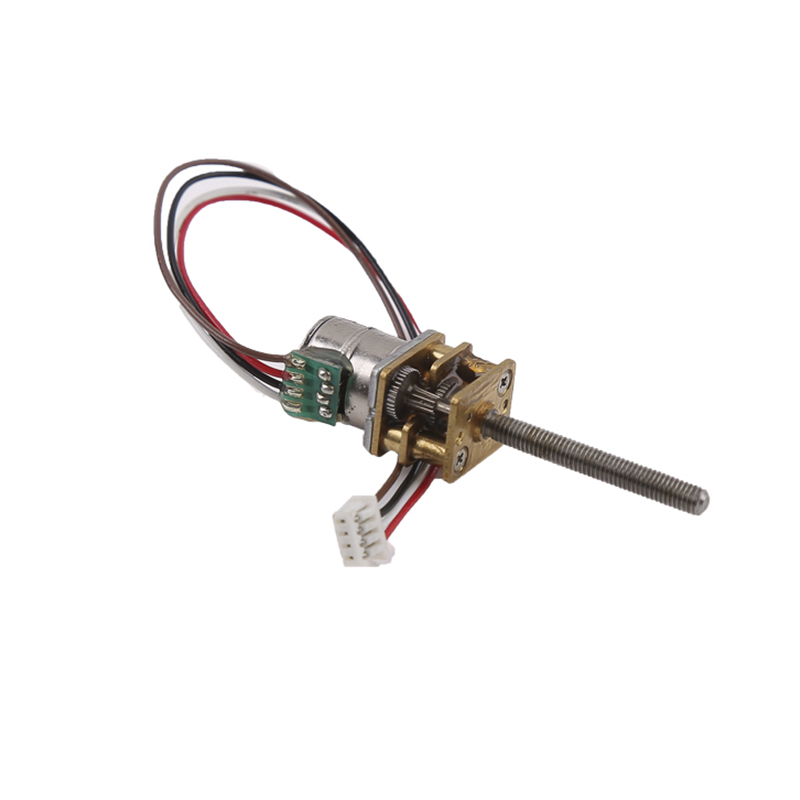

Product Description
This is a combination of a miniature stepper motor with a motor diameter of 10MM plus a precision metal gearbox. In addition, we have 6mm, 8mm, 10mm, 15mm and 20mm diameter motors for customers to choose from.
The step angle of this motor is 18 degrees, i.e. 20 steps per revolution. With the deceleration effect of the gearbox, the final motor rotation angle resolution can reach 0.05~6 degrees, which can be used for a variety of requirements and precise control of rotation position.
Customers can match the gear speed ratio according to different requirements of using torque speed, and the gearbox has 1:2 - 1:1000 gear ratio for customers to choose.
Parameters
Model No. | SM10-816G |
Motor diameter | 10mm |
Coil resistance | 30Ω±10%/phase |
Number of phase | 2 phases |
Step angle | 18°/step |
Weight | 15 g |
OEM&ODM SERVICE | AVAILABLE |
EFFICIENCY | 10-20% |

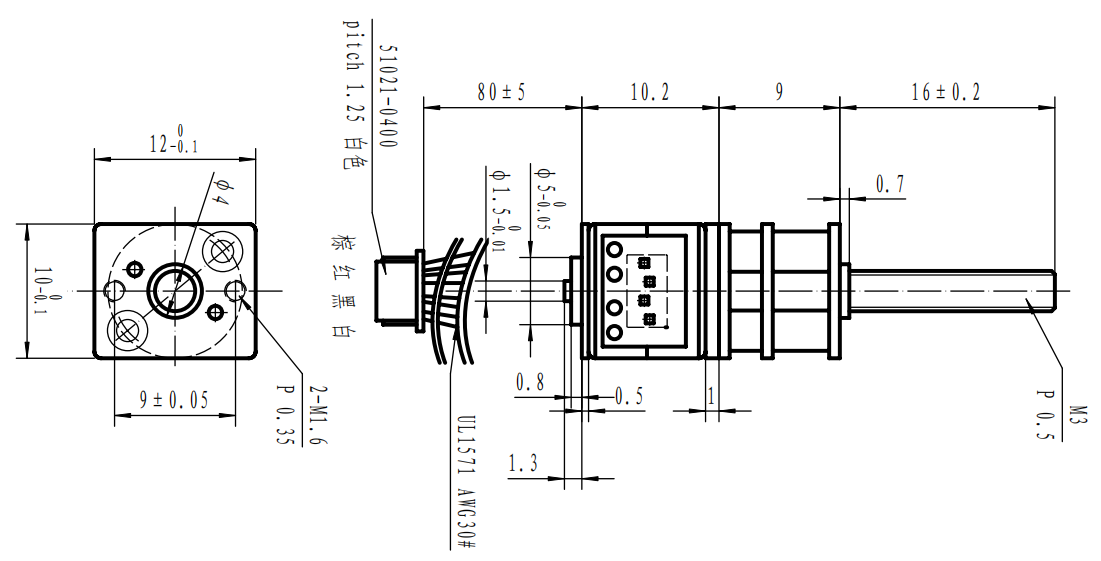

Design drawing
The gear box has high precision, high efficiency and low noise, which makes the product have good reliability.
The power input position of the stepper motor can be in the form of FPC, FFC, PCB cable, etc.
The output shaft of the motor can adopt various output structures, such as circular shaft, D-shaft and wire bar.
Customisable
Specifications, Application,Packaging,FAQ
Gear ratio | 2:1 | 5:1 | 10:1 | 15:1 | 20:1 | 30:1 | 36:1 | 50: | 63:1 | 67:1 | 89:1 | 100:1 |
Precise ratio | 2.002 | 4.995 | 9.677 | 14.754 | 20.501 | 29.120 | 36.122 | 51.103 | 63.071 | 66.801 | 89.227 | 99.002 |
Gear ratio | 23 | 20 | 13 | 18 | 15 | 12 | 20 | 20 | 14 | 17 | 14 | 13 |
Gear levels | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
Efficiency | 80% | 80% | 80% | 72% | 72% | 72% | 65% | 65% | 65% | 65% | 65% | 65% |
Input and output directions | + | + | + | - | - | - | + | + | + | + | + | + |
Gear ratio | 120:1 | 150:1 | 172:1 | 210:1 | 250:1 | 275:1 | 298:1 | 380:1 | 420:1 | 500:1 | 600:1 | 1000:1 |
Precise ratio | 118.922 | 150.948 | 171.883 | 210.591 | 250.111 | 274.403 | 297.924 | 387:689 | 421.296 | 506.155 | 599.394 | 986.406 |
Gear ratio | 17 | 18 | 13 | 12(15) | 13 | 12 | 12 | 12 | 12 | 18 | 16 | 12 |
Gear levels | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 7 | 7 | 7 |
Efficiency | 59% | 59% | 59% | 59% | 59% | 59% | 59% | 59% | 59% | 47% | 47% | 47% |
Input and output directions | - | - | - | - | - | - | - | - | - | - | - | - |

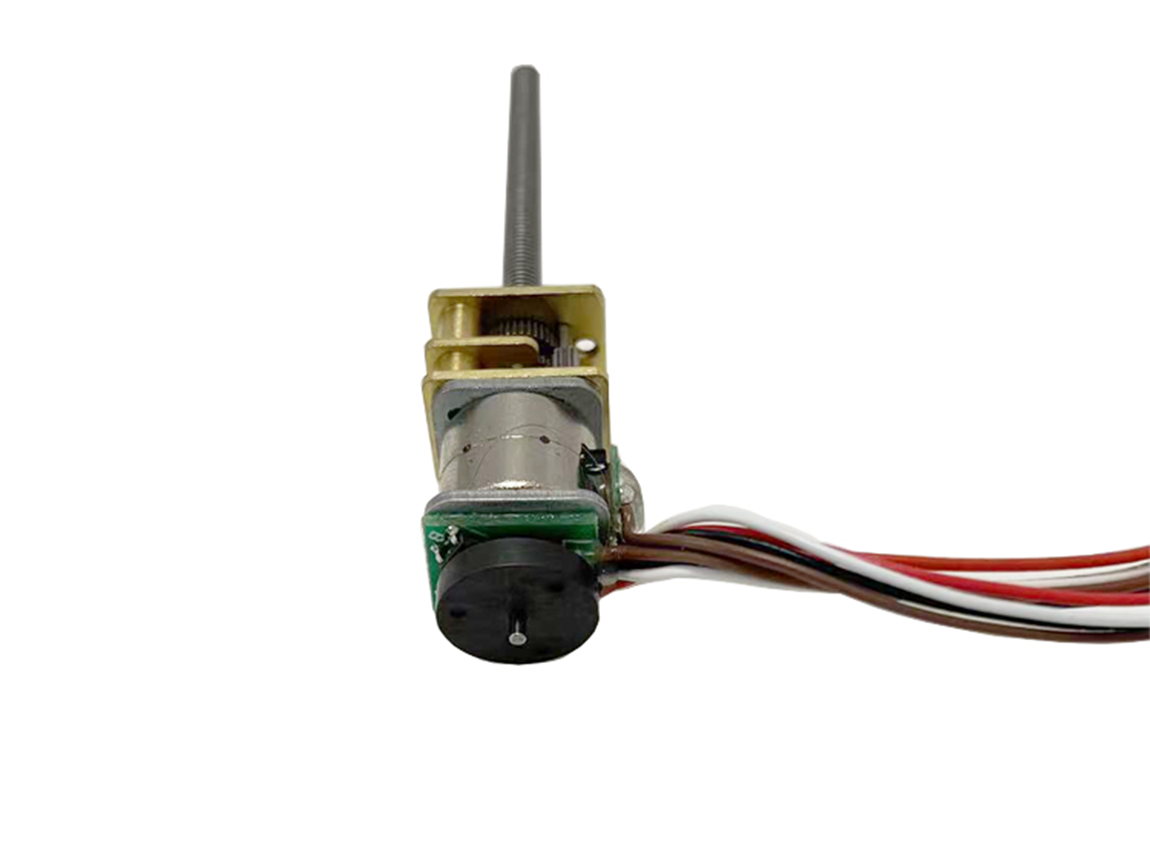

Geared stepper motors + encoders
Geared stepper motors + dust jacket

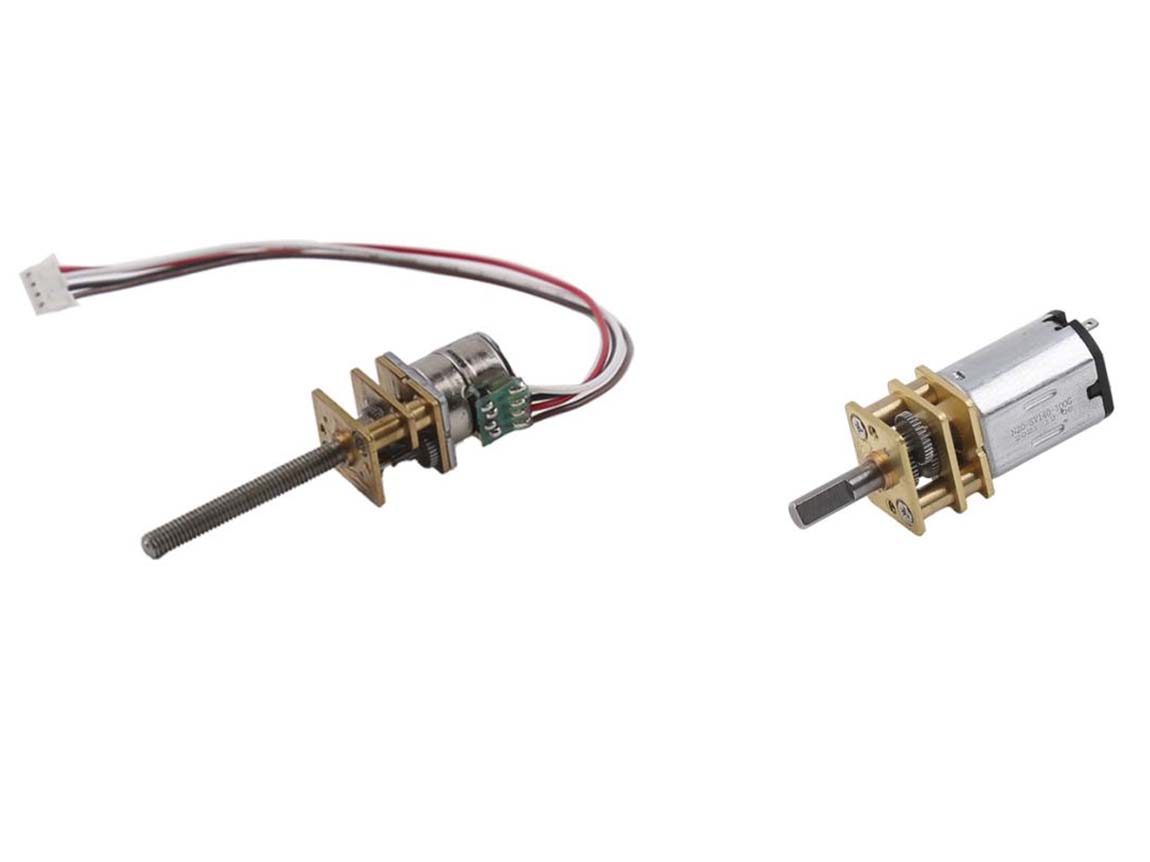

Selection of different motors with gearboxes：Stepper motors or DC motors
Geared stepper motors, widely used in Smart home, personal care, home appliance equipment, smart medical equipment, smart robot, smart logistics, smart cars, communication equipment, smart wearable devices, consumer electronics, camera equipment, and other industries.
