SM25-412L
Vic-Tech

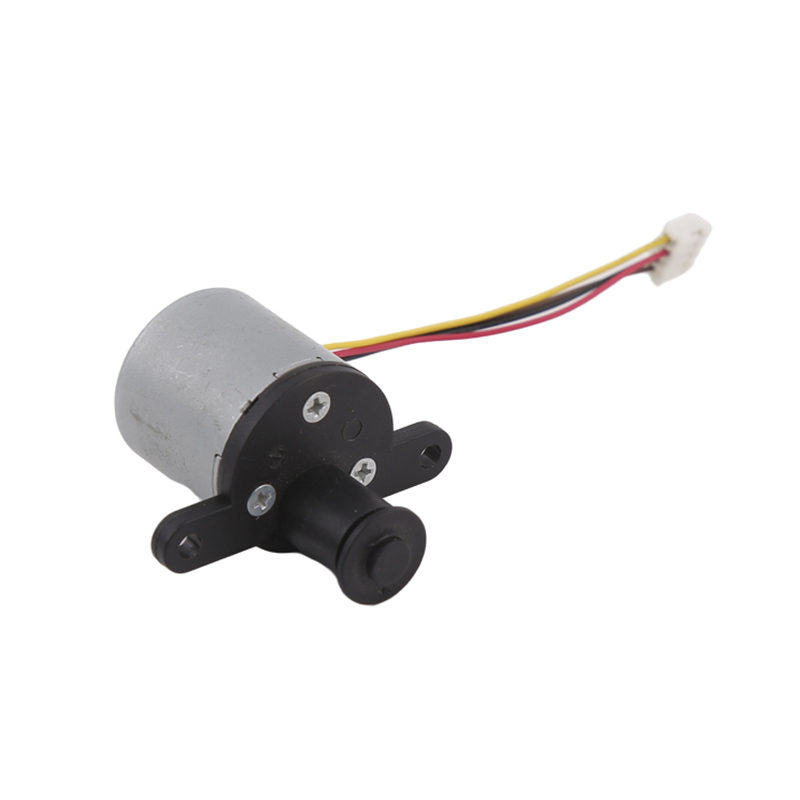

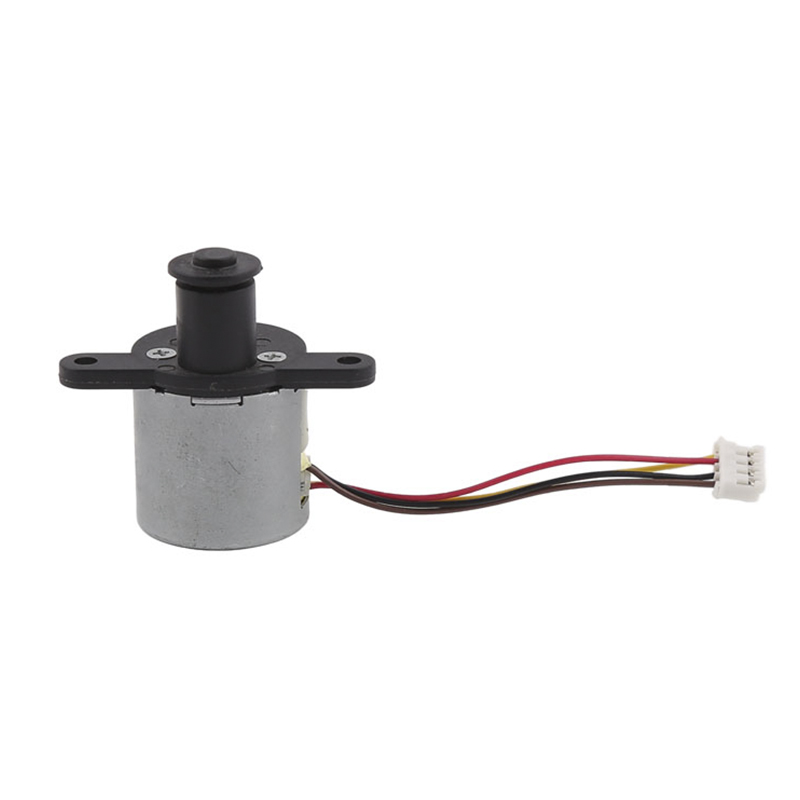

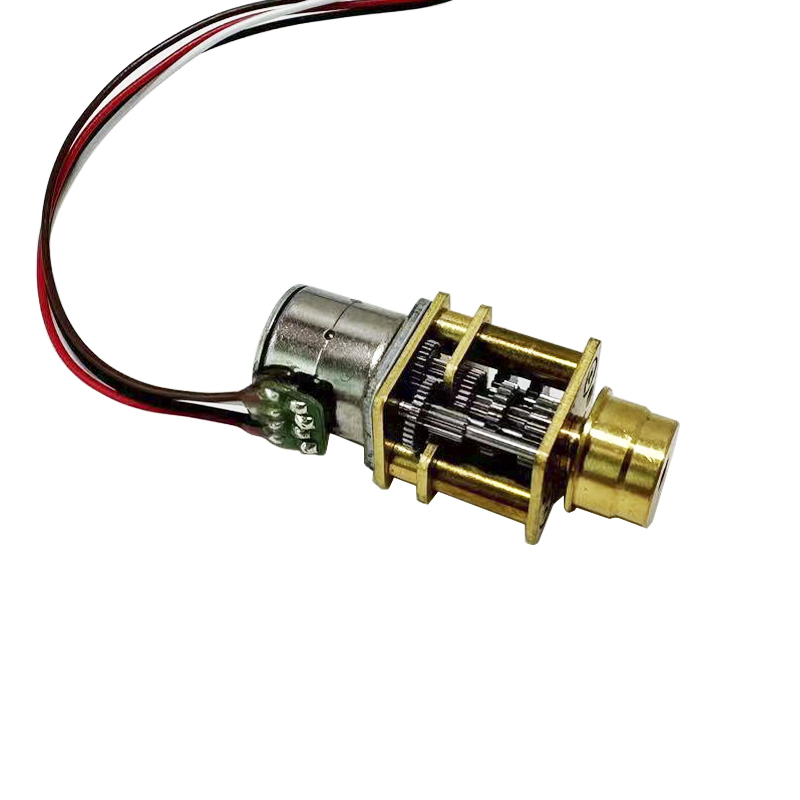

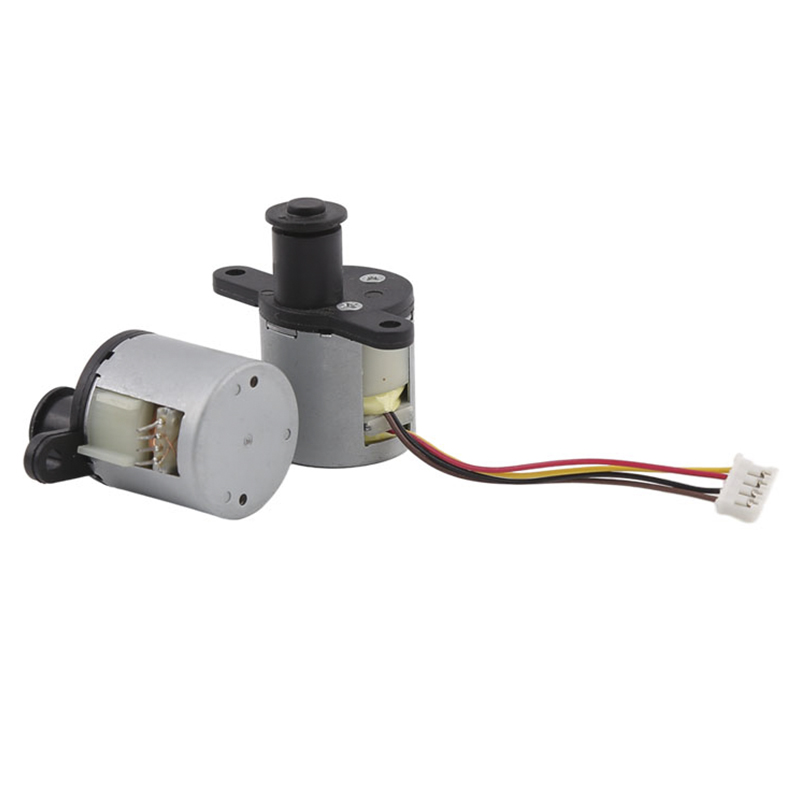

25mm Linear geared stepper motor
10:1
2.2~3.4V DC
60g.cm
5Ω±7%/phase
AVAILABLE
7.5 degree/10
2 phases
1unit
Rohs
Product Description

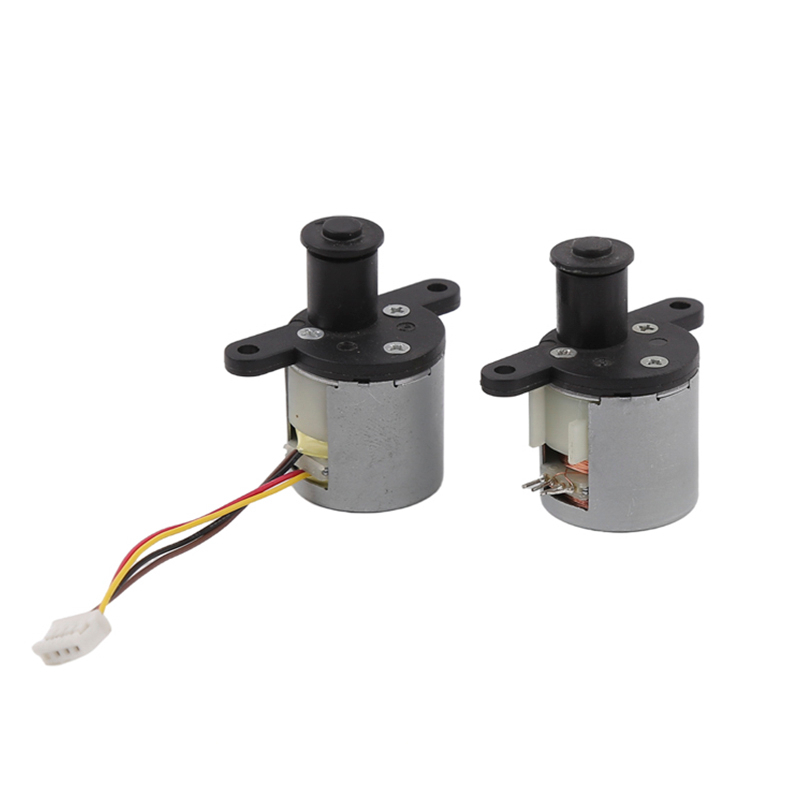

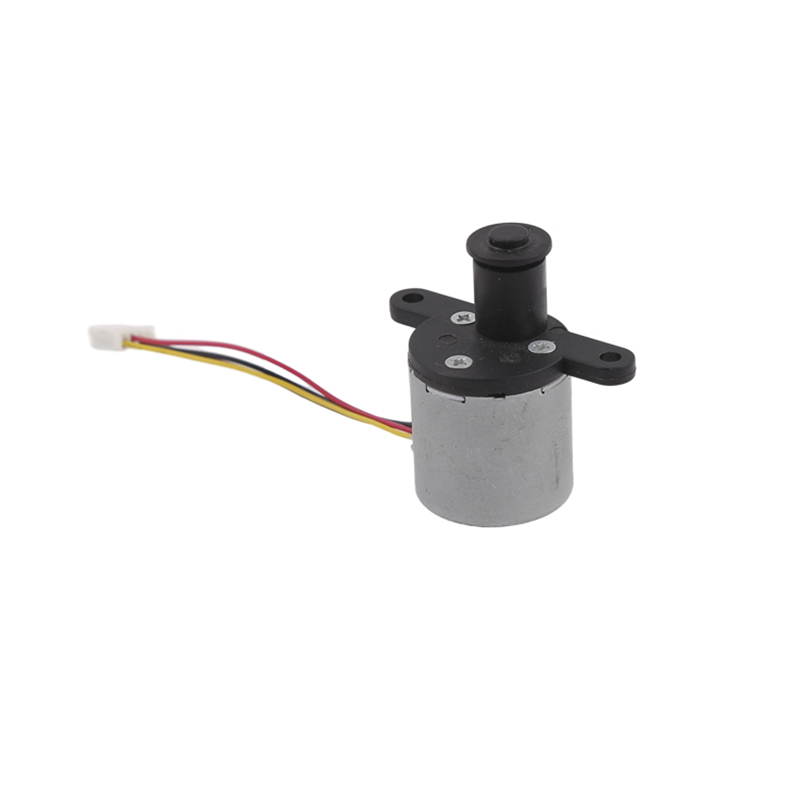

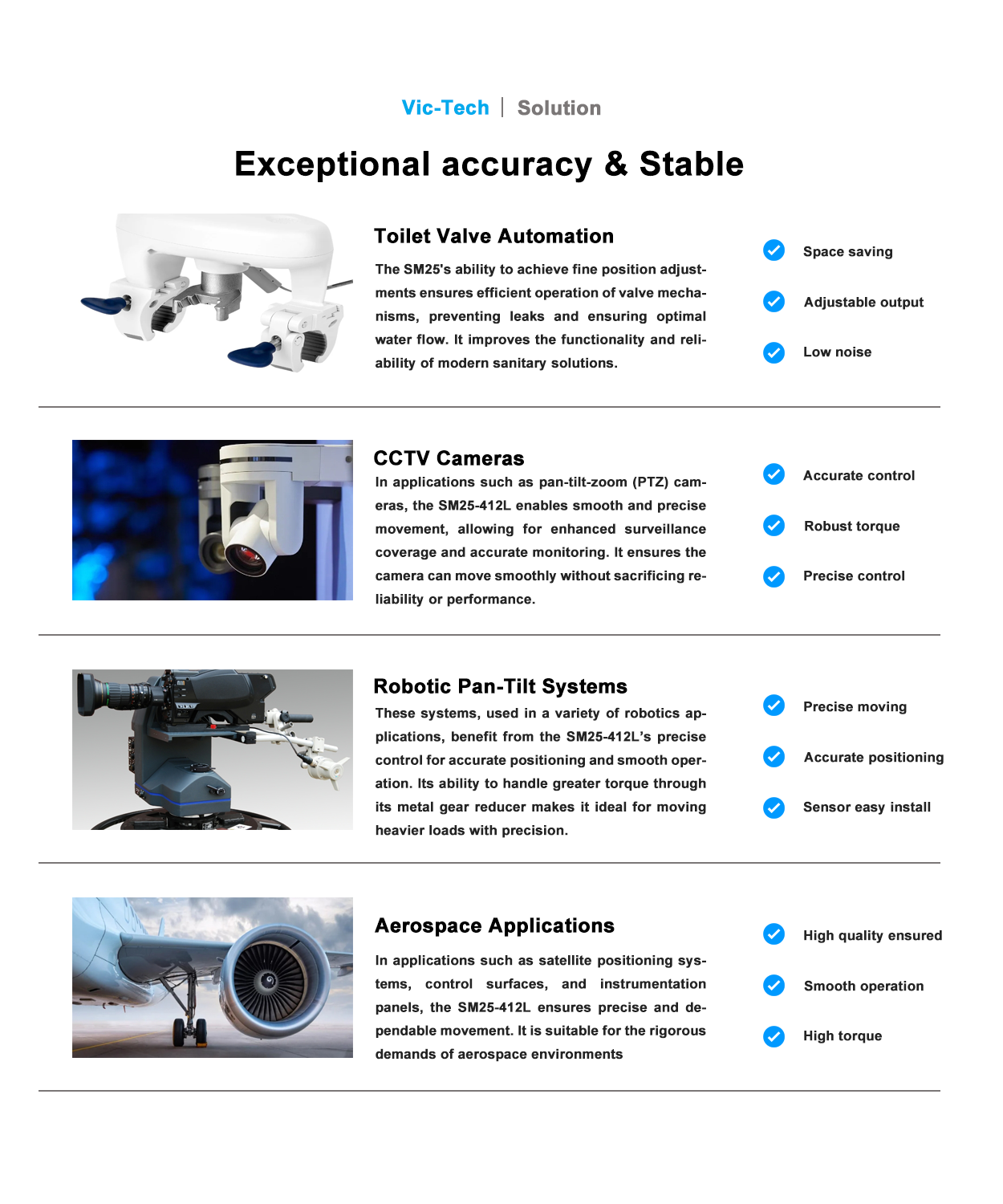

The SM25-412L stepper motor is mainly used in printers, valves, fluid control, position control and other fields.
This motor has the features of small size, high precision and high strength.
This stepper motor has a built-in gearbox with a reduction ratio of 1:10.
Finally, an output top rod with a stop structure is used so that the plunger can move back and forth without rotating.
The thrust force can be up to 10 kg.
JST PHR-4 P2.0 is chosen for the exterior of this motor, and the wiring part can be selected from various types and lengths of connecting wires or FPC FFC according to customer requirements. the shape of the mounting plate and the exit angle can be adjusted according to customer needs!
Parameters
Model No. | 25BYJ 412L |
Motor diameter | 25mm gearbox linear stepper motor |
Gearbox ratio | 10:1 |
Drive voltage | 2.2~3.4V DC |
Coil resistance | 5Ω±10%/phase |
Number of phase | 2 phases |
Stroke | 5mm |
Step angle | 7.5°/10 |
Thrust | 70N Min(2.6V 350PPS) |
Pull-in frequency | 750PPS (2.6V DC) |
Pull-out frequency | 800PPS (2.6V DC) |
Step length | 0.002mm/step |
Spindle | Tr3.5*P1.0 |
OEM&ODM SERVICE | AVAILABLE |
Inductance | 3mH(Ref) |

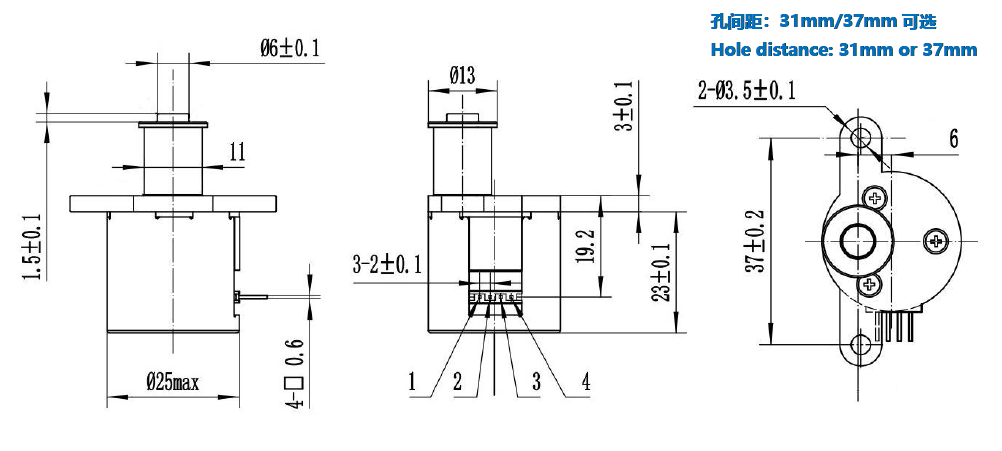

Design drawing

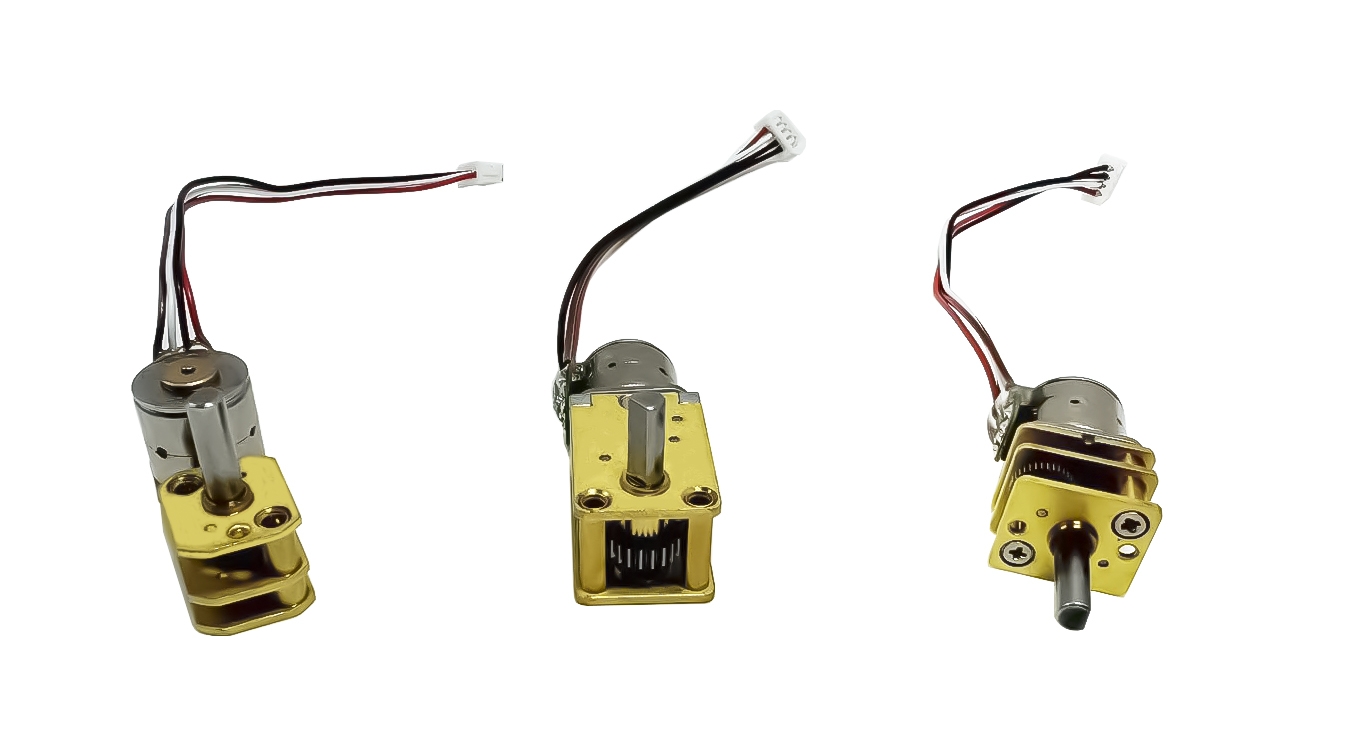

The gear box has high precision, high efficiency and low noise, which makes the product have good reliability.

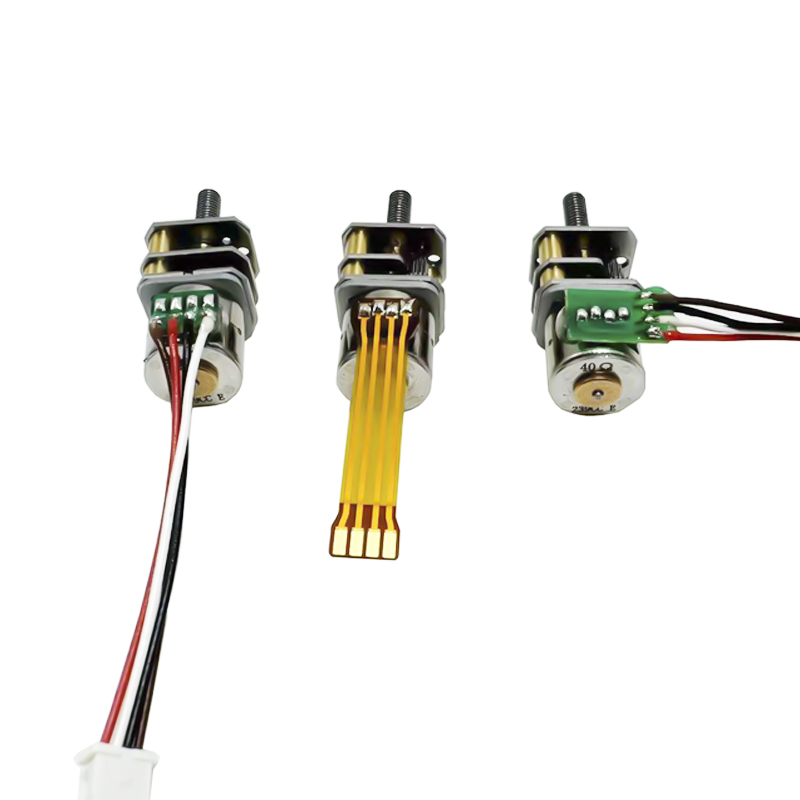

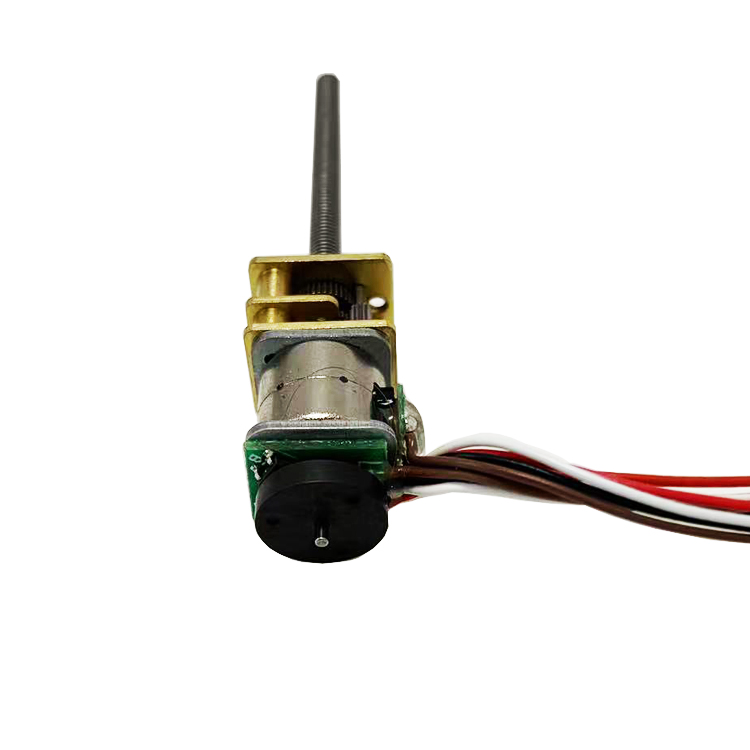

The power input position of the stepper motor can be in the form of FPC, FFC, PCB cable, etc.

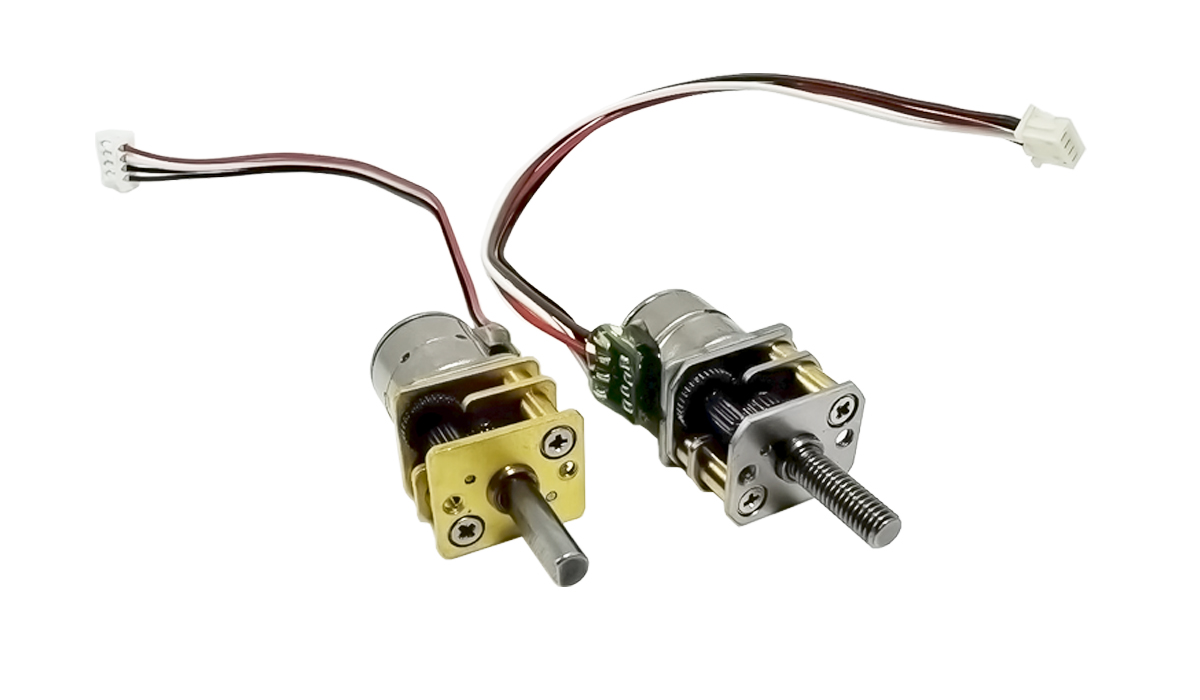

The output shaft of the motor can adopt various output structures, such as circular shaft, D-shaft and wire bar.
Customisable
