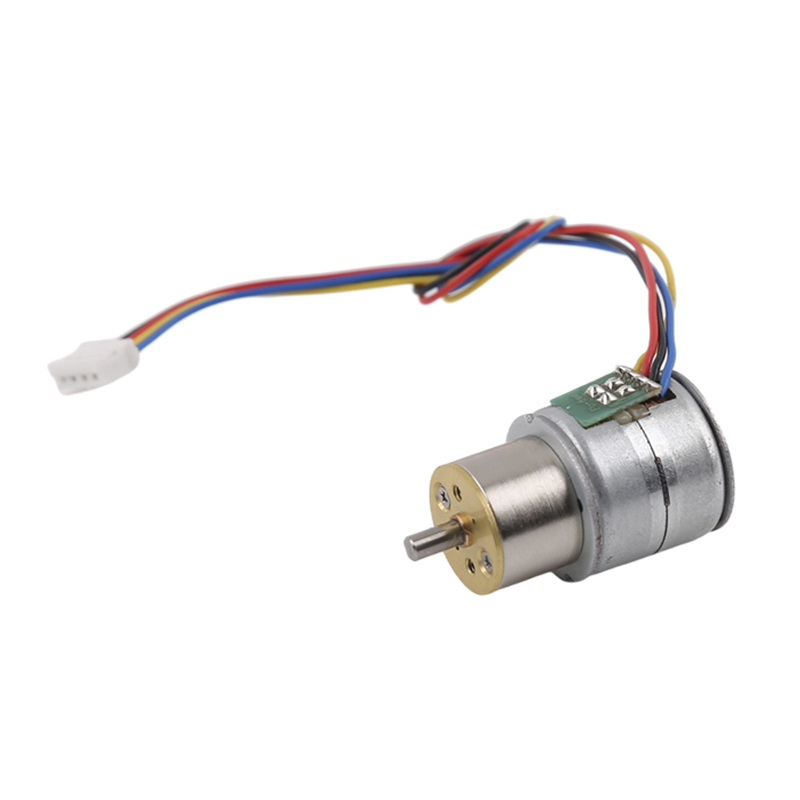

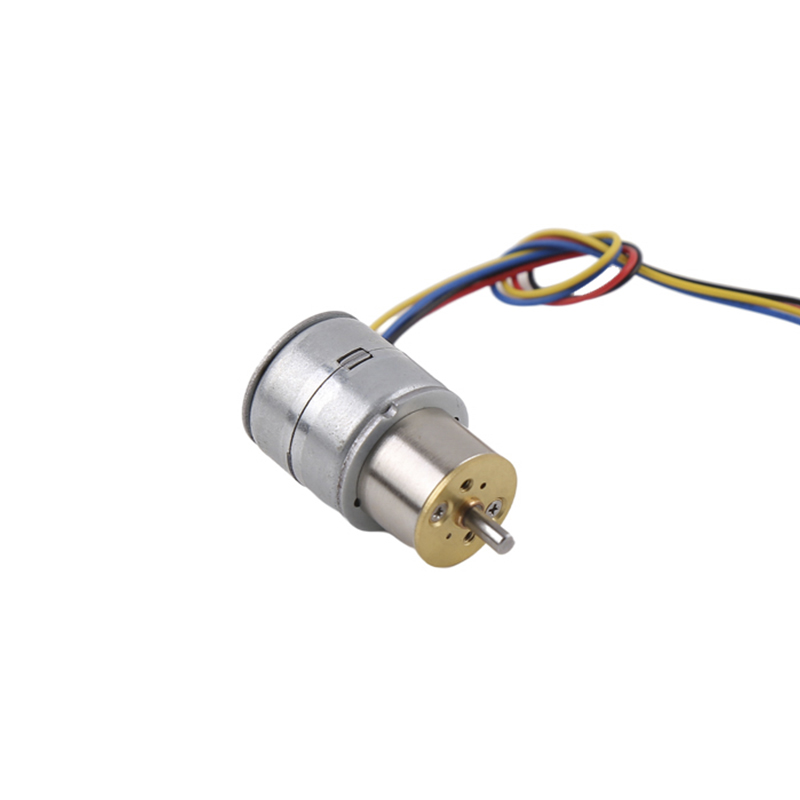

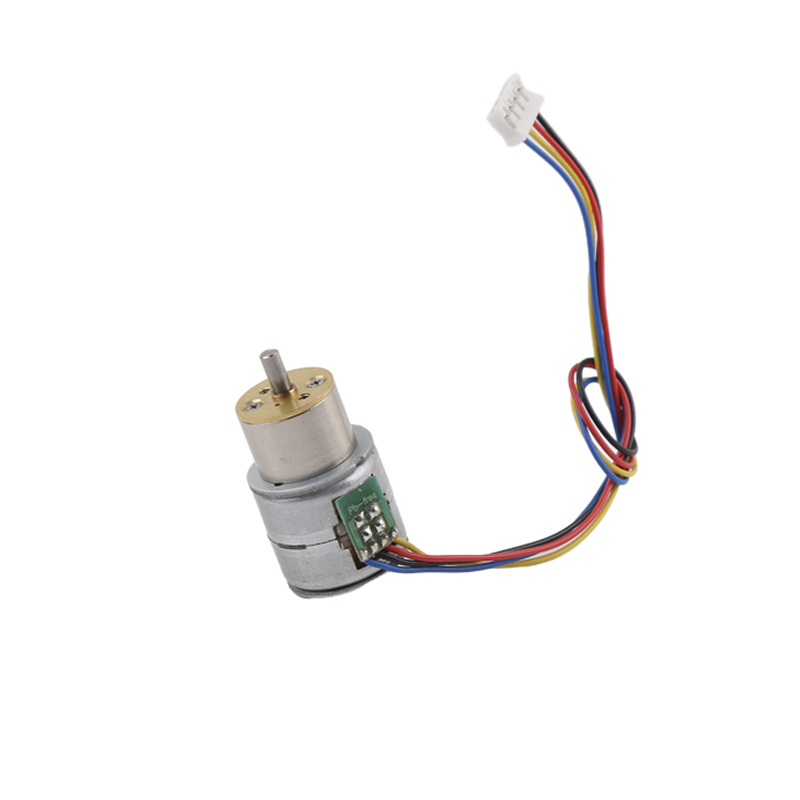

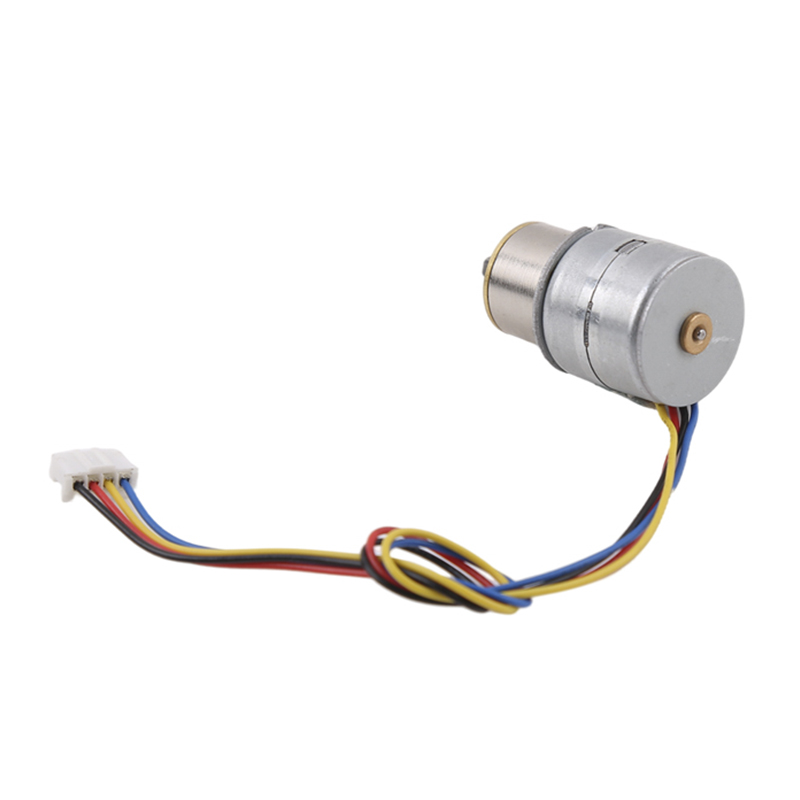

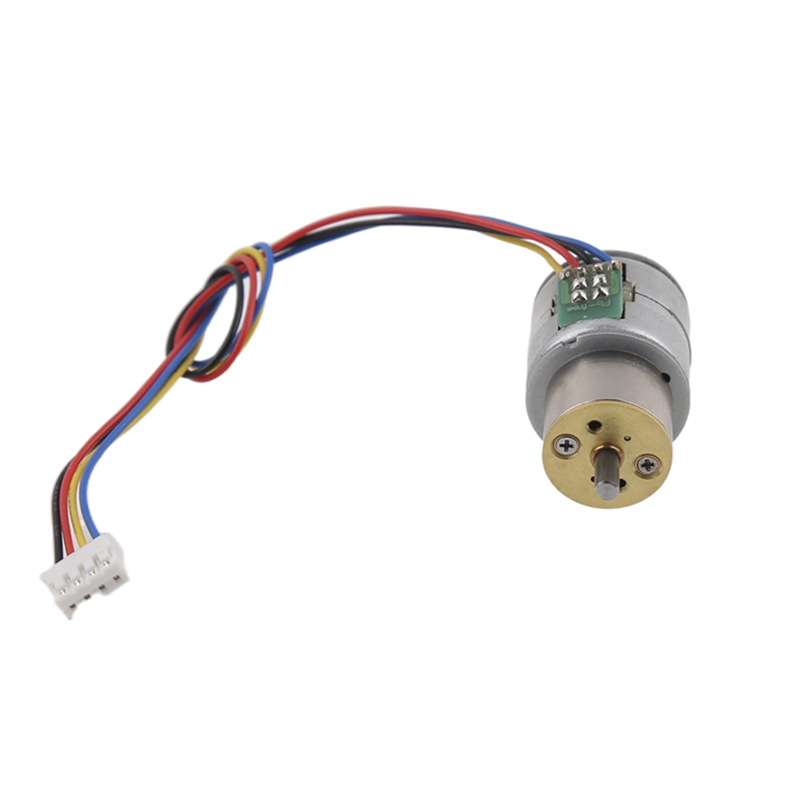

SM20-13GR
Vic-Tech
Bipolar 20mm geared stepper motor
10:1,16:1,20:1,30:1,35:1,39:1,50:1,66:1,87:1,102:1,153:1,169:1,210:1,243:1,297:1,350:1,
6V DC
9.2Ω/phase
AVAILABLE
18 degrees/gear ratio
2 phases
Φ3D2.5
1unit
Rohs
Product Description

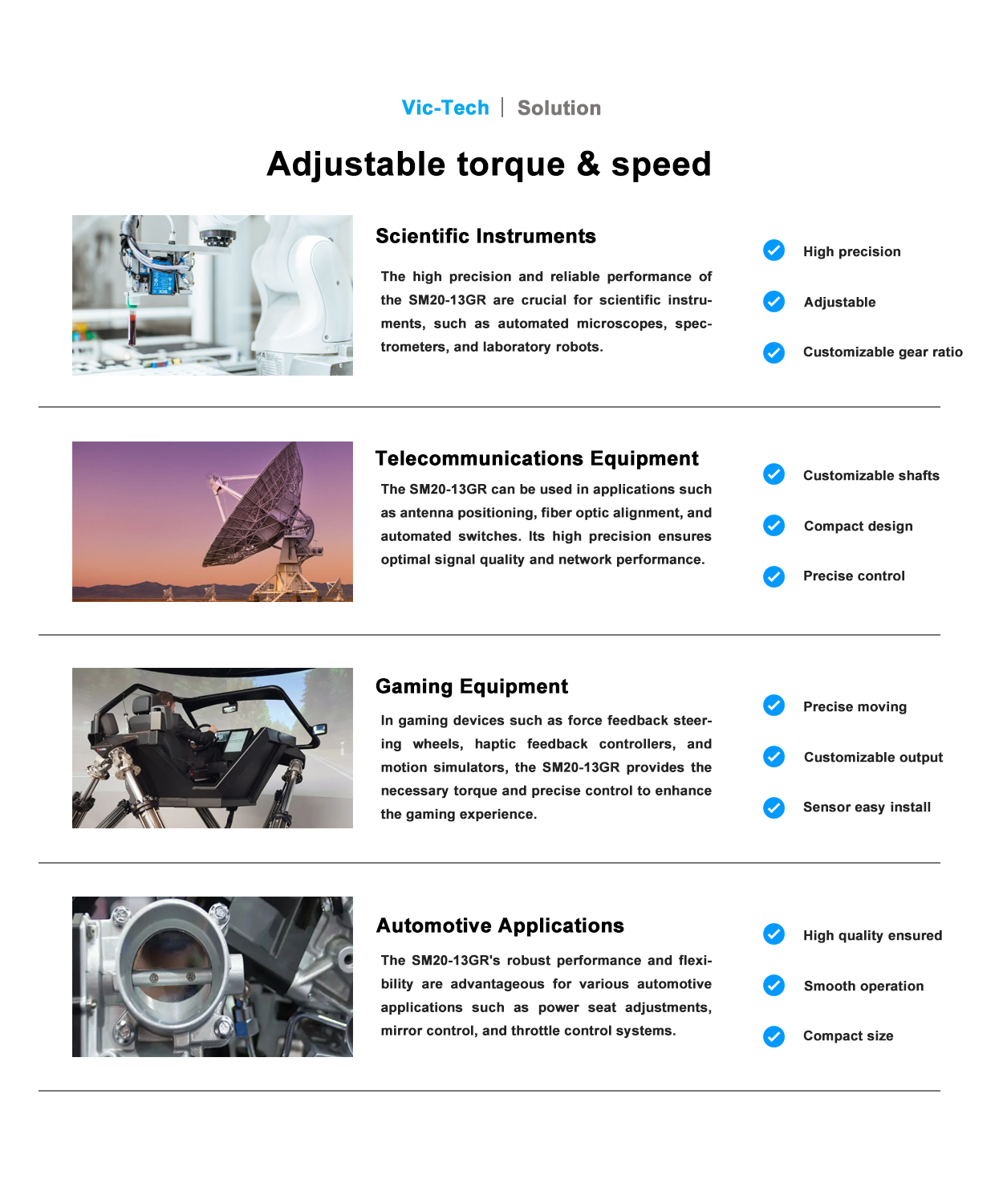

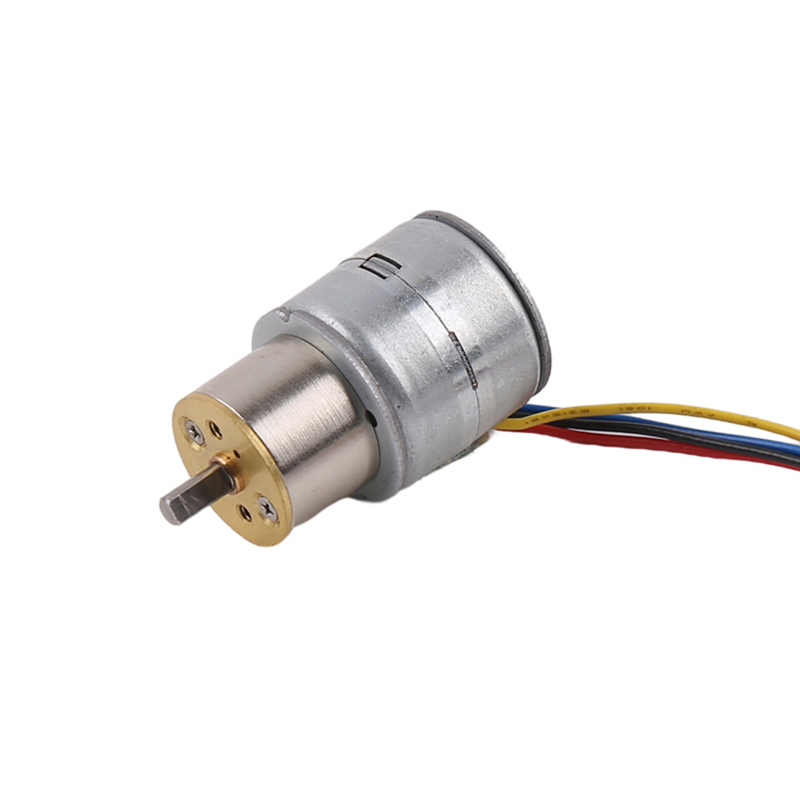

This is a circular gearbox with a 20mm PM stepper motor.
The resistance of the motor is selectable from 10Ω, 20Ω, and 31Ω.
The gear ratios of the circular gearbox, the gear ratios are 10:1,16:1,20:1,30:1,35:1,39:1,50:1,66:1,87:1,102:1,153:1,169:1,210:1,243:1,297:1,350:1.
The efficiency of circular gearbox is 58%-80%.
The larger its ratio, the slower the output shaft rotation speed and the higher the torque.
The customer evaluates the gear ratio according to the torque required.
If you are interested in purchasing some samples for testing, please feel free to contact us.
Parameters
Model No. | SM20-13GR |
Motor diameter | 20mm |
Gearbox type | 13GR Cylinder gearbox |
Drive voltage | 6V DC |
Coil resistance | 10Ωor31Ω/phase |
Number of phase | 2 phases(4 wires) |
Step angle | 18°/gear ratio |
Output shaft | 3mm D2.5 shaft |
Gear ratio | 10:1~350:1 |
OEM&ODM SERVICE | AVAILABLE |
EFFICIENCY | 58%-80% |

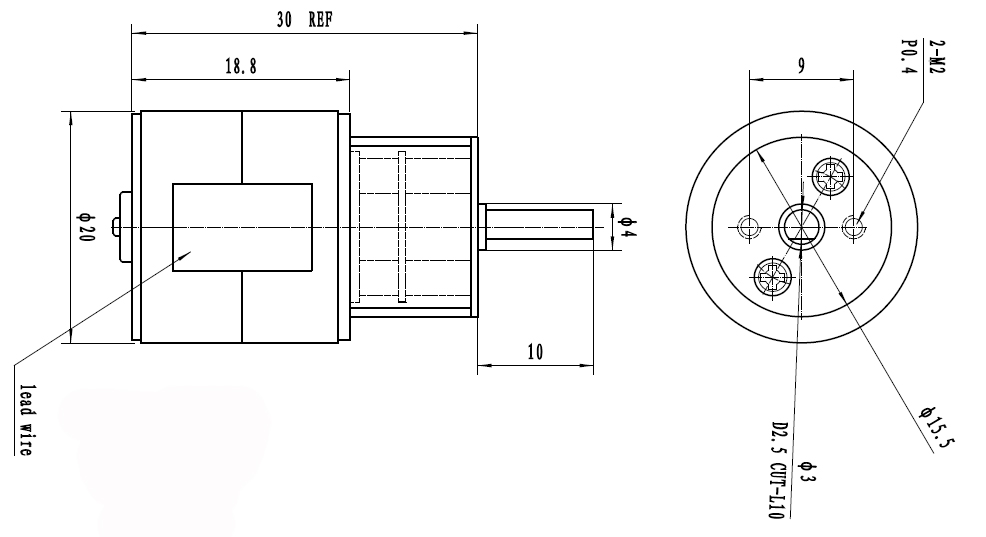

Design drawing
Gear ratio | 10:1 | 16:1 | 20:1 | 30:1 | 35:1 | 39:1 | 50:1 | 66:1 |
Precise ratio | 9.952 | 15.955 | 20.622 | 29.806 | 35.337 | 38.889 | 49.778 | 66.311 |
Tooth mumber | 14 | 20 | 18 | 14 | 18 | 18 | 15 | 18 |
Gear levels | 2 | 4 | 4 | 3 | 4 | 4 | 4 | 4 |
Efficiency | 80% | 64% | 64% | 71% | 64% | 64% | 64% | 64% |
Gear ratio | 87:1 | 102:1 | 153:1 | 169:1 | 210:1 | 243:1 | 297:1 | 350:1 |
Precise ratio | 87.303 | 101.821 | 153.125 | 169.383 | 209.402 | 243.158 | 297.071 | 347.972 |
Tooth mumber | 15 | 14 | 16 | 15 | 19 | 15 | 15 | 14 |
Gear levels | 4 | 4 | 5 | 5 | 5 | 5 | 5 | 5 |
Efficiency | 64% | 64% | 58% | 58% | 58% | 58% | 58% | 58% |
1. The gear box has high precision and high efficiency.
2. Round gear box output shaft is generally φ3mmD2.5mm shaft, and the length of output shaft can be customized.
3.The output speed and torque are different for different gear ratios Customers evaluate the gear ratio according to the required torque.
4. The round gear box can also be paired with 15mm stepper motor.

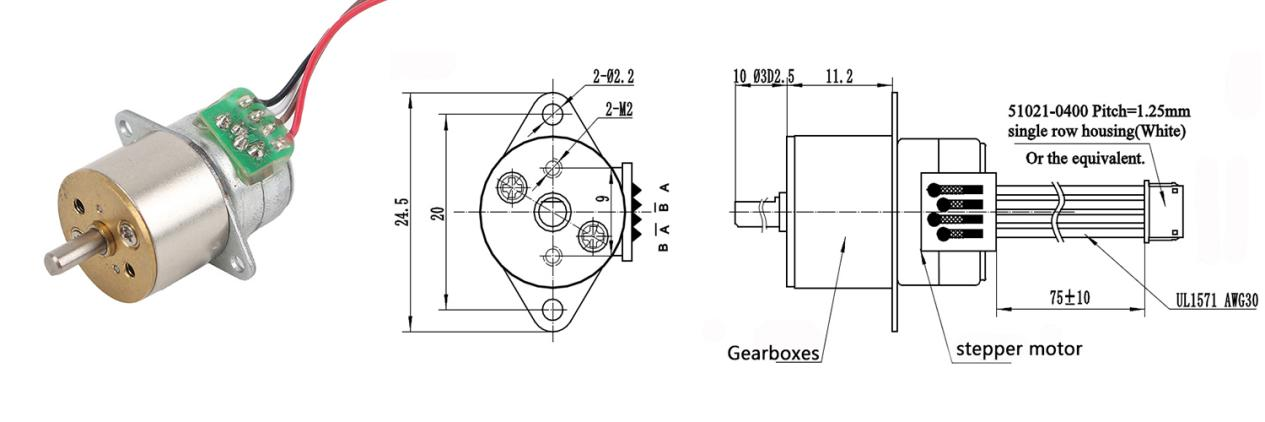

The following chart shows a 15mm stepper motor with a circular gearbox:
The gear box has high precision, high efficiency and low noise, which makes the product have good reliability.
The power input position of the stepper motor can be in the form of FPC, FFC, PCB cable, etc.
The output shaft of the motor can adopt various output structures, such as circular shaft, D-shaft and wire bar.
Customisable
