Selecting a stepper motor for an automation machine often starts with three basic requirements: torque, speed, and installation space.
However, these requirements can conflict with each other.
A standard stepper motor may provide sufficient positioning performance, but its available torque decreases as speed increases and may not provide enough usable torque for certain mechanical loads. When the application requires relatively high torque at a low output speed, engineers may be forced to select a larger motor.
That creates another problem.
A larger motor can mean:
l More installation space
l Higher motor cost
l Larger driver requirements
l Increased machine weight
l Higher power consumption
l More complicated mechanical integration
This is where a geared stepper motor can provide an effective alternative.

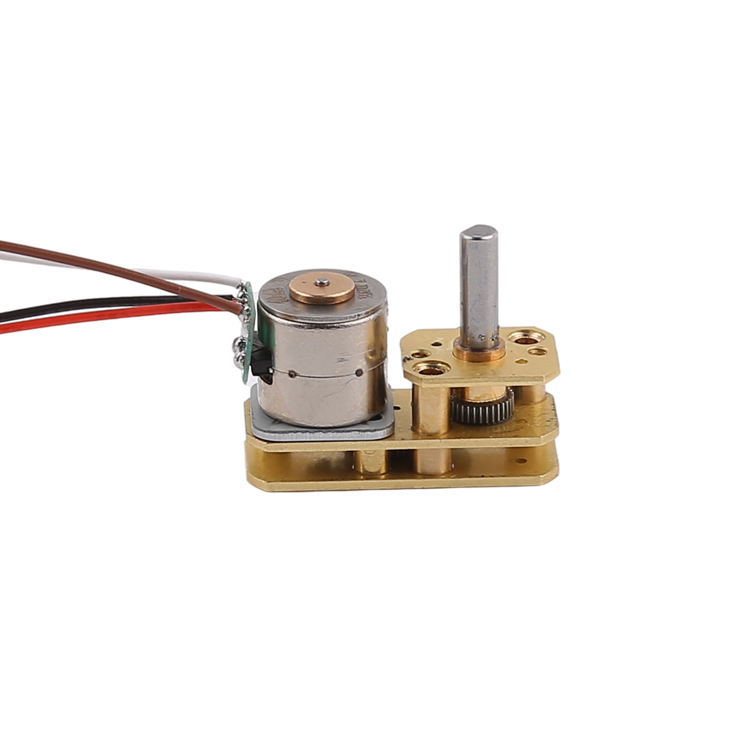

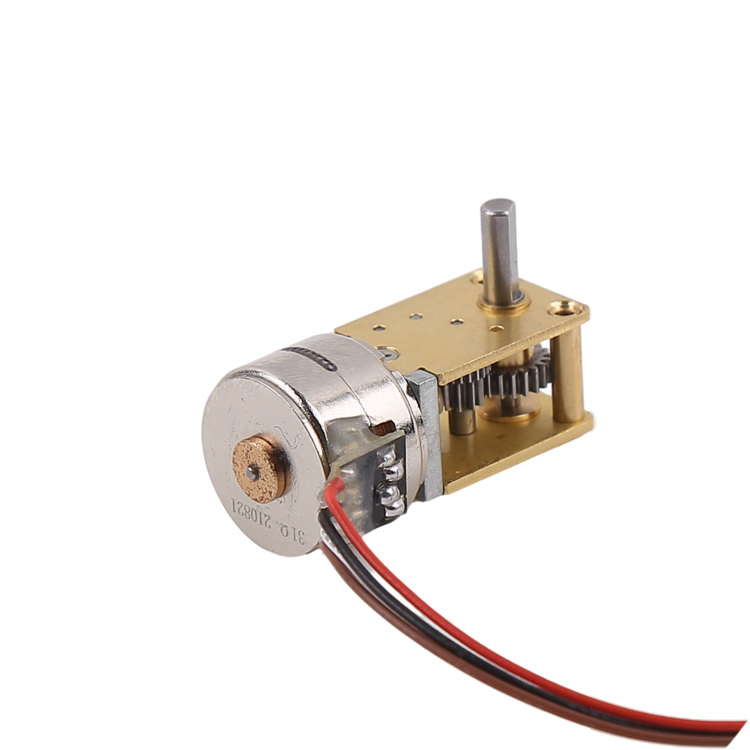

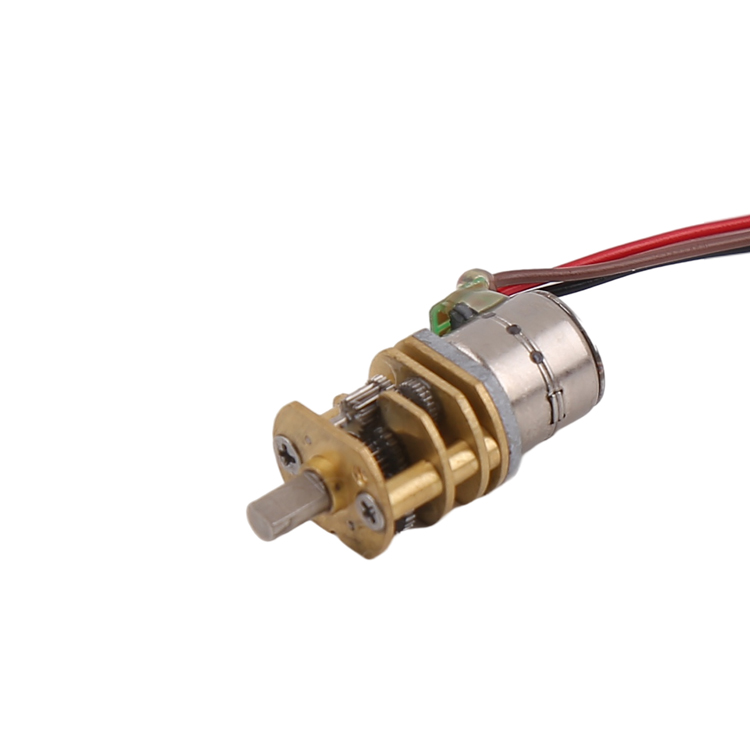

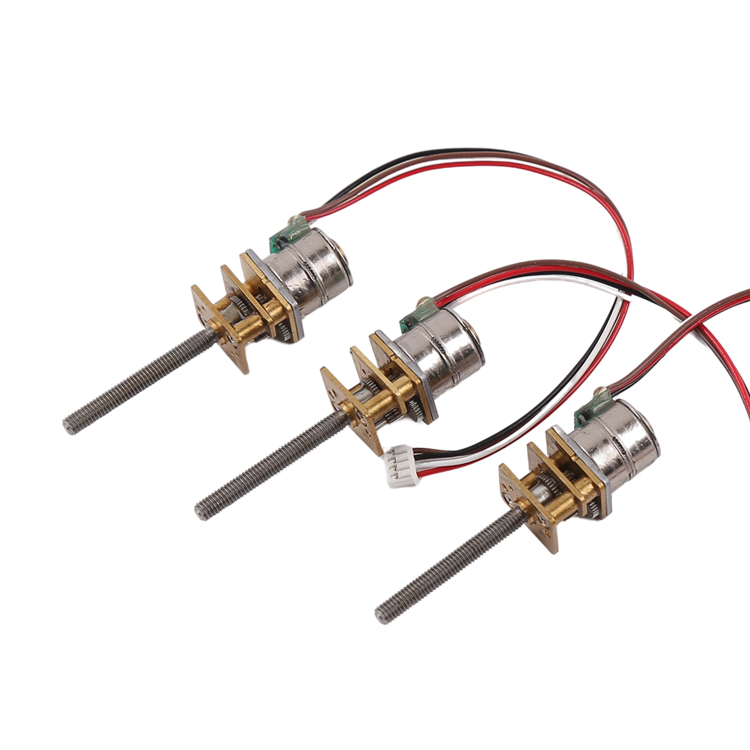

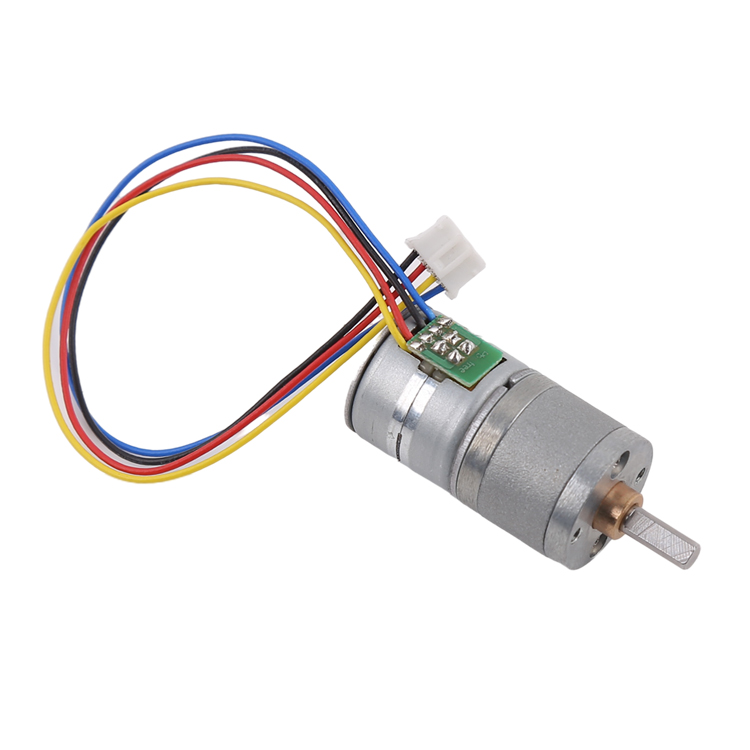

A geared stepper motor combines a stepper motor with a reduction gearbox. The gearbox reduces the motor's rotational speed and increases the usable torque available at the output shaft.
In simple terms:
Higher motor speed → Gear reduction → Lower output speed + Higher output torque
This makes a stepper motor with gearbox particularly useful when a machine needs low speed high torque in a relatively compact package.
1. A stepper motor that provides controlled rotational movement.
2. A gear reduction mechanism that changes speed and torque at the output.
The stepper motor generates rotational motion according to the input control signals. The gearbox then transfers that motion through a series of gears.
The basic function of the gearbox is gear reduction.
For example, if the motor rotates at a relatively high speed, a reduction gearbox can reduce the output speed while increasing the available output torque.
The theoretical relationship can be simplified as:
Output Speed ≈ Motor Speed ÷ Gear Ratio
And, under ideal conditions:
Output Torque ≈ Motor Torque × Gear Ratio
In a real gearbox, efficiency losses must be considered, so the actual output torque will be lower than the theoretical value.
This relationship makes geared stepper motors particularly attractive for applications where high motor speed is not required but high output torque is important.
One of the biggest reasons engineers choose a geared stepper motor is to address insufficient torque at the required operating point.
A standard stepper motor can provide strong holding torque, but its usable torque changes with speed.
When the application requires the motor to drive a heavy load through a mechanical mechanism, selecting a larger stepper motor may seem like the simplest solution.
However, increasing motor size is not always practical.
A gearbox provides another design approach.
Suppose an application requires:
l Low output speed
l High output torque
l Controlled positioning
l Limited installation space
Instead of using a very large stepper motor, an engineer can combine a smaller motor with suitable gear reduction.
The gearbox trades speed for torque.
This can allow a relatively compact motor package to generate a higher usable output torque.
That is why geared stepper motors are often described as a low speed high torque motion solution.
The actual performance depends on the motor's torque-speed characteristics, gear ratio, gearbox efficiency, and mechanical load. Therefore, the gear ratio should always be selected based on the complete application rather than simply choosing the highest available reduction ratio.
Option 1: Select a larger stepper motor.
Option 2: Add a gearbox to a smaller stepper motor.
Neither option is universally better.
The correct choice depends on the application.
Parameter | Larger Standard Stepper Motor | Geared Stepper Motor |
Motor size | Larger | More compact motor possible |
Output speed | Higher potential | Lower |
Output torque | Higher motor torque | Increased through gear reduction |
Installation space | Larger | Potentially smaller |
Mechanical complexity | Lower | Higher |
Backlash | Usually lower | Depends on gearbox |
Low-speed torque | Good | Excellent potential |
Positioning | Direct motor control | Influenced by gearbox |
Cost | Higher motor cost | Motor + gearbox cost |
Best suited for | Higher-speed motion | Low-speed, high-torque motion |
A geared stepper motor is especially attractive when the machine does not need high output speed.
For example, a conveyor adjustment mechanism may only need a relatively slow shaft speed but substantial torque to move or position a loaded mechanism.
In this situation, gear reduction can be more economical than selecting a much larger motor.
Space is often a major constraint in modern automation equipment.
Mechanical designers may have only a limited amount of room for a motor and transmission system.
Using a larger stepper motor to obtain more torque can create integration problems.
A geared stepper motor can help optimize the motor package.
Instead of increasing motor size, the design can use a smaller motor combined with a gearbox to increase output torque.
Potential advantages include:
l Smaller motor footprint
l Higher output torque
l Lower output speed
l Flexible mounting options
l Easier integration into compact mechanisms
l Potentially lower system cost
This is particularly useful in machines where the motor must fit inside a restricted housing or behind a mechanical assembly.
However, engineers should consider the complete dimensions of the gearbox, not just the motor body.
The gearbox itself adds length, width, and weight.
Therefore, the correct comparison should always be based on the complete geared motor assembly.
Material handling is one of the common application areas for geared stepper motors.
Conveyor systems often require controlled movement at relatively low speed.
The motor may need to move:
l Packages
l Trays
l Components
l Bottles
l Small parts
l Inspection fixtures
In these applications, high output torque is often more important than high rotational speed.
A stepper motor with gearbox can reduce motor speed while increasing output torque.
This can help drive rollers, belts, positioning mechanisms, and indexing systems.
For example, an indexing conveyor may need to move a product to a specific position and then hold it before the next production process.
The stepper motor provides controlled incremental motion, while the gearbox provides additional mechanical torque multiplication.
When selecting a geared motor for a conveyor, engineers should evaluate:
l Conveyor load
l Required output speed
l Starting torque
l Acceleration
l Duty cycle
l Belt or roller resistance
l Gearbox efficiency
l Required positioning resolution
The motor should be selected according to the actual output requirements rather than the motor's unloaded specifications.

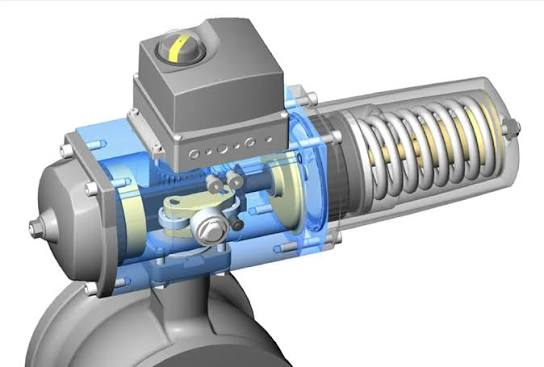

Another important application is the valve actuator.
Small valves used in HVAC systems, fluid-control equipment, laboratory instruments, and process machinery may require controlled rotational movement.
The actuator needs sufficient torque to overcome:
l Valve friction
l Sealing force
l Fluid pressure
l Mechanical resistance
At the same time, the valve usually does not need high rotational speed.
This makes a geared stepper motor a practical option.
The gearbox reduces the motor speed and increases output torque, allowing the motor to drive the valve through a controlled angular range.
A stepper-based valve actuator can also provide predictable incremental positioning.
Depending on the application, engineers can control the valve using:
l Step commands
l Position commands
l Open-loop control
l Closed-loop feedback
For applications with strict absolute-position requirements or where mechanical disturbances are possible, encoder feedback may also be considered.

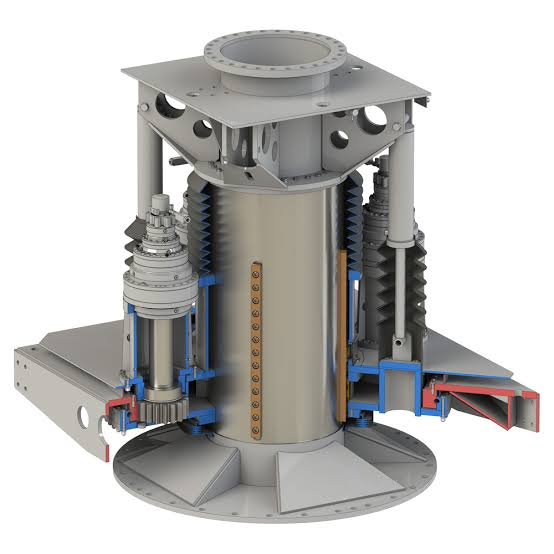

Lifting systems are another strong application for geared stepper motors.
A lifting mechanism often needs high torque at relatively low speed.
Examples include:
l Small lifting platforms
l Z-axis mechanisms
l Automated adjustment systems
l Vertical positioning equipment
l Compact material-handling systems
l Laboratory positioning platforms
A gearbox can increase the output torque available from the motor.
This allows the system to use a compact motor while achieving the required mechanical force through the transmission.
However, lifting applications require additional attention to safety.
Engineers should consider:
l Static load
l Dynamic load
l Acceleration
l Holding requirements
l Back-driving
l Gearbox efficiency
l Brake requirements
l Mechanical safety mechanism
A gearbox should not automatically be treated as a safety brake.
If a vertical load must remain safely suspended after power loss, an appropriate mechanical brake, self-locking mechanism, or other safety solution may be required depending on the system design.
Gear ratio is one of the most important parameters when selecting a geared stepper motor.
A higher reduction ratio generally provides:
Lower output speed + Higher output torque
But maximum gear reduction is not always the best solution.
For example, if the gearbox ratio is too high, the output speed may become unnecessarily slow.
The gearbox can also introduce:
l More mechanical losses
l Increased backlash
l Lower efficiency
l Higher cost
l More complex mechanical behavior
Therefore, engineers should start with the required output speed.
If the motor speed is 1,200 RPM and the required output speed is 60 RPM:
Required reduction ratio = 1,200 ÷ 60 = 20:1
A nominal 20:1 reduction would therefore be a starting point for evaluating the gearbox.
The actual motor speed should then be checked against the motor's torque-speed curve.
Torque selection should consider more than the nominal load.
A practical design should account for:
Required Torque = Load Torque + Friction + Acceleration Effects + Transmission Losses
A safety margin should also be included.
For example, a conveyor may require a certain torque during continuous operation but substantially more torque during startup.
A valve may require additional torque because of sealing friction.
A lifting mechanism may experience higher torque during acceleration.
Therefore, the motor should be evaluated at the most demanding operating point.
For a geared stepper motor, the key parameter is output torque, not simply the motor's holding torque.
Always request or verify the gearbox output torque under the actual operating speed.
One of the most important disadvantages of adding a gearbox is backlash.
Backlash refers to the mechanical clearance between mating gear teeth.
When the output direction changes, this clearance can result in a small amount of movement before the gears fully engage in the opposite direction.
For applications such as:
l Continuous conveyor motion
l One-direction valve movement
l Simple indexing
A moderate amount of backlash may be acceptable.
But applications requiring highly precise bidirectional positioning may need a low-backlash gearbox.
Therefore, engineers should evaluate:
l Backlash
l Gear accuracy
l Gear material
l Bearing structure
l Transmission efficiency
l Output shaft rigidity
Do not select a gearbox based only on its reduction ratio.
The gearbox's mechanical accuracy can be just as important as its torque capability.
A complete selection process should include electrical, mechanical, and application parameters.
Check:
l Rated voltage
l Rated current
l Phase configuration
l Holding torque
l Torque-speed curve
l Step angle
l Coil resistance
l Motor size
Check:
l Reduction ratio
l Rated output torque
l Maximum output speed
l Backlash
l Efficiency
l Gear material
l Gearbox dimensions
l Service life
Consider:
l Shaft diameter
l Shaft length
l Mounting holes
l Installation orientation
l Coupling method
l Available space
l Radial load
l Axial load
Define:
l Required output speed
l Required output torque
l Acceleration
l Duty cycle
l Operating temperature
l Required positioning accuracy
l Expected service life
This approach helps engineers avoid selecting a motor based on only one specification.
The cost advantage of a geared stepper motor comes from optimizing the complete motion system.
If the machine needs high torque but only low output speed, purchasing a very large stepper motor may be unnecessary.
A smaller stepper motor combined with gear reduction may provide the required output performance at a lower overall cost.
Potential savings can come from:
l Smaller motor size
l Smaller mounting structure
l Lower machine weight
l Reduced mechanical space
l Simplified system integration
l Lower motor purchase cost
However, the gearbox adds cost and mechanical complexity.
Therefore, the right comparison is not:
Small Motor vs. Large Motor
It is:
Small Motor + Gearbox vs. Large Motor + Direct Drive
The more important question is which architecture provides the required torque, speed, positioning, reliability, and installation size at the lowest total system cost.
A higher ratio does not automatically mean a better motor.
The output may become too slow, and gearbox losses and backlash may increase.
Holding torque does not represent actual operating torque at every speed.
Always evaluate the torque-speed curve and gearbox output performance.
A mechanism may require significantly more torque during acceleration or startup than during continuous operation.
Backlash can affect positioning accuracy, especially when the output direction changes frequently.
The theoretical torque multiplication does not equal the actual output torque.
Gearbox efficiency must be considered.
A compact motor is useful only if the complete geared assembly meets the mechanical requirements.
Before placing an order, engineers and procurement teams should confirm:
Required output torque
Required output speed
Motor torque-speed curve
Gear ratio
Gearbox efficiency
Backlash
Motor voltage
Motor current
Step angle
Shaft dimensions
Mounting dimensions
l Radial and axial loads
Duty cycle
Operating temperature
Expected service life
Quantity and production requirements
Customization requirements
For OEM projects, it is also useful to test the motor under the actual mechanical load before finalizing the design.
Standard geared stepper motors can meet many general requirements, but OEM equipment often has unique mechanical constraints.
A customized stepper motor with gearbox may be developed according to requirements such as:
l Motor diameter
l Motor length
l Gear ratio
l Output torque
l Output speed
l Shaft shape
l Shaft length
l Mounting structure
l Connector type
l Cable length
l Operating voltage
l Gearbox configuration
Customization can be particularly useful when the motor must fit into a limited installation space or when the standard output torque and speed do not match the machine requirements.
For B2B equipment manufacturers, early cooperation with the motor supplier can also help optimize the motor, gearbox, and mechanical transmission as one system.
A geared stepper motor is an effective solution when an automation system needs controlled motion, compact dimensions, and higher output torque at relatively low speed.
By combining a stepper motor with gear reduction, engineers can trade motor speed for output torque.
This makes a stepper motor with gearbox particularly suitable for applications requiring low speed high torque, including material handling, conveyor systems, valve actuator mechanisms, and lifting mechanisms.
The key to successful selection is not simply choosing the highest torque motor or highest reduction ratio.
Engineers should evaluate:
Output torque + Output speed + Gear ratio + Backlash + Efficiency + Load + Duty Cycle + Installation Space
When these parameters are properly matched, a geared stepper motor can provide a compact and cost-effective alternative to selecting a much larger direct-drive stepper motor.
For OEM automation equipment, the right motor should ultimately be selected according to the actual mechanical load and operating conditions.
If you are designing a conveyor, valve actuator, lifting mechanism, or other compact automation system, contact our engineering team for geared stepper motor selection support. Share your required torque, output speed, load, gear ratio, and installation dimensions, and we can recommend a suitable stepper motor with gearbox configuration for your application.
