Automatic door systems require a drive motor that can handle repeated opening and closing without sacrificing smooth movement or mechanical reliability. In commercial entrances, office buildings, supermarkets, access-control doors and other high-use environments, the motor may experience frequent start-stop operation throughout the working day. An unsuitable motor can lead to overheating, premature gear wear, excessive running noise, inconsistent door movement or motor failure.

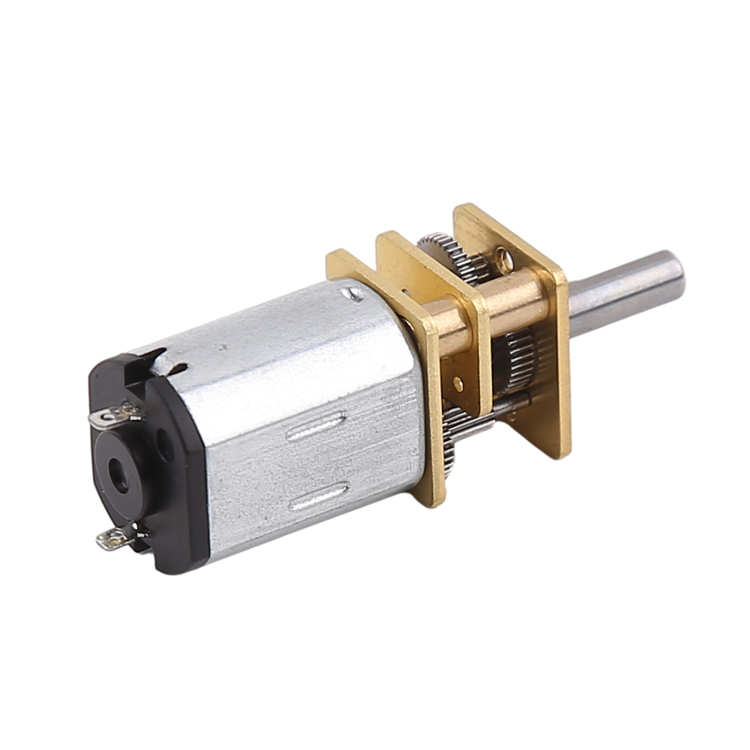

Our DC geared motor for automatic door systems is designed for manufacturers, system integrators and engineering companies that need compact, controlled drive power for automatic door mechanisms. By combining a DC motor with a reduction gearbox, the motor can provide the controlled output characteristics required for door opening and closing mechanisms while maintaining a compact structure for integration into automatic door equipment.
As a direct motor manufacturer, we provide standard motor solutions as well as custom DC geared motor manufacturing according to your automatic door design, including customized voltage, gear ratio, shaft dimensions and other mechanical requirements. Sample testing is available for project evaluation before volume production.
Automatic doors repeatedly accelerate, move, stop and reverse during normal operation. The drive motor therefore needs to be selected according to the actual duty cycle rather than simply its basic motor output.
Our DC geared motor solutions are designed for applications requiring repeated mechanical movement. The geared structure provides controlled output rotation for automatic door mechanisms, while the motor and gearbox can be evaluated according to the customer's load, operating cycle and installation requirements.
For OEM door manufacturers, this approach is important because motor selection should consider the complete door system rather than the motor alone.
The reduction gearbox uses a robust gear structure suitable for mechanical transmission applications where repeated operation is required.
A metal gear set can provide a practical solution for automatic door mechanisms that experience repeated load changes during opening and closing. Gear material, gear structure, lubrication, load conditions and operating cycles all influence actual service performance, so the gearbox configuration should be matched to the customer's specific door application.
For projects with demanding operating requirements, we can work with customers to evaluate the appropriate gearbox configuration rather than applying one specification to every door system.
The gearbox reduces motor speed while transmitting torque to the output shaft. This makes a DC gear motor for automatic doors suitable for applications where controlled output movement is more important than high motor speed.
The required output torque depends on factors such as:
Door weight
Door width
Mechanical transmission structure
Belt or pulley arrangement
Door opening resistance
Acceleration requirements
Installation conditions
Required operating cycles
For this reason, we do not recommend selecting an automatic door motor based only on nominal motor specifications. The required output torque should be evaluated at the actual operating point of the door mechanism.
Noise is an important consideration for automatic doors installed in offices, commercial buildings, hotels, supermarkets and other public environments.
Motor noise can come from several sources, including the motor itself, gearbox transmission, vibration, mechanical mounting and the surrounding door structure. A motor that appears quiet during standalone testing may produce different acoustic results after installation in the complete door system.
Our low-noise DC geared motor solutions can be evaluated according to the customer's application requirements. During product development, motor speed, gearbox structure, mounting conditions and mechanical coupling can all be considered as part of the drive system.
Automatic door operators often have limited internal space for the drive motor, gearbox, transmission components and control electronics.
A compact DC geared motor for automatic doors can help simplify the mechanical arrangement and make better use of the available installation space.
When evaluating a motor for your door operator, important dimensions include:
Motor diameter
Overall motor length
Gearbox dimensions
Output shaft diameter
Output shaft length
Shaft profile
Mounting structure
Connector location
Cable exit direction
A smaller motor is not necessarily the correct solution. The final selection should balance installation dimensions with required output torque, speed, operating cycle and thermal requirements.
Automatic door manufacturers often develop their own mechanical structures and control systems. A standard motor may therefore have the correct basic performance but an unsuitable shaft, voltage or gearbox configuration.
As an original motor manufacturer, we support customization according to project requirements, including:
Custom motor voltage
Custom gear ratio
Custom output speed
Custom shaft diameter
Custom shaft length
Special shaft profile
Custom mounting dimensions
Connector configuration
Cable length
Gearbox configuration
This allows the motor to be integrated into the customer's automatic door operator instead of requiring unnecessary changes to the existing mechanical design.
Every motor used in an automatic door system becomes part of a larger mechanical and electrical assembly. Consistent manufacturing quality is therefore important for OEM production.
Before shipment, motors can be subjected to factory quality-control procedures according to the applicable product and project requirements. Depending on the product specification, inspection can cover areas such as:
Electrical performance
Mechanical dimensions
Gearbox operation
Rotation direction
Noise
Output performance
Appearance
Assembly consistency
Specific inspection and testing requirements can also be discussed for OEM projects.
Our automatic door drive motors can be considered for a range of commercial, industrial and building-entry applications where controlled motorized door movement is required.

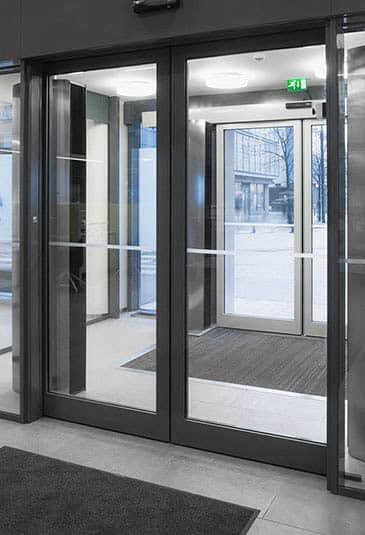

Automatic sliding doors require the motor to drive the door through a transmission system while supporting repeated opening and closing.
Typical applications include:
Shopping malls
Commercial buildings
Retail stores
Office entrances
Hotels
Public facilities
For a sliding door, the motor selection should take into account the door mass, transmission ratio, required opening speed, acceleration, travel distance and expected operating frequency.

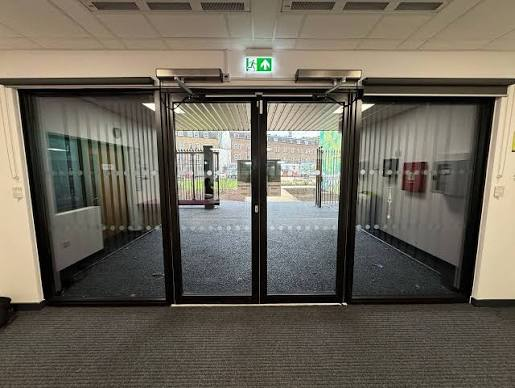

Swing doors require controlled rotary movement to open and close the door around its hinge axis.
A DC geared motor for automatic swing doors can be integrated with an appropriate mechanical transmission depending on the system architecture.
Important design parameters include door weight, door width, opening angle, movement time and mechanical resistance.

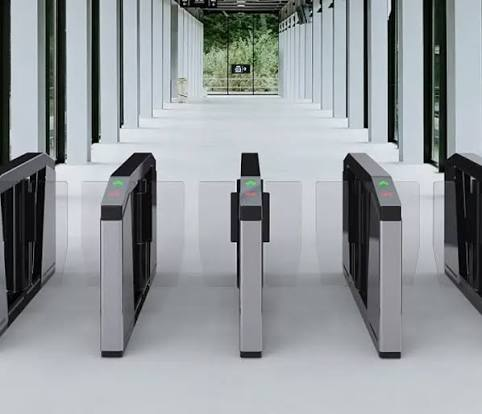

Access-control doors combine automatic movement with sensors, access-control systems and safety mechanisms.
The motor may need to respond repeatedly to signals from:
RFID access systems
Card readers
Keypads
Security systems
Motion sensors
Presence sensors
For these systems, stable motor operation and compatibility with the door controller are important considerations.

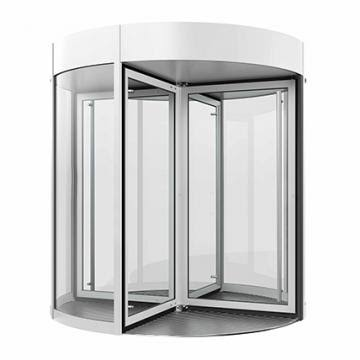

Compact revolving door mechanisms may require controlled rotational movement within a relatively restricted installation space.
A geared DC motor can be evaluated according to the required output speed, torque, duty cycle and mechanical transmission configuration.
The correct motor should be selected according to the actual door mechanism rather than the application name alone.
Supermarket entrances can experience frequent customer traffic, resulting in repeated automatic door cycles.
The drive motor therefore needs to be evaluated for:
Frequent start-stop operation
Repeated acceleration and deceleration
Door load
Required opening and closing speed
Operating environment
Expected service cycles
Noise requirements
A properly matched DC geared motor for automatic doors can provide the controlled mechanical output required by the door operator.
Office entrances may require quiet and consistent operation, particularly when doors are installed close to workspaces or reception areas.
For these applications, engineers should evaluate motor noise together with gearbox noise, mounting structure and the complete door mechanism.
We are a direct DC geared motor manufacturer, not a trading company. Our role is to work directly with automatic door manufacturers, system integrators and engineering teams to develop motors that match their mechanical and electrical requirements.
Standard motors are useful for initial evaluation and prototype development. However, a customized DC gear motor for automatic door systems may be more appropriate when the existing standard configuration does not match your equipment.
Depending on the project, we can discuss:
Motor voltage
Gear ratio
Output speed
Output torque requirements
Shaft diameter
Shaft length
Shaft shape
Mounting dimensions
Gearbox configuration
Wire length
Connector
Rotation requirements
Noise requirements
The exact customization scope depends on the motor platform and technical requirements.
For automatic door projects, testing the motor in the actual mechanical system is important. We support sample evaluation so customers can verify the motor together with their own door mechanism before moving toward volume production.
A sample evaluation can help engineers assess:
Door opening and closing movement
Motor and gearbox noise
Output performance
Mechanical compatibility
Installation dimensions
Control-system compatibility
Repeated operating performance
Customers can provide drawings, motor requirements or existing sample specifications for technical discussion.
Mechanical requirements
Door type
Door weight
Door dimensions
Transmission structure
Available installation space
Shaft dimensions
Mounting requirements
Performance requirements
Required output torque
Required output speed
Opening/closing time
Operating angle or travel
Acceleration requirements
Expected operating cycles
Electrical requirements
Rated voltage
Current limitations
Controller or driver type
Wiring requirements
Rotation direction
Environmental requirements
Operating temperature
Installation environment
Noise requirements
Continuous or intermittent operation
The more complete the application information, the easier it is to determine whether a standard automatic door motor is suitable or whether a custom DC geared motor should be developed.
Yes. Depending on the motor platform and project requirements, shaft diameter, shaft length, shaft profile and other mechanical dimensions can be customized for automatic door applications.
If your existing door operator has a specific coupling or transmission structure, providing a mechanical drawing or shaft specification can help us evaluate the required configuration.
There is no single cycle-life value that applies to every DC geared motor configuration. Actual service life depends on load, operating speed, duty cycle, gearbox design, operating environment, lubrication, mechanical transmission and other system conditions.
For an automatic door project, we recommend defining the expected number of operating cycles and the actual load conditions so the motor and gearbox can be evaluated against the application requirements.
It may be suitable, but this needs to be determined from the actual door load and transmission system. Door weight alone does not determine the required motor torque.
Our engineering evaluation can consider the door weight, transmission ratio, mechanical resistance, opening speed, acceleration and required operating cycles to identify an appropriate motor configuration.
Yes. Sample testing is available for project evaluation. Customers can test the motor with their automatic door mechanism to verify mechanical fit, output performance, noise and control compatibility before proceeding with volume production.
Choosing an automatic door drive motor should start with the actual door mechanism, not simply the motor model. The correct DC geared motor needs to provide the required output torque and speed while fitting the available installation space and supporting the expected operating cycle.
As a direct manufacturer, we can support automatic door system integrators, door equipment OEM factories, engineering contractors and project purchasing teams with standard and customized DC geared motor solutions.
Send us your motor specifications, door parameters, technical drawings, shaft requirements or existing motor samples. Our team can evaluate your application, recommend a suitable motor configuration and provide a quotation for sample testing and production.
Contact us today to discuss your DC geared motor requirements for automatic door systems and develop a motor solution matched to your project.
