When an automation mechanism needs controlled low-speed movement, higher output torque, and a compact installation footprint, a geared stepper motor can provide a practical alternative to a standard stepper motor with a separate external gearbox. By integrating the stepper motor and reduction gearbox into one assembly, this motor simplifies mechanical integration while providing controlled angular movement for compact actuator applications.
Our Geared Stepper Motor for Compact Actuator Applications is designed for OEM manufacturers of automation equipment, HVAC valves and dampers, small linear actuators, smart appliances, and other compact mechanisms. The integrated gearbox reduces motor speed and increases usable output torque, making the motor suitable for applications where direct-drive stepper motors may not provide the required low-speed torque or compact mechanical arrangement.
The motor can be configured according to application requirements such as gear ratio, output torque, output speed, voltage, shaft dimensions, mounting configuration, wiring, and connector specifications, making it suitable for both prototype development and volume OEM production.

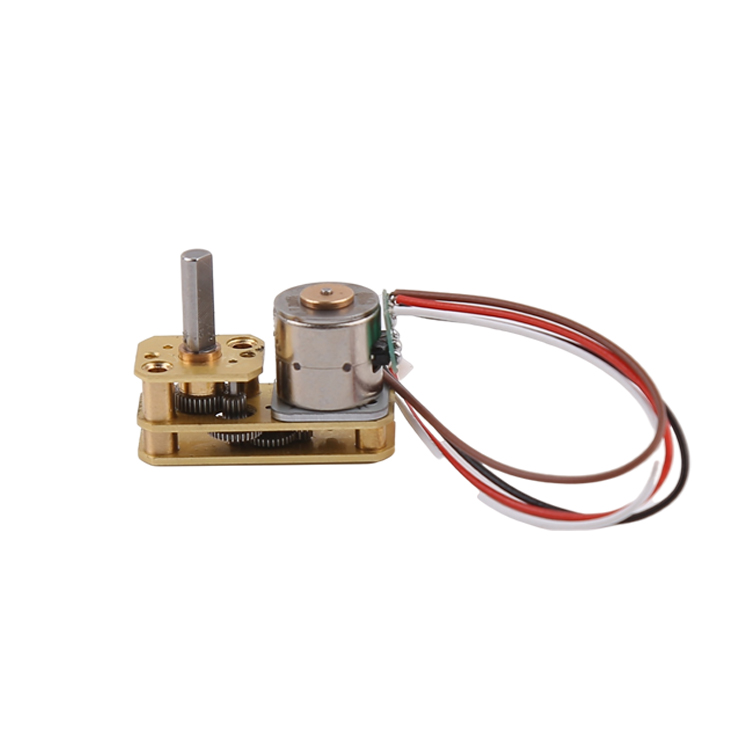

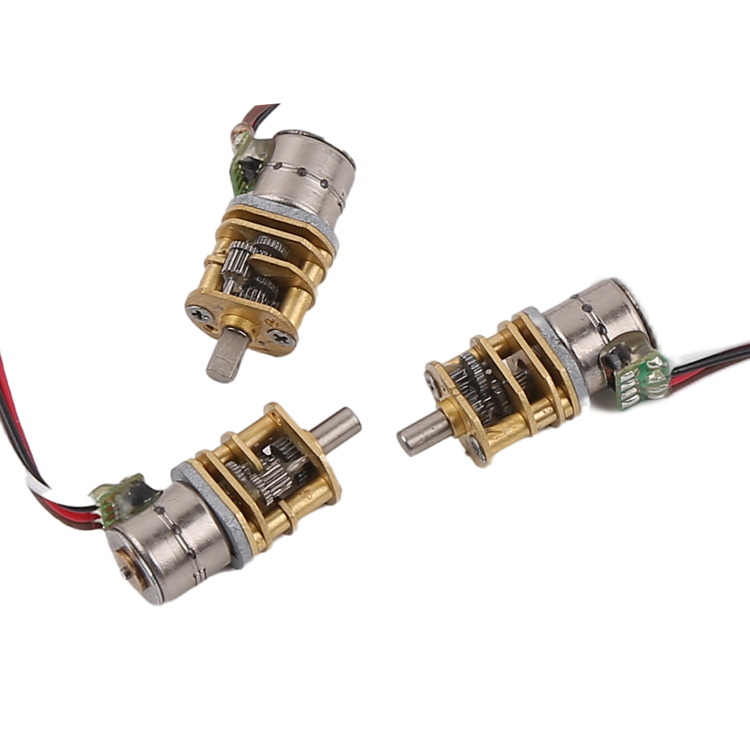

The motor and reduction gearbox are integrated into one compact assembly. This eliminates the need to design a separate external reduction mechanism in many applications and can simplify the overall actuator structure.
The compact configuration is particularly useful where installation space is limited, such as:
HVAC valve and damper assemblies
Air-conditioner louver mechanisms
Small linear actuators
Smart home appliances
Compact automation equipment
Optical and positioning mechanisms
Small robotic mechanisms
Instead of designing the actuator around a separate motor and gearbox, engineers can evaluate an integrated geared stepper motor as a complete motion component.
A geared stepper motor trades motor speed for output torque through mechanical reduction.
A simplified relationship is:
Actual output torque depends on the motor's available torque, reduction ratio, gearbox efficiency, operating speed, and load conditions.
This makes a geared stepper motor suitable for mechanisms that do not require high rotational speed but need controlled movement and sufficient output torque.
Typical examples include valve opening and closing, HVAC damper adjustment, louver positioning, flap control, and compact actuator mechanisms.
The integrated gearbox provides mechanical speed reduction without requiring an additional external gear train in the actuator design.
Depending on the selected model, different reduction ratios can be considered to achieve the required balance between:
Output torque
Output speed
Movement time
Mechanical resolution
Installation space
Gearbox characteristics
A higher reduction ratio generally provides greater torque multiplication and lower output speed, while a lower ratio allows faster output movement with less torque multiplication.
The correct gear ratio should therefore be selected according to the actual actuator load and required movement time rather than simply choosing the highest available reduction ratio.
Unlike a basic continuously rotating motor, a stepper motor converts electrical pulses into controlled angular movement. Combined with gear reduction, the output shaft can provide relatively slow and repeatable angular movement for compact mechanisms.
This is useful for applications requiring:
Defined angular movement
Repeated positioning
Forward and reverse operation
Low-speed adjustment
Position holding
Simple step-based control
Actual positioning performance depends not only on step resolution but also on gearbox backlash, manufacturing tolerances, shaft loading, friction, mechanical coupling, and other system-level factors.
Different actuator designs have different mechanical and electrical requirements. Our geared stepper motor solutions can be evaluated and customized according to OEM requirements.
Possible customization areas include:
Gear ratio
Output torque
Output speed
Rated voltage
Coil resistance
Shaft diameter
Shaft length
Special shaft profile
Mounting dimensions
Connector type
Cable length
Gearbox orientation
Noise requirements
This allows the motor to be integrated into the customer's actuator or equipment design instead of forcing the mechanical system to fit a standard motor configuration.
Compact actuators often have a challenging combination of requirements. The motor must fit inside a restricted housing while generating enough torque to move the mechanism. At the same time, the output may need to move slowly and repeatedly rather than rotate continuously at high speed.
A geared stepper motor addresses these requirements by combining two functions:
This architecture makes it particularly suitable for compact electromechanical actuators.

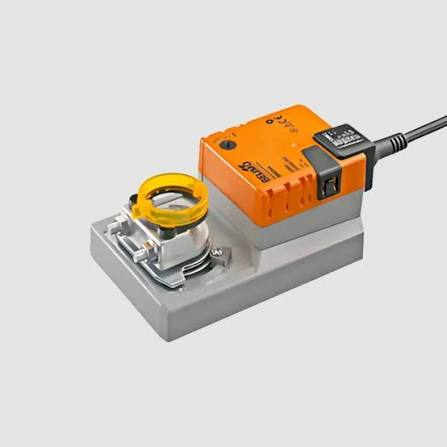

HVAC equipment frequently requires controlled adjustment of dampers, valves, louvers, and air vents.
A geared stepper motor can be used where the mechanism requires relatively slow angular movement and controlled positioning.
Typical HVAC applications include:
HVAC damper adjustment
Air-conditioning louver control
Motorized air vents
Airflow direction control
Small valve actuators
Ventilation mechanisms
Automotive air vents
For HVAC applications, engineers should evaluate the required load torque, angular travel, movement time, noise, installation space, and expected operating cycles.
For example, specifying 90° movement within 3 seconds provides a more useful engineering requirement than simply stating that a motor should have "low speed."

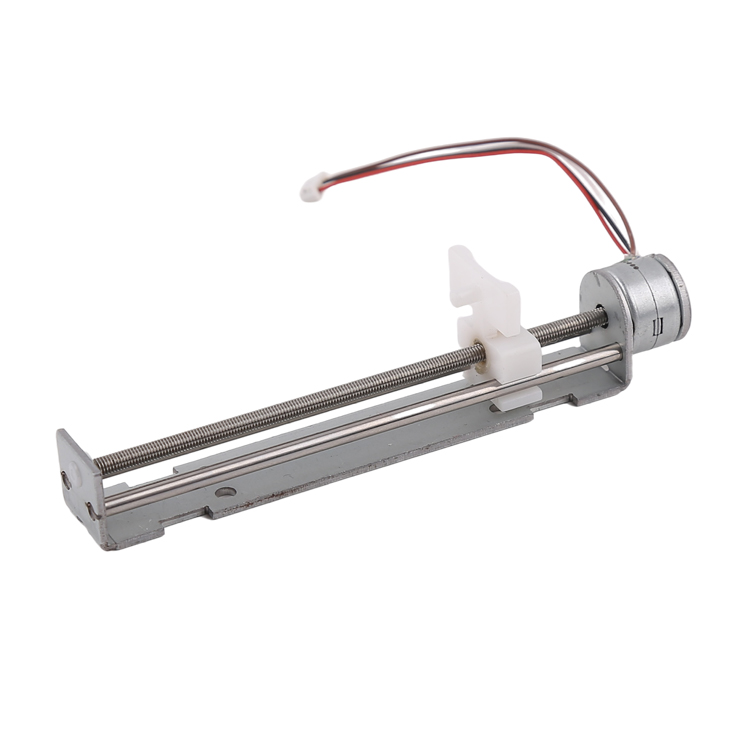

A geared stepper motor can also serve as the rotary drive source for a compact linear actuator when combined with an appropriate lead screw, threaded mechanism, or other mechanical transmission.
Typical requirements may include:
Compact actuator dimensions
Controlled extension and retraction
Low output speed
Increased mechanical force
Repeatable movement
Simple electronic control
For a linear actuator manufacturer, motor selection should start with the required linear force, travel distance, travel time, duty cycle, and mechanical transmission efficiency.
The required motor torque can then be determined from the actuator mechanism rather than selected only from the motor's nominal specifications.
Compact automation mechanisms often require controlled positioning but have limited installation space.
Geared stepper motors can be considered for:
Small positioning mechanisms
Flap and shutter control
Dispensing mechanisms
Compact material-handling mechanisms
Automated adjustment systems
Instrument mechanisms
Small robotic mechanisms
The integrated gearbox can reduce the need for additional mechanical reduction, potentially simplifying the actuator structure and packaging.
Compact geared stepper motors are also suitable for mechanisms inside household and smart-home products where space, noise, controlled movement, and production cost need to be considered together.
Potential applications include:
Air purifiers
Smart ventilation systems
Motorized blinds
Smart valves
Appliance dampers
Pet feeders
Dispensing mechanisms
Compact switches and actuators
Projector mechanisms
Airflow control systems
For residential products, motor noise should be evaluated after the motor is installed in the actual housing. Gear noise, vibration, resonance, mounting structure, and operating speed can all affect the final acoustic performance.
Selecting the right motor should begin with the application requirements, not simply the motor model.
Identify the actual mechanical load at the output shaft.
For example:
Valve friction
Damper friction
Spring force
Linkage resistance
Gear transmission resistance
Starting load
Mechanical end-stop resistance
The motor should provide sufficient dynamic torque under the required operating conditions.
Calculate the torque required by the mechanism and include an appropriate engineering safety margin.
Do not select a motor based only on holding torque. The available dynamic torque at the required operating speed is also important.
The gear ratio determines the fundamental relationship between output speed and torque multiplication.
Requirement | Typical Direction |
Higher output torque | Higher reduction |
Lower output speed | Higher reduction |
Faster actuator response | Lower reduction |
Fine output movement | Higher reduction may help |
Very fast movement | Lower reduction may be preferred |
The final ratio should be confirmed through load and movement-time testing.
Before selecting a motor, check the complete motor and gearbox envelope.
Important dimensions include:
Motor diameter
Motor length
Gearbox dimensions
Mounting-hole spacing
Shaft diameter
Shaft length
Shaft profile
Connector location
Cable exit direction
A smaller motor is not necessarily the correct choice if it cannot provide the required torque or thermal performance.
The motor should match the customer's control system.
Check:
Rated voltage
Coil resistance
Rated current
Phase configuration
Number of wires
Driver compatibility
Excitation method
Operating frequency
Specific electrical specifications depend on the selected motor model and winding configuration.
Parameter | What to Check | Why It Matters |
Application | Valve, damper, actuator, louver, etc. | Defines motion requirements |
Load torque | Actual shaft torque | Prevents insufficient torque |
Gear ratio | Required reduction | Balances torque and speed |
Output speed | RPM or movement time | Determines actuator response |
Step angle | Motor step angle | Affects basic motion resolution |
Backlash | Gearbox mechanical play | Affects repeatability |
Voltage | Control-system voltage | Ensures electrical compatibility |
Current | Coil/rated current | Determines driver requirements |
Motor size | Available installation space | Ensures mechanical fit |
Shaft | Diameter, length, profile | Determines mechanical coupling |
Noise | Motor and gearbox noise | Important for residential products |
Life | Expected operating cycles | Supports durability requirements |
Environment | Temperature and operating conditions | Supports reliable operation |
A standard geared stepper motor can be suitable for prototypes and applications with conventional requirements. However, an OEM actuator may require a specific combination of motor dimensions, gear ratio, shaft design, electrical characteristics, and installation structure.
A custom solution may be appropriate when you need:
A specific output torque
A customized gear ratio
A defined output speed
A special shaft
Limited motor diameter
Custom mounting holes
A specific connector
Customized cable length
Different gearbox orientation
Application-specific noise requirements
For high-volume automation, HVAC, and actuator manufacturers, integrating the motor specification with the mechanical design at an early stage can help simplify the final actuator architecture.
For compact actuator applications, using a separate motor and external gearbox can increase the number of mechanical components and make packaging more complicated.
An integrated geared stepper motor combines controlled stepper motion and mechanical reduction in a single motor assembly.
This configuration can provide:
Compact mechanical integration
Low-speed output
Higher usable output torque
Controlled angular movement
Simplified actuator design
Flexible OEM configuration
Suitability for high-volume compact mechanisms
The actual performance depends on the selected motor and gearbox specifications, so engineers should evaluate the complete motor-load system rather than relying on motor size or gear ratio alone.
A geared stepper motor combines a stepper motor with an integrated reduction gearbox. The stepper motor provides controlled angular movement, while the gearbox reduces output speed and increases usable output torque.
Typical applications include HVAC dampers, air-conditioner louvers, valves, small linear actuators, smart appliances, air purifiers, motorized vents, compact automation mechanisms, and other low-speed positioning applications.
A gearbox allows the motor to operate at a higher internal speed while providing a lower output speed and greater usable output torque. This can be useful when a compact mechanism requires relatively slow, controlled movement.
Start with the required linear force, travel, movement time, duty cycle, and mechanical transmission. Then determine the required output torque and speed at the motor/gearbox output before selecting the appropriate motor and gear ratio.
Yes. Depending on the application, OEM customization can include gear ratio, shaft dimensions, mounting configuration, voltage, winding, connector, cable length, gearbox orientation, and other mechanical or electrical requirements.
No. A higher reduction ratio generally increases torque multiplication and reduces output speed, but excessive reduction can make the actuator slower and may increase transmission losses or backlash. The gear ratio should be matched to the actual load and required movement time.
If you are developing automation equipment, HVAC valve or damper actuators, small linear actuators, smart appliances, or other compact mechanisms, our geared stepper motor solutions can be evaluated according to your actual mechanical and electrical requirements.
Please provide your required output torque, output speed, gear ratio, motor dimensions, shaft configuration, voltage, wiring, mounting requirements, and operating conditions. Our engineering team can work with your specifications to develop a geared stepper motor solution for your application.
Contact us for a custom geared stepper motor solution for compact actuator applications.
