SM15-80L
Vic-Tech
15mm Slider linear stepper motor
400mA
6-12V
15Ω±10%
18
2 phases
M3*P0.5
1 unit
15mm diameter
Rohs
Product Description

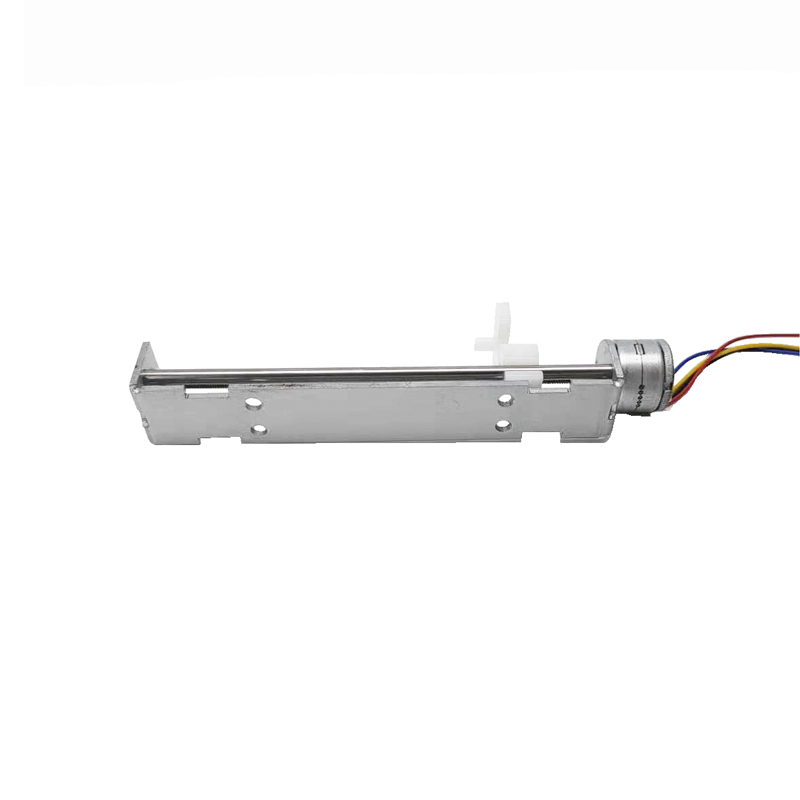

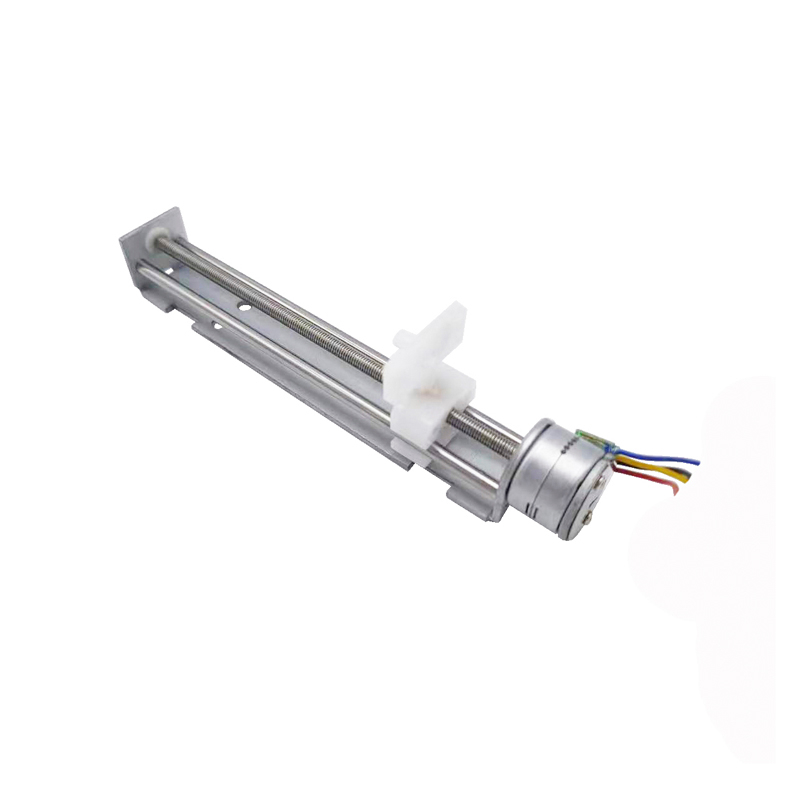

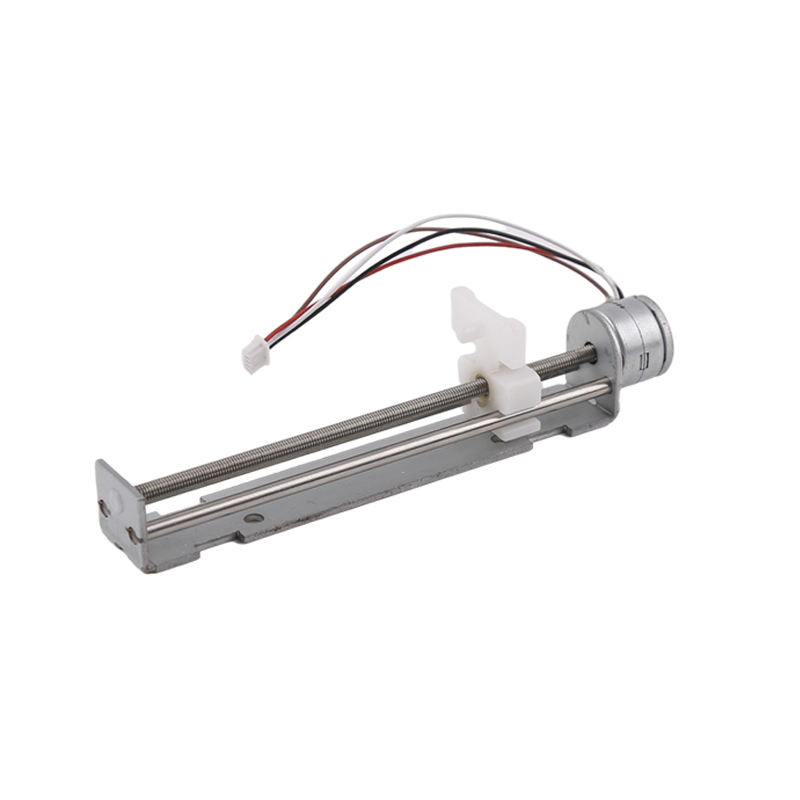

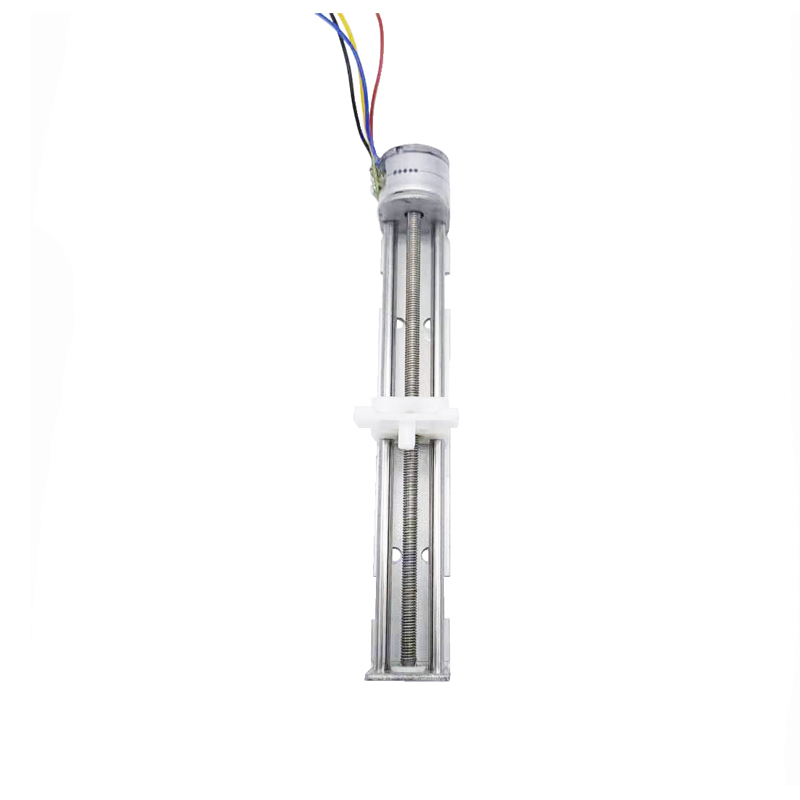

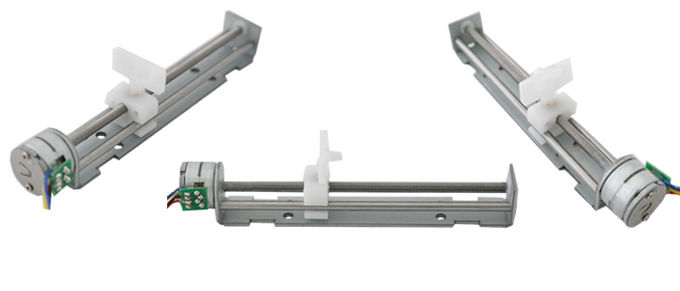

SM15-80L is a stepping motor with a diameter of 15mm. The screw pitch is M3P0.5mm, (Move 0.25mm in one step. If it needs to be smaller, subdivision drive can be used)， and the effective stroke of the screw is 80mm.

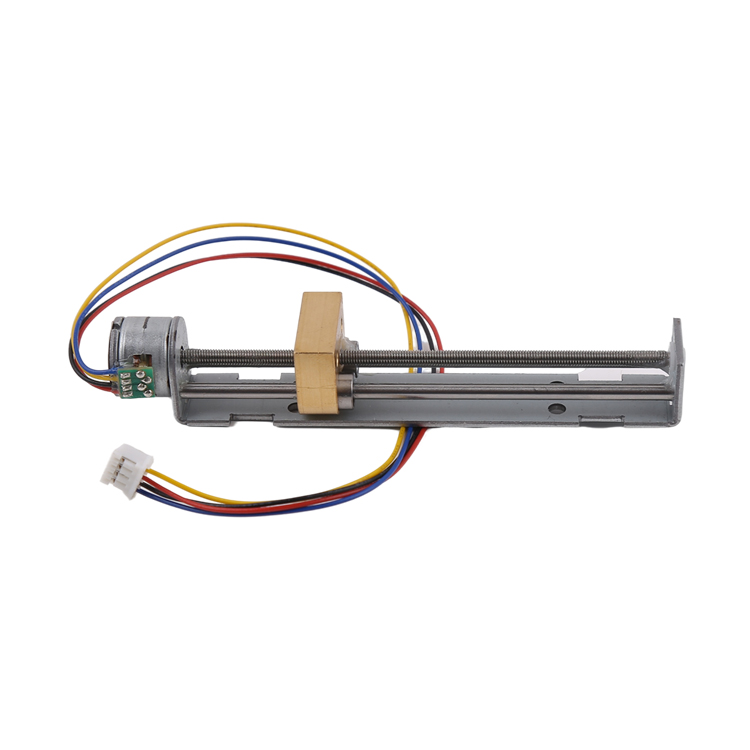

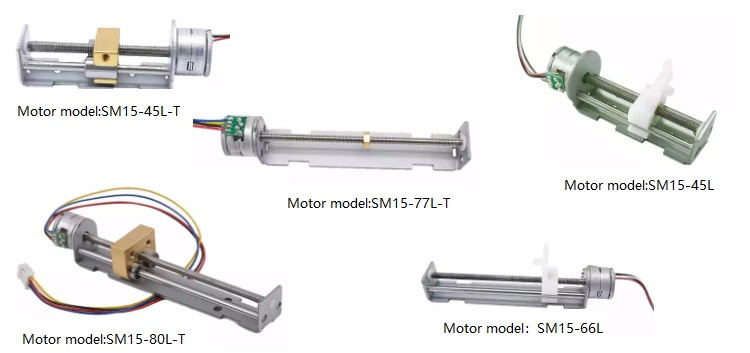

The motor has a white POM slider. As it is a mold production, it can save costs. It can also customize the slider made of brass according to customer needs.
However, the slider needs CNC processing, so the cost is relatively high. Considering the cost and the structure allows, it is recommended that the plastic slider be preferred for production.
The greatest advantage of the brass slider is that it is supported by two linear bearings, which provide strong support for the slider and ensure that the slider can move smoothly even under high load.
Therefore, the brass slider has better stability and higher price is fully justified.
For the screw rod stroke, considering your installation space, we can also customize the bracket with short stroke to save installation space.
Parameters
Product Name | 15 mm diameter stepper motor with lead screw and slider |
Model | VSM15-80L |
Max. Starting Frequency | More Than 1100 PPS min. |
Max. Response Frequency | More Than 1600 PPS min. |
Voltage | 12 V |
Pull Out Torque | 500 gf-cm min. (AT 129 PPS , 12V DC) |
Insulation Class | CLASS E FOR COILS |
Insulation Strength | 100 V AC FOR ONE SECOND |
Insulation Resistence | 50 MΩ (DC 100 V) |
Operating Temperature Range | -20 ~+50 ℃ |
Motor Surface Temperature | 80 ℃ |
OEM & ODM SERVICE | AVAILABLE |

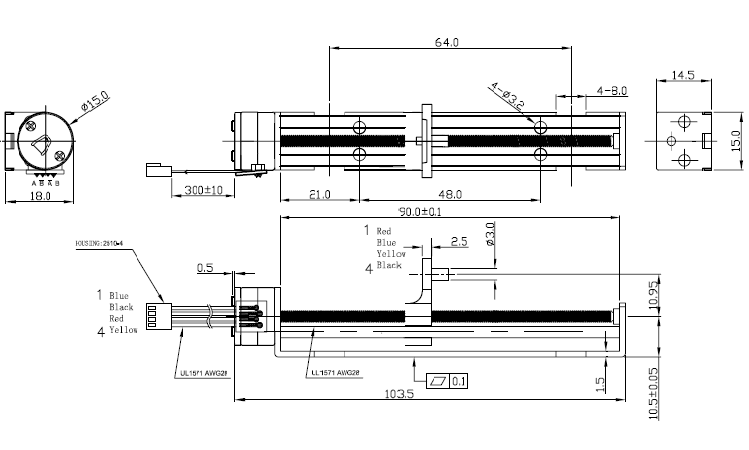

Design drawing
Customisable
Areas of application
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
On samples and air shipping , we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
Yes, we are a manufacture, and we produces mainly stepper motors.
Our factory is located in changzhou, jiangsu. Yes, you are very welcome to visit us.
No, we don’t provide free samples. Customers won’t treat free samples fairly.
Customers pay for shipping cost. We will quote you shipping cost.
If you think you have cheaper/more convenient shipping method, we can use you shipping account.
We don’t have MOQ, and you can order only one piece sample.
But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.
We have over 20 years of experience in stepper motor industry.
We have developed many projects, we can provide full set customization from design drawing to production.
We are confident we can give you few advice/suggestions for your stepper motor project.
If you are worrying about confidential issues, yes, we can sign a NDA contract.
Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.
We do not produce drivers, we only produce stepper motors
