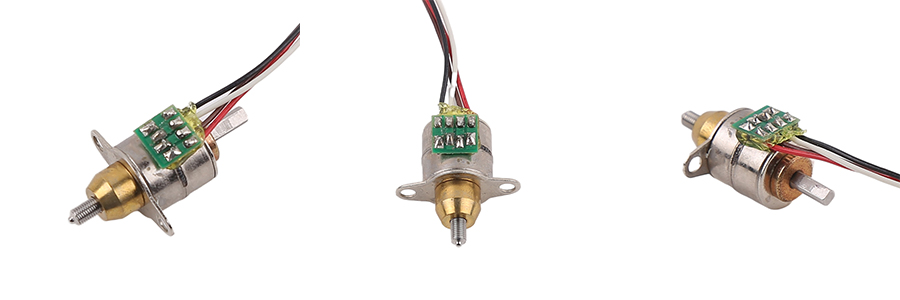

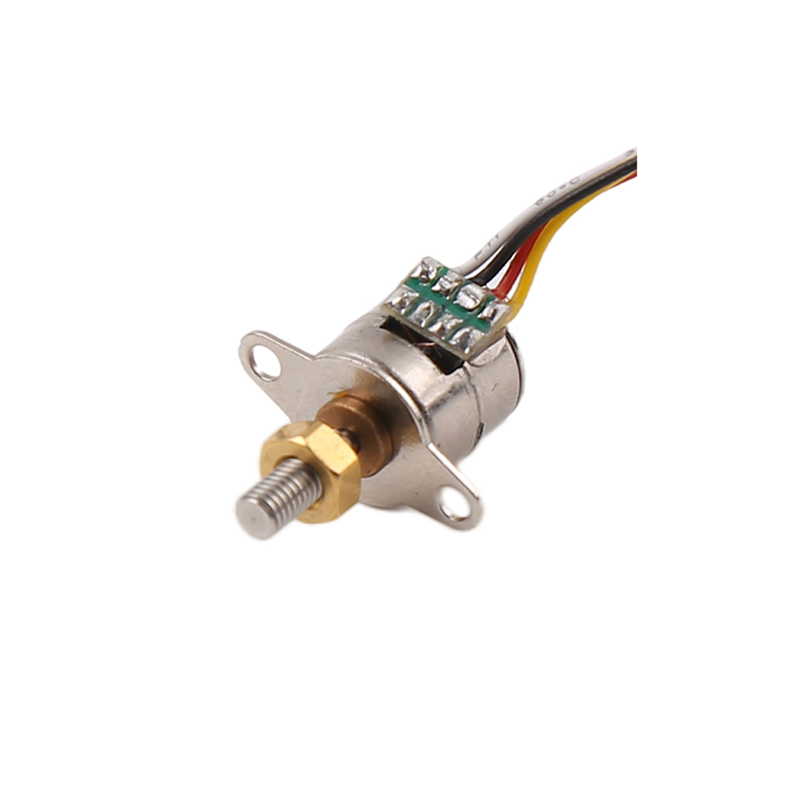

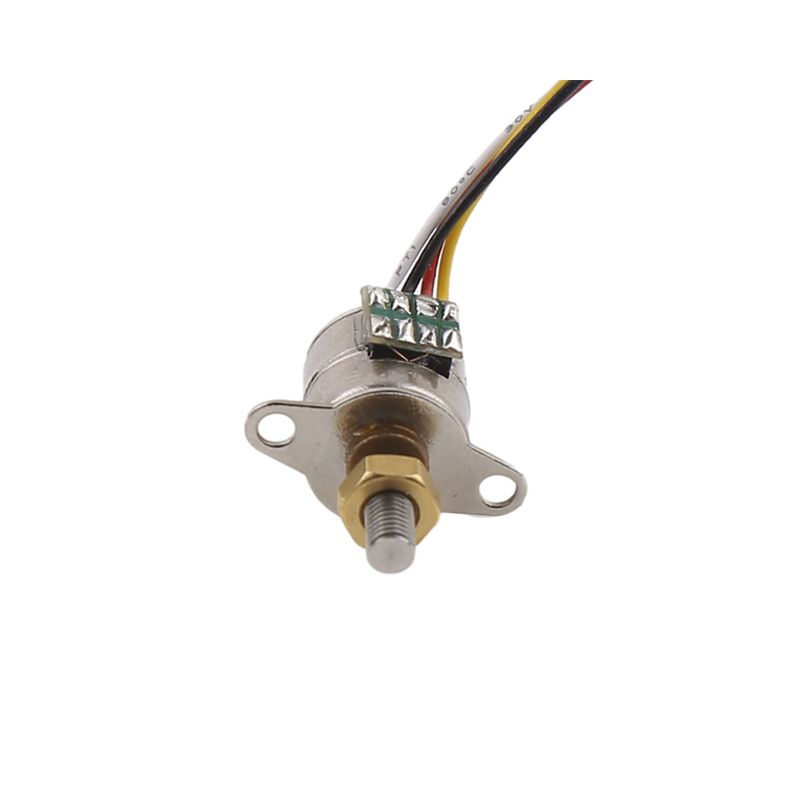

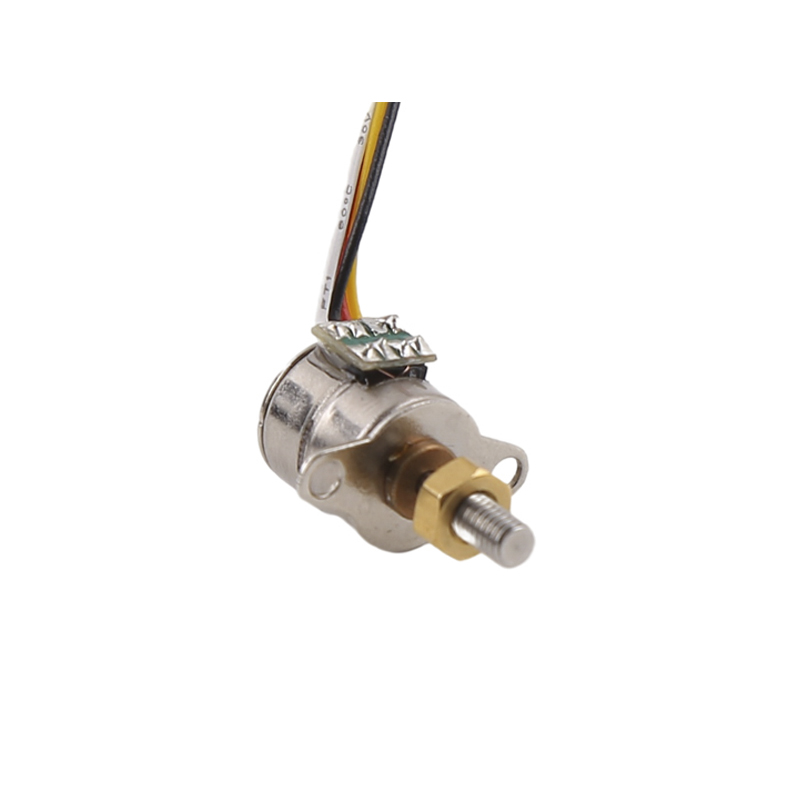

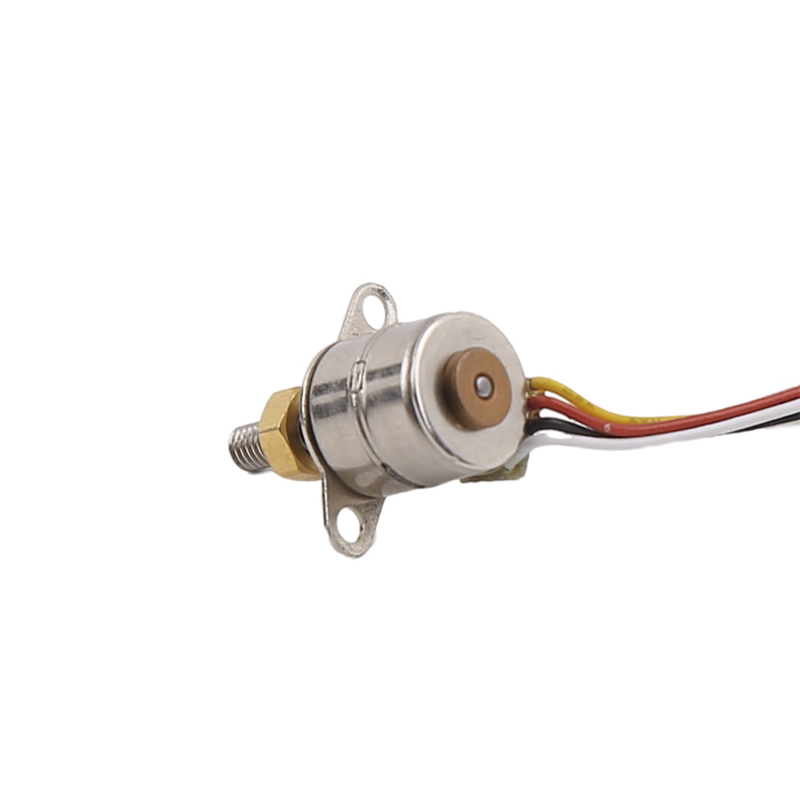

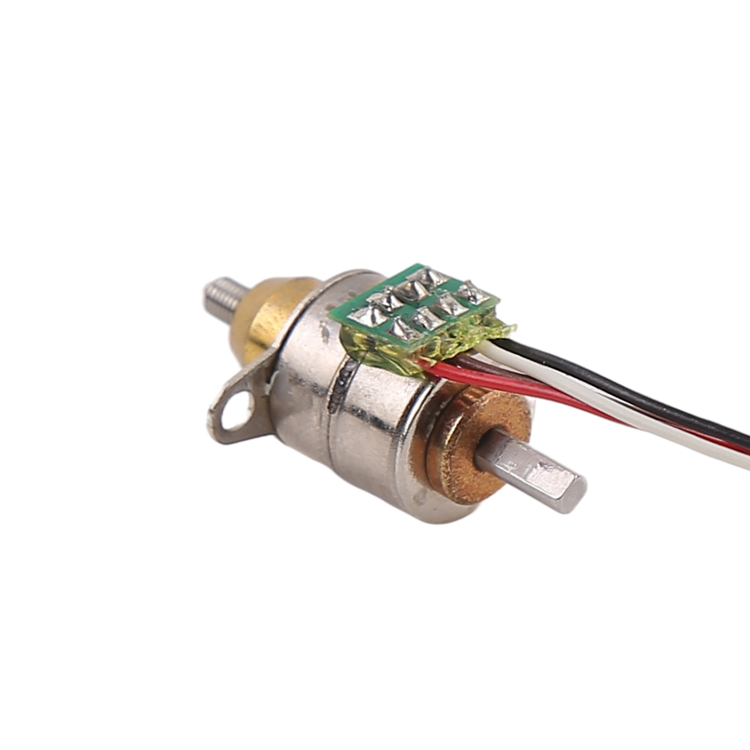

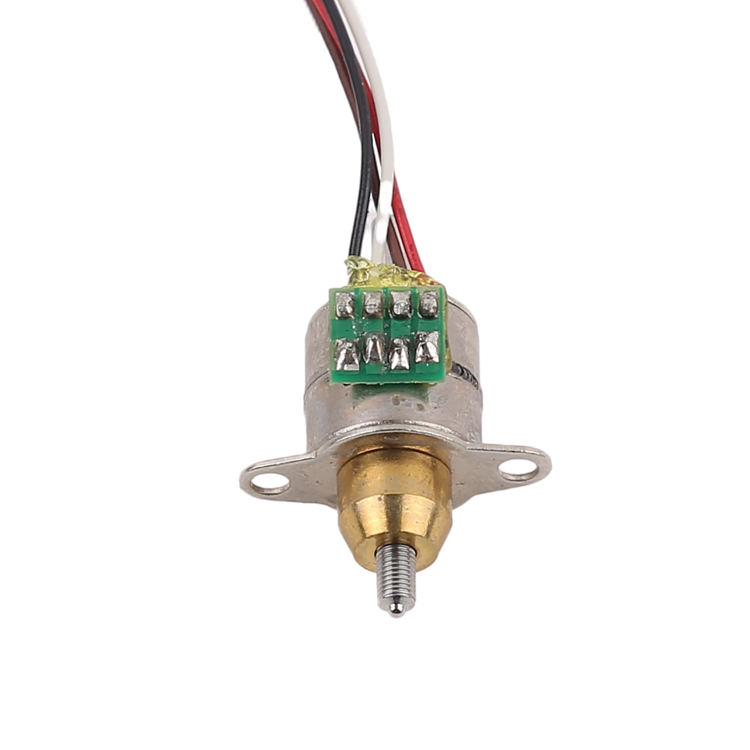

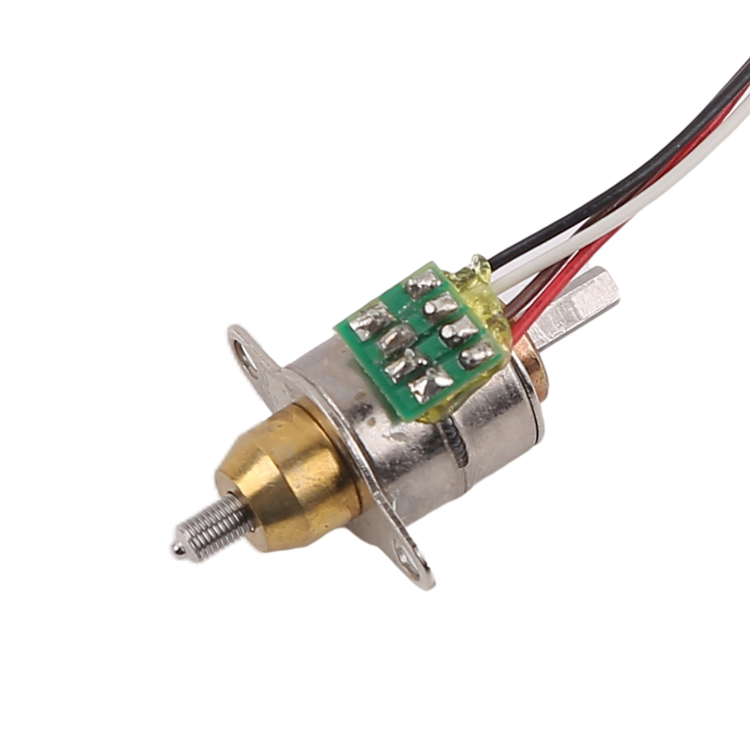

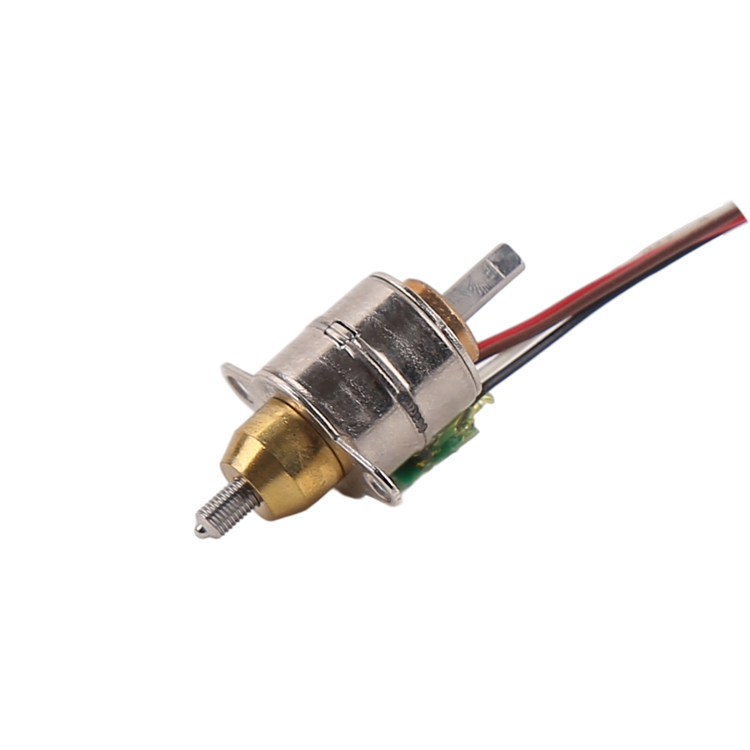

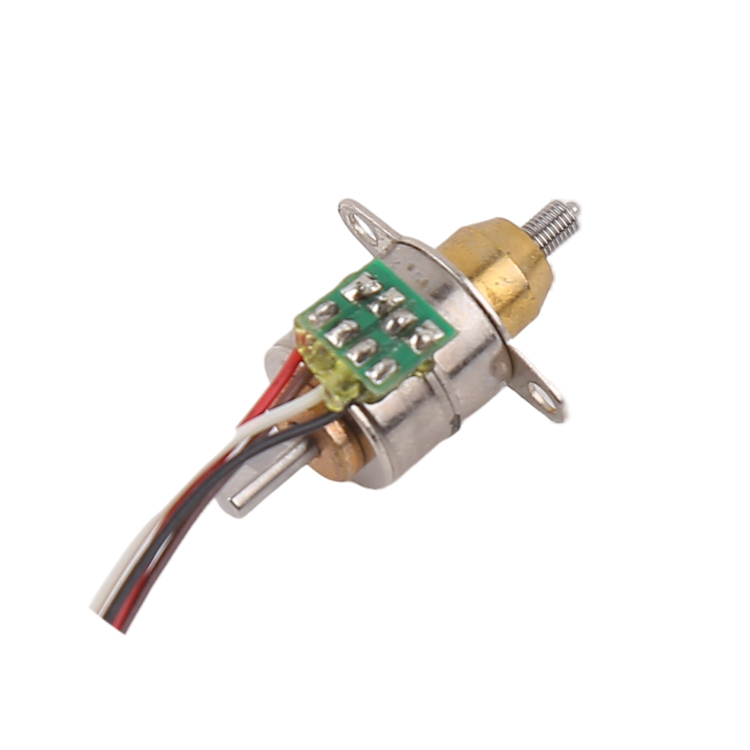

SM10 linear stepper motor
Vic-Tech

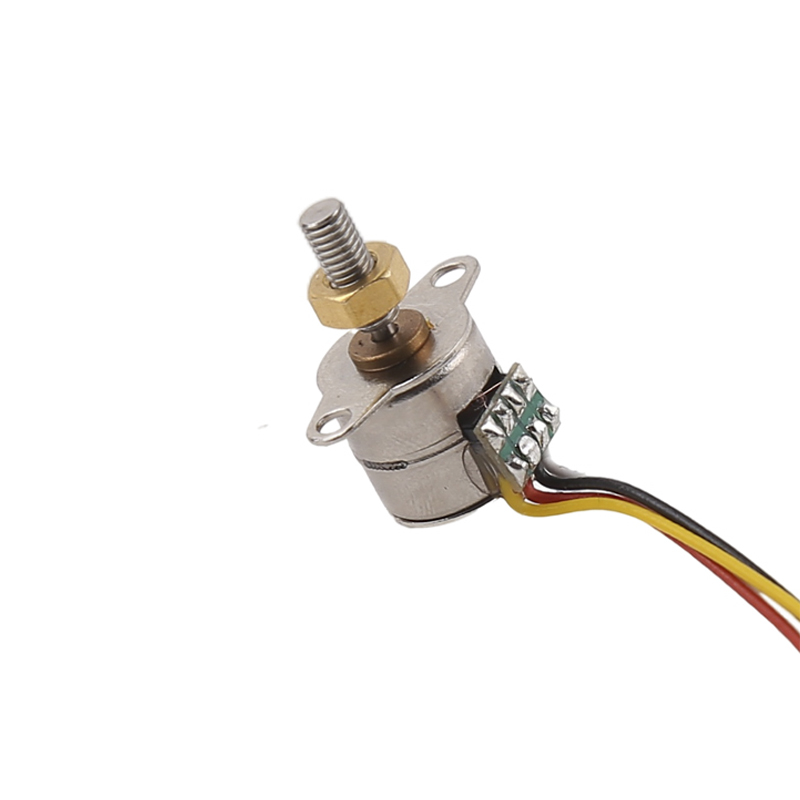

10mm linear stepper motor
5V DC
10Ω±7%/phase
AVAILABLE
18
2 phases
1 unit
Rohs
Product Description
The SM10 linear motor is a special linear motor from our company, a stepper motor with lead screw with anti-rotation bracket. A rotor with a nut, the lead screw advances or retreats as the rotor turns clockwise or counterclockwise.
It converts the rotation of the motor into a linear motion by the relative movement of the inner rotor and the screw.
The motor has a step angle of 18 degrees.
The lead spacing is 1mm.
The length of the connecting wire can be customised according to the customer's requirements.
Mainly used in valve control, automatic buttons, medical equipment, textile machinery, printers, robots and other related fields.
Operating temperature: -40°C - 60°C
Motor direction. CW & CCW
If you are interested in our products, please send me an email.
Parameters
| Model No. | SM10 linear stepper motor |
| Driving voltage | 5V DC |
| Coil resistance | 10Ω±7%/phase |
| No. of phase | 2 phases |
| Step angle | 18°/step |
| Excitation method | 2 phase excitation |
| Drive mode | Bipolar drive |
| Pull-out Thrust | More than 60gf at 500 PPS |
| Max response frequency | More than 1200 PPS |
| Max starting frequency | More than 1200 PPS |
| Insulation class | Class e for coils |
| Insulation strength | 100V ac for one second |
| Insulation resistance | 50mΩ DC 500V |
| Operating temperature range | -0~+55℃ |

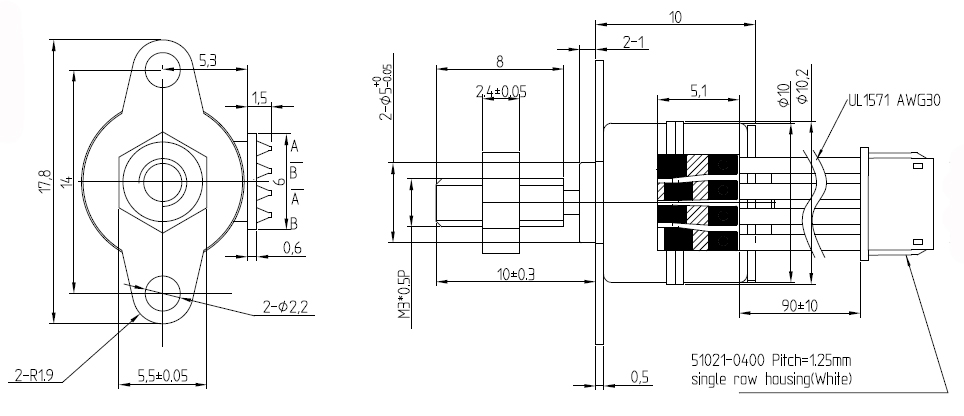

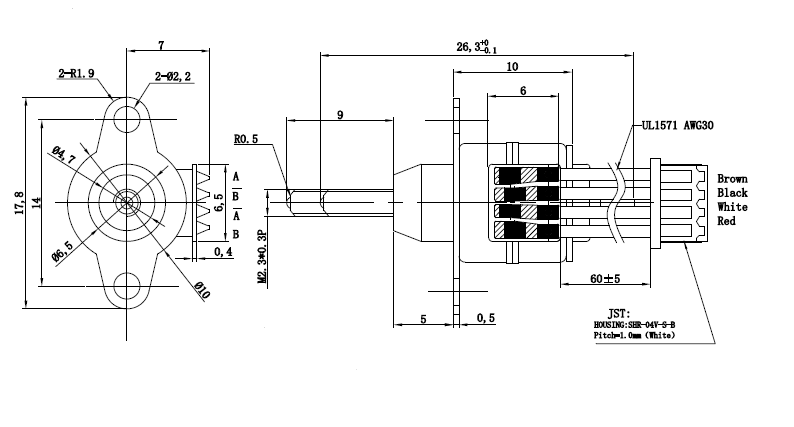

Design drawing
Customisable
Motor’s design can be adjusted based on customer’s requirement including:

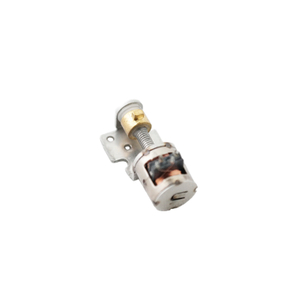

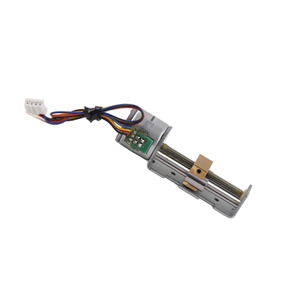

Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor.
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.

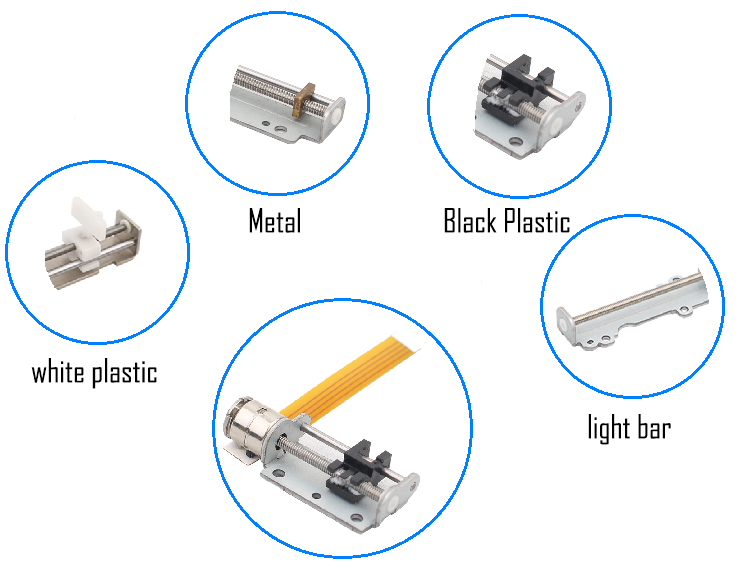

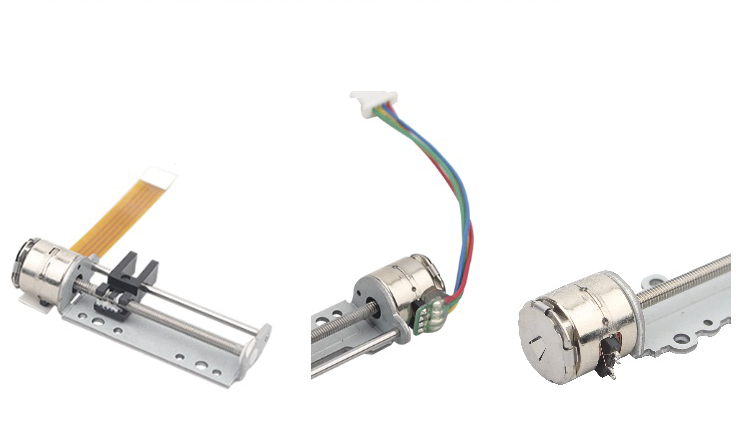

Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.

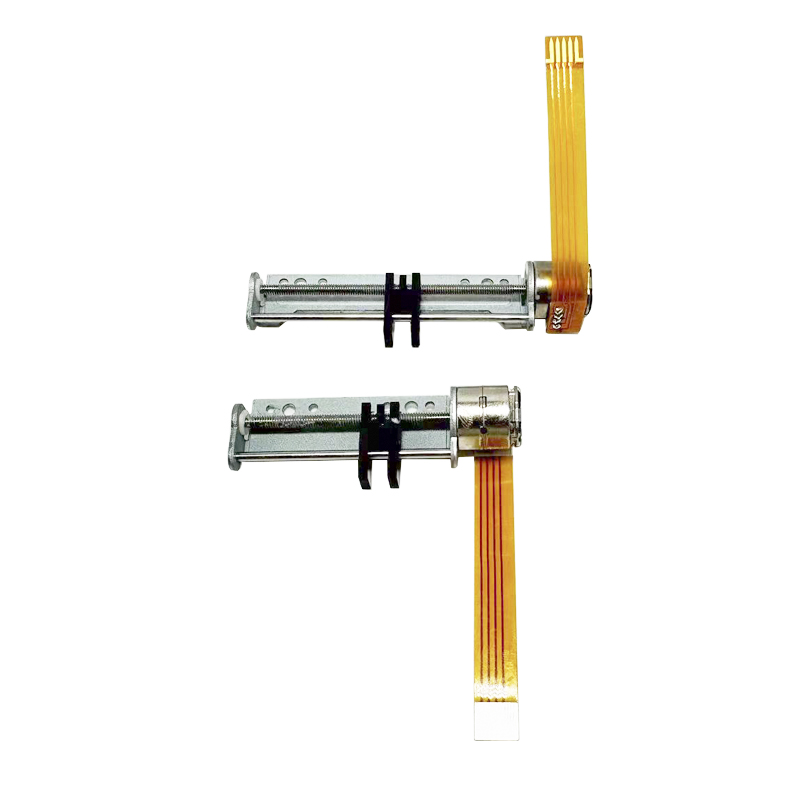

PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.

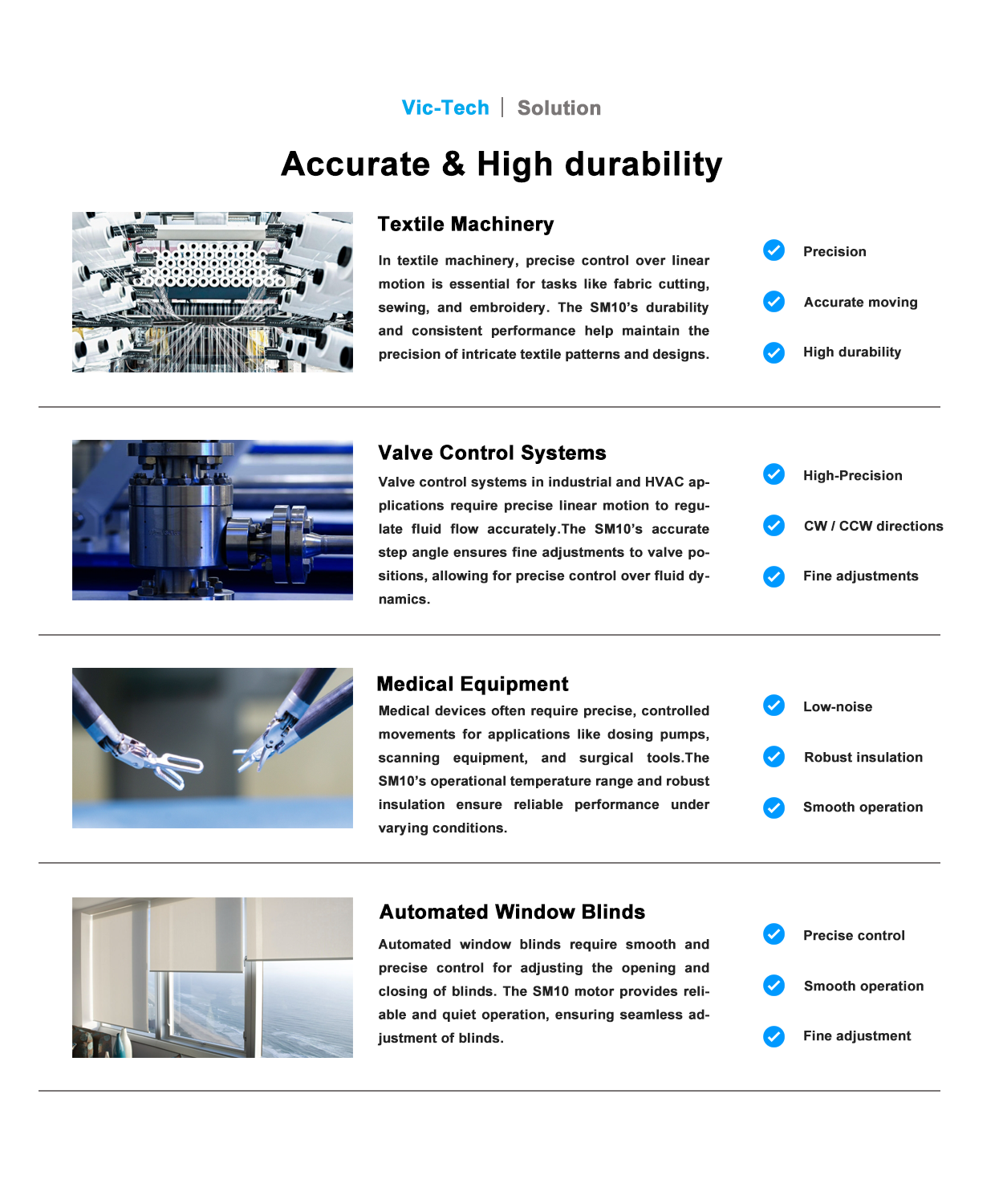

Areas of application
Motor’s speed is determined by driving frequency, and it has nothing to do with load (unless it’s losing steps).
Due to high precision speed control of stepper motors, with a driver controlled stepping you can achieve very precise positioning and speed control. For this reason, stepper motors are the motor of choice for many precision motion control applications.
For linear stepper motors, they are widely used in:Medical device、Camera equipment、Valve control system、Test instrument、3D printing 、CNC machine、and so on.
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
On samples and air shipping , we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
Yes, we are a manufacture, and we produces mainly stepper motors.
Our factory is located in changzhou, jiangsu. Yes, you are very welcome to visit us.
No, we don’t provide free samples. Customers won’t treat free samples fairly.
Customers pay for shipping cost. We will quote you shipping cost.
If you think you have cheaper/more convenient shipping method, we can use you shipping account.
We don’t have MOQ, and you can order only one piece sample.
But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.
We have over 20 years of experience in stepper motor industry.
We have developed many projects, we can provide full set customization from design drawing to production.
We are confident we can give you few advice/suggestions for your stepper motor project.
If you are worrying about confidential issues, yes, we can sign a NDA contract.
Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.
We do not produce drivers, we only produce stepper motors
