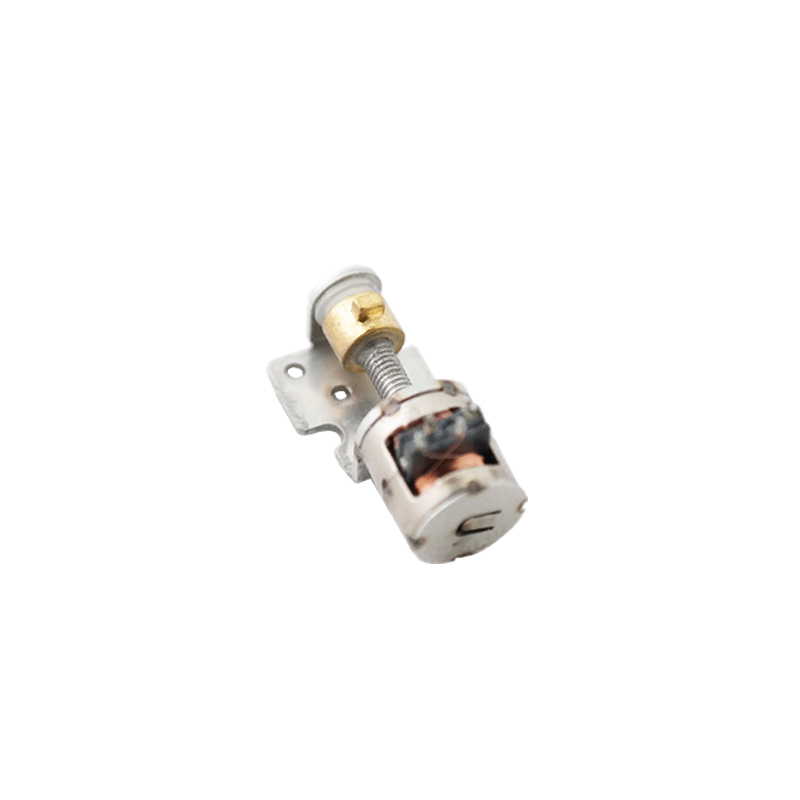

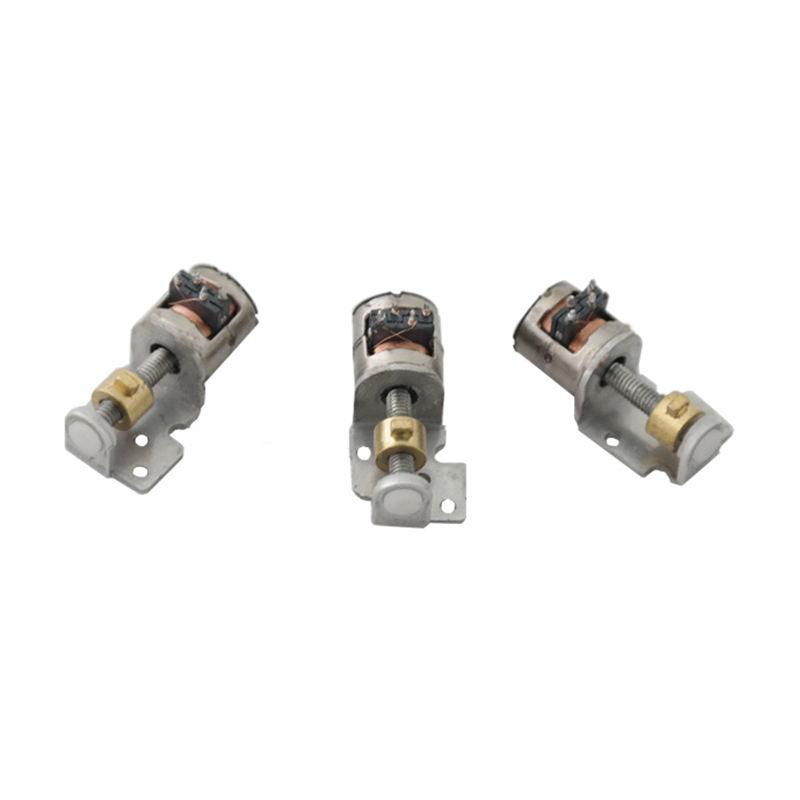

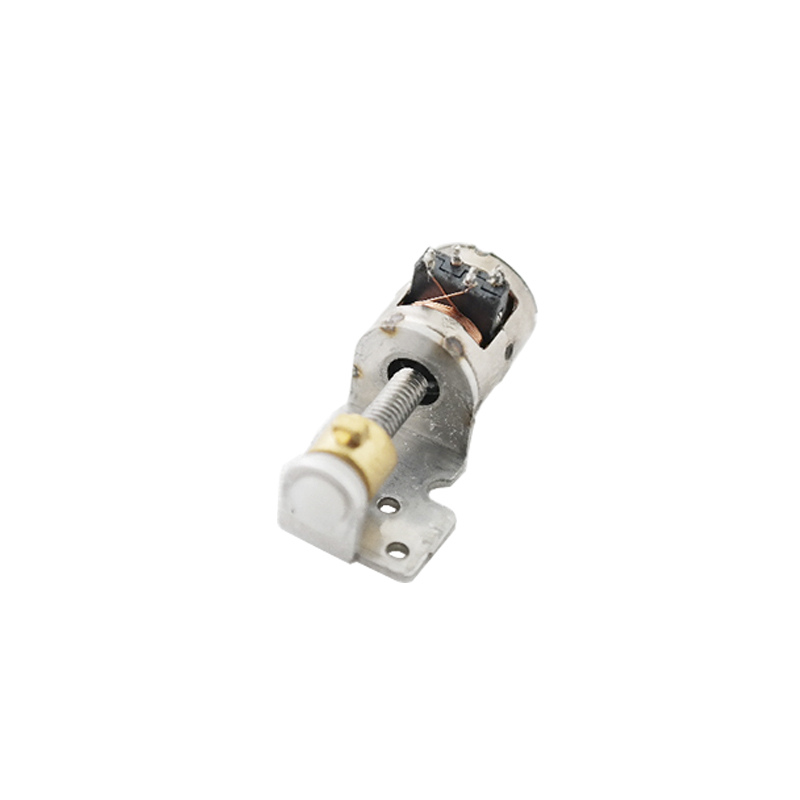

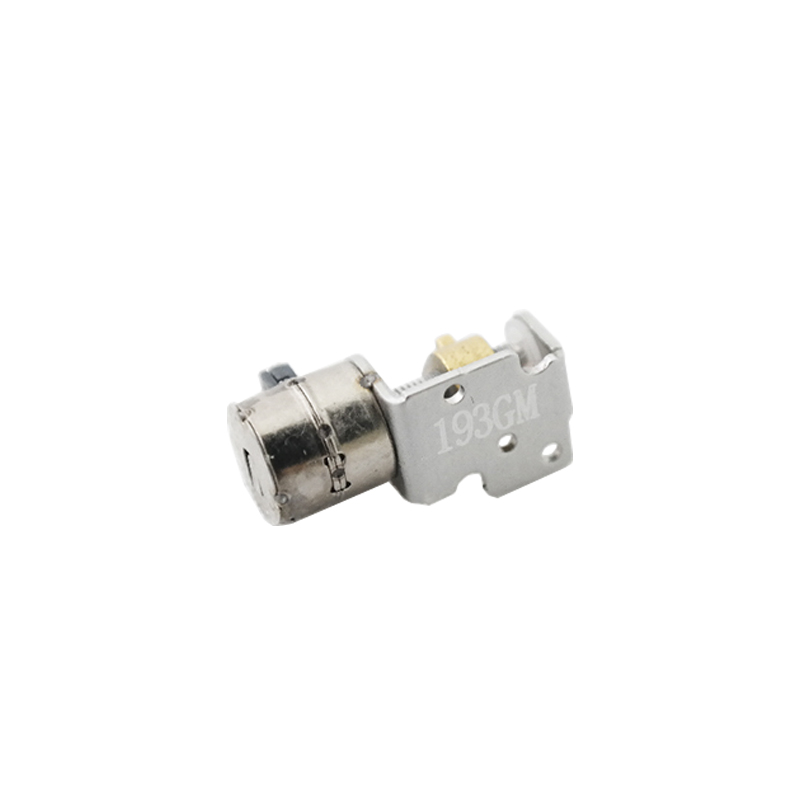

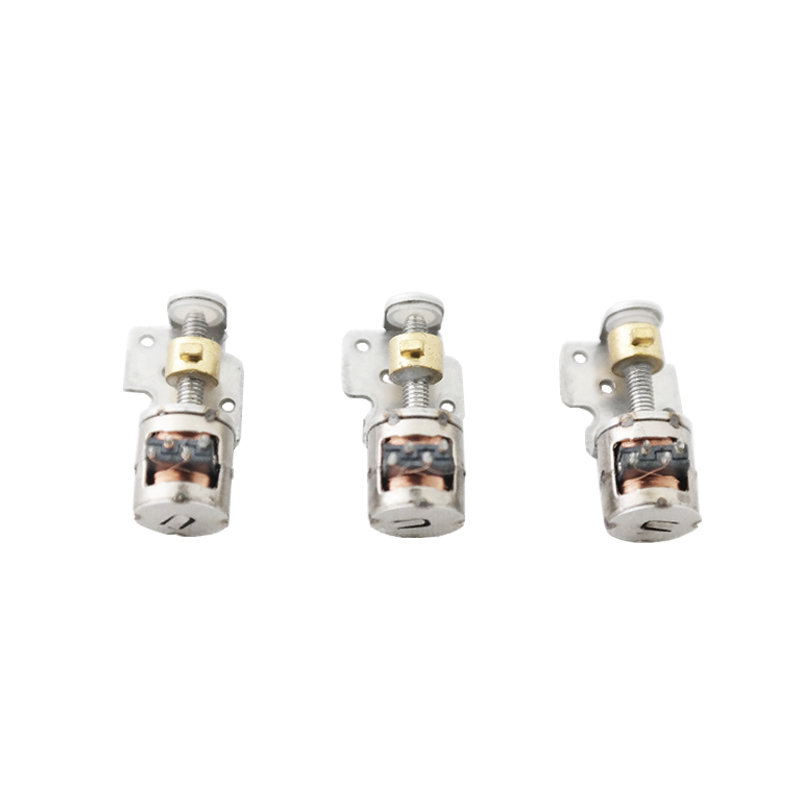

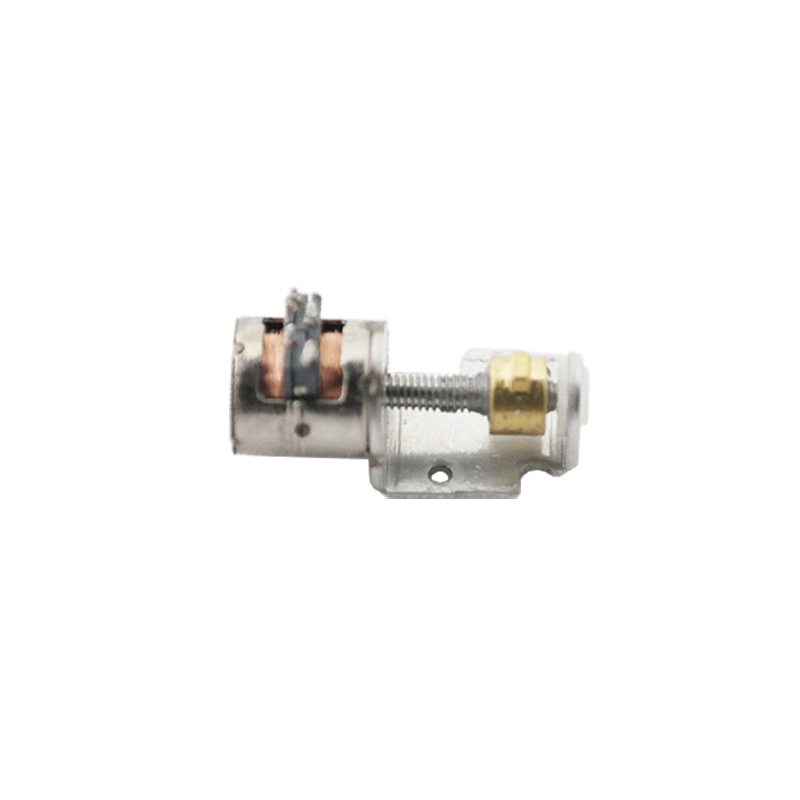

6mm micro Slider linear stepper motor screw motor with bracket stepper motor

Vic-Tech | 6mm Slider Linear Stepper Motor Description:

VSM0632 is a precision micro stepping motor. The screw pitch of the output shaft is M1.7P0.3mm, and the screw is rotated into thrust through the screw and screw support.

The basic step angle of the motor is 18degrees, and the motor runs 40 steps every week, so the displacement resolution can reach 0.015mm, achieving the goal of precision control.

Because of its small size, high precision, easy control and other excellent characteristics, it is applied to precision equipment.

The output of the motor is a bare needle. PCB, FPC, connecting wire and other output connection methods can be customized according to customer needs

Vic-Tech | 6mm Slider Linear Stepper Motor Parameters:

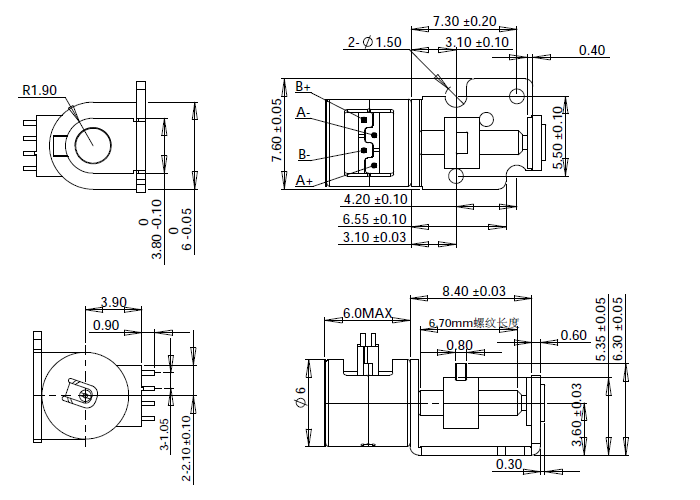

Vic-Tech | 6mm Slider linear stepper motor Design drawing:

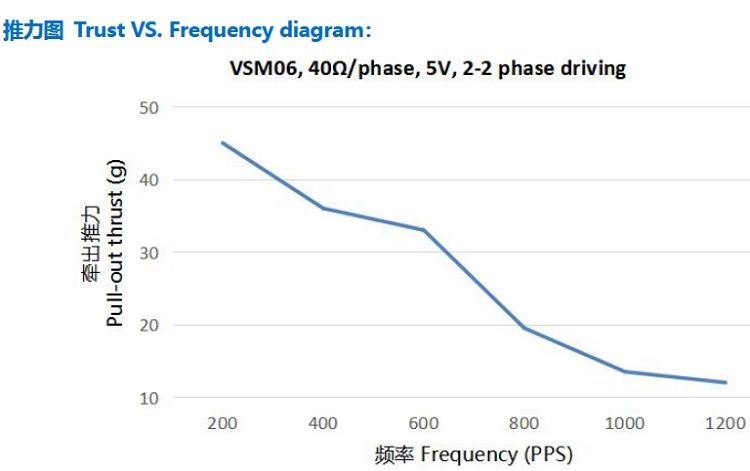

Trust VS. Frequency diagram:

Vic-Tech | 6mm Slider linear stepper motor Customisable:

Wiring method:The motor input methods are FPC, connecting wire and optical pin respectively, which can be customised according to customers' requirements.

Thread length：Can be customised on request

Screw and bracket：The length of the screws and brackets can be customised to suit the assembly and itineraryavel requirements, and the structure of the brackets can be tailored to specific needs.

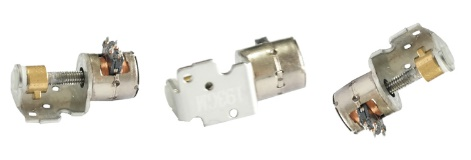

Linear stepper motor of slider: Plastic slider special claw design, also can be customised metal slider

Vic-Tech | 6mm Slider linear stepper motor Application:

Lead time and packaging information:

Lead time for samples:

Standard motors in stock: within 3 days

Standard motors not in stock: within 15 days

Customized products: About 25~30 days (based on complexity of customization)

Lead time for building a new mold: generally about 45 days

Lead time for mass production: based on order quantity

Packaging:

Samples are packed in foam sponge with a paper box, shipped by express

Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)

If shipped by sea, product will be packed on pallets

Shipping method:

On samples and air shipping , we use Fedex/TNT/UPS/DHL. (5~12 days for express service)

For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
