25mm external drive linear stepper motor 5VDC step angle 15 ° with POM nut screw motor

Vic-Tech | 25mm Linear Stepper Motor Description:

VSM25L-24S-6096-31-01 is an externally driven stepping motor with guide screw. When the rotor operates clockwise or counterclockwise, the lead screw will rotate in the mechanism, and the screw rod will not move up and down.

The stepping angle of the stepping motor is 15 degrees, and the lead spacing is 0.6096mm. When the stepping motor rotates for one step, the lead moves 0.0254mm. Motor screws can be customized as matching nuts.Conventional nuts are made of POM and copper nuts.

This product is a patented product of the company. It converts the rotation of the motor into linear motion through the relative motion of the inner rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields.

At the same time, the external wiring part can use connecting wires, outlet boxes, etc. according to customer requirements.

Our team has more than 10 years of experience in stepping motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!

Customers' needs are our efforts, please feel free to contact us！

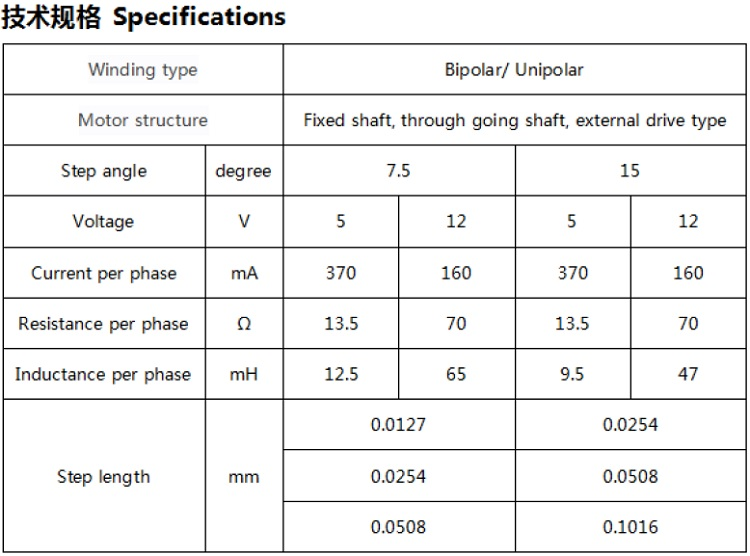

Vic-Tech | 25mm Linear Stepper Motor Parameters:

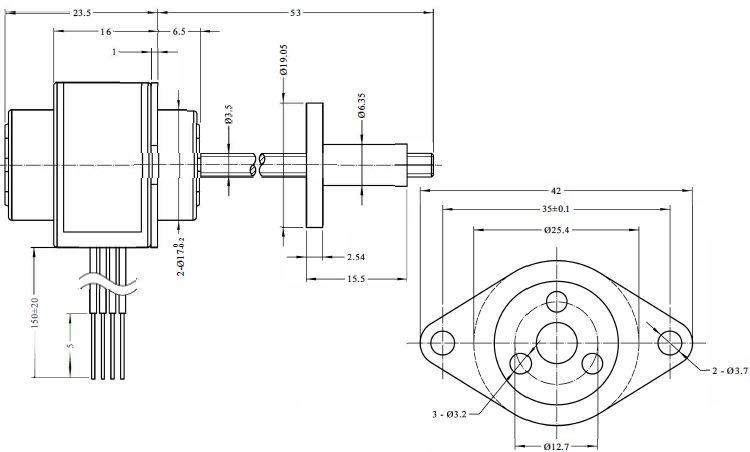

Vic-Tech | 25mm linear stepper motor Design drawing:

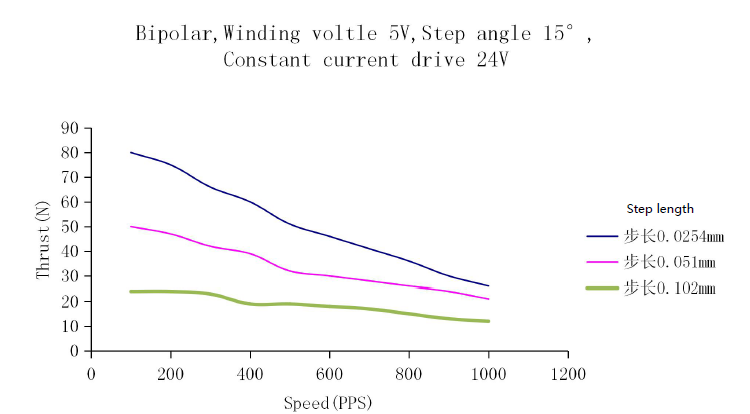

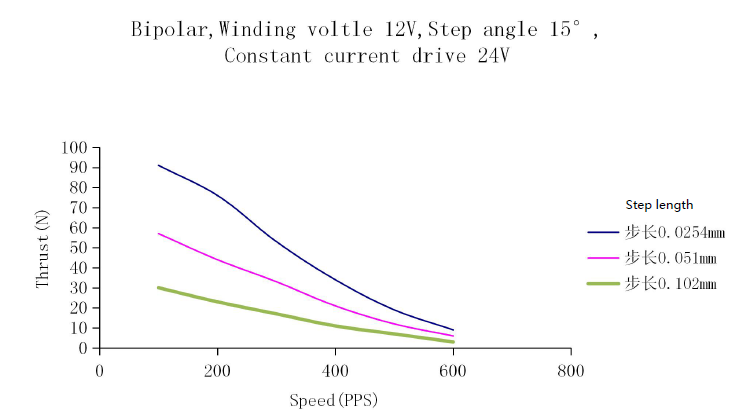

Step speed and thrust curve:

Vic-Tech | 25mm linear stepper motor Customisable:

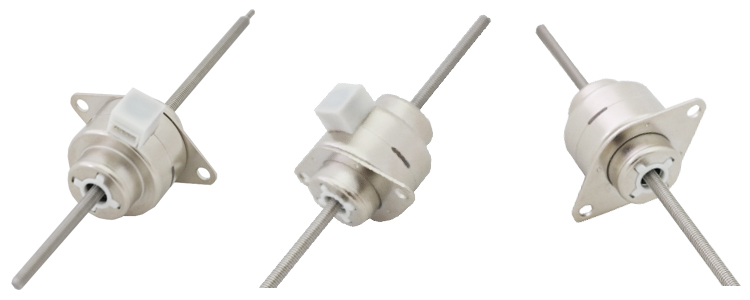

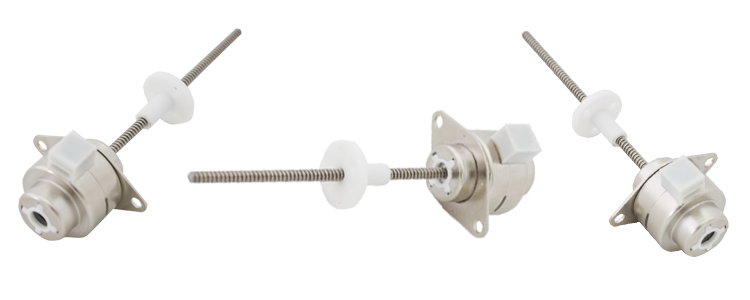

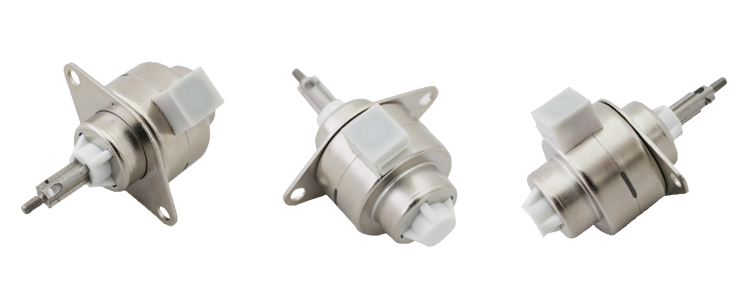

Motor type reference:

CAPTIVE

Non Captive

External

Customization service:

Motor’s design can be adjusted based on customer’s requirement including:

Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor.

Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.

Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.

PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.

Thread length：Can be customised on request

Screw and bracket：The length of the screws and brackets can be customised to suit the assembly and itineraryavel requirements, and the structure of the brackets can be tailored to specific needs.

Linear stepper motor of slider: Plastic slider special claw design, also can be customised metal slider

Vic-Tech | 25mm linear stepper motor Application:

Application:

Motor’s speed is determined by driving frequency, and it has nothing to do with load (unless it’s losing steps).

Due to high precision speed control of stepper motors, with a driver controlled stepping you can achieve very precise positioning and speed control. For this reason, stepper motors are the motor of choice for many precision motion control applications.

For linear stepper motors, they are widely used in:Medical device、Camera equipment、Valve control system、Test instrument、3D printing 、CNC machine、and so on.

Lead time and packaging information:

Lead time for samples:

Standard motors in stock: within 3 days

Standard motors not in stock: within 15 days

Customized products: About 25~30 days (based on complexity of customization)

Lead time for building a new mold: generally about 45 days

Lead time for mass production: based on order quantity

Packaging:

Samples are packed in foam sponge with a paper box, shipped by express

Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)

If shipped by sea, product will be packed on pallets

Shipping method:

On samples and air shipping , we use Fedex/TNT/UPS/DHL. (5~12 days for express service)

For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)

FAQ:

1. Are you a manufacturer?

Yes, we are a manufacture, and we produces mainly stepper motors.

2. Where is your factory location? Can we visit your factory?

Our factory is located in changzhou, jiangsu. Yes, you are very welcome to visit us.

3. Can you provide free samples?

No, we don’t provide free samples. Customers won’t treat free samples fairly.

4. Who pays for shipping cost? Can I use my shipping account?

Customers pay for shipping cost. We will quote you shipping cost.

If you think you have cheaper/more convenient shipping method, we can use you shipping account.

5. What’s you MOQ? Can I order one motor?

We don’t have MOQ, and you can order only one piece sample.

But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.

6. We are developing a new project, do you provide customization service? Can we sign a NDA contract?

We have over 20 years of experience in stepper motor industry.

We have developed many projects,  we can provide full set customization from design drawing to production.

We are confident we can give you few advice/suggestions for your stepper motor project.

If you are worrying about confidential issues, yes, we can sign a NDA contract.

7. Do you sell drivers? Do you produce them?

Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.

We do not produce drivers, we only produce stepper motors
