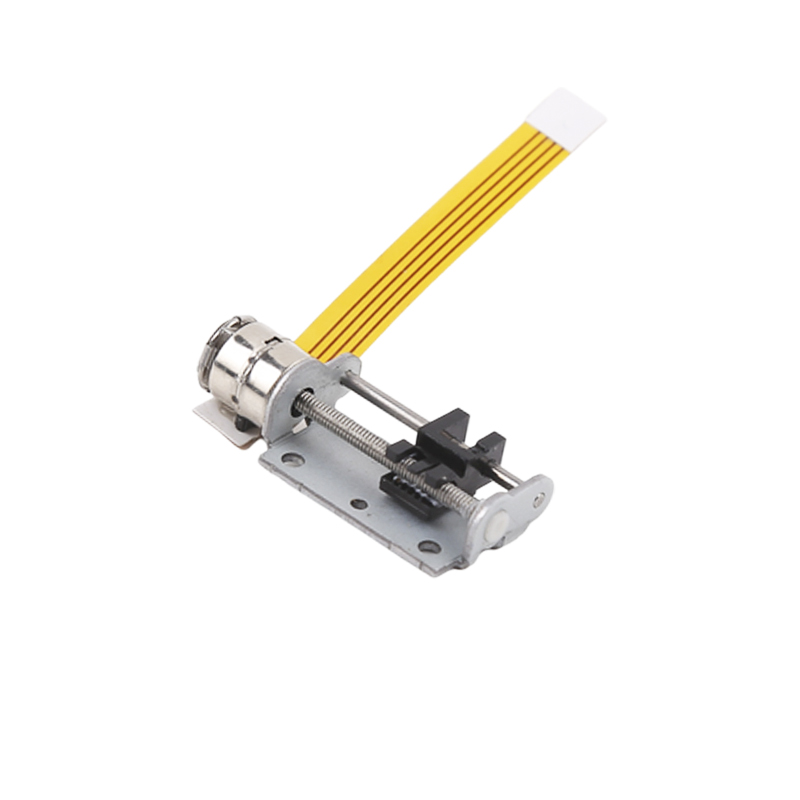

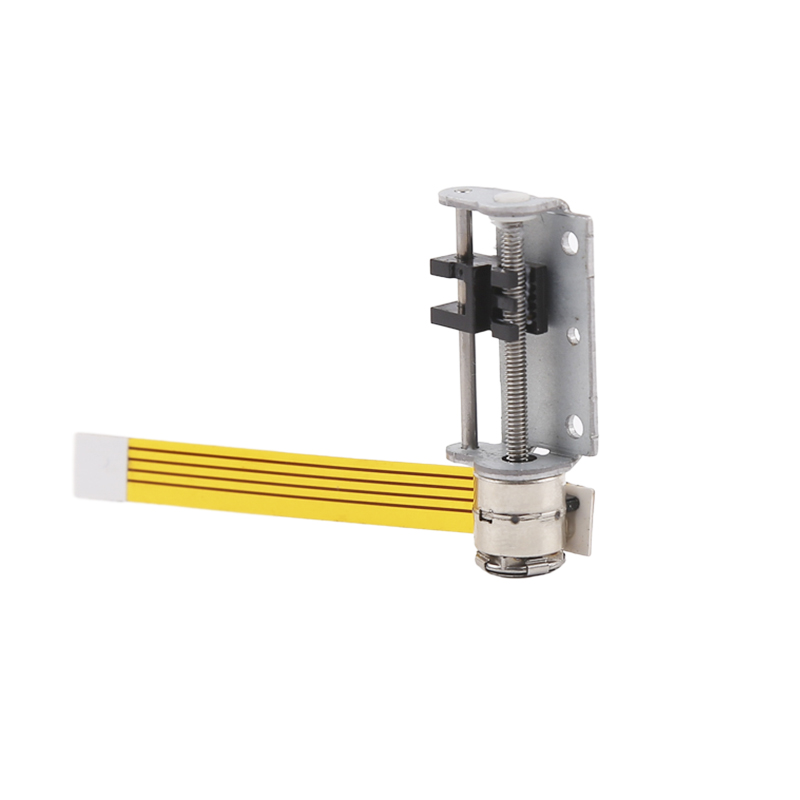

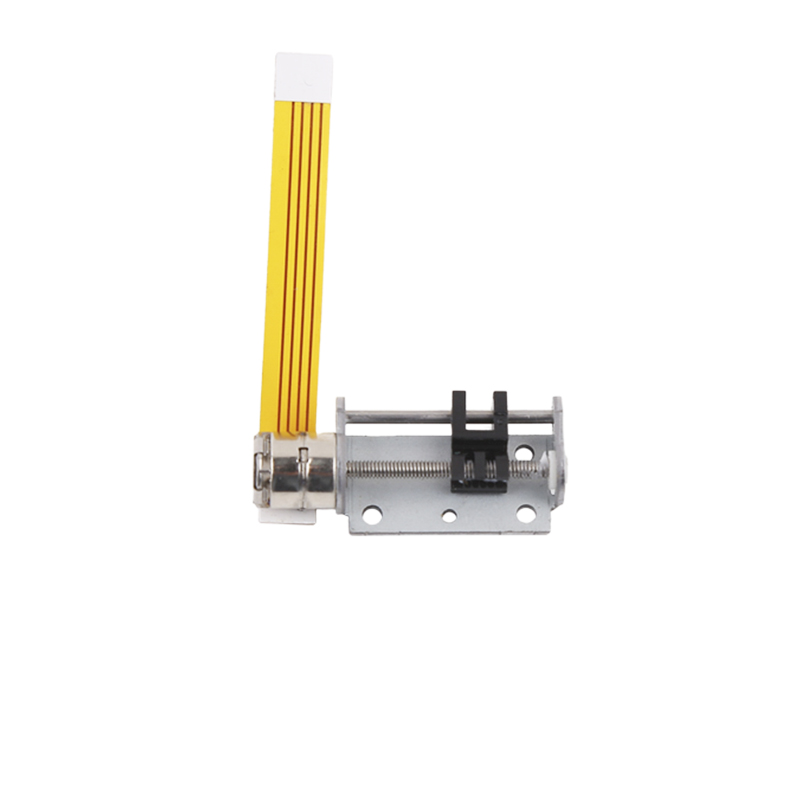

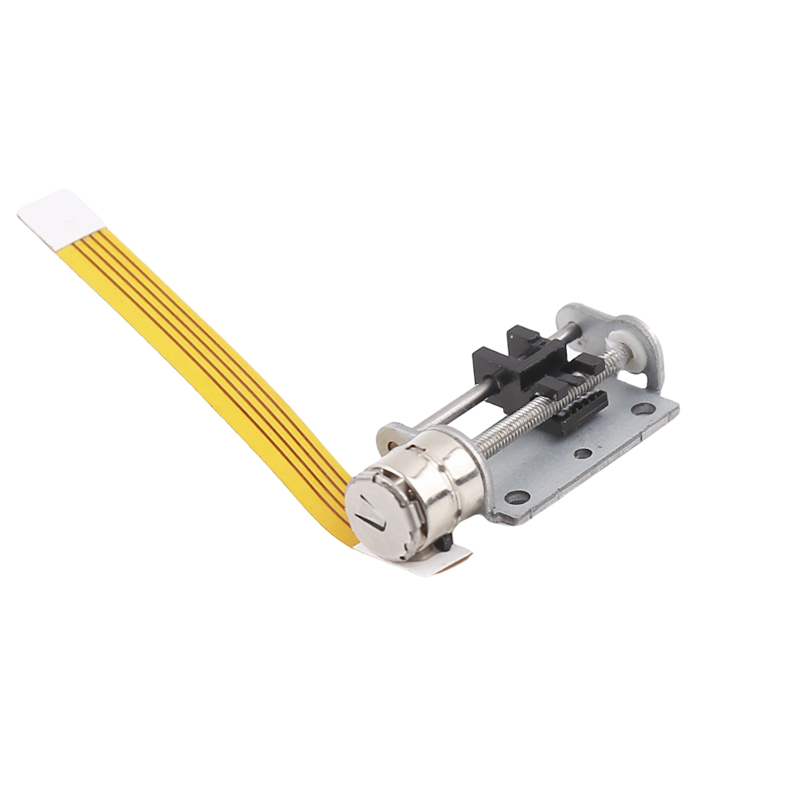

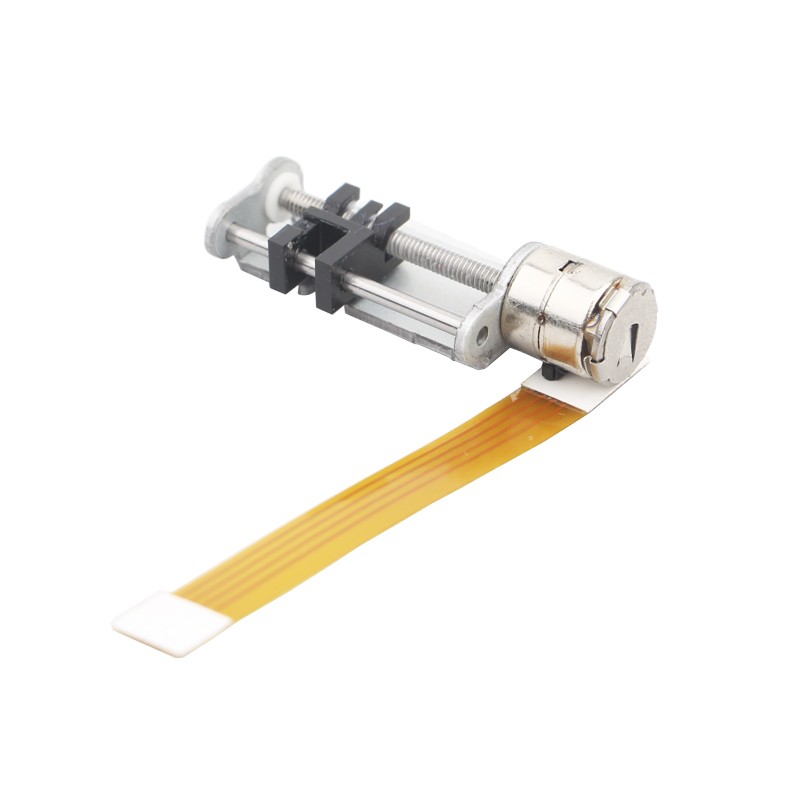

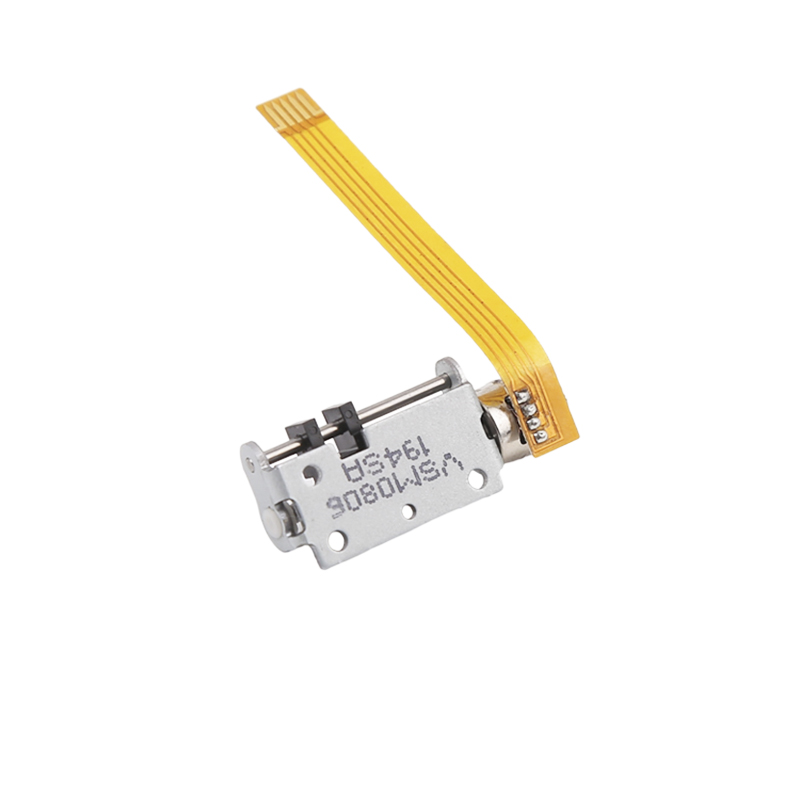

8mm 3.3VDC Mini Slider Linear Stepper Motor of Camera Lens Motor

8mm Slider Linear Stepper Motor Description:

VSM0806 is a linear micro stepping motor. The screw rod is M2P0.4mm, and the screw pitch of the output shaft is 0.4mm. The screw is rotated into thrust through the screw rod and the screw rod.

The basic step angle of the motor is 18 degrees, and the motor runs 20 steps every week, so the displacement resolution can reach 0.02mm, achieving the goal of precision control.

The actuator is driven by subdivision.

Because of its small size, high precision, easy control and other excellent characteristics, this micro stepping motor is widely used in cameras, optical instruments, lenses, precision medical devices, automatic door locks and other fields.

The motor input part of FPC can be changed to the form of connecting wire pin, PCB, etc. According to customer requirements.

The mounting bracket can be replaced according to customer requirements.

8mm Slider Linear Stepper Motor Parameters:

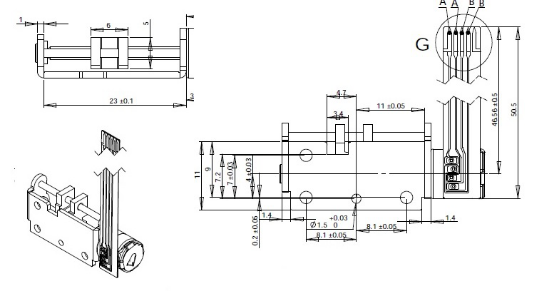

8mm Slider linear stepper motor Design drawing:

8mm Slider linear stepper motor VSM0806 thrust curve.pdf

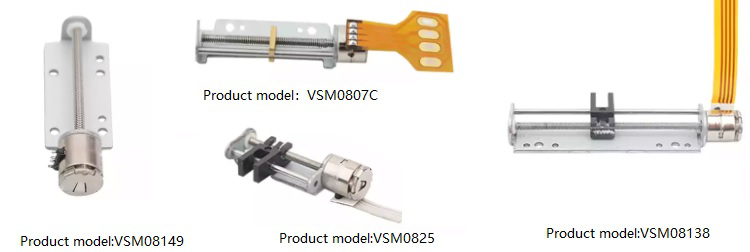

Regular itinerary options:

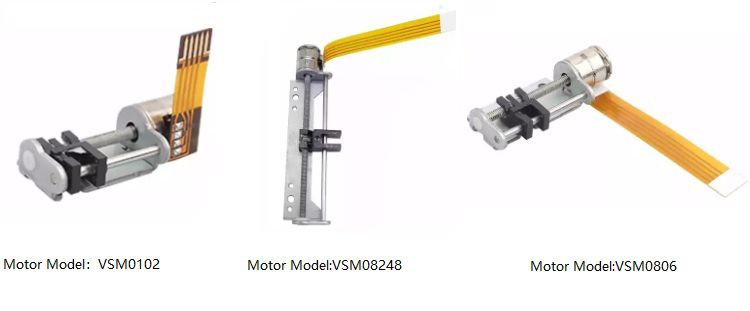

8mm Slider linear stepper motor Customisable:

Wiring method:The motor input methods are FPC, connecting wire and optical pin respectively, which can be customised according to customers' requirements.

Thread length：Can be customised on request

Screw and bracket：The length of the screws and brackets can be customised to suit the assembly and itineraryavel requirements, and the structure of the brackets can be tailored to specific needs.

Linear stepper motor of slider: Plastic slider special claw design, also can be customised metal slider

8mm Slider linear stepper motor Application:

Lead time and packaging information:

Lead time for samples:

Standard motors in stock: within 3 days

Standard motors not in stock: within 15 days

Customized products: About 25~30 days (based on complexity of customization)

Lead time for building a new mold: generally about 45 days

Lead time for mass production: based on order quantity

Packaging:

Samples are packed in foam sponge with a paper box, shipped by express

Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)

If shipped by sea, product will be packed on pallets

Shipping method:

On samples and air shipping , we use Fedex/TNT/UPS/DHL. (5~12 days for express service)

For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)

FAQ:

1. Are you a manufacturer?

Yes, we are a manufacture, and we produces mainly stepper motors.

2. Where is your factory location? Can we visit your factory?

Our factory is located in changzhou, jiangsu. Yes, you are very welcome to visit us.

3. Can you provide free samples?

No, we don’t provide free samples. Customers won’t treat free samples fairly.

4. Who pays for shipping cost? Can I use my shipping account?

Customers pay for shipping cost. We will quote you shipping cost.

If you think you have cheaper/more convenient shipping method, we can use you shipping account.

5. What’s you MOQ? Can I order one motor?

We don’t have MOQ, and you can order only one piece sample.

But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.

6. We are developing a new project, do you provide customization service? Can we sign a NDA contract?

We have over 20 years of experience in stepper motor industry.

We have developed many projects,  we can provide full set customization from design drawing to production.

We are confident we can give you few advice/suggestions for your stepper motor project.

If you are worrying about confidential issues, yes, we can sign a NDA contract.

7. Do you sell drivers? Do you produce them?

Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.

We do not produce drivers, we only produce stepper motors
