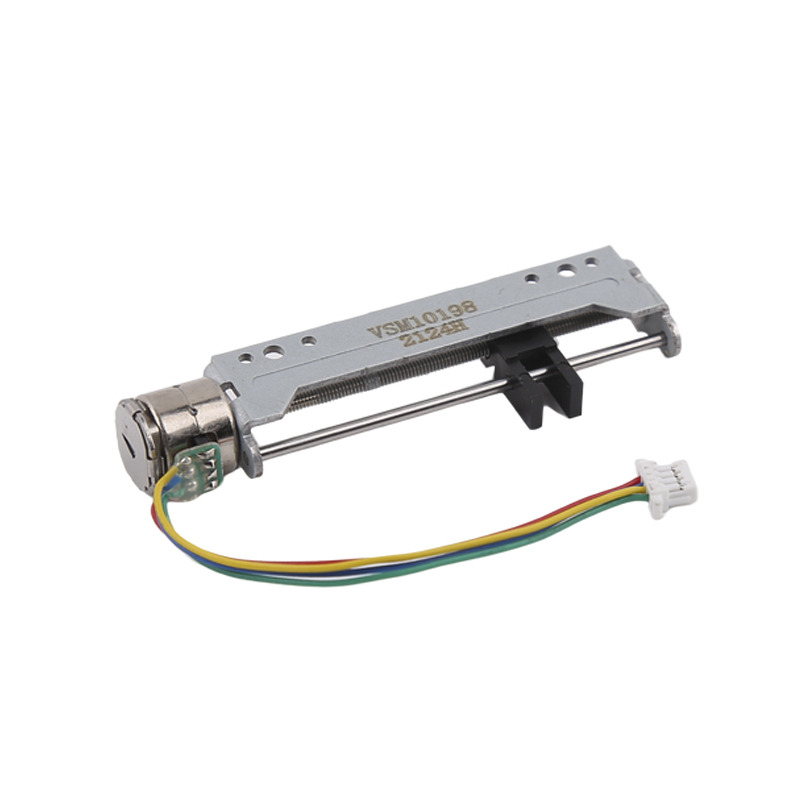

VSM10198
Vic-Tech
10mm Slider linear stepper motor
0.3A
3.3V
10Ω±10%
18
1 unit
Rohs
Product Description

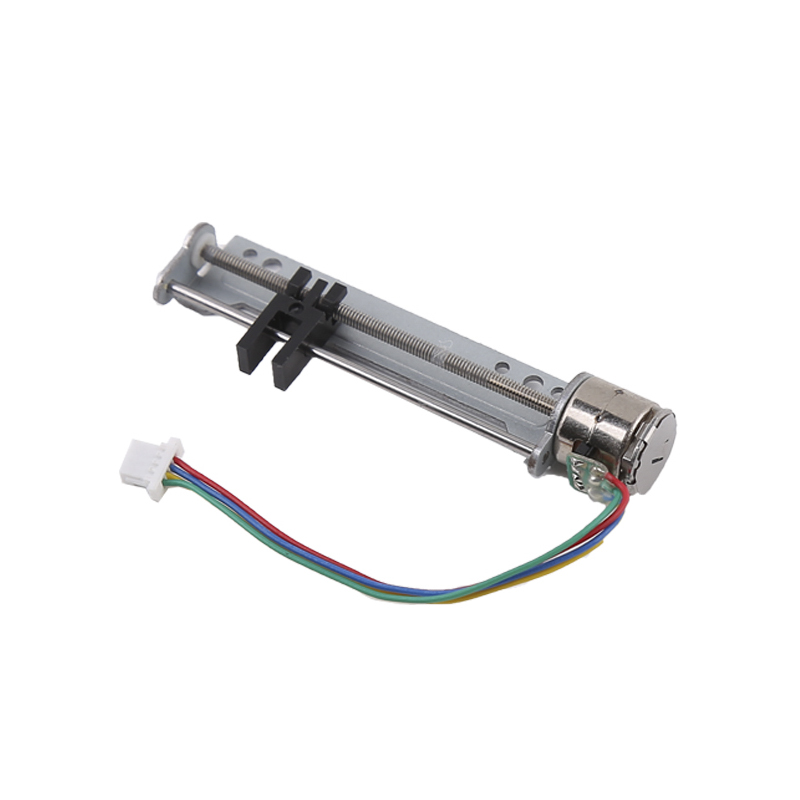

VSM10198 micro stepping motor is widely used in cameras, optical instruments, lenses, precision medical devices, automatic door locks and other fields due to its small size, high accuracy, easy control and other excellent characteristics.

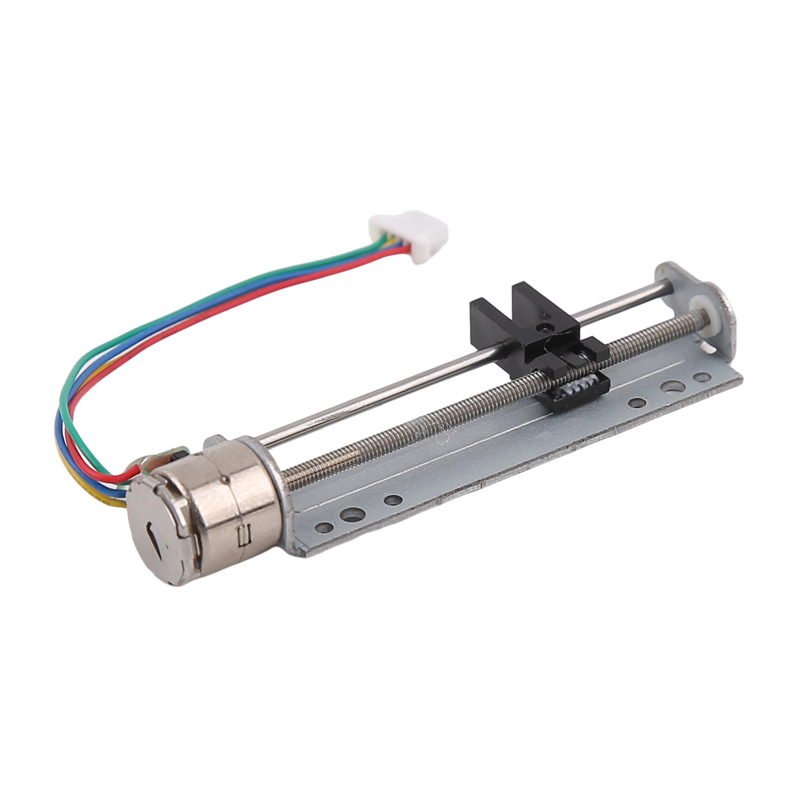

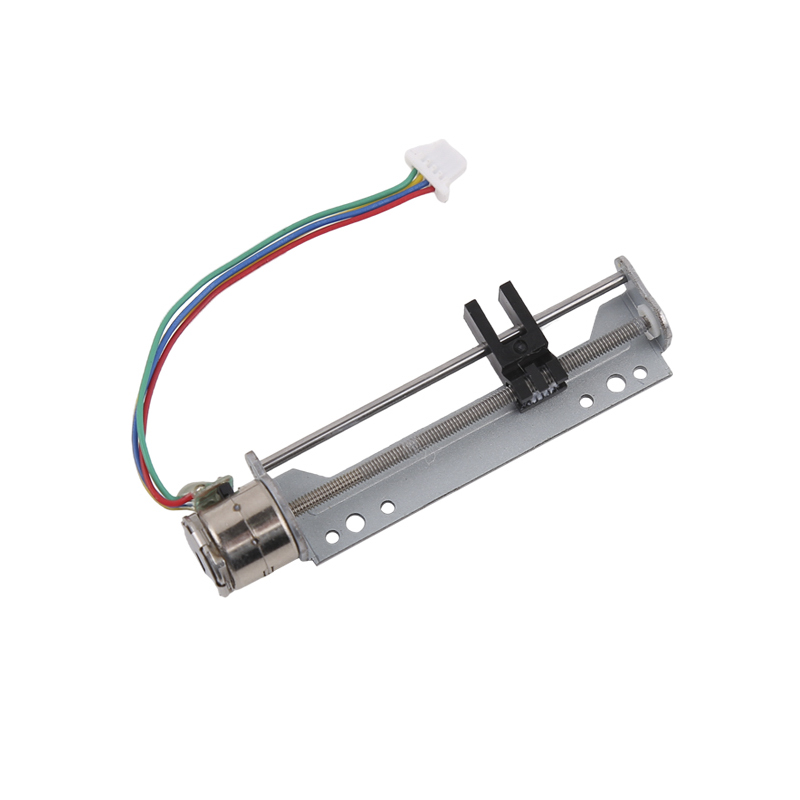

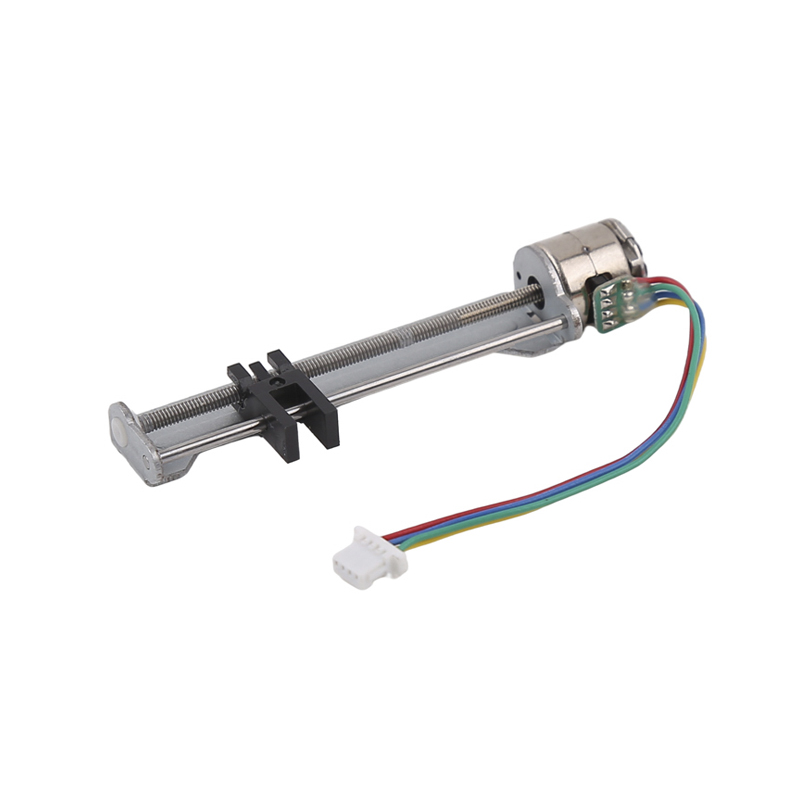

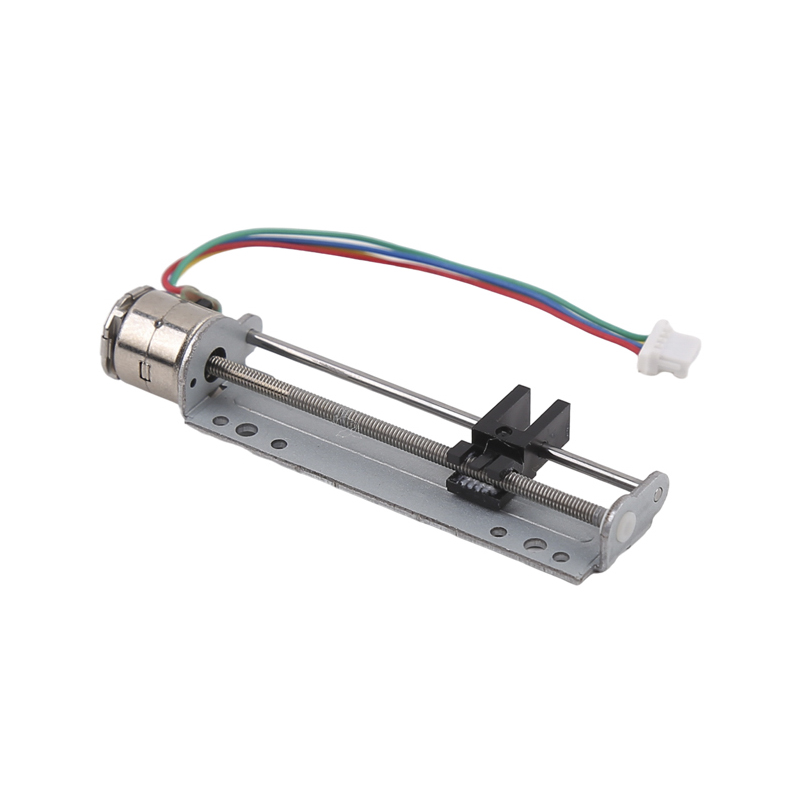

The effective travel of the lead screw of the motor is 40mm, the lead screw is M2P0.4, the basic step angle of the motor is 18 degrees, and the motor runs 20 steps every week. Therefore, the displacement resolution can reach 0.02mm to achieve precision control. The screw with the screw pitch of 0.4 mm of the output shaft is supported by the slider and the screw to rotate into thrust.

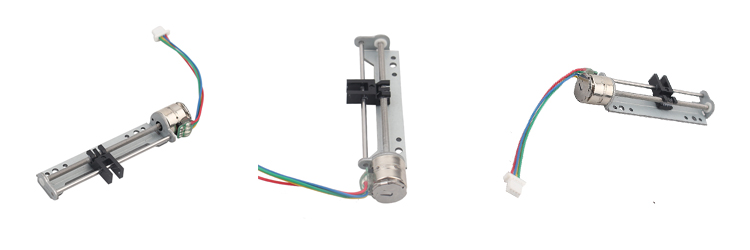

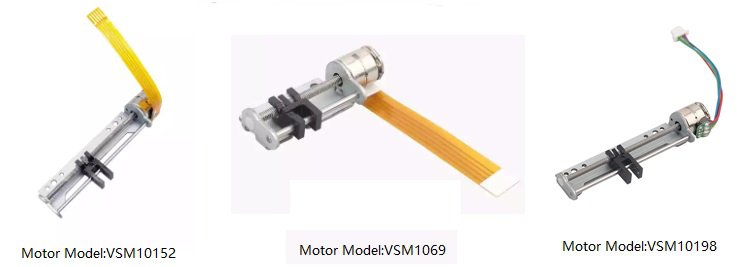

The motor input part of FPC can be changed to the form of connecting wire pin, PCB, etc. according to customer requirements.
Parameters
Product name | 10mm microlinear stepper motor |
Model | VSM10198 |
Max. Starting frequency | 1000 pps min. (at 3.3 v dc) |
Max. Slewing frequency | 1200 pps min. (at 3.3 v dc) |
Pull in torque | 3.5gf·cm min. (at 500 pps , 3.3v dc) |
Pull out torque | 4.5gf·cm min. (at 500 pps , 3.3v dc) |
Insulation class | Class e for coils |
Insulation strength | 300 v ac for one second |
Insulation resistence | 50 mω (dc 100 v) |
Operating temperature range | -20 ~+70 ℃ |
Oem & odm service | Available |

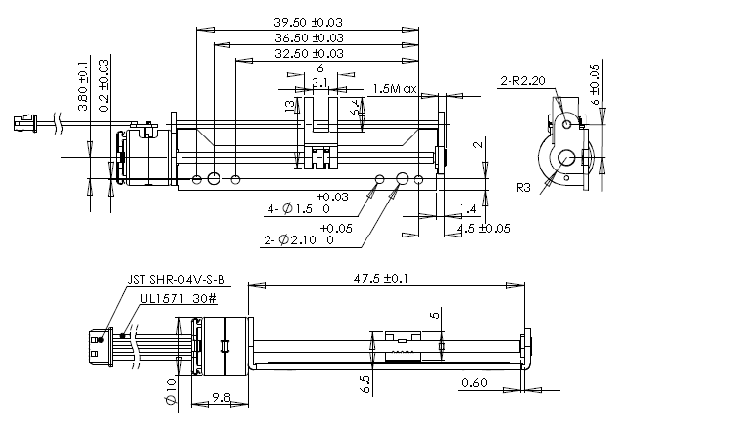

Design drawing
Customisable
Areas of application
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets
On samples and air shipping , we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
