2 Phase 5V 36mm linear stepper motor max stroke 113.2 mm with guide screw

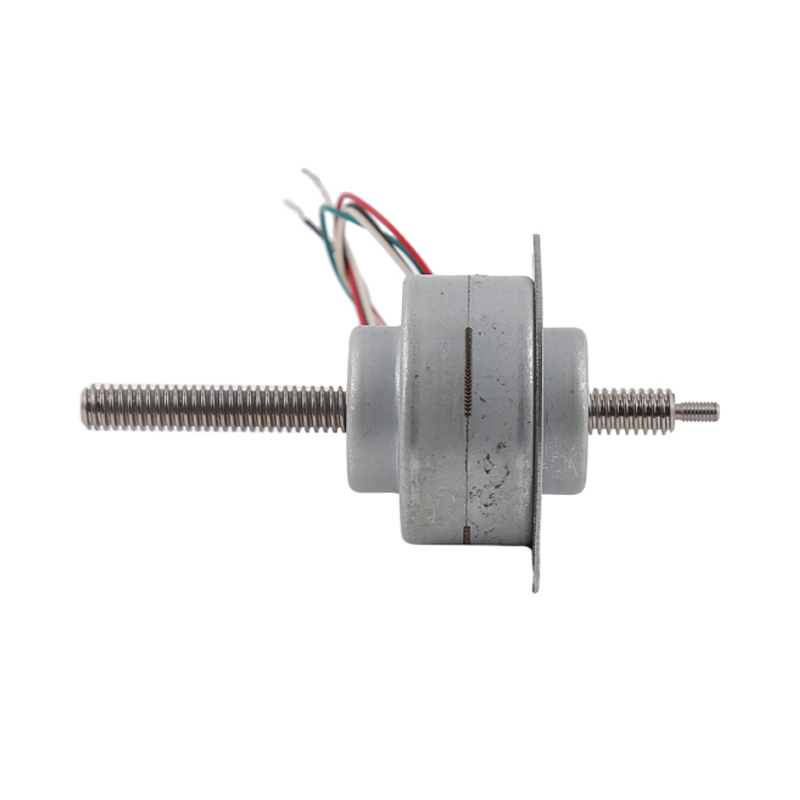

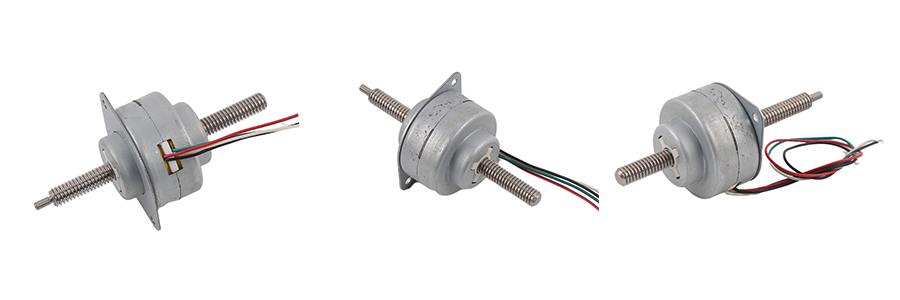

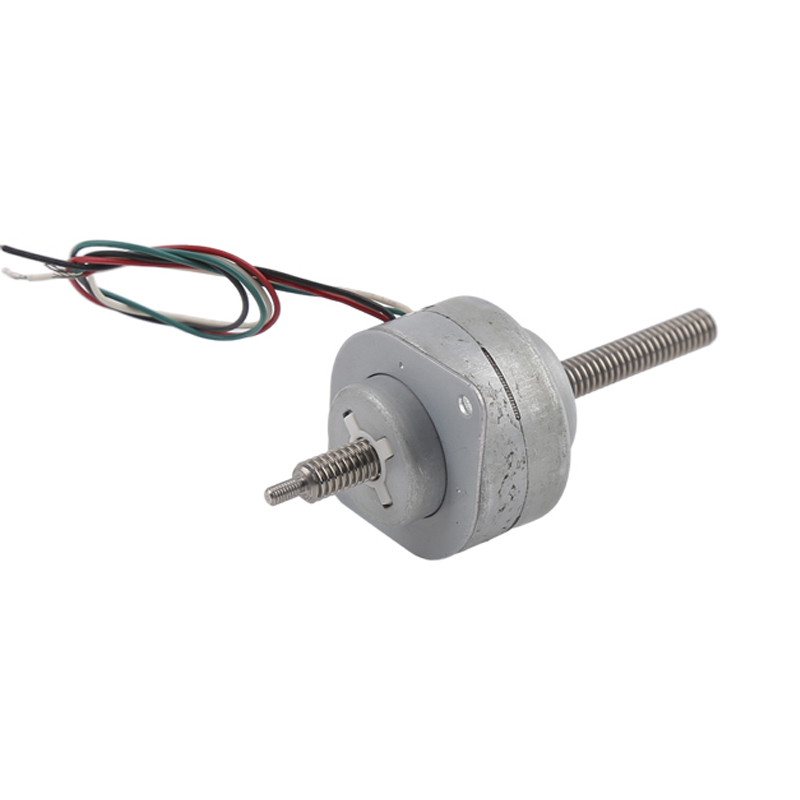

Vic-Tech | 36mm Linear Stepper Motor Description:

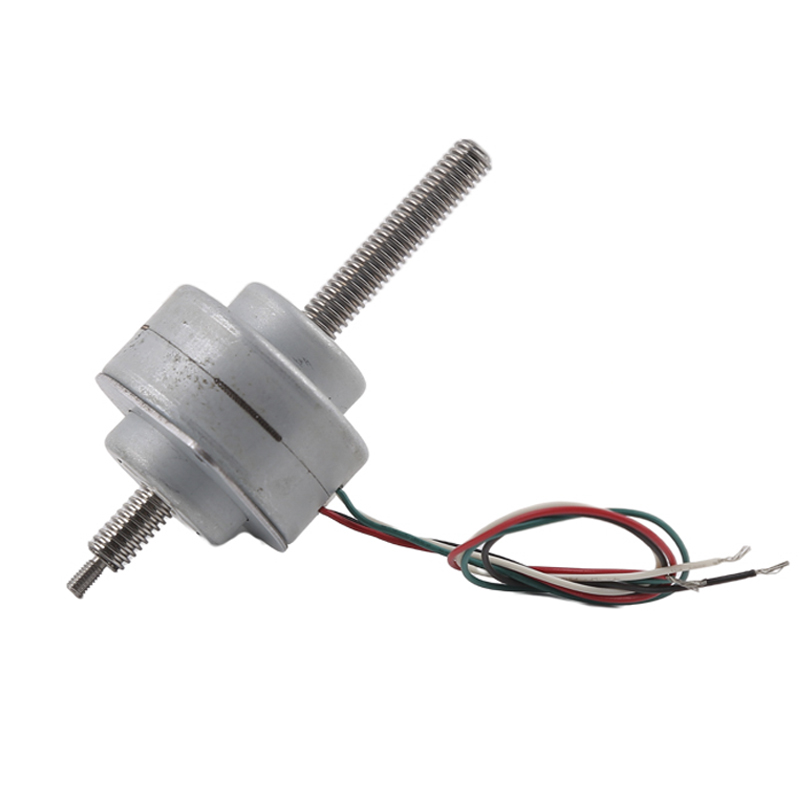

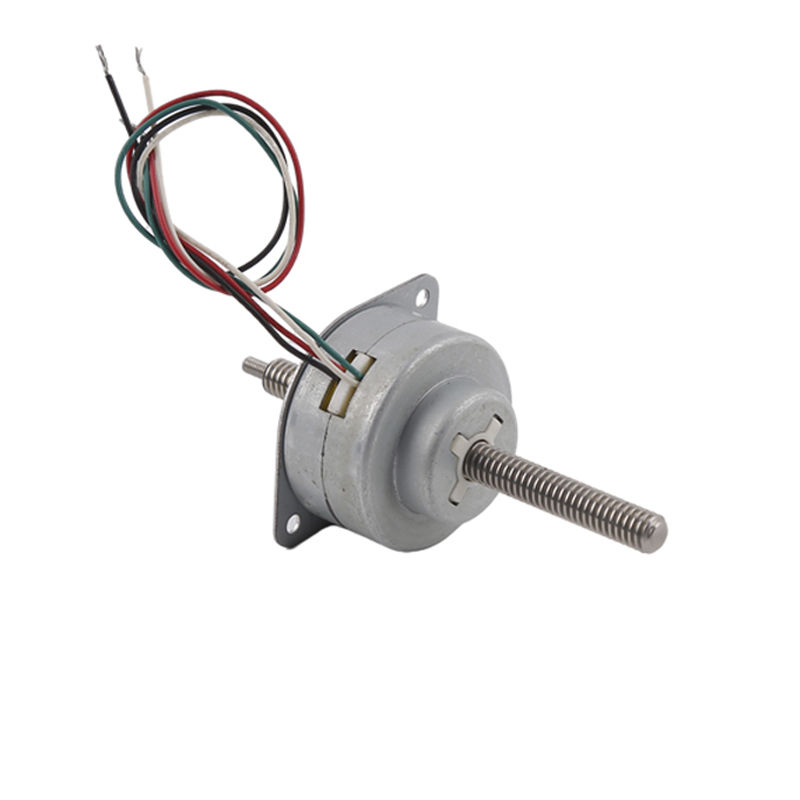

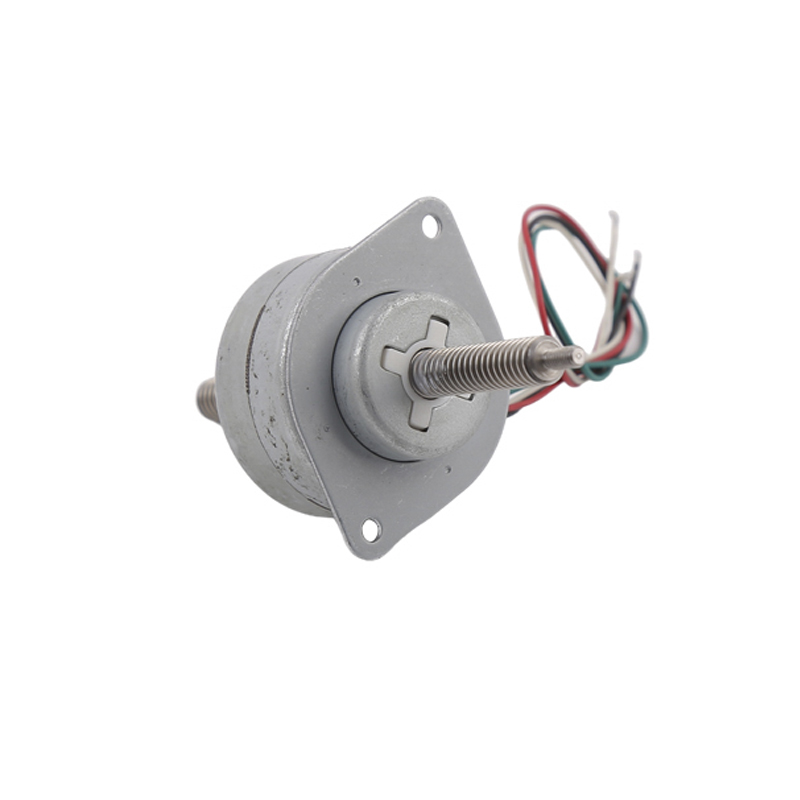

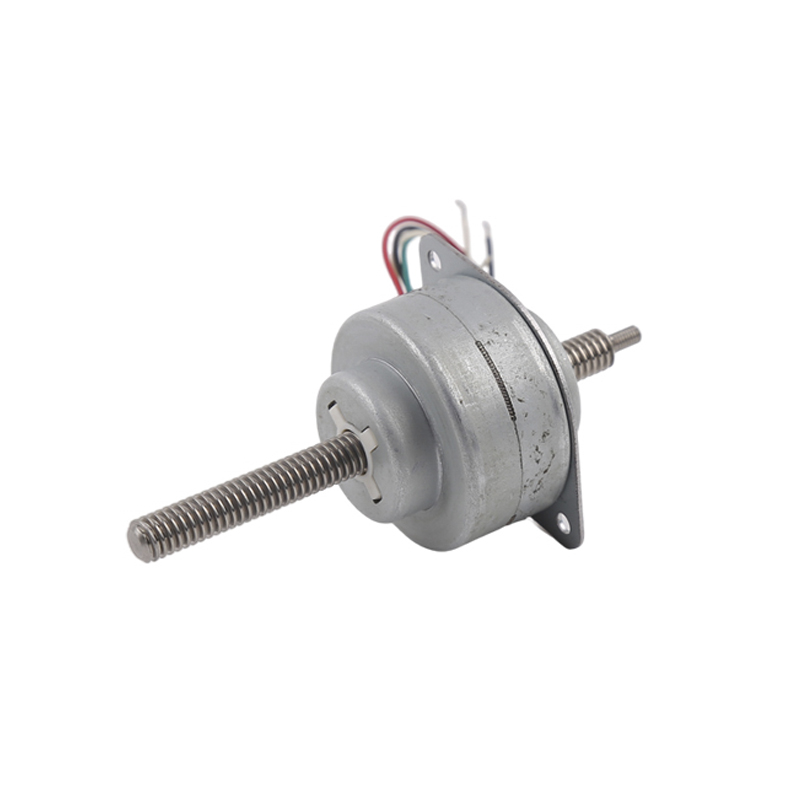

VSM36L-048S-0254-113.2 is a through shaft type stepping motor with guide screw. When the rotor operates clockwise or counterclockwise, the top of the screw rod needs to be fixed, and the guide screw will move forward or backward.

The stepping angle of the stepping motor is 7.5 degrees, and the lead spacing is 1.22mm. When the stepper motor rotates for one step, the lead moves 0.0254mm, and the length of the screw rod of the motor can be customized according to customer needs.

The product converts the rotation of the motor into linear motion through the relative motion of the inner rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields.

At the same time, the external wiring can be connected or output from the outlet box according to customer requirements.

Our team has more than 10 years of experience in stepping motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!

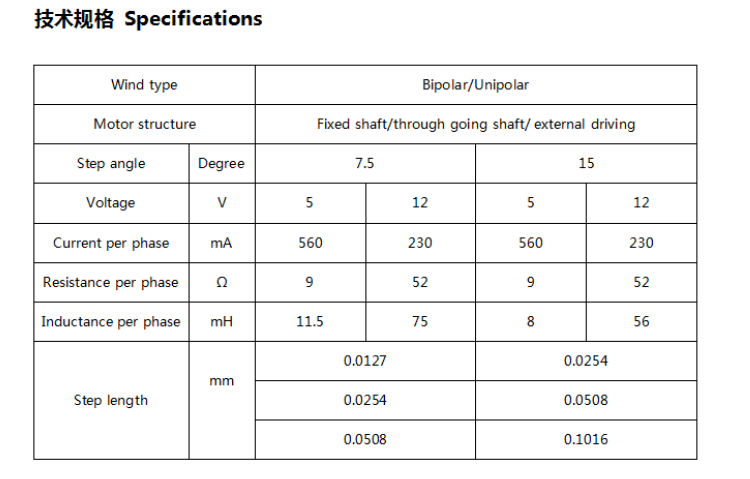

Vic-Tech | 36mm Linear Stepper Motor Parameters:

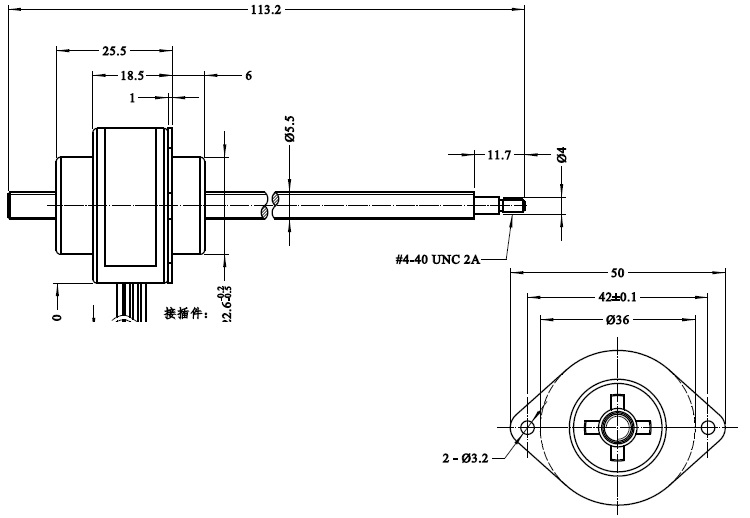

Vic-Tech | 36mm linear stepper motor Design drawing:

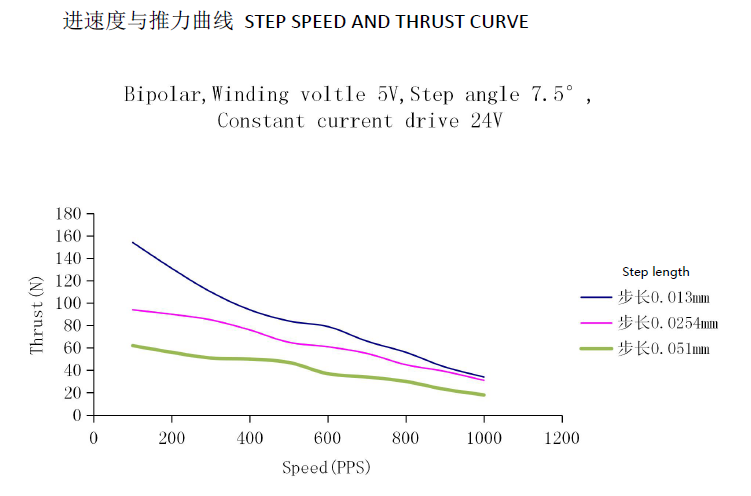

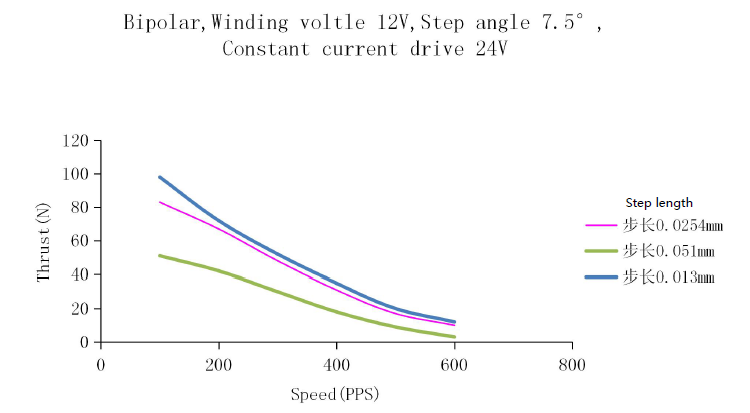

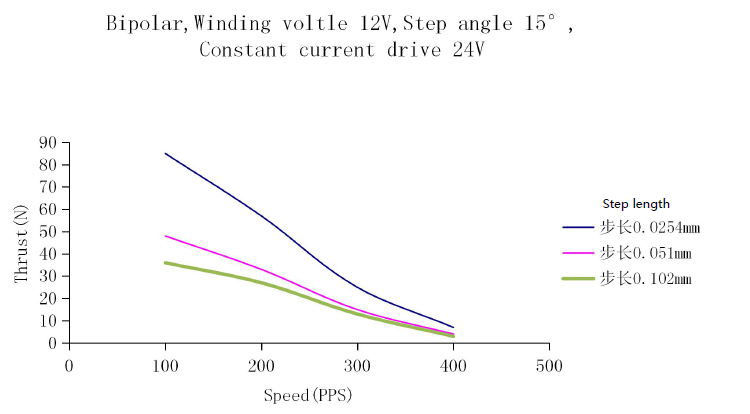

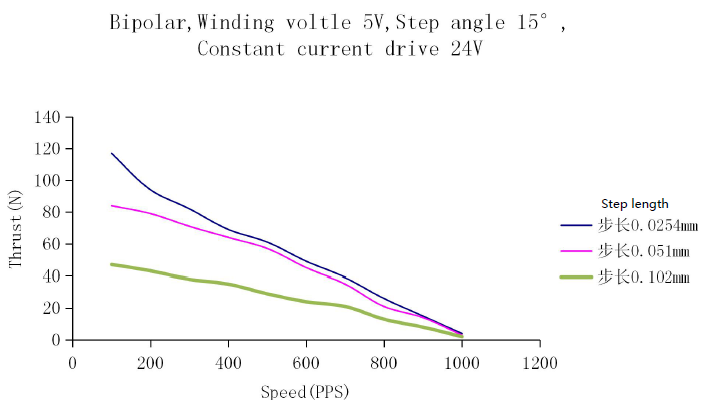

Step speed and thrust curve:

Vic-Tech | 36mm linear stepper motor Customisable:

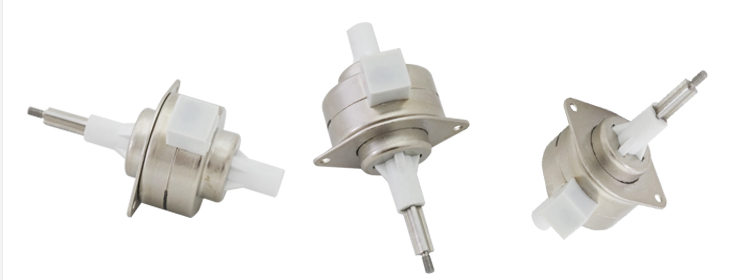

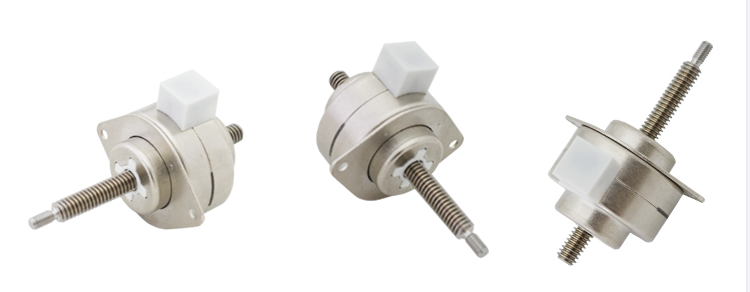

Motor type reference:

CAPTIVE

Non Captive

External

Customization service:

Motor’s design can be adjusted based on customer’s requirement including:

Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor.

Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.

Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.

PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.

Thread length：Can be customised on request

Screw and bracket：The length of the screws and brackets can be customised to suit the assembly and itineraryavel requirements, and the structure of the brackets can be tailored to specific needs.

Linear stepper motor of slider: Plastic slider special claw design, also can be customised metal slider

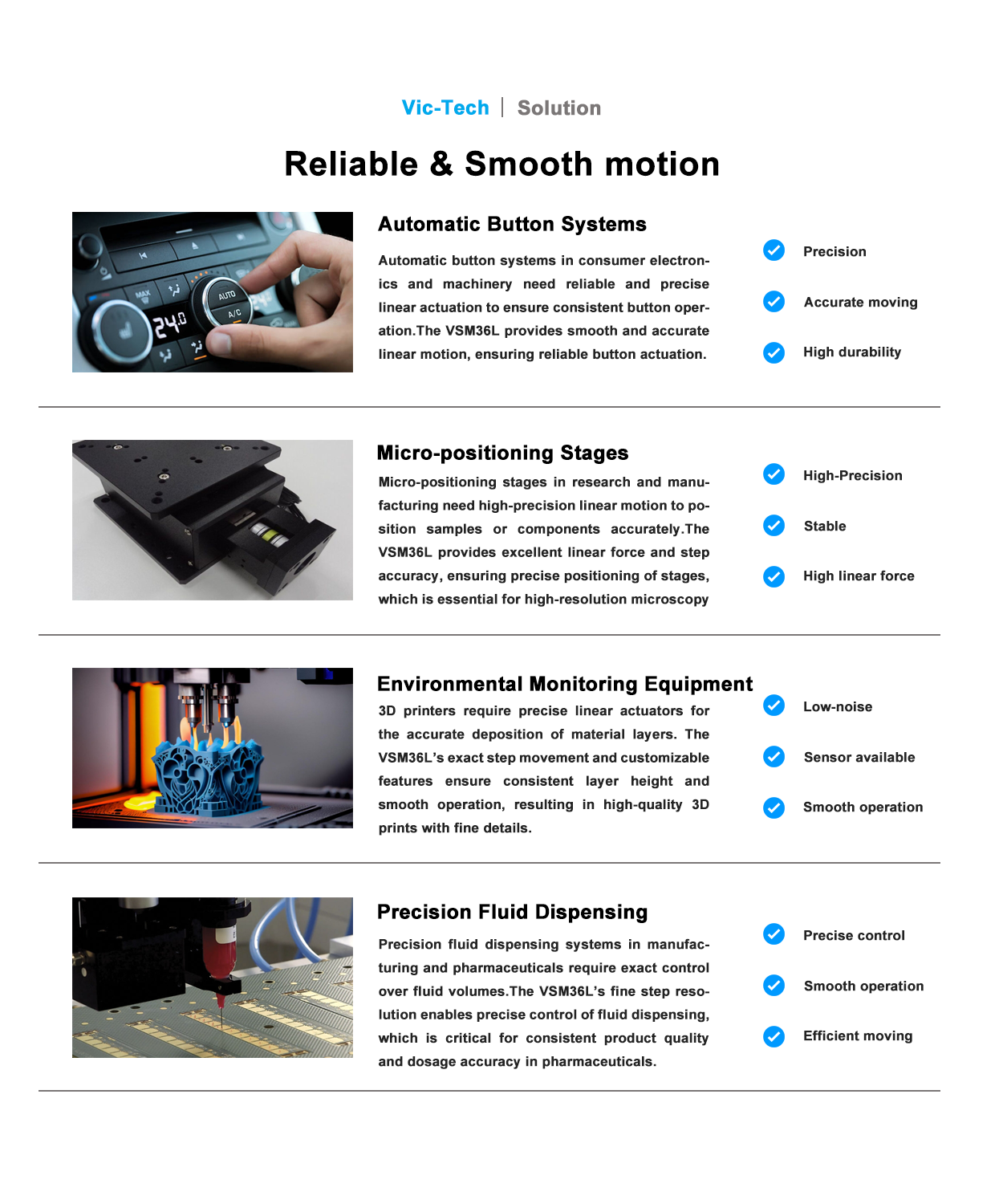

Vic-Tech | 36mm linear stepper motor Application:

Application:

Motor’s speed is determined by driving frequency, and it has nothing to do with load (unless it’s losing steps).

Due to high precision speed control of stepper motors, with a driver controlled stepping you can achieve very precise positioning and speed control. For this reason, stepper motors are the motor of choice for many precision motion control applications.

For linear stepper motors, they are widely used in:Medical device、Camera equipment、Valve control system、Test instrument、3D printing 、CNC machine、and so on.

Lead time and packaging information:

Lead time for samples:

Standard motors in stock: within 3 days

Standard motors not in stock: within 15 days

Customized products: About 25~30 days (based on complexity of customization)

Lead time for building a new mold: generally about 45 days

Lead time for mass production: based on order quantity

Packaging:

Samples are packed in foam sponge with a paper box, shipped by express

Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)

If shipped by sea, product will be packed on pallets

Shipping method:

On samples and air shipping , we use Fedex/TNT/UPS/DHL. (5~12 days for express service)

For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
