Choosing a BYJ geared stepper motor is not simply a matter of selecting the smallest motor or the highest gear ratio. For HVAC dampers, air-conditioner louvers, smart valves, air purifiers, household appliances, and compact actuators, the correct motor must match the actual mechanical load, movement time, available installation space, electrical system, and expected operating cycles.
This is especially important when selecting a micro permanent magnet stepper motor for a new OEM product. A motor may have the correct voltage and physical diameter but still fail to provide enough output torque at the required speed. Similarly, a high reduction ratio can increase output torque and reduce speed, but excessive reduction may introduce more backlash or make the mechanism slower than required.
Engineers evaluating a BYJ motor should therefore answer several practical questions before choosing a model:
What output torque does the mechanism actually require?
How fast must the output shaft move?
What gear ratio provides the required balance between torque and speed?
What step angle and output resolution are needed?
What voltage and phase configuration does the controller support?
How much space is available for the motor and gearbox?
Is motor noise important in the final product?
What shaft, mounting, connector, and wiring configuration is required?
How many operating cycles must the motor complete during its service life?
·
BYJ geared stepper motors are commonly available in different sizes, gear ratios, voltage configurations, step angles, and torque ranges. For example, published 24BYJ48 data shows variants using different voltages and reduction ratios, while other BYJ products are designed specifically for HVAC/R valve actuation and air-vent applications.
This guide explains the key parameters engineers should compare when selecting a BYJ geared stepper motor and how to match the motor to the actual application.

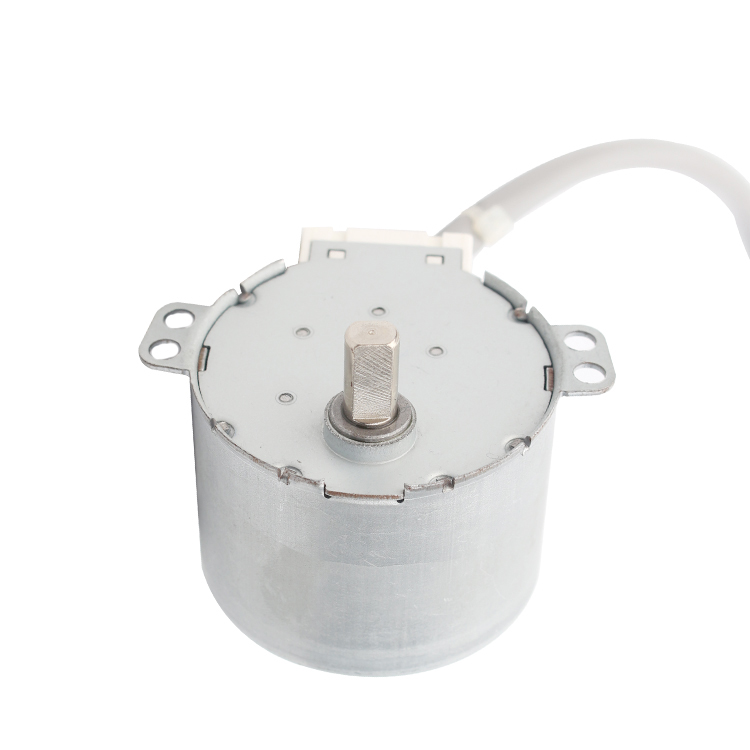

A BYJ geared stepper motor combines a permanent magnet stepper motor with an integrated reduction gearbox.
The stepper motor converts electrical pulses into controlled angular movement. The gearbox then reduces the motor speed and transfers the motion to the output shaft at a higher usable torque.
This makes the configuration particularly useful for mechanisms that need:
Low output speed
Controlled angular movement
Compact installation
Moderate output torque
Repeatable positioning
Simple electronic control
Instead of directly driving a mechanism at the motor's internal rotational speed, the gearbox provides a slower output that is better suited to small actuators.
For example, an HVAC louver may only need to rotate through a limited angular range over several seconds. A geared stepper motor is therefore often more appropriate than a high-speed motor that requires additional mechanical reduction.
The basic relationship is:
The actual output torque depends on the motor torque, reduction ratio, gearbox efficiency, operating speed, and load conditions.
The first mistake in motor selection is starting with the motor model instead of the mechanism.
Before comparing 24BYJ48, 28BYJ48, or other BYJ models, determine what the output shaft must actually do.
For an HVAC damper, for example, the motor may need to overcome:
Damper friction
Airflow resistance
Linkage friction
Spring force
Gear or transmission resistance
Starting load
Mechanical end-stop resistance

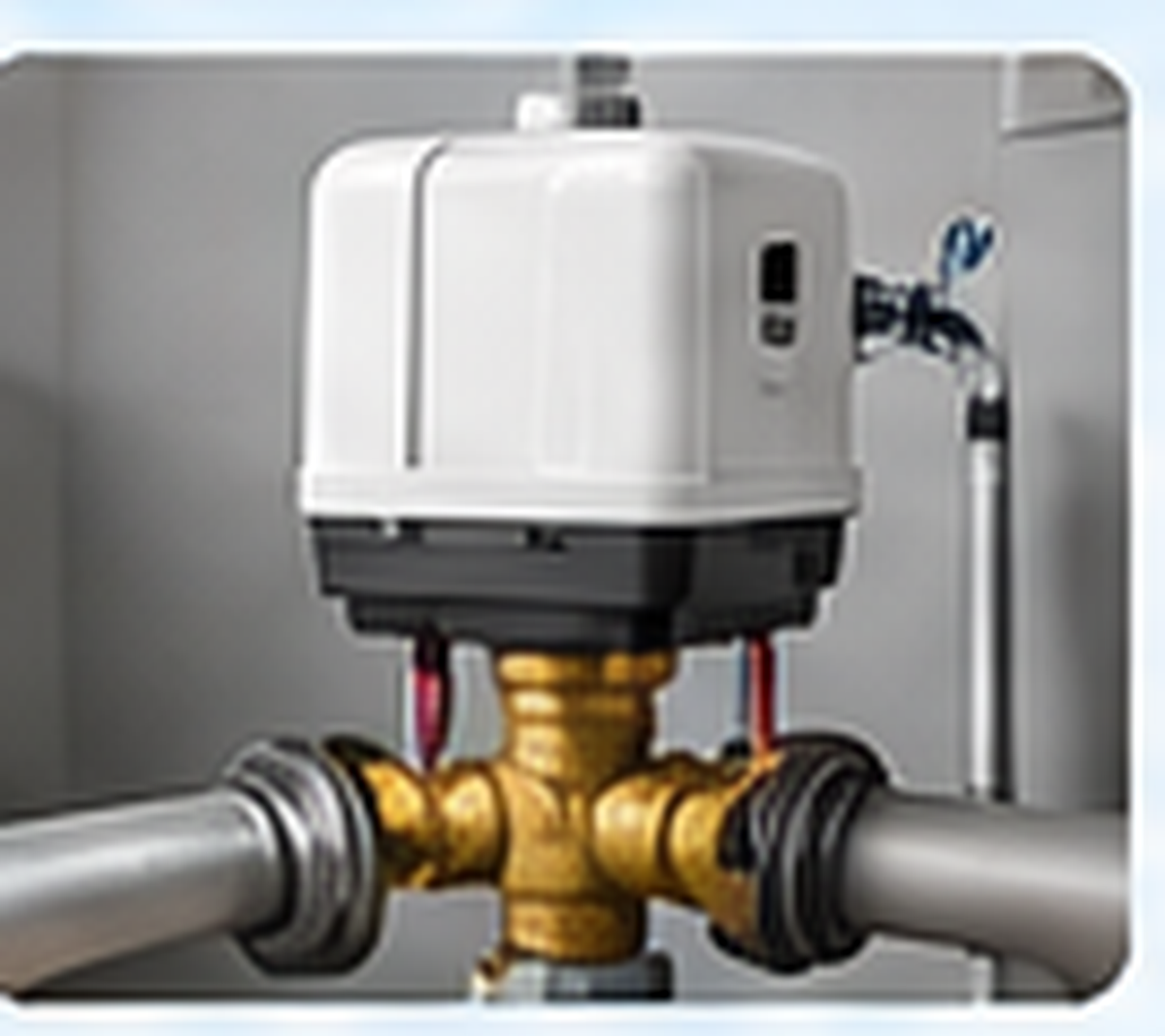

For a smart valve, the required torque may be determined primarily by valve friction and fluid pressure.
For a small appliance, the load may come from a plastic gear train, flap, shutter, or dispensing mechanism.
A simple engineering calculation is:
The safety factor should account for manufacturing variation, temperature, friction changes, aging, and unexpected load conditions.
Do not select a BYJ motor based only on its holding torque. The motor must provide sufficient dynamic torque at the actual operating speed.
Output torque is one of the most important parameters when selecting a geared stepper motor.
The gearbox increases usable output torque by trading speed for torque. However, the actual output torque is lower than the theoretical torque multiplication because of mechanical losses.
A simplified relationship is:
For example, a higher reduction ratio can significantly increase the available output torque, but it also reduces output speed.
Published 24BYJ48 specifications illustrate why engineers should compare the exact model rather than assume all BYJ motors have identical performance. One manufacturer's 24BYJ48 series lists variants with different voltage, resistance, reduction ratio, and pull-in torque values.
Pull-in torque
Pull-out torque
Holding torque, if specified
Rated torque
Output torque after gearbox
Torque at the required operating speed
Torque under the actual temperature range
For an HVAC actuator, the most useful value is not necessarily the highest number on the product page. What matters is whether the motor can reliably move the actual damper or louver without stalling.
The gear ratio is one of the defining characteristics of a BYJ geared stepper motor.
A higher reduction ratio generally means:
Lower output speed
Higher output torque
Smaller output movement per motor step
Greater mechanical reduction
A lower reduction ratio generally means:
Higher output speed
Lower torque multiplication
Faster response
Common BYJ products are available with different reduction ratios. A 24BYJ48 data sheet, for example, lists variants including 1:16, 1:37, 1:64, and 1:90.
Another current 24BYJ product family lists selectable reduction rates including 1/16, 1/25, 1/32, 1/36, 1/64, and 1/96.
This demonstrates why "24BYJ48" alone is not enough information for engineering selection.
Suppose an HVAC louver needs relatively slow movement but has a moderate mechanical load.
A higher reduction ratio may be suitable because:
The output does not need to rotate quickly.
Higher output torque is beneficial.
Fine output movement is useful.
The actuator has limited installation space.
On the other hand, if a valve or shutter must move rapidly between two positions, an excessively high reduction ratio could make the actuator unnecessarily slow.
The correct question is therefore:
What gear ratio provides enough torque while still meeting the required movement time?
A geared stepper motor should be selected according to the required output speed, not simply its no-load motor speed.
For example, an HVAC louver may need to rotate from 0° to 90° within a few seconds.
The design calculation should therefore consider:
Required angular travel
Required movement time
Gear ratio
Motor step frequency
Available dynamic torque
A motor that has excellent torque but cannot reach the required output speed may still be unsuitable.
Conversely, selecting a much faster motor than necessary can increase vibration, noise, and mechanical stress.
For compact household products, a moderate and controlled output speed is often more useful than maximum RPM.
Step angle is another important specification, but it should not be confused with actual positioning accuracy.
A stepper motor's internal step angle determines how far the motor moves in response to a particular excitation sequence.
After the gearbox, the output movement per motor step becomes smaller.
A simplified relationship is:
For example, a 24BYJ48 variant may use a 5.625° motor step angle and a 1:64 reduction ratio.
Some 28BYJ-48 configurations are also commonly specified with a 5.625° half-step value and approximately 64:1 reduction.
However, actual positioning performance also depends on:
Gear backlash
Manufacturing tolerance
Shaft loading
Friction
Driver sequence
Mechanical coupling
Gear wear
Therefore:
This distinction becomes important when a BYJ motor is used in an actuator that must repeatedly return to a specific physical position.
For HVAC and smart-home products, the motor often has to fit inside a very restricted housing.
Measure the complete installation envelope, including the gearbox.
Important dimensions include:
Motor diameter
Motor length
Gearbox height
Mounting-hole spacing
Shaft diameter
Shaft length
Connector position
Cable exit direction
A smaller motor is not automatically better.
Reducing the motor size may reduce available torque or thermal capacity. The goal is to find the smallest motor that can reliably meet the load and life requirements.

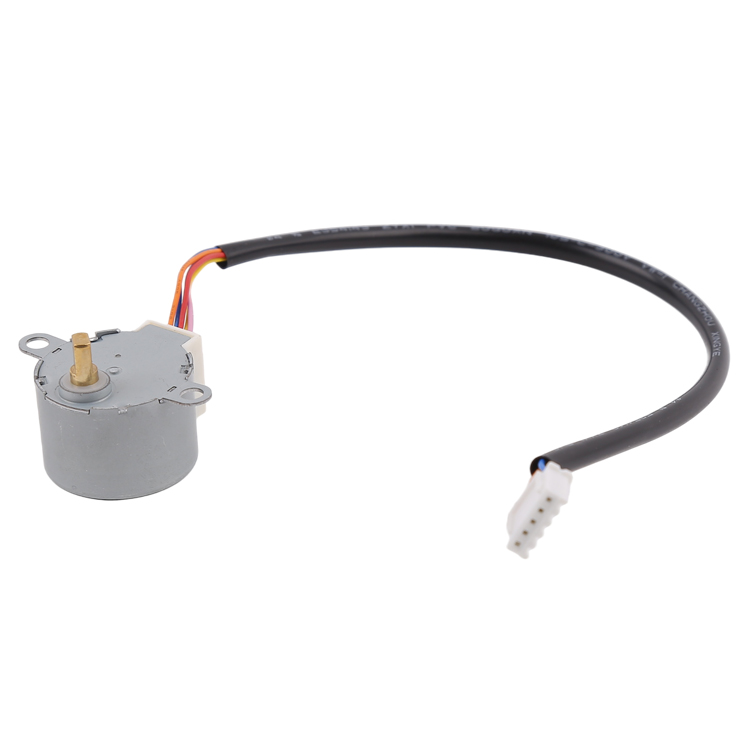

For example, published 24BYJ48 mechanical drawings show a 24 mm motor body diameter, but the exact external dimensions and mounting configuration depend on the specific model.
The motor must be electrically compatible with the control system.
Before selecting a BYJ motor, verify:
Rated voltage
Coil resistance
Rated current
Number of phases
Number of wires
Excitation method
Driver compatibility
Operating frequency
Do not assume that all motors with the same BYJ model family use the same voltage.
For example, published 24BYJ48 data includes 5 V, 12 V, and 24 V variants depending on the specific model.
Some 28BYJ-48 variants commonly used in small automation applications are 5 V, four-phase, five-wire motors.
This is why engineers should always confirm the complete electrical specification before designing the driver circuit.
Noise can become a major selection factor when a motor is installed inside a residential product.
An HVAC actuator may operate in:
Bedrooms
Living rooms
Offices
Hotels
Smart-home environments
Gear noise, vibration, and resonance from the motor housing can become noticeable even when the motor itself is relatively small.
When comparing BYJ motors, consider:
Gear material
Gear precision
Gearbox structure
Bearing design
Motor excitation method
Operating speed
Housing resonance
Mechanical mounting
Some published BYJ specifications include noise limits, but these values should be treated as model-specific rather than representative of every BYJ motor. For example, one 24BYJ48 series lists noise values that vary between variants.
For a quiet HVAC or smart-home product, prototype testing under the actual mechanical load is strongly recommended.
The following checklist can be used during the initial engineering evaluation.
Parameter | What to Check | Why It Matters |
Application load | Damper, valve, louver, shutter, etc. | Determines required torque |
Output torque | Required torque at shaft | Prevents motor stall |
Gear ratio | 1:16, 1:32, 1:64, etc. | Balances speed and torque |
Output speed | Required RPM or angular travel time | Determines actuator response |
Step angle | Motor step angle | Determines basic motion resolution |
Backlash | Gearbox mechanical play | Affects repeatability |
Rated voltage | 5 V, 12 V, 24 V, etc. | Must match electronics |
Current | Coil/rated current | Determines driver requirements |
Phase/wiring | 2/4 phase, wire configuration | Determines control method |
Motor diameter | Available space | Determines mechanical fit |
Shaft | Diameter, length, profile | Determines coupling |
Mounting | Hole pattern and orientation | Determines installation |
Noise | dB or subjective noise test | Important for residential products |
Temperature | Operating environment | Affects reliability |
Life | Required cycles | Determines durability requirements |
24BYJ48 and 28BYJ48 are both widely encountered in small geared stepper applications, but engineers should avoid choosing between them based only on their model names.
The physical size, voltage, gear ratio, winding, torque, and output characteristics can vary by manufacturer and variant.
For example, a published 24BYJ48 series includes 5 V and 12 V variants as well as different reduction ratios and torque specifications.
The commonly referenced 28BYJ-48 is generally a compact 5 V unipolar stepper with an integrated reduction gearbox and is frequently used in small automation, vents, positioning mechanisms, and smart-home projects.
A better comparison is therefore:
Selection Factor | 24BYJ48 | 28BYJ48 |
Physical size | Compact | Compact |
Voltage | Model-dependent | Commonly 5 V |
Phase configuration | Model-dependent | Commonly 4-phase |
Gear ratio | Multiple options | Commonly around 1:64 |
Torque | Variant-dependent | Variant-dependent |
Output speed | Variant-dependent | Generally low-speed |
HVAC applications | Strong candidate | Suitable for compact mechanisms |
Smart-home applications | Suitable | Suitable |
OEM customization | Available from some suppliers | Available from some suppliers |
The table should be treated as a selection framework rather than a universal datasheet. Exact specifications must be checked against the supplier's current product data.
HVAC is one of the clearest applications for a small geared permanent magnet stepper motor.
Typical applications include:

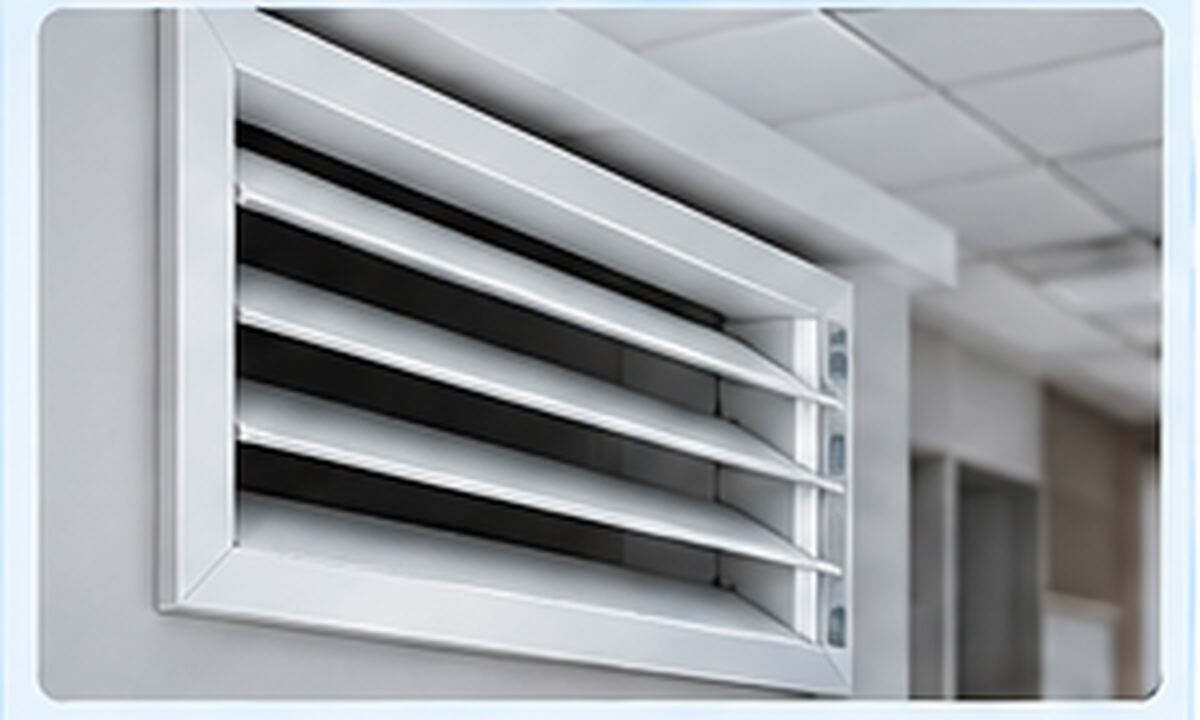

Air-conditioner louver control
HVAC damper adjustment
Motorized air vents
Airflow direction control
Ventilation mechanisms
Small valve actuators
Automotive air vents
A current geared stepper motor product listing specifically identifies 24BYJ48 products for motorized air vents and air-conditioning dampers, with selectable specifications such as voltage, step angle, and reduction ratio.
For HVAC selection, engineers should pay particular attention to:
Determine whether the mechanism needs:
30°
60°
90°
180°
Continuous oscillation
For example:
90° movement in 3 seconds
This requirement is more useful than simply specifying "low speed."
Measure the actual torque required at the louver or damper shaft.
Evaluate the motor after installation because the housing can amplify vibration and gear noise.
An HVAC actuator may operate repeatedly over many years, so the motor and gearbox must be evaluated for the expected duty cycle.
The same selection principles apply to smart-home devices.
Common mechanisms include:

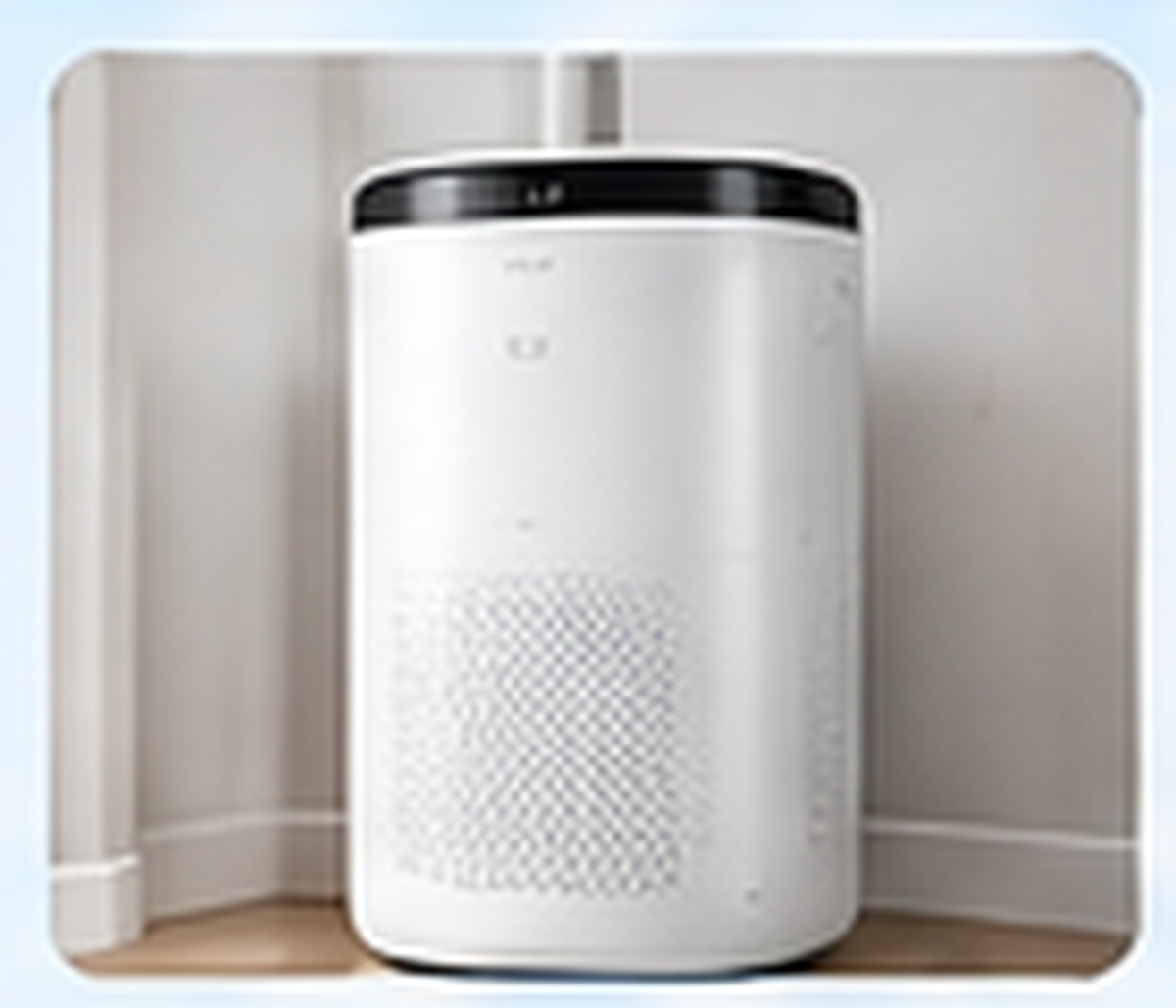

Smart air purifiers

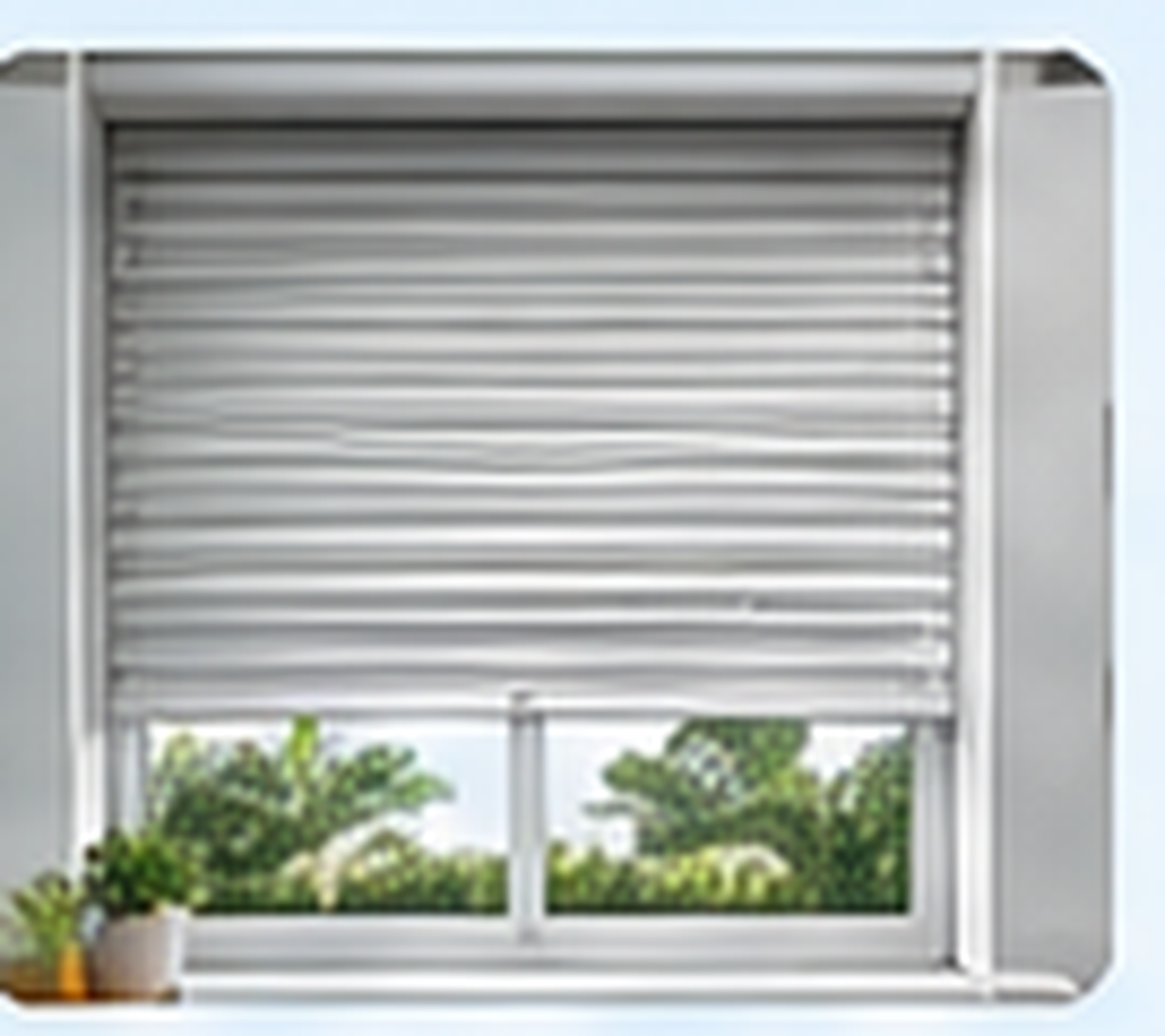

Motorized blinds
Smart ventilation systems
Small valves

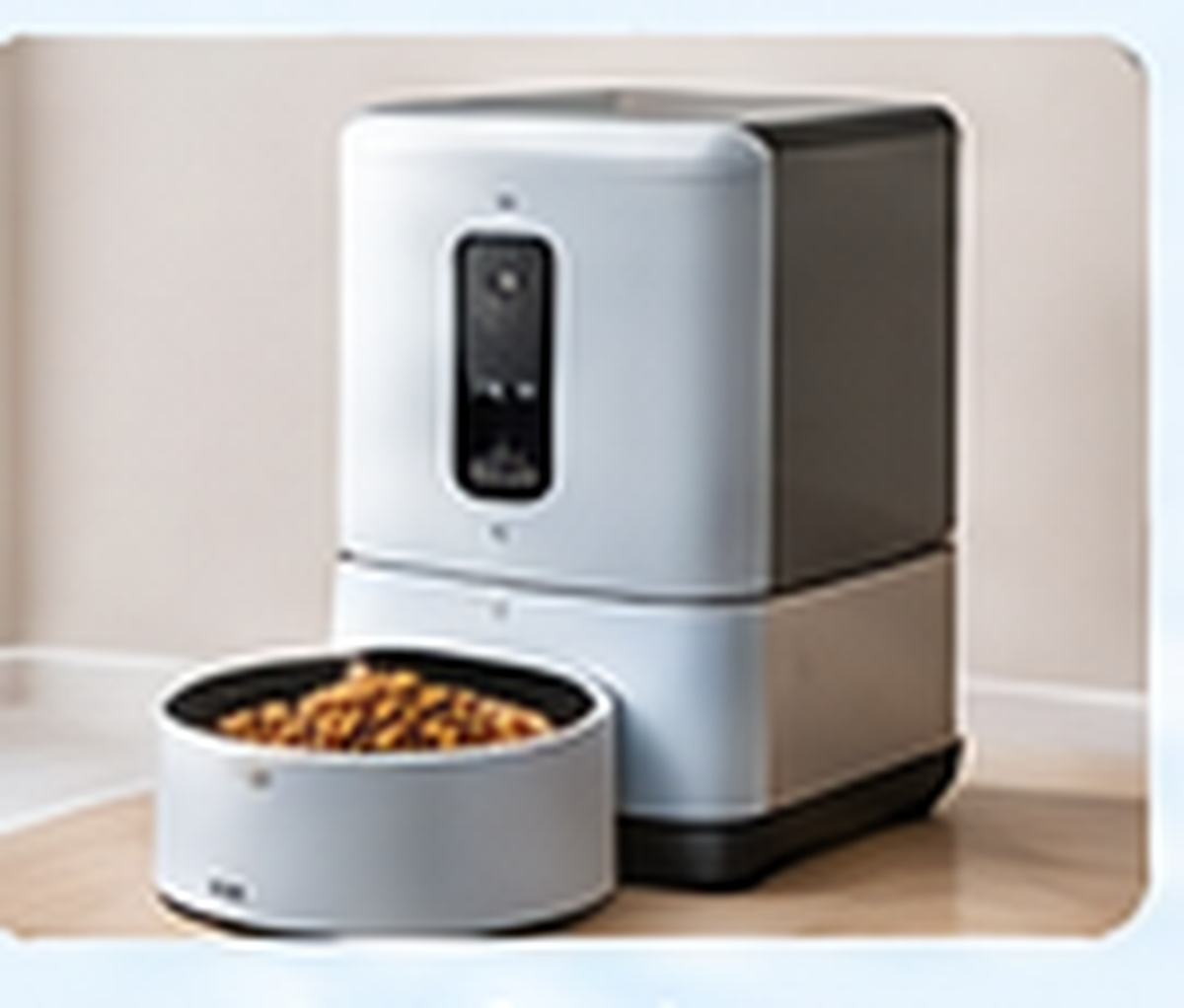

Pet feeders
Dispensing mechanisms

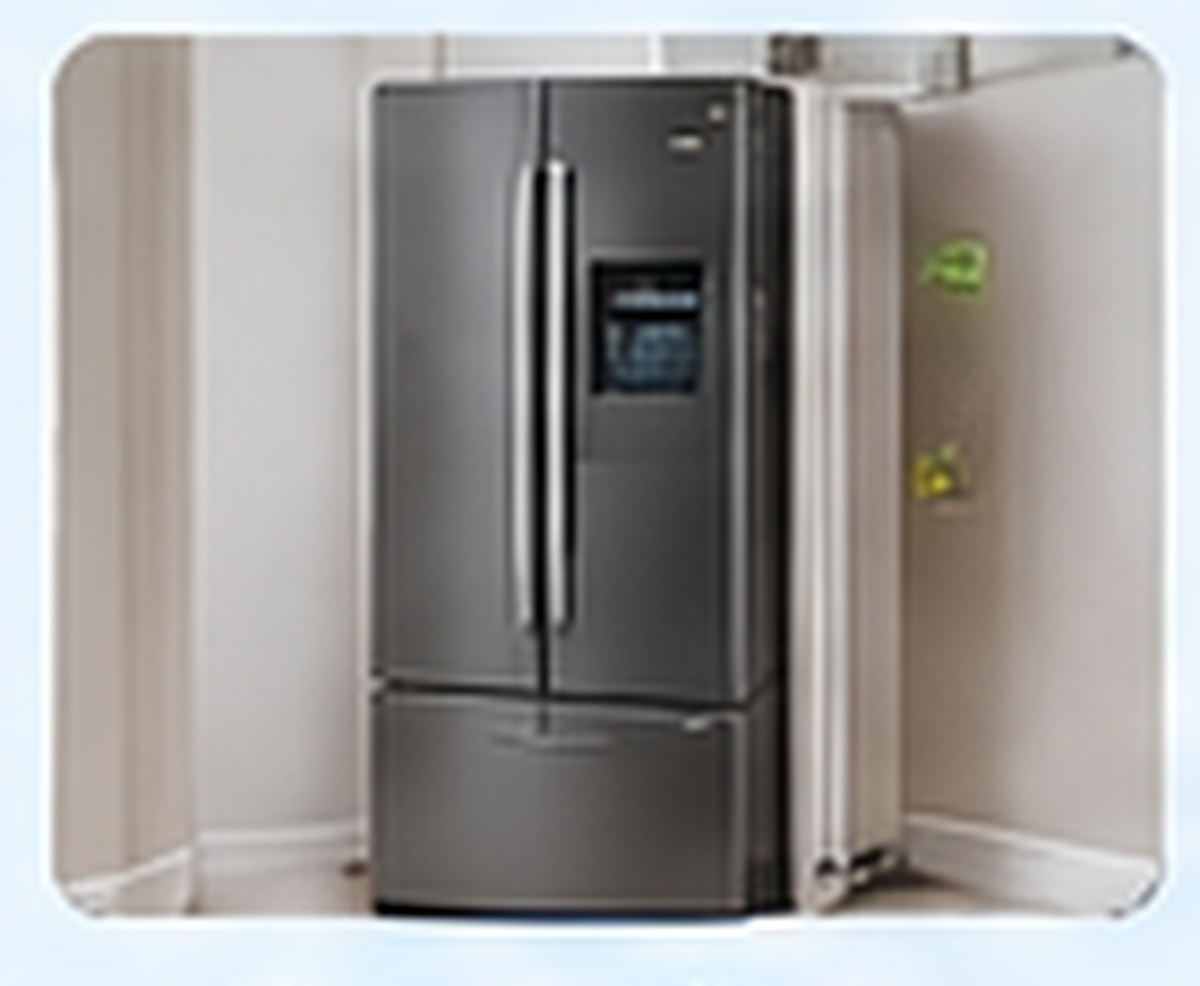

Appliance dampers
Compact switches and actuators
A 24BYJ48 product page from Leili, for example, lists home-appliance applications including air conditioners, refrigerators, smart toilets, projectors, air purifiers, electric fans, and ventilators.
For these applications, the motor may need to prioritize:
Compact size
Low-speed movement
Repeatable positioning
Low noise
Low power consumption
Long operating life
Simple control
A BYJ geared stepper motor is a strong candidate when your application has most of these characteristics:
The mechanism moves relatively slowly.
Controlled angular positioning is required.
The available installation space is limited.
Moderate output torque is required.
A reduction gearbox is beneficial.
Open-loop step control is acceptable.
The product is manufactured in relatively high volume.
The application is an HVAC, appliance, valve, or compact actuator mechanism.
It may be less suitable when the application requires:
Very high rotational speed
Extremely high positioning accuracy
Guaranteed absolute position after external disturbance
Very high continuous output power
Complex closed-loop motion control
In those cases, a servo, BLDC, DC gear motor, or another actuator architecture may be worth evaluating.
Standard BYJ motors are convenient for prototypes and many common mechanisms. However, an OEM product may require specifications that do not match an off-the-shelf motor.
Customization may include:
Gear ratio
Output torque
Output speed
Motor voltage
Coil resistance
Shaft diameter
Shaft length
D-cut or special shaft
Mounting dimensions
Connector
Wire length
Gearbox orientation
Noise requirements
Some current BYJ product offerings explicitly list multiple gear ratios, connector types, wire lengths, shaft options, and voltage ranges, demonstrating that geared PM stepper motors can be configured around different OEM requirements.
For an HVAC manufacturer, for example, a customized motor may allow the motor, gearbox, shaft, and plastic actuator mechanism to be designed as a complete system rather than forcing the product around a standard motor.
Before requesting a quotation for a BYJ geared stepper motor, prepare the following information:
Maximum motor diameter
Maximum motor length
Mounting dimensions
Shaft diameter
Shaft length
Shaft shape
Required output torque
Required output speed
Required angular travel
Rated voltage
Current limit
Number of phases
Number of wires
Driver type
Connector specification
Cable length
Operating temperature
Expected operating cycles
Noise requirements
Installation orientation
Continuous or intermittent operation
Environmental conditions
Required gear ratio
Step angle
Positioning repeatability
Backlash tolerance
Starting torque
Operating speed under load
The more complete these requirements are, the easier it is to identify the correct BYJ motor or determine whether a custom design is necessary.
Select a BYJ geared stepper motor based on the complete actuator requirements, not simply motor size or voltage.
Start with the actual load torque, output speed, angular travel, and movement time.
Gear ratio determines the fundamental trade-off between output speed and torque.
Step angle affects motion resolution, but gearbox backlash and mechanical tolerance also influence actual positioning performance.
Always verify voltage, current, phase configuration, wiring, shaft dimensions, and mounting requirements.
HVAC dampers, air-conditioner louvers, smart valves, air purifiers, ventilation systems, and compact appliances are practical BYJ applications.
24BYJ48 and 28BYJ48 should be compared by their actual specifications rather than model names alone.
For OEM projects, customized gear ratio, shaft, wiring, connector, voltage, and mounting dimensions can improve system integration.
The best motor is the one that meets the required torque, speed, size, noise, life, and control requirements simultaneously.
The main advantage is the combination of stepper-motor control and mechanical gear reduction. This allows a compact motor to provide controlled, relatively slow output movement with increased usable output torque.
Start with the required output torque and movement speed. A higher gear ratio generally increases torque multiplication and reduces output speed. The correct ratio should be selected based on the actual load and required movement time rather than simply choosing the highest available ratio.
Neither is universally better. The correct choice depends on the specific voltage, gear ratio, torque, dimensions, step angle, wiring, and mechanical requirements. Both product families have different variants, so engineers should compare the actual datasheets before making a selection.
Yes. BYJ geared stepper motors are used for applications such as air-conditioning louvers, motorized air vents, and damper mechanisms. The key selection factors are output torque, movement speed, angular range, noise, shaft configuration, and expected operating cycles.
No. A higher reduction ratio can increase output torque and reduce speed, but it can also make the actuator slower and may introduce additional mechanical backlash or transmission losses. The ratio should match the actual load and movement requirements.
Yes. Depending on the supplier and design requirements, customization can include gear ratio, voltage, winding, shaft dimensions, connector, cable length, mounting structure, and other mechanical or electrical specifications. For OEM products, custom development can be useful when a standard BYJ model does not fit the available space or required performance.
Selecting the right geared stepper motor starts with the application—not the motor model. If you have specific requirements for output torque, gear ratio, speed, motor size, shaft configuration, voltage, wiring, or mounting, a customized solution may provide better mechanical and electrical integration.
Welcome to contact us to discuss a customized stepper motor solution for your HVAC, smart-home, appliance, valve, or compact actuator application.
