A stepper motor is widely used in automation equipment because it offers accurate incremental motion, good low-speed control, simple positioning, and a relatively cost-effective architecture. However, selecting the right motor is only part of the engineering challenge.
In many automated machines, engineers still need to manually adjust the motor current, microstepping settings, acceleration parameters, and vibration-related parameters during commissioning.
The process often looks like this:
1. Select a stepper motor based on the estimated load.
2. Install the motor and mechanical transmission.
3. Set the initial current and microstepping parameters.
4. Run the equipment.
5. Observe vibration, noise, temperature, and positioning behavior.
6. Adjust the parameters.
7. Test again.
8. Repeat until the motion is acceptable.
This approach can work for a simple application. But when a machine contains multiple axes, different loads, variable operating speeds, or demanding positioning requirements, manual tuning becomes increasingly inefficient.
A motor may operate smoothly at one speed but develop noticeable vibration at another. Increasing current may improve torque but increase heat. Increasing the microstepping level may improve motion smoothness but can change the available torque and system response.
The result is a familiar problem for automation engineers: too much time is spent repeatedly testing motor parameters instead ofoptimizing the machine itself.
An AI motion control stepper motor solution addresses this challenge by moving part of the parameter-tuning process from manual trial and error toward automated parameter matching and optimization.
An AI motion control solution combines a stepper motor, intelligent drive, control algorithm, and parameter optimization strategy into a more integrated motion system.
Instead of treating the stepper motor and driver as completely independent components, the system uses application and motor information to determine more suitable operating parameters.
Depending on the system architecture, AI-assisted control can help evaluate parameters such as:
l Motor current
l Microstepping level
l Acceleration and deceleration
l Operating speed
l Vibration reduction parameters
l Resonance-related settings
l Load characteristics
l Motion profiles
l Thermal operating conditions
The goal is not to make the motor "intelligent" by itself. The value comes from using control software, algorithms, drive electronics, and operating data to make motor commissioning more systematic.
For OEM equipment manufacturers, this can be particularly useful when the same motor platform is used across multiple machines or when different mechanical loads require different tuning parameters.
A conventional stepper motor system usually depends heavily on predefined parameters.
For example, an engineer may choose a current value based on the motor's rated specifications and then manually adjust the microstepping and acceleration settings according to actual machine behavior.
An AI motion control system can introduce an additional optimization layer.
The system can first establish a parameter model based on information such as:
l Motor model
l Rated voltage
l Rated current
l Load characteristics
l Required speed
l Required acceleration
l Transmission structure
l Operating cycle
l Target positioning performance
For a mini stepper motor or miniature stepper motor used in compact equipment, this step is especially important because the available torque and thermal capacity are limited by the small motor size.
Motor current has a direct influence on torque, temperature, and energy consumption.
Too little current may reduce the available torque and increase the risk of missed steps under certain operating conditions.
Too much current may unnecessarily increase motor temperature and driver losses.
An AI-assisted control system can use the motor model and operating conditions to recommend or automatically adjust a suitable current range.
This does not eliminate the need to respect the manufacturer's electrical specifications. Instead, it helps engineers reach an appropriate operating point faster.
Microstepping is commonly used to make stepper motor motion smoother and reduce mechanical vibration.
However, simply selecting the highest available microstepping level does not always produce the best overall result.
Microstepping affects the relationship between commanded motion, torque characteristics, control frequency, and system response.
AI motion control can evaluate the application's speed and motion requirements and help determine a more suitable microstepping configuration.
For compact automation equipment, this can be valuable because a miniature stepper motor may operate close to its mechanical and electrical limits.
Stepper motors can experience resonance or vibration within certain speed ranges.
The problem becomes more noticeable when the motor is connected to:
l Lead screws
l Gearboxes
l Timing belts
l Ball screws
l Linkages
l Lightweight mechanical structures
Mechanical resonance is not simply a motor problem. It is often the result of the interaction between the motor, drive, transmission, load, and machine structure.
An intelligent drive can monitor operating conditions and use predefined algorithms or adaptive control strategies to reduce undesirable vibration.
The objective is straightforward: achieve smoother motion without requiring engineers to manually test dozens of parameter combinations.
One of the most important concerns when using an open-loop stepper motor is the possibility of missed steps.
A missed step can occur when the commanded motion exceeds the system's ability to maintain synchronization. Possible contributing factors include:
l Excessive load
l Insufficient torque
l Rapid acceleration
l Incorrect current settings
l Resonance
l Mechanical friction
l Sudden load changes
l Improper speed selection
A good control system should not simply increase motor current whenever a problem occurs.
Instead, the system should consider the relationship between motor torque, speed, acceleration, load, and mechanical transmission.
AI-assisted parameter optimization can help engineers establish operating parameters that provide an appropriate balance between:
Torque + speed + acceleration + vibration + temperature + energy consumption
This approach can reduce the need for repeated manual testing.
It is important to distinguish this from claiming that AI can completely eliminate missed steps under every operating condition. Motor selection, mechanical design, load margin, and system commissioning remain critical.
AI motion control is best viewed as an engineering tool for improving the probability of stable operation and reducing unnecessary tuning work.
Modern automation equipment increasingly requires more than basic pulse-and-direction control.
As machines become more connected, the motor control system may need to communicate with PLCs, industrial PCs, motion controllers, and other intelligent devices.
This is where integrated communication interfaces such as EtherCAT and CAN FD become important.
EtherCAT is widely used in high-performance industrial automation systems because it supports synchronized communication between controllers and distributed devices.

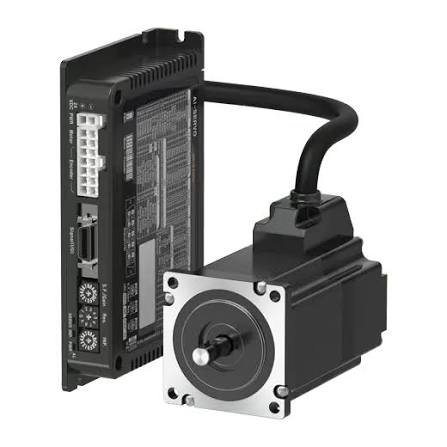

An EtherCAT-compatible integrated stepper motor drive can simplify the architecture of multi-axis equipment.
Instead of designing separate motor and drive assemblies for every axis, an integrated solution can combine:
l Stepper motor
l Drive electronics
l Communication interface
l Motion control functions
l Parameter management
This can reduce wiring complexity and help simplify machine integration.
For applications with multiple miniature stepper motors, an integrated architecture can also make system-level parameter management easier.

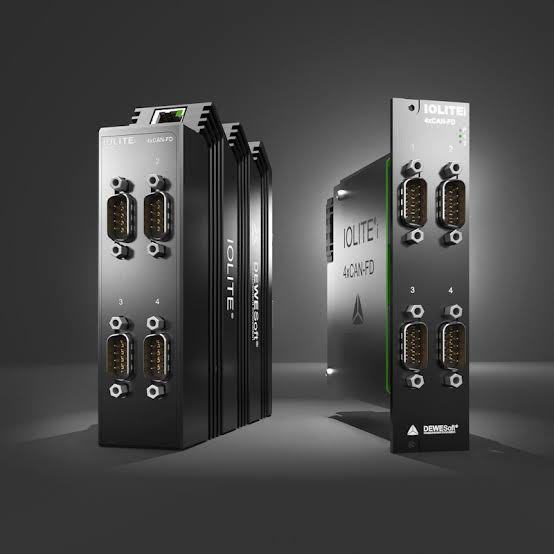

CAN FD provides higher data capacity than traditional CAN while retaining the basic advantages of the CAN communication architecture.
For compact automation equipment, robots, instruments, actuators, and distributed control systems, a CAN FD-compatible motor drive can provide a practical communication interface between the motion system and the main controller.
Potential applications include:
l Compact automation machines
l Robotic mechanisms
l Inspection equipment
l Smart actuators
l Medical and laboratory equipment
l Packaging machinery
Semiconductor-related equipment
l Compact positioning systems
The appropriate communication protocol ultimately depends on the machine architecture and controller ecosystem.
Traditional motor systems often require engineers to physically access equipment when firmware or control parameters need to be updated.
This becomes inconvenient when machines are deployed at customer sites or installed across multiple production facilities.
An intelligent stepper motor drive with OTA (Over-the-Air) update capability can provide a more flexible maintenance approach.
l Update drive firmware
l Improve motion-control algorithms
l Adjust parameter configurations
l Fix software issues
l Add control functions
l Standardize firmware across deployed machines
For OEM manufacturers, this can reduce the need for on-site maintenance visits.
However, OTA functionality should always include appropriate version control, authentication, update validation, and recovery mechanisms. Remote updating is useful only when it is implemented as part of a reliable industrial control architecture.
Another advantage of intelligent motion control is the ability to collect operating data.
A conventional stepper motor may provide very limited information to the machine controller.
An intelligent drive can potentially monitor operating parameters such as:
l Motor current
l Operating temperature
l Running time
l Motion cycles
l Speed
l Load-related behavior
l Fault events
l Abnormal vibration indicators
l Drive status
This data can support a predictive maintenance strategy.
For example, if a mechanism gradually develops increased friction, the motor may require more torque to perform the same movement. Changes in current, temperature, or operating behavior could provide useful information for maintenance analysis.
Instead of waiting until the machine fails, the equipment manufacturer can potentially identify abnormal operating trends earlier.
For production equipment, this creates a shift from:
Reactive maintenance → Preventive maintenance → Data-assisted predictive maintenance
The exact predictive-maintenance capability depends on the sensors, drive architecture, software algorithms, and data platform used in the system.

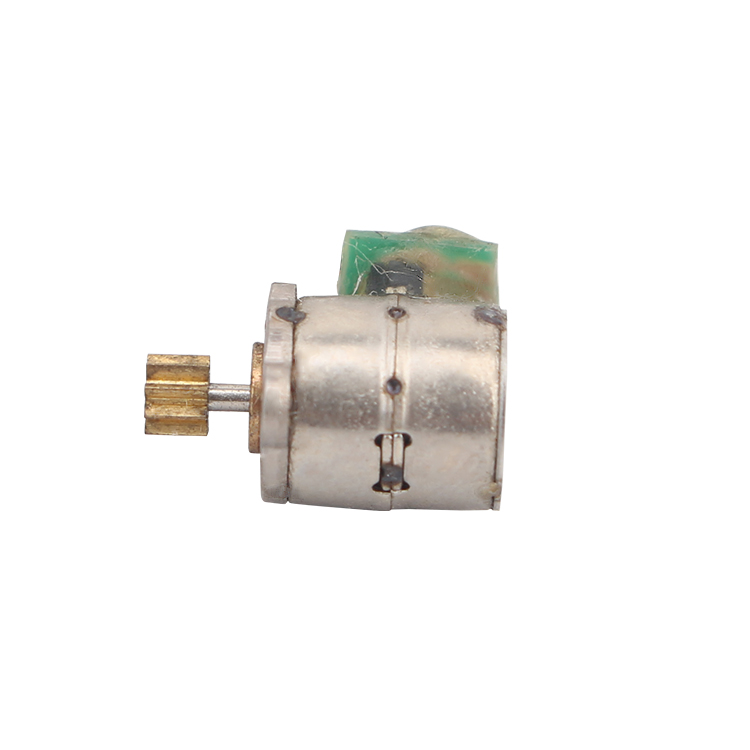

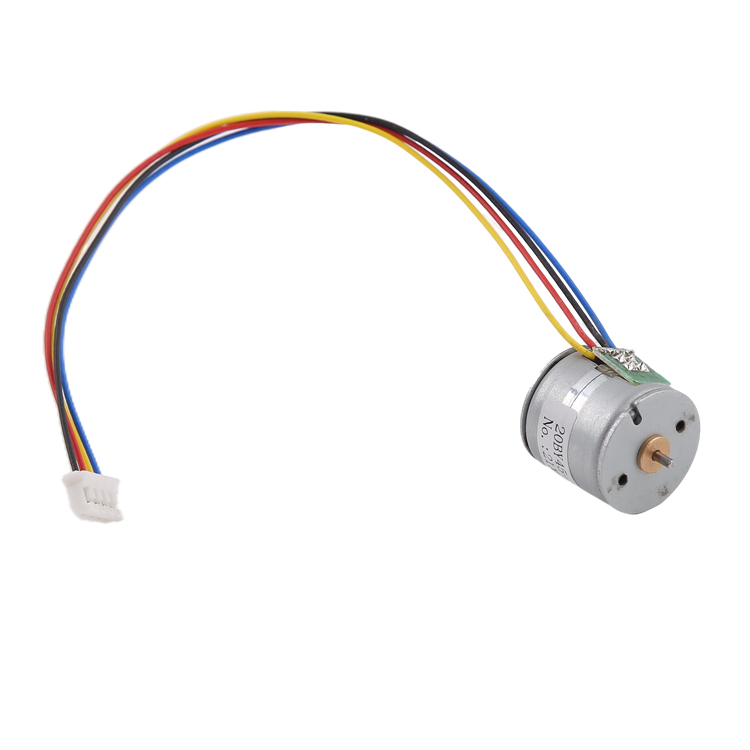

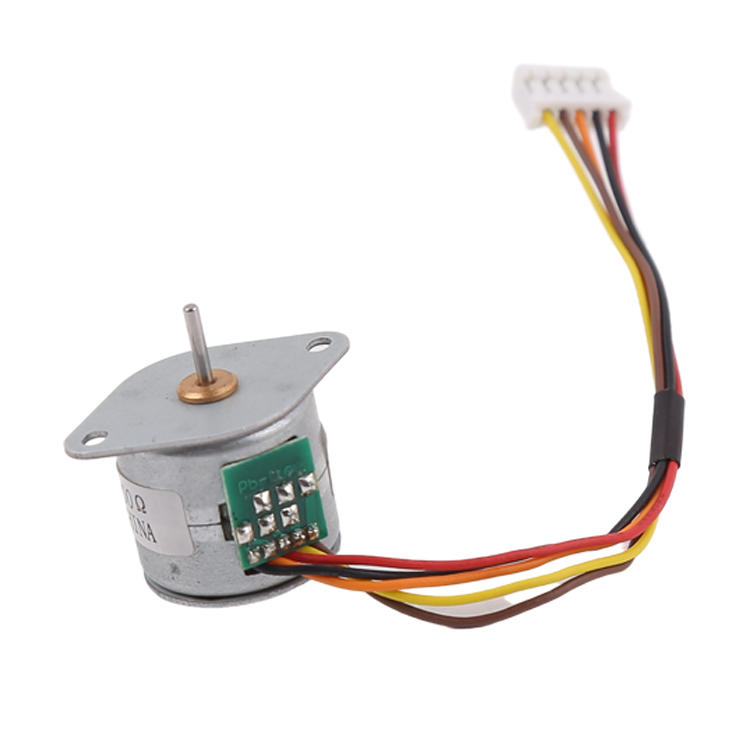

Why AI Motion Control Is Valuable for Mini Stepper Motors
Mini stepper motors and miniature stepper motors are attractive for compact equipment because they can provide controlled motion in a relatively small package.
Typical applications include:
l Optical mechanisms
l Compact actuators
l Small valves
l Camera mechanisms
l Laboratory equipment
l Medical instruments
l Automated inspection equipment
l Consumer electronics
l Small robotic mechanisms
But miniaturization also creates engineering constraints.
A smaller motor generally provides less available torque and thermal capacity than a larger motor.
This makes parameter selection more sensitive.
For example, engineers need to consider whether the motor has enough torque at the required speed while maintaining acceptable temperature.
An AI motion control approach can help optimize the available performance instead of relying entirely on conservative manual settings.
This is particularly useful when the machine requires both compact dimensions and stable motion.
Parameter | Traditional Stepper Motor System | AI Motion Control Solution |
Current setting | Usually manual | AI-assisted matching |
Microstepping | Manually selected | Automatically recommended/optimized |
Vibration tuning | Repeated testing | Algorithm-assisted optimization |
Resonance adjustment | Engineer dependent | Intelligent parameter assistance |
Communication | Often separate driver | Integrated EtherCAT/CAN FD options |
Firmware update | Often local | OTA-capable architecture |
Operating data | Limited | Can support data collection |
Maintenance | Mainly reactive/preventive | Can support predictive maintenance |
Commissioning workload | Higher | Potentially reduced |
System integration | Separate components | More integrated architecture |
The key difference is not that AI completely replaces engineering.
Instead, AI reduces repetitive engineering work while keeping system-level engineering decisions under human control.
For equipment manufacturers, the value of an AI motion control stepper motor solution becomes clearer when looking at the complete system.
A traditional architecture may include:
PLC → Motion Controller → Stepper Driver → Stepper Motor
Additional components may be required for communication, parameter configuration, diagnostics, and maintenance.
An integrated architecture can combine more functions into the motor-drive subsystem:
PLC / Industrial PC → EtherCAT or CAN FD → Intelligent Integrated Drive → Stepper Motor
The drive can then become more than a power amplifier.
It can serve as a local motion-control node capable of handling parameter management, diagnostics, communication, and optimization functions.
This architecture can be particularly attractive for equipment manufacturers building multiple machine models.
For B2B automation equipment, product cost is important, but engineering cost is often overlooked.
A motor may have a low unit price but still generate substantial development costs if engineers need many hours to:
l Test different current values
l Adjust microstepping
l Investigate resonance
l Change acceleration profiles
l Repeat tests under different loads
l Debug field failures
l Update firmware manually
l Maintain multiple parameter versions
An intelligent motion-control solution can potentially reduce these hidden costs.
The overall value can therefore be considered as:
Motor Cost + Drive Cost + Engineering Cost + Commissioning Cost + Maintenance Cost
rather than simply comparing the purchase price of the motor.
This is one reason a domestically developed drive solution can be attractive for cost-sensitive automation applications.

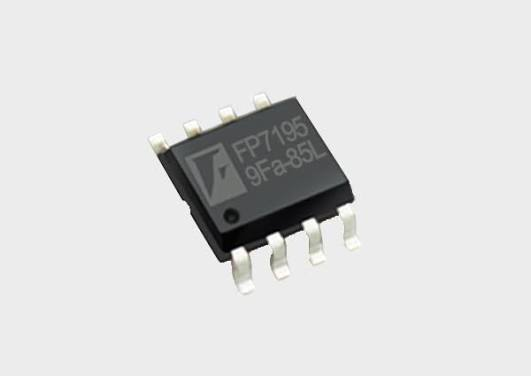

The use of domestically developed drive-chip solutions can provide another option for OEM equipment manufacturers.
Depending on the product architecture and supply chain, a domestic drive-chip solution may offer advantages in:
l Supply-chain flexibility
l Cost control
l Product customization
l Local technical support
l Long-term product planning
l Alternative component sourcing
For high-volume automation equipment, these factors can become important during product lifecycle management.
However, chip origin alone should not be treated as a guarantee of performance.
For procurement and engineering teams, the more meaningful evaluation criteria include:
l Motor-drive compatibility
l Current capability
l Control resolution
l Communication stability
l Thermal performance
l EMC performance
l Firmware capability
l Reliability testing
l Supply continuity
l Technical support
l Total system cost
A domestic drive-chip architecture can therefore be considered as a high-value alternative, particularly when the manufacturer can provide appropriate motor matching, firmware support, and system-level integration.
Before selecting an AI motion control stepper motor system, engineers should define the application requirements.
Evaluate:
l Load torque
l Linear load
l Friction
l Inertia
l Transmission ratio
l Vertical or horizontal movement
l External disturbances
The required operating speed and acceleration directly influence the motor's available torque.
Do not select a motor based only on holding torque.
The actual torque-speed performance should be considered.
For compact equipment, a mini stepper motor or miniature stepper motor may provide the required installation flexibility.
However, the smallest available motor is not necessarily the best choice.
The motor should provide sufficient torque and thermal margin under the real operating cycle.
Choose the communication architecture according to the machine controller.
For high-speed synchronized multi-axis automation, EtherCAT may be appropriate.
For distributed compact systems, CAN FD may provide a practical alternative.
Useful functions may include:
l Automatic parameter matching
l Vibration reduction
l Current optimization
l Fault diagnosis
l Parameter storage
l OTA firmware updates
l Operating-data collection
l Maintenance alerts
The final evaluation should be performed under the actual mechanical load.
Test:
l Starting
l Acceleration
l Deceleration
l Continuous operation
l Repeated positioning
l Temperature rise
l Noise
l Vibration
l Maximum load
l Long-duration operation
This is more reliable than evaluating the stepper motor alone.
AI-assisted stepper motor solutions are particularly suitable when the application has one or more of the following characteristics:
l Multiple motion axes
l Frequent machine model changes
l Repetitive commissioning
l Strict vibration requirements
l Limited engineering resources
l Remote equipment deployment
l Long equipment service life
l High maintenance costs
l EtherCAT or CAN FD requirements
l Compact mechanical design

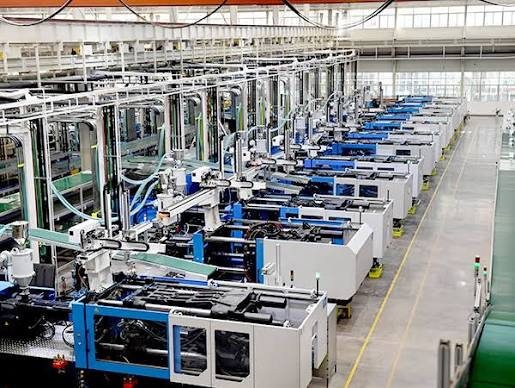

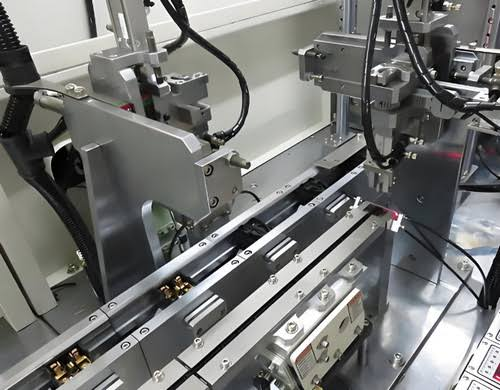

Potential applications include industrial automation, inspection equipment, robotic mechanisms, laboratory instruments, compact medical devices, semiconductor equipment, packaging machinery, and other precision motion systems.
Stepper motors remain an attractive solution for many automation applications because they combine controlled motion, simple positioning, compact size, and cost efficiency.
However, traditional manual tuning can become a bottleneck as machines become more complex.
Engineers may spend significant time adjusting current, microstepping, acceleration, and vibration parameters to achieve stable operation. Resonance, excessive vibration, and unexpected missed steps can further increase commissioning and maintenance costs.
An AI motion control stepper motor solution provides a different approach.
By combining intelligent parameter matching, vibration optimization, integrated EtherCAT or CAN FD communication, OTA updates, and operating-data analysis, the motor-drive system can become a more intelligent part of the automation architecture.
For applications using a mini stepper motor or miniature stepper motor, intelligent tuning can be especially valuable because compact motors often operate within tighter torque and thermal margins.
At the same time, domestically developed drive-chip solutions can provide an additional option for OEMs looking for supply-chain flexibility and a cost-effective alternative.
The goal is not to replace engineers with AI. The goal is to remove repetitive parameter testing, shorten commissioning time, improve motion stability, and give engineers better tools for designing reliable equipment.
If you are developing an automation machine that requires a stepper motor, AI motion control, EtherCAT/CAN FD communication, or an integrated intelligent drive, a customized motor-drive solution can be evaluated according to your load, speed, torque, installation space, communication protocol, and operating cycle.
Contact our engineering team to discuss your application requirements and find a suitable stepper motor and intelligent drive configuration for your equipment.
