Underwater equipment operates in one of the most demanding environments for electric motors. Unlike motors used in dry industrial machinery, an underwater motor must continue to operate reliably while exposed to water pressure, corrosion, water ingress, temperature changes, and potentially marine organisms.
For subsea equipment manufacturers, these challenges become even more significant as operating depth increases. Water pressure rises with depth, while saltwater can accelerate corrosion of metal components and electrical connections. In long-term installations, biofouling can also affect moving parts, cooling surfaces, seals, and mechanical interfaces.
A conventional motor is generally not designed for these conditions. Even a motor with a high IP rating should not automatically be considered suitable for continuous underwater operation. Subsea applications require an integrated approach to sealing, pressure resistance, materials, insulation, thermal management, and mechanical design.
Depending on the application, different motor technologies may be appropriate. Subsea brushless motors are widely considered for underwater propulsion, while a waterproof stepper motor can be useful for controlled positioning and adjustment. Servo motors provide feedback-based precision for robotic mechanisms, while submersible induction motors are commonly associated with larger pumping and water-handling equipment.
This guide explains the major types of underwater motors, their technical requirements, typical applications, and the factors engineers should evaluate when selecting a motor for an underwater project.
There is no single motor technology suitable for every underwater application. The correct choice depends on required speed, torque, positioning accuracy, operating depth, duty cycle, environmental conditions, and mechanical load.

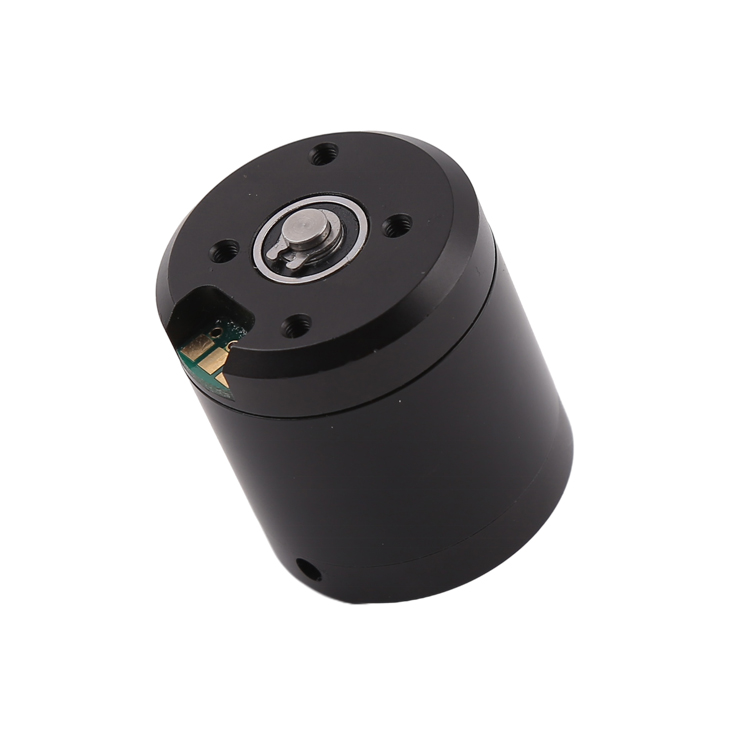

An underwater brushless DC motor is a common choice for applications requiring continuous rotation and efficient propulsion.
Brushless motors eliminate mechanical brushes and commutators, reducing wear associated with traditional brushed motor designs. Combined with appropriate sealing or pressure-resistant construction, they can be engineered for demanding subsea environments.
One of their most important applications is underwater propulsion.

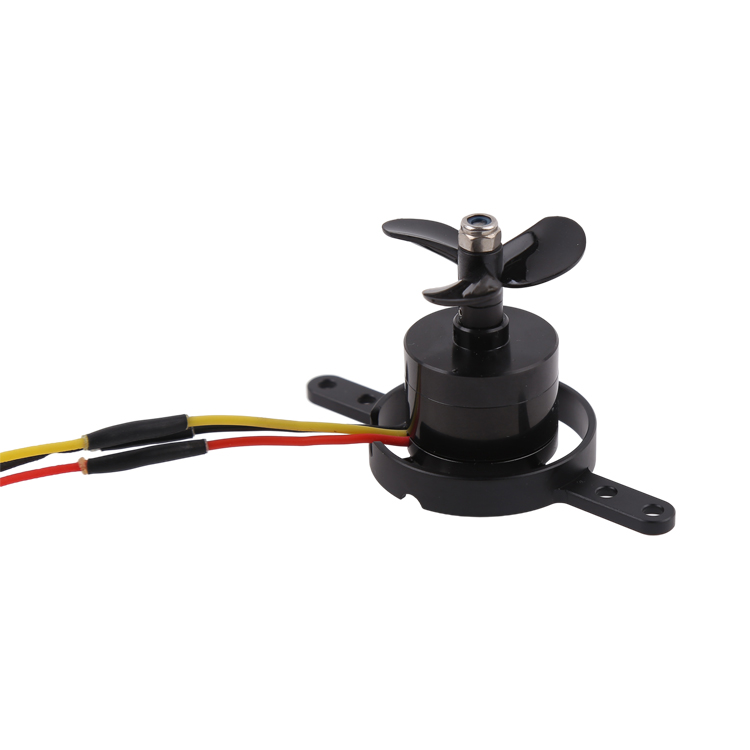

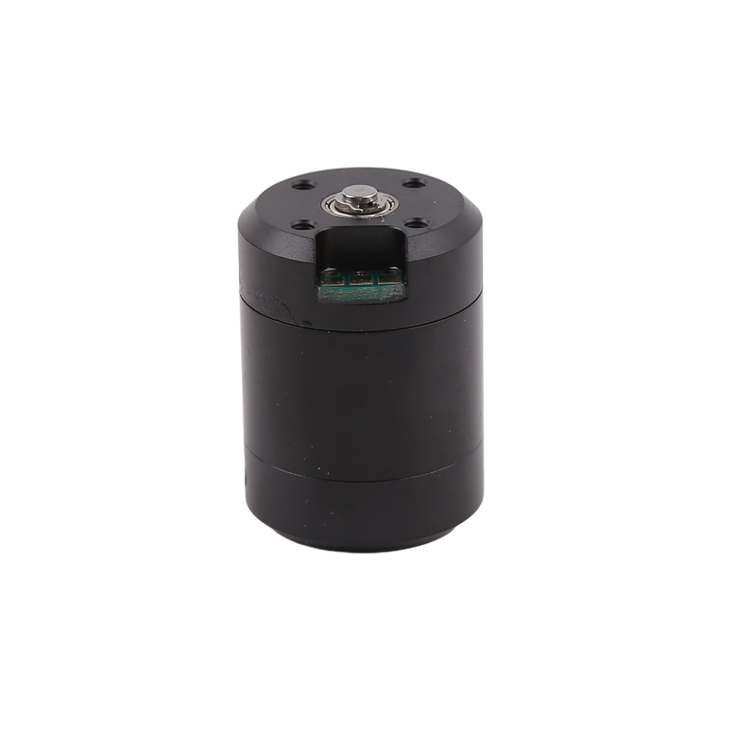

An underwater thruster motor may drive a propeller or ducted thruster to generate thrust for an ROV, AUV, inspection vehicle, or other marine platform.
Typical advantages include:
For propulsion systems, engineers should evaluate the motor together with the propeller, ESC, housing, cooling system, and vehicle hydrodynamics.
A waterproof stepper motor is designed for applications where controlled incremental movement is more important than high-speed continuous rotation.
Stepper motors can be commanded through electrical pulses, allowing the control system to specify a defined number of steps. When combined with a suitable screw, gear, or other transmission mechanism, they can provide controlled linear or rotary positioning.
Potential underwater applications include:
However, “waterproof” should not be treated as a sufficient specification by itself. Engineers should confirm the actual depth rating, sealing structure, pressure resistance, materials, and expected operating conditions.
For precision subsea mechanisms, a stepper motor may be particularly attractive when the system requires repeatable movement but does not necessarily need the complexity of a closed-loop servo system.
An underwater servo motor is designed for applications where closed-loop positioning and dynamic control are important.
Servo systems typically use position or other feedback to continuously monitor motor behavior. This makes them useful for robotic arms, manipulators, underwater tools, and mechanisms where the exact position of the output shaft is critical.
Typical applications include:
Compared with a basic stepper system, a servo solution can offer more sophisticated feedback and dynamic control, but the complete system may also involve higher electronic and mechanical complexity.
Submersible induction motors are generally associated with larger-scale water-handling and pumping applications.
They can be used in systems where the primary requirement is continuous mechanical power rather than fine positioning.
Typical applications include:
For high-power applications, motor efficiency, cooling, insulation, mechanical protection, and continuous-duty capability become particularly important.
An underwater motor needs more than a sealed enclosure. Its design must address electrical, mechanical, thermal, and environmental requirements simultaneously.
Water ingress is one of the most obvious risks.
Seals, O-rings, connectors, cable interfaces, shafts, and housing joints all need to be considered. A small leakage path can allow water to reach bearings, windings, magnets, or electrical connections.
The sealing strategy should match the expected operating depth and pressure.
Importantly, an IP rating describes protection under specified test conditions, but an IP rating alone does not define how a motor will perform during continuous operation at a particular underwater depth.
Water pressure increases as depth increases.
A motor designed for shallow immersion may not be suitable for deep-sea operation. At greater depths, pressure can affect seals, housings, bearings, electrical insulation, and internal air spaces.
Depending on the design, engineers may consider:
The required depth rating should therefore be established at the beginning of the motor selection process.
Saltwater is highly corrosive to many common engineering materials.
A marine-grade motor may require appropriate material selection for:
Stainless steel, engineering plastics, specialized coatings, and other corrosion-resistant materials may be considered depending on the environment.
Material compatibility should also account for galvanic corrosion when dissimilar metals are used in the same assembly.
Noise can be an important consideration for underwater inspection, scientific research, and acoustic sensing equipment.
Mechanical vibration from a motor can be transmitted through the housing and into the surrounding water. This can potentially interfere with sensitive sensors or acoustic systems.
Motor selection should therefore consider:
For an underwater robotic actuator, reducing vibration may be just as important as reducing audible mechanical noise.
Long-term marine equipment may be exposed to algae, microorganisms, barnacles, and other marine organisms.
Biofouling can affect external surfaces, cooling structures, shafts, and mechanical interfaces.
The motor design may therefore need to consider:
The appropriate strategy depends on whether the motor operates temporarily, intermittently, or continuously underwater.
Energy efficiency is particularly important for battery-powered underwater vehicles.
An ROV or AUV has limited available energy, so unnecessary motor losses can reduce operating time.
Motor efficiency should be evaluated across the actual operating range rather than based only on a nominal efficiency figure.
Thermal management is also critical because underwater operation does not automatically guarantee adequate cooling. The housing, surrounding water, internal construction, and operating conditions all affect heat dissipation.
Replacing an underwater motor can be expensive and difficult, especially when the equipment is deployed at depth.
A reliable subsea motor should therefore be evaluated for:
For commercial marine equipment, lifecycle cost can be more important than the initial motor price.
Underwater motors are used across robotics, marine engineering, aquaculture, inspection, and water infrastructure.
ROVs and AUVs require reliable propulsion to move through water and maintain their desired position.
An underwater thruster motor can drive a propeller or other propulsion system.
ROV propulsion typically requires controllable thrust in multiple directions, while AUVs may prioritize efficiency and long-duration operation.
Key selection parameters include:
The motor should always be matched with the complete propulsion system rather than evaluated independently.
Underwater robotic arms require controlled movement to inspect, manipulate, or retrieve objects.
An underwater robotic actuator can be used to drive joints, grippers, valves, or other mechanisms.
Depending on the application, engineers may select a stepper, servo, or brushless motor.
Precision robotic applications may prioritize:
For relatively simple positioning functions, a waterproof stepper motor can be a practical option. More complex multi-axis manipulators may benefit from closed-loop servo control.
Aquaculture systems operate continuously in freshwater, brackish water, or seawater environments.
Motors may be used for:
For long-term installations, corrosion resistance and service life are particularly important.
A marine grade motor should be selected according to the actual water chemistry, immersion conditions, operating duration, and maintenance requirements.
Marine surveying equipment often integrates cameras, sonar, sensors, lights, and other instruments.
Small motors can adjust sensor orientation, deploy equipment, control mechanical covers, or position optical components.
In these systems, low vibration and accurate positioning can be important because mechanical movement should not compromise sensor performance.
Motorized adjustment can also reduce the need for manual intervention during underwater missions.
Subsea pipelines and water-handling systems may require automated valve control.
A motorized actuator can rotate or linearly move a valve according to system requirements.
Engineers should consider:
A stepper-based actuator may be suitable for controlled positioning applications, while larger valves may require high-torque servo or other actuator technologies.
Water-management systems often require motors capable of operating in wet or submerged environments.
Applications can include:
For these applications, continuous-duty capability, pressure resistance, corrosion protection, and reliability are usually more important than extremely precise positioning.
Selecting an underwater motor should begin with the actual environmental and mechanical requirements.
Define the maximum operating depth before selecting the motor.
Consider both:
Do not assume that a motor suitable for splash-proof or shallow-water applications will perform reliably at greater depths.
Review the complete sealing and pressure-protection design.
Ask the supplier for information regarding:
The material requirements depend on whether the motor operates in:
Saltwater applications generally require greater attention to corrosion resistance.
Determine whether the motor will drive:
Different loads require different combinations of torque, speed, and control.
A motor used for a few minutes intermittently has different requirements from one expected to operate continuously for hours or days.
Define the duty cycle clearly:
This affects thermal design, bearing life, insulation, and overall reliability.
This distinction should be communicated to the motor manufacturer early in the design process.
Saltwater environments can impose additional requirements for:
Finally, do not select the motor based only on rated power.
The complete system should be considered, including:
l Motor
l Driver
l Controller
l Housing
l Seals
l Bearings
l Transmission
l Propeller or load
l Electrical connectors
A properly matched system is more likely to deliver stable long-term performance.
Generally, a conventional motor designed for dry operation should not be directly immersed in water. Underwater operation requires appropriate sealing, insulation, corrosion protection, pressure resistance, and environmental validation.
A subsea brushless motor is generally better suited to continuous rotation and propulsion, while a waterproof stepper motor is more suitable for controlled positioning and incremental movement. The best choice depends on the application's torque, speed, positioning, and environmental requirements.
Not necessarily. IP ratings indicate protection against specified ingress conditions, but they should not automatically be interpreted as a deep-water pressure rating. For subsea applications, the required operating depth and pressure rating should be confirmed with the manufacturer.
For ROV propulsion, a properly engineered brushless motor and thruster system is commonly considered because it supports continuous rotation and efficient thrust generation. The final selection depends on required thrust, depth, vehicle size, power supply, and mission duration.
Yes. Depending on the manufacturer and application, customization may include motor dimensions, winding characteristics, voltage, torque, speed, shaft configuration, sealing structure, materials, connectors, transmission components, and depth requirements. Providing detailed application parameters early can help engineers develop a more suitable solution.
Selecting an underwater motor is fundamentally different from selecting a conventional industrial motor. Water ingress, pressure, corrosion, temperature, biofouling, vibration, and long-term reliability all need to be considered as part of the overall system design.
For propulsion, a subsea brushless motor or underwater thruster motor can provide efficient continuous rotation. For precision positioning, a waterproof stepper motor can offer controlled incremental movement. Servo motors are valuable for feedback-based robotic operation, while submersible induction motors can support larger pumping and water-handling systems.
The most suitable motor depends on the project's operating depth, water type, load, duty cycle, required speed, torque, positioning accuracy, and mechanical structure.
For ROV/AUV manufacturers, underwater robotics companies, aquaculture equipment designers, marine technology developers, and subsea engineering contractors, selecting the motor early in the design process can help reduce integration risks and improve long-term equipment reliability.
If you are developing an underwater robot, marine actuator, aquaculture system, subsea inspection device, or other submerged equipment, contact our engineering team for a customized underwater motor solution. We can help evaluate your operating environment and match key technical parameters such as torque, speed, voltage, dimensions, sealing requirements, materials, and duty cycle.
