Geared Stepper Motor: Compact Micro Motor for HVAC and Smart Home

A geared stepper motor is often a practical solution when a product needs controlled low-speed movement, sufficient output torque, and limited installation space. In HVAC systems and smart home equipment, these requirements appear in applications such as air-conditioner louvers, ventilation dampers, smart valves, shutters, air purifiers, and compact actuators.

Unlike a conventional stepper motor, a geared design integrates a reduction gearbox with the motor. The gearbox reduces output speed while increasing usable torque at the output shaft. This makes the motor suitable for mechanisms that do not require high rotational speed but do require repeatable positioning.

Many compact BYJ-type motors use permanent magnet stepper motor technology combined with an integrated gear train. This configuration is widely used in appliances, HVAC actuators, and compact automation because it provides controlled movement without requiring a large motor package.

For engineers selecting a motor for an HVAC or smart-home product, the important question is not simply "How small is the motor?" It is whether the motor can provide the required output torque, speed, positioning resolution, electrical compatibility, noise performance, and service life within the available space.

What Is a Geared Stepper Motor?

A geared stepper motor combines two functional elements:

A stepper motor that converts electrical pulses into controlled angular movement

A reduction gearbox that decreases rotational speed and increases output torque

A typical micro geared stepper motor therefore operates differently from a high-speed motor. The motor itself may rotate relatively quickly, while the gearbox produces slower movement at the output shaft.

This is particularly useful when the driven mechanism only needs to move a few degrees or rotate slowly.

For example, an HVAC louver may need to move from one airflow direction to another rather than continuously rotate at hundreds or thousands of RPM. A geared stepper motor can translate controlled electrical pulses into this type of mechanical movement.

The basic relationship can be expressed as:

Output speed

The actual output torque depends on the motor torque, gear ratio, transmission efficiency, operating conditions, and allowable duty cycle.

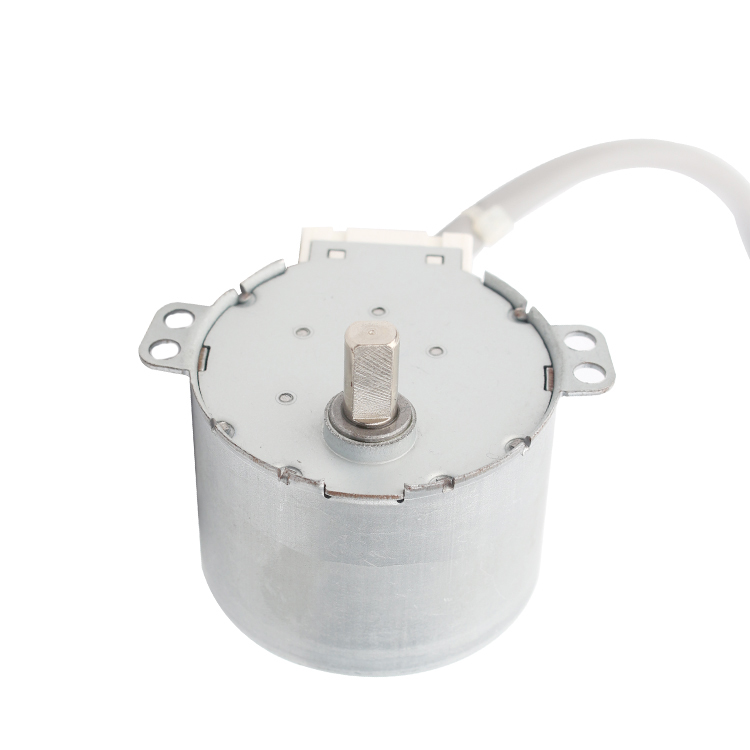

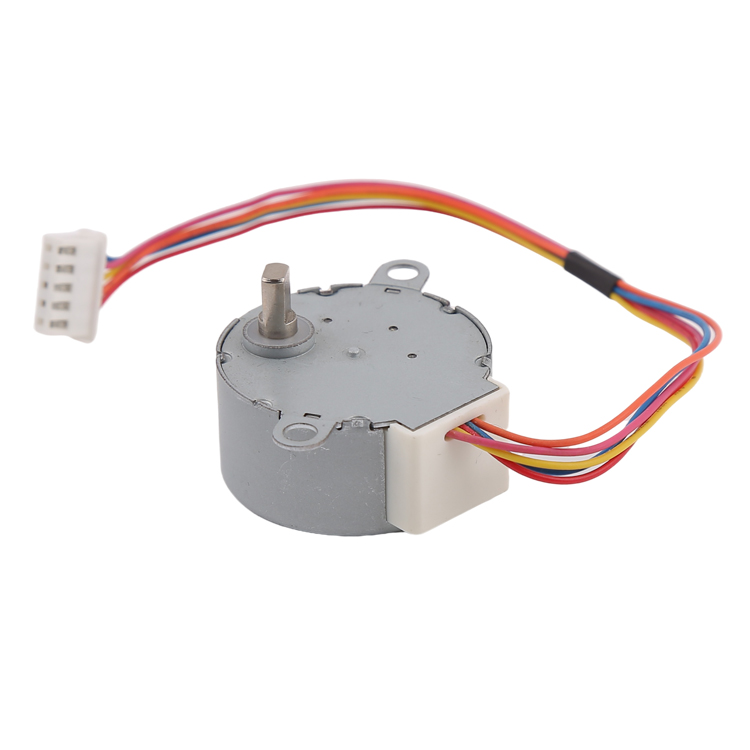

Common BYJ configurations demonstrate this approach. For example, some 24BYJ48 variants use a 1:64 reduction ratio and a 5.625° motor step angle, although specifications vary between models and manufacturers.

Why Use a Micro Permanent Magnet Stepper Motor?

A micro permanent magnet stepper motor is useful when the available installation space is limited but the mechanism still requires controlled positioning.

The permanent magnet rotor structure allows the motor to produce stepping action without the larger mechanical structure associated with some other motor technologies.

When combined with a gearbox, the motor becomes especially suitable for low-speed actuator applications.

Typical advantages include:

Compact motor dimensions

Controlled step-by-step movement

Low output speed after gear reduction

Higher usable output torque

Simple open-loop control in suitable applications

Good repeatability for fixed-position mechanisms

Easy integration into appliance control systems

Multiple voltage, wiring, shaft, and gear-ratio options

The important point for engineers is that "micro" does not automatically mean "low torque." The gearbox changes the relationship between motor size, speed, and output torque.

However, the gearbox also introduces considerations such as backlash, transmission efficiency, gear noise, and mechanical wear. Therefore, motor selection should always be based on the complete actuator mechanism rather than motor size alone.

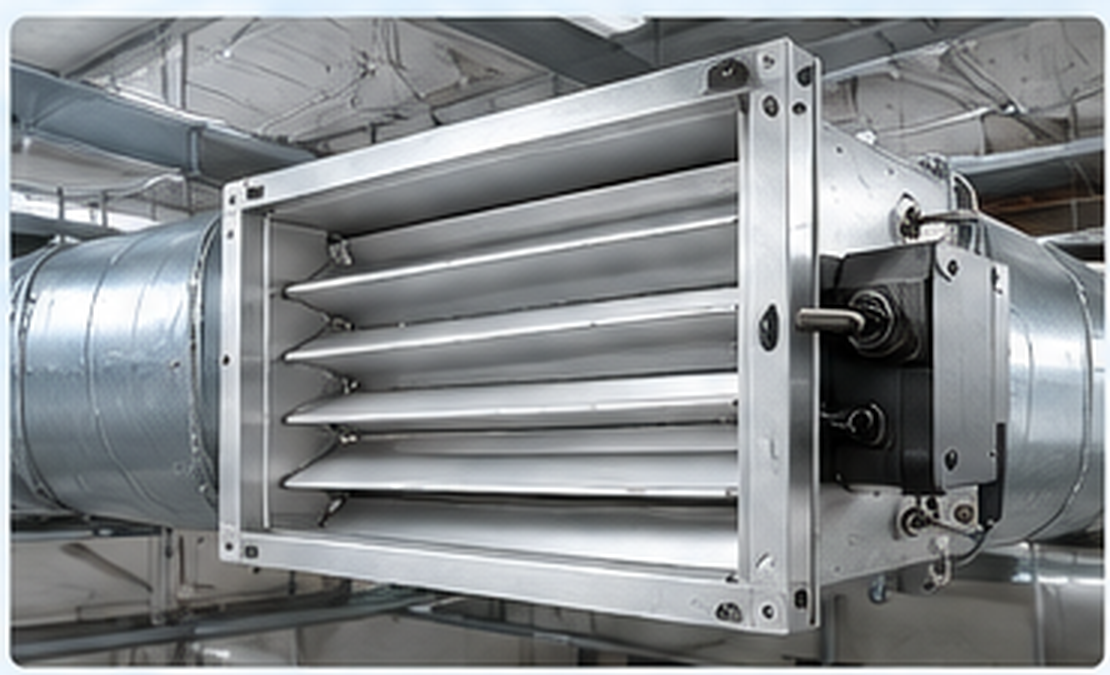

Geared Stepper Motor for HVAC Damper and Louver Control

HVAC is one of the most practical applications for small geared stepper motors.

Air conditioners, ventilation systems, and air-handling equipment frequently require controlled adjustment of:

Air-conditioning louvers

Horizontal and vertical swing blades

Fresh-air dampers

Ventilation dampers

Small airflow valves

Air distribution mechanisms

Compact VAV-related mechanisms

A motor used in these applications usually does not need high speed. Instead, engineers typically prioritize controlled angular movement, adequate torque, compact installation, low noise, and reliable repeated operation.

HVAC stepper motor systems are also well established in motor-control reference designs. Texas Instruments, for example, provides a stepper motor reference design specifically for HVAC louver and motor control, illustrating the suitability of stepper technology for automated airflow mechanisms.

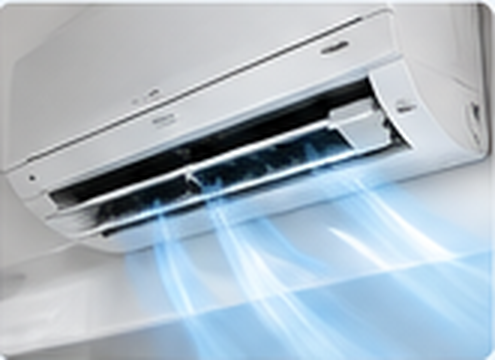

Example: Air Conditioner Louver

Consider a motor driving an air-conditioner louver.

The mechanical requirements may include:

1. Rotate the louver through a defined angular range.

2. Stop at multiple positions.

3. Maintain sufficient torque against airflow and mechanical resistance.

4. Operate repeatedly during the product's service life.

5. Fit into a compact plastic housing.

6. Produce acceptable noise in a residential environment.

A geared permanent magnet stepper motor can address these requirements by combining step control with mechanical reduction.

Some commercially available 24BYJ48 configurations, for example, specify 12 V operation, 4 phases, 1:64 reduction, and a 5.625° motor step angle. Other versions use different voltage, resistance, torque, or speed specifications, so the exact model must be selected from its datasheet rather than assumed from the BYJ name alone.

Applications in Smart Home Devices

The same motion requirements found in HVAC systems are increasingly present in smart home products.

A smart home mechanism may need to move slowly, accurately, and quietly while occupying only a small amount of internal space.

Typical applications include:

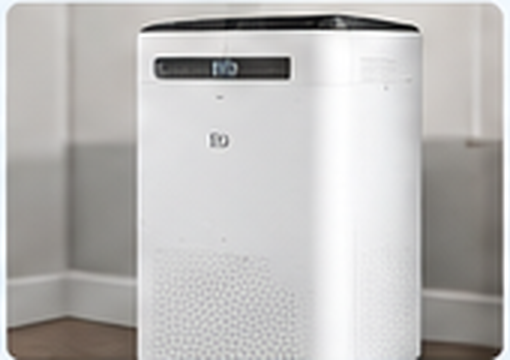

Smart Air Purifiers

A compact motor can adjust airflow direction, shutters, or internal air-routing components.

Smart Ventilation

Motorized vents can use controlled positioning to regulate airflow between rooms or zones.

Smart Blinds and Shutters

A geared motor can provide low-speed movement for opening, closing, or tilting mechanisms.

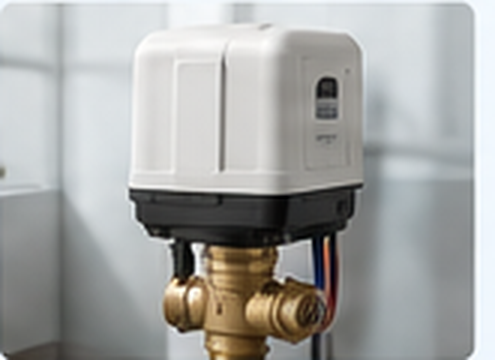

Smart Valves

Small valves may require repeatable rotational movement rather than continuous high-speed rotation.

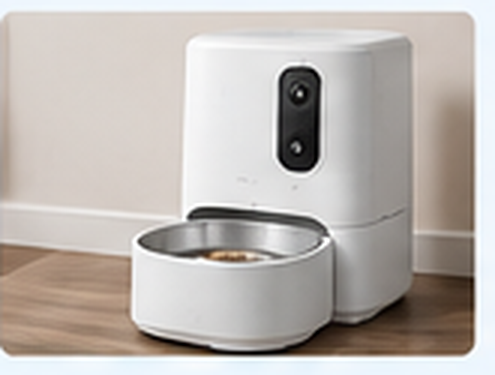

Smart Pet Feeders

Controlled low-speed rotation can regulate the movement of dispensing mechanisms. BYJ geared stepper motors are also used in compact dispensing applications where controlled rotation and torque are required.

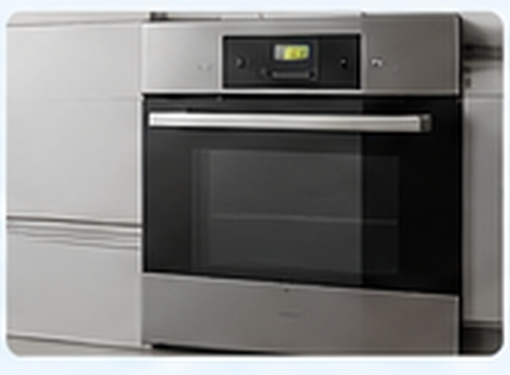

Small Consumer Appliances

Compact permanent magnet stepper motors can also be considered for dampers, shutters, vents, switches, and other mechanisms where the motor has to fit into a restricted enclosure.

Geared Stepper Motor vs. Standard Stepper Motor

The main difference is the mechanical transmission between the motor and the output shaft.

The choice depends on the mechanism.

If the application requires high speed and direct shaft motion, a standard stepper may be preferable. If the application requires slow movement and higher output torque from a compact package, a geared stepper motor can be more appropriate.

How to Select a Micro Geared Stepper Motor

Motor selection should begin with the load rather than the motor model.

1. Determine Required Output Torque

Calculate the torque required to move the actual mechanism.

Consider:

Mechanical friction

Spring force

Airflow resistance

Valve or damper load

Gear or linkage resistance

Starting torque

Required safety margin

Do not select a motor only according to its holding torque. The motor must also provide sufficient dynamic torque at the required operating speed.

2. Select the Gear Ratio

The gear ratio affects both speed and torque.

A higher reduction ratio generally produces:

Lower output speed

Higher theoretical output torque

Finer output movement per motor step

However, a high gear ratio may also increase transmission losses and affect mechanical response.

For example, 24BYJ48 products commonly use a 1:64 reduction ratio, while other BYJ families can use different reduction ratios.

3. Check Output Speed

Calculate the actual speed required by the mechanism.

For an HVAC louver, the motor may only need to complete a defined angular movement within several seconds. Selecting a motor simply because it has a higher RPM rating does not necessarily improve the system.

The correct question is:

Can the motor move the required load through the required angle within the required time?

4. Check Step Angle and Resolution

The step angle determines the motor's basic angular movement before considering gear reduction.

A smaller effective output movement per electrical step can be useful for applications requiring controlled positioning.

For example, some 24BYJ48 models specify a 5.625° motor step angle with a 1:64 reduction ratio.

However, actual positioning accuracy also depends on:

Gear backlash

Load variation

Friction

Driver method

Mechanical tolerances

Rotor and gear alignment

Therefore, step angle should not be treated as the same thing as absolute positioning accuracy.

Key Parameters Engineers Should Compare

When comparing different micro permanent magnet stepper motors, use the following parameters instead of comparing motor names alone.

Permanent Magnet Stepper Motor vs. Other Small Motor Types

A permanent magnet stepper motor is not the best choice for every application.

Engineers should compare the motor against the actual control and load requirements.

For simple repeated positioning, a geared stepper can reduce system complexity because the controller can command movement using step pulses.

For applications where absolute position must be guaranteed after external mechanical disturbance, however, an encoder or other feedback system may be necessary.

Electrical and Mechanical Integration

Selecting the motor is only one part of the design.

Engineers should also check the complete motor-control interface.

Important electrical parameters include:

Rated voltage

Coil resistance

Phase configuration

Rated current

Drive sequence

Pull-in frequency

Pull-out frequency

Driver voltage and current capability

Mechanical integration should include:

Mounting hole position

Motor body diameter

Overall motor height

Output shaft diameter

Shaft length

Shaft profile

Gearbox orientation

Connector location

Cable length

This is particularly important when replacing an existing HVAC motor.

A replacement should not be selected only by voltage and external appearance. Shaft dimensions, connector, wiring, mounting dimensions, and gear ratio can all affect compatibility.

Noise and Reliability in Smart Home Applications

Noise becomes more important as motors move closer to the user.

An HVAC actuator may operate in a bedroom, living room, office, or other environment where repeated clicking, gear noise, or vibration can be noticeable.

For this reason, engineers should evaluate:

Gear tooth design

Gear material

Bearing structure

Motor excitation method

Operating speed

Mechanical vibration

Housing resonance

The motor should also be tested under the actual load rather than only under no-load conditions.

A compact motor that sounds acceptable on a test bench may behave differently after installation into a plastic HVAC housing.

When Should You Choose a BYJ Geared Stepper Motor?

A BYJ-type geared stepper motor is worth considering when the application has most of the following characteristics:

Low output speed

Controlled angular movement

Moderate output torque

Compact installation space

Repeated positioning

Simple step-based control

Cost-sensitive high-volume production

HVAC or household appliance environment

BYJ products are available in different frame sizes, voltage configurations, gear ratios, torque ranges, and mechanical configurations. Current product examples show applications ranging from HVAC louvers and dampers to smart appliances and small automation mechanisms.

The exact specification should always be matched to the application's load, movement time, duty cycle, and environmental conditions.

OEM Customization for Micro Geared Stepper Motors

For OEM products, an off-the-shelf motor is not always the best solution.

A custom micro permanent magnet stepper motor may be considered when the standard model does not match the product's mechanical or electrical requirements.

Potential customization areas include:

Motor diameter

Motor height

Gear ratio

Output torque

Output speed

Shaft dimensions

Shaft shape

Cable length

Connector type

Rated voltage

Coil resistance

Mounting structure

Gearbox configuration

For example, a smart-home manufacturer may need a motor that fits a specific plastic housing while maintaining a defined louver movement time and output torque. In that situation, optimizing the motor and gearbox as one actuator can be more effective than modifying the surrounding mechanism.

Key Takeaways

A geared stepper motor combines controlled step motion with mechanical speed reduction.

A micro permanent magnet stepper motor is well suited to compact positioning mechanisms where space and low-speed control are important.

HVAC louvers, dampers, smart valves, shutters, air purifiers, and other smart-home mechanisms are practical applications.

Gear ratio directly affects the relationship between output speed and torque.

Step angle should not be confused with absolute positioning accuracy because backlash and mechanical tolerances also matter.

Engineers should compare torque, speed, voltage, phase configuration, gear ratio, shaft dimensions, noise, life, and mounting requirements.

BYJ specifications vary significantly by model, so engineers should always check the actual datasheet before selecting a motor.

For OEM products, customized gear ratio, shaft, voltage, wiring, mounting, and output characteristics can help improve mechanical integration.

FAQ

1. What is a geared stepper motor?

A geared stepper motor combines a stepper motor with an integrated reduction gearbox. The gearbox reduces output speed and increases usable output torque, making the motor suitable for compact, low-speed positioning applications.

2. What is a micro permanent magnet stepper motor used for?

A micro permanent magnet stepper motor is commonly used for compact mechanisms that require controlled movement. Typical applications include HVAC louvers, dampers, small valves, smart appliances, shutters, and other low-speed actuators.

3. Why are BYJ motors commonly used for HVAC louvers?

BYJ motors combine permanent magnet stepper technology with gear reduction, providing controlled low-speed movement and increased output torque in a compact package. These characteristics fit the movement requirements of HVAC louver and damper mechanisms.

4. How do I choose the correct gear ratio?

Start with the required output speed and torque. A higher reduction ratio generally provides lower speed and higher torque, but the gearbox can also introduce transmission losses and backlash. The correct ratio should therefore be selected according to the actual mechanism rather than choosing the highest available reduction.

5. Is a geared stepper motor better than a DC gear motor?

Neither is universally better. A geared stepper motor is advantageous when controlled, repeatable positioning is important. A DC gear motor may be preferable for simpler continuous rotation or when closed-loop feedback is already available elsewhere in the system.

6. Can a micro geared stepper motor be customized for OEM applications?

Yes. Depending on the manufacturer, customization may include the gear ratio, shaft, mounting dimensions, voltage, winding, connector, cable, output speed, and torque. For high-volume HVAC or smart-home products, customization can help match the motor to the available mechanical space and required operating cycle.
