Ocean exploration equipment must operate reliably in environments where conventional electric motors face continuous exposure to seawater, pressure, moisture, temperature variation, and mechanical loads. For ROVs, underwater survey systems, sampling equipment, and observation platforms, a motor failure can interrupt an entire mission and create significant recovery, maintenance, and replacement costs.
For this reason, selecting a long service life underwater motor is an important part of marine equipment design. An underwater thruster motor must not only generate sufficient propulsion force but also maintain stable performance throughout the expected operating period. Sealing, corrosion resistance, pressure tolerance, thermal management, bearing durability, and load matching all influence the actual service life of the motor.
Ocean exploration projects can also have very different operating requirements. A shallow-water monitoring device may operate intermittently, while an ROV or autonomous platform may require continuous propulsion for hours. Deep-sea equipment can introduce another level of difficulty because hydrostatic pressure increases substantially with depth.
A properly engineered ocean exploration device motor therefore needs to be evaluated as part of the complete propulsion system. This includes the motor, propeller or thruster, controller, housing, seals, bearings, electrical connections, and mechanical mounting structure.
This article explains what makes underwater thruster motors demanding for ocean exploration, which technical features contribute to long operating life, how to evaluate service life, and what common failures engineers should prevent during the design stage.
An underwater propulsion motor operates in an environment fundamentally different from that of a conventional industrial motor. The surrounding water can influence mechanical components, materials, electrical insulation, thermal performance, and sealing systems simultaneously.
For ocean exploration equipment, the most important environmental challenges generally include seawater corrosion, continuous operation, and deep-water pressure.
Seawater is a particularly challenging environment for mechanical and electrical equipment.
Salt and dissolved minerals can accelerate corrosion of unsuitable metals. Even components that are not directly part of the electrical circuit can become potential sources of long-term reliability problems.
For a seawater resistant thruster motor, engineers should evaluate the compatibility of materials used in:
Motor housing
l Shaft
l Bearings
l Fasteners
l Connectors
l Mounting components
l Sealing components
l Protective coatings
Material selection should also consider galvanic corrosion. When dissimilar metals are placed in an electrically conductive seawater environment, electrochemical reactions can accelerate deterioration.
Therefore, corrosion resistance should not be evaluated only by looking at the motor housing. The complete motor assembly and its interfaces should be considered.
For long-term ocean exploration projects, appropriate material selection can reduce maintenance requirements and help preserve mechanical tolerances throughout the equipment's operating life.
Ocean exploration equipment may need to operate continuously for extended periods.
An ROV may remain underwater throughout an inspection mission, while an autonomous platform can operate for long periods without direct intervention. A motor that performs well during a short laboratory test may not provide the same reliability under continuous load.
Long-duration operation places greater demands on:
l Bearings
l Windings
l Magnets
l Shaft seals
l Mechanical transmission
l Motor controller
l Electrical connections
Thermal performance is also important. Electrical losses generate heat inside the motor, and the actual temperature depends on current, load, motor efficiency, ambient water temperature, housing design, and operating conditions.
For this reason, service-life evaluation should consider the expected duty cycle rather than focusing only on peak motor specifications.
A durable underwater motor should be matched to the real operating conditions of the application, including continuous torque, operating speed, mission duration, and expected start-stop frequency.
As underwater equipment moves deeper, hydrostatic pressure increases.
A motor suitable for shallow immersion cannot automatically be considered suitable for deep-sea operation. Pressure can affect housing structures, seals, bearings, electrical insulation, connectors, and internal spaces.
A deep-sea thruster motor therefore requires careful consideration of its pressure environment.
Engineers should define:
l Normal operating depth
l Maximum operating depth
l Expected pressure
l Pressure cycling frequency
l Continuous operating time at depth
l Descent and ascent conditions
Depending on the application, pressure-resistant housing, specialized sealing, pressure compensation, or other design approaches may be required.
The important point is that waterproofing and pressure resistance are related but not identical requirements. A motor can resist water ingress under one condition without being designed for continuous operation under high hydrostatic pressure.
The service life of an underwater motor is influenced by multiple design factors. There is no single component that guarantees long-term reliability.
A reliable long service life underwater motor combines environmental protection with appropriate electromagnetic, mechanical, and thermal design.
Sealing is one of the most critical elements in underwater motor design.
A motor may have excellent electrical performance, but water ingress can quickly compromise the system if the sealing structure is inadequate.
Potential water-entry points include:
l Shaft interfaces
l Housing joints
l Cable exits
l Electrical connectors
l End covers
l Bearing areas
l Fastening interfaces
The sealing system should be designed around the expected depth, pressure, shaft speed, temperature, and service life.
Dynamic seals deserve particular attention because the shaft rotates continuously during propulsion. Seal wear, friction, pressure differences, and
shaft surface conditions can influence long-term performance.
For high-reliability equipment, engineers should evaluate sealing performance under realistic operating conditions rather than relying solely on an initial dry or shallow-water test.
Corrosion protection should be considered from the earliest stage of motor design.
Depending on the application, possible approaches include:
l Corrosion-resistant metal selection
l Protective coatings
l Appropriate surface treatment
l Seawater-compatible fasteners
l Isolated dissimilar metals
l Protected electrical interfaces
For a seawater resistant thruster motor, the material strategy should match the actual water chemistry and expected exposure duration.
Short-term deployment, intermittent operation, and permanent underwater installation may require different approaches.

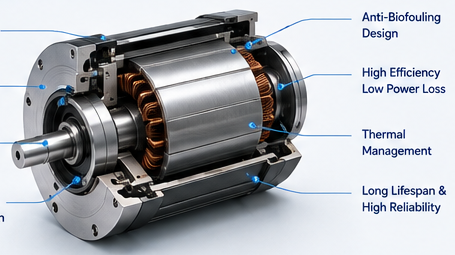

Internal motor construction directly affects reliability.
A motor intended for long operating periods should be designed around the expected load and duty cycle rather than only its maximum output.
Important considerations include:
l Bearing selection
l Shaft strength
l Rotor balance
l Winding configuration
l Magnet protection
l Mechanical tolerances
l Lubrication requirements
l Vibration control
For propulsion applications, rotor balance and bearing performance are particularly important because continuous rotation can amplify mechanical wear if the system is not properly balanced.
The motor should also be matched to the propeller load. An incorrectly sized motor may operate continuously outside its efficient operating region, resulting in unnecessary heat generation and accelerated component wear.
Thermal management is another important factor in motor lifespan.
Motor losses are converted into heat. If the heat cannot be effectively transferred away, winding temperature can increase and gradually affect insulation and other internal components.
Underwater operation can provide an effective external heat-transfer environment, but the actual cooling performance depends on the motor's construction.
Engineers should consider:
l Continuous current
l Motor efficiency
l Housing material
l Water temperature
l Water flow
l Motor mounting
l Operating speed
l Continuous duty cycle
A motor designed for short-duration peak performance should not automatically be used for a continuous-duty ocean exploration system.
Long-life underwater motors are used across many types of marine and ocean exploration equipment. The required motor characteristics vary according to the mission and mechanical system.
Underwater survey and sampling equipment may include cameras, sensors, sonar systems, manipulators, sampling tools, and positioning mechanisms.
Motors can be used for:
l Propulsion
l Sensor positioning
l Sampling mechanisms
l Camera adjustment
l Mechanical deployment
l Valve operation
l Small actuators
These applications often prioritize reliability because equipment recovery can be time-consuming and expensive.
A motorized sampling mechanism may also require controlled movement rather than high-speed rotation. In such cases, the motor should be selected according to the required force, travel, positioning accuracy, and duty cycle.

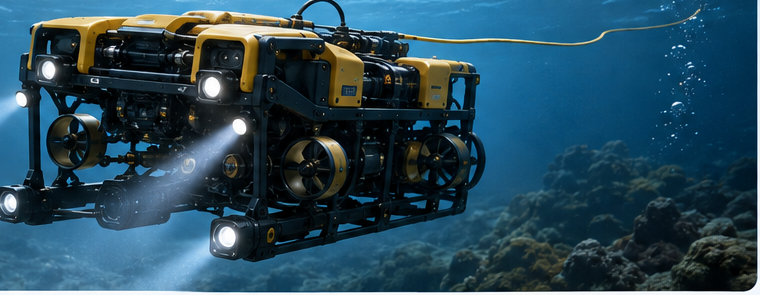

ROVs are among the most recognizable applications for underwater propulsion motors.
An ROV may use multiple thrusters to control:
l Forward and backward movement
l Vertical movement
l Lateral movement
l Rotation
l Position holding
An underwater thruster motor used in an ROV must be compatible with the required propeller and vehicle hydrodynamics.
The selection process should therefore consider the complete propulsion system rather than the motor's rated power alone.
Key parameters may include:
Parameter | Why It Matters |
Motor speed | Determines the operating range of the thruster |
Torque | Determines the motor's ability to drive the propeller |
Continuous power | Important for sustained missions |
Peak power | Useful for acceleration or temporary high-load conditions |
Operating depth | Determines pressure requirements |
Motor efficiency | Affects battery consumption |
Corrosion resistance | Important for seawater deployment |
Sealing structure | Helps prevent water ingress |
Operating temperature | Affects reliability and service life |
A reliable ROV propulsion system requires these parameters to work together.
Coastal monitoring systems may be installed in ports, marine research areas, aquaculture zones, coastal observation stations, or other underwater environments.
Depending on the design, motors can support:
l Equipment positioning
l Sensor movement
l Water circulation
l Sampling
l Camera orientation
l Protective cover operation
Unlike short-duration inspection missions, monitoring equipment may remain deployed for long periods.
This makes maintenance requirements particularly important. A motor that requires frequent removal or servicing may increase the total cost of ownership even if its initial purchase price is low.
For long-term monitoring equipment, a durable design with appropriate sealing and corrosion protection can be more valuable than maximum motor output.
Service life should be evaluated systematically rather than inferred from a single specification.
The first step is to define the environmental conditions.
Engineers should specify:
l Maximum depth
l Continuous operating depth
l Expected pressure
l Immersion duration
l Pressure cycling
l Freshwater or seawater exposure
For deep-water applications, pressure testing under representative conditions can provide valuable information about sealing and structural reliability.
A motor used in seawater should be designed around the actual marine environment.
Review:
l Housing materials
l Shaft materials
l Bearing materials
l Fasteners
l Connectors
l Coatings
l Seal materials
Material compatibility is particularly important for systems intended to remain underwater for extended periods.
A motor can have excellent specifications and still experience poor service life if it is incorrectly matched to the load.
For propulsion systems, the motor should be evaluated together with:
l Propeller diameter
l Propeller pitch
l Required thrust
l Operating speed
l Water resistance
l Vehicle size
The motor should have adequate continuous torque without being unnecessarily oversized.
For mechanical actuators, the required load should include friction, water resistance, acceleration, and any potential peak loads.
Many underwater systems benefit from reducing maintenance requirements.
Depending on the application, engineers may consider designs that minimize:
l Lubrication requirements
l Seal replacement
l Bearing maintenance
l Corrosion-related service
l Connector servicing
However, "maintenance-free" should be treated carefully. No mechanical system should be assumed to require zero maintenance under every operating condition.
Instead, the objective should be to design the motor and underwater equipment for a service interval consistent with the project's mission and maintenance capabilities.
Understanding failure modes can help engineers improve system reliability before production.
Water entering the motor can damage electrical insulation, bearings, and other internal components.
Common causes include:
l Damaged seals
l Improper assembly
l Shaft wear
l Connector leakage
l Housing deformation
l Pressure-related seal failure
Corrosion can affect both external and internal components.
Long-term seawater exposure can cause:
l Shaft corrosion
l Fastener deterioration
l Connector degradation
l Housing damage
l Bearing problems
l Loss of mechanical tolerance
Bearings experience continuous mechanical loads during propulsion.
Incorrect bearing selection, excessive radial or axial loads, contamination, poor lubrication, or misalignment can reduce service life.
Running a motor above its intended continuous operating point can increase current and heat generation.
For thruster applications, an unsuitable propeller can impose excessive load on the motor.
Engineers should therefore verify the actual operating point instead of relying only on the motor's maximum rated output.
High current, poor efficiency, restricted cooling, or excessive mechanical load can increase motor temperature.
Long-term overheating can accelerate insulation aging and reduce the expected operating life of the motor.
Imbalanced rotors, damaged bearings, misalignment, or poorly balanced propellers can introduce vibration.
Vibration can increase mechanical wear and may also interfere with underwater sensors and imaging equipment.
A motor may appear reliable during shallow-water testing but fail when deployed deeper.
If the final equipment operates at substantial depth, pressure testing should reflect the actual deployment environment as closely as practical.
Before contacting a motor supplier, ocean exploration equipment manufacturers can prepare a basic technical specification.
l Freshwater or seawater
l Maximum operating depth
l Continuous operating depth
l Water temperature
l Expected immersion duration
l Pressure cycling requirements
l Corrosion environment
l Rated voltage
l Operating current
l Continuous power
l Peak power
l Motor speed
l Control method
l Continuous torque
l Peak torque
l Shaft dimensions
l Mounting configuration
l Propeller specifications
l Radial load
l Axial load
l Available installation space
l Expected operating hours
l Mission duration
l Maintenance interval
l Required service life
l Pressure testing requirements
l Corrosion protection requirements
Providing this information allows the motor manufacturer to evaluate the application more accurately and determine whether a standard configuration or a custom underwater thruster motor would be more appropriate.
Service life depends on multiple factors, including sealing reliability, pressure exposure, corrosion resistance, bearing life, thermal performance, motor load, operating speed, duty cycle, and maintenance conditions. No single specification can determine the actual service life of every underwater motor.
It can be, provided the motor is specifically engineered and validated for the required pressure and operating depth. A motor intended for shallow immersion should not automatically be used for deep-sea equipment.
Seawater resistance generally involves a combination of corrosion-resistant materials, suitable coatings, protected electrical connections, compatible seals, and appropriate mechanical design. The complete motor assembly should be considered rather than the housing material alone.
Proper load matching is one of the most important factors. The motor should operate within its appropriate continuous torque and speed range, while the propeller, controller, sealing system, bearings, and cooling conditions should also be correctly matched.
Customization can be useful when standard motors cannot satisfy the project's combination of dimensions, voltage, torque, speed, operating depth, sealing, corrosion resistance, or mounting requirements. Early technical communication with the motor manufacturer can help reduce integration problems during later development stages.
Ocean exploration equipment places demanding requirements on propulsion and actuation systems. Seawater corrosion, continuous operation, hydrostatic pressure, thermal stress, mechanical loads, and difficult maintenance conditions can all shorten motor life if they are not addressed during the design stage.
A reliable long service life underwater motor should therefore be designed around the complete operating environment. For ROVs, AUVs, and underwater observation platforms, the underwater thruster motor must provide adequate propulsion while maintaining reliable sealing, corrosion resistance, thermal performance, and mechanical durability.
For propulsion applications, the selection of an underwater propulsion motor should take into account the motor, propeller, controller, vehicle hydrodynamics, operating depth, and mission duration. For demanding deep-water missions, pressure resistance becomes an additional design priority.
A durable underwater motor is not simply a motor with a high power rating or a waterproof enclosure. Long-term reliability comes from the combination of appropriate materials, sealing technology, pressure resistance, load matching, thermal management, and application-specific engineering.
When standard solutions cannot meet the required environmental and mechanical specifications, a custom underwater thruster motor can be developed around the actual project requirements.
If you are developing an ROV, AUV, underwater survey system, coastal monitoring platform, or other ocean exploration device, contact our engineering team to discuss your motor requirements. Provide your operating depth, seawater conditions, required thrust, motor speed, voltage, duty cycle, dimensions, and installation requirements, and our engineers can help evaluate a suitable solution.
