Discover how a closed-loop stepper motor with a magnetic encoder reduces lost steps, torque drop, and heat, providing a cost-effective motion solution for 3D printing and small automation equipment.
For decades, the open-loop stepper motor has been one of the most widely used motion-control solutions in automation equipment.
Its popularity is easy to understand. A stepper motor can provide accurate incremental movement without requiring an external position sensor. The control architecture is relatively simple, the motor is generally cost-effective, and the system can deliver strong holding torque at low speed.
But modern automation equipment is becoming faster, smaller, and more demanding.
This is exposing several limitations of conventional open-loop control.
The most common problem is lost steps.
An open-loop system sends commands to the motor and assumes that the rotor follows those commands. It normally does not know the actual rotor position. If the mechanical load suddenly increases or the motor is accelerated beyond its practical operating capability, the motor can lose synchronization.
The controller may continue operating normally even though the actual mechanical position is already incorrect.
l Positioning errors
l Incorrect processing
l Failed machine cycles
l Product defects
l Material waste
l Difficult troubleshooting
l Unplanned downtime
High-speed operation introduces another challenge: torque drop.
As stepper motor speed increases, available torque generally decreases. If the application requires rapid acceleration or continuous high-speed movement, the motor may have less torque margin.
Heat is also a concern. Conventional stepper systems can maintain relatively high current even when the motor does not require maximum torque, resulting in unnecessary power consumption and temperature rise.
These limitations do not make open-loop stepper motors obsolete. They simply mean that engineers need another option when the machine requires higher positioning reliability.
That is where the closed-loop stepper motor becomes attractive.

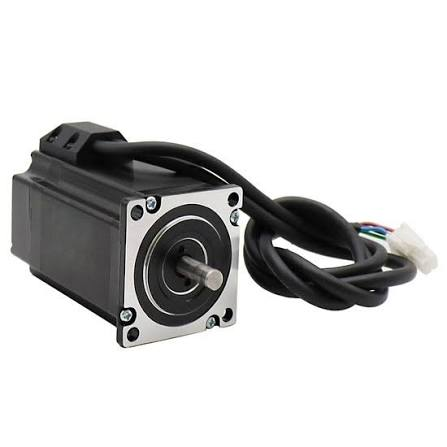

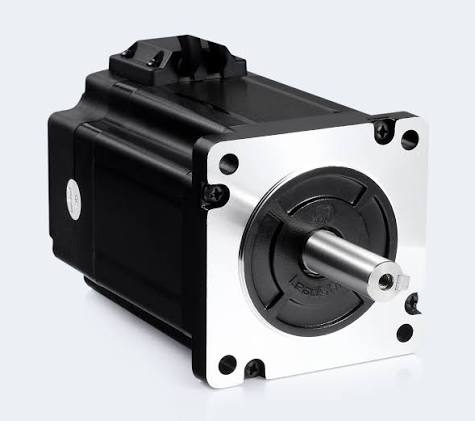

A closed-loop stepper motor combines a stepper motor with a position-feedback system, typically using a magnetic encoder.
The fundamental difference is simple:
Open-loop: Commanded position → Motor movement
Closed-loop: Commanded position → Motor movement → Position feedback → Correction
The magnetic encoder continuously provides information about the motor's actual position.
The drive can compare the commanded position with the measured position and determine whether a position error exists.
If the motor deviates from the expected position, the control system can respond accordingly.
This feedback architecture changes the way the stepper motor is controlled.
Instead of assuming that every commanded step has been completed, the system can make decisions based on actual motor behavior.
For engineers designing precision motion equipment, this provides an important additional layer of reliability

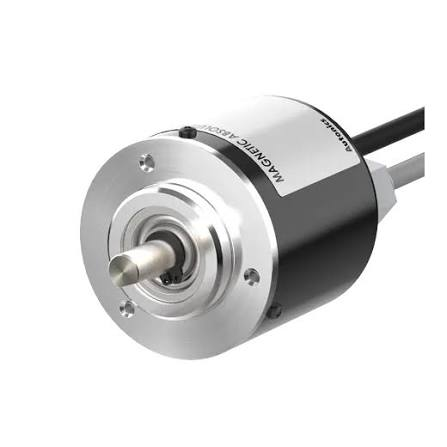

The magnetic encoder is one of the key components in a closed-loop stepper motor system.
It detects the rotor's position using magnetic sensing technology and sends position information back to the control system.
Consider a small automated mechanism that normally moves a fixed distance.
During normal operation:
1. The controller sends a movement command.
2. The stepper motor rotates.
3. The magnetic encoder measures actual rotor position.
4. The drive compares commanded and actual positions.
5. system continues operation when the position is within the expected range.
Now consider a sudden increase in mechanical resistance.
With an open-loop stepper motor, the controller may continue sending pulses without knowing that the rotor has fallen behind.
With a closed-loop system, the magnetic encoder detects the position deviation.
The drive can then adjust motor control to compensate for the error, depending on the control architecture and available torque.
This is particularly useful for applications where an undetected position error could damage a product or interrupt an automated process.
It is important to note that closed-loop control does not create unlimited motor torque.
If the load is substantially greater than the motor's capability, the correct solution is still to select a larger or more suitable motor.
The major advantage is that the system can detect and respond to position deviation instead of silently assuming that motion was completed correctly.
The two technologies are not competitors in every application. Each has a suitable operating range.
Feature | Open-Loop Stepper Motor | Closed-Loop Stepper Motor |
Position feedback | No | Yes |
Magnetic encoder | Normally not included | Integrated/available |
Lost steps detection | Generally unavailable | Feedback-based |
Position correction | No direct correction | Closed-loop correction |
High-speed torque limitation | Still applies | Feedback can improve utilization |
Current control | Usually preset | Can be dynamically managed |
Heat generation | Can be relatively high | Potentially lower |
System cost | Lower | Higher than basic open-loop |
Control architecture | Simple | More advanced |
Reliability under variable loads | Depends heavily on torque margin | Improved through feedback |
Typical applications | General positioning | Higher-reliability positioning |
For a simple machine with a predictable load, the open-loop approach may still provide the best price-to-performance ratio.
For equipment where positioning errors are expensive, the additional feedback provided by a closed-loop stepper motor can justify the additional system cost.
1. More Reliable Positioning
The biggest advantage is feedback.
The controller can determine whether the motor is following the commanded position instead of relying entirely on assumptions.
This can reduce the risk associated with lost steps and unexpected positioning errors.
For OEM equipment manufacturers, improved positioning reliability can mean fewer machine failures and less troubleshooting during commissioning.
Servo motors provide sophisticated closed-loop control and excellent dynamic performance, but a complete servo system can require a higher investment.
A closed-loop stepper motor occupies an attractive middle ground.
It retains the relatively simple structure and cost characteristics of stepper technology while adding encoder feedback.
This makes it suitable for applications that need more control reliability than a conventional open-loop stepper motor but do not require the full performance of a high-end servo system.
The exact cost advantage depends on motor size, encoder configuration, drive electronics, controller requirements, and production volume.
Therefore, the correct comparison should be based on total system cost, rather than motor unit price alone.
Temperature is particularly important in compact equipment.
A mini stepper motor or miniature stepper motor has limited physical surface area for heat dissipation. Excessive current can therefore result in significant temperature rise.
A closed-loop drive can use feedback to manage motor operation more efficiently under suitable conditions.
Instead of continuously applying unnecessary current, the control system can adjust operation according to the actual motion requirements.
Potential benefits include:
l Lower motor temperature
l Reduced power consumption
l Less thermal stress
l Improved reliability
l Better compatibility with compact machine structures
Actual temperature performance depends on motor specifications, load, current, duty cycle, ambient conditions, and drive settings, so engineers should always validate the complete motor-drive system under real operating conditions.
Miniaturization is a major trend in automation equipment.
Mechanical designers increasingly need motors that fit into smaller spaces without sacrificing positioning performance.

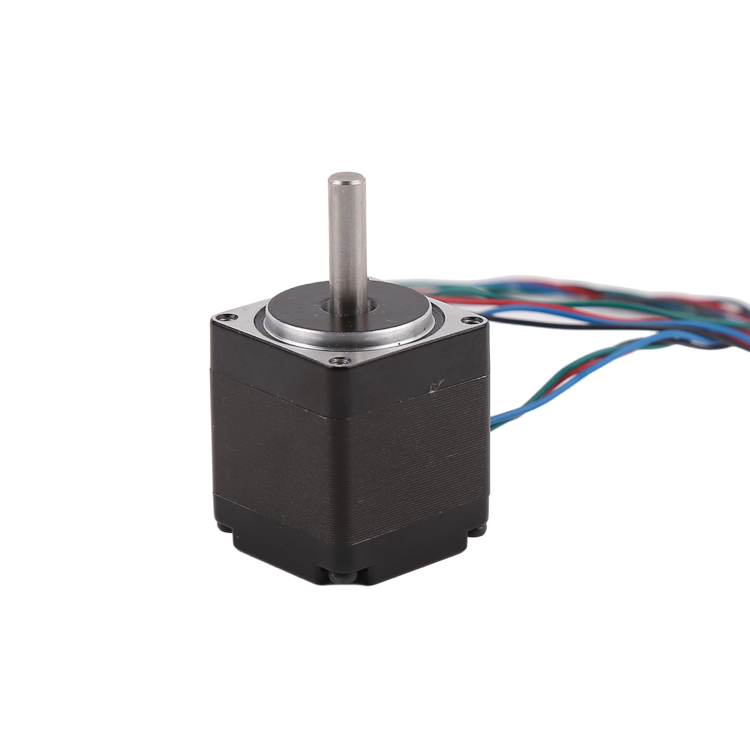

This creates demand for mini stepper motors and miniature stepper motors.
Typical design challenges include:
l Limited installation space
l Low available torque
l Restricted heat dissipation
l High positioning requirements
l Compact transmission systems
l Limited power consumption
Adding encoder feedback can make a miniature motion system more intelligent without requiring a large external servo system.

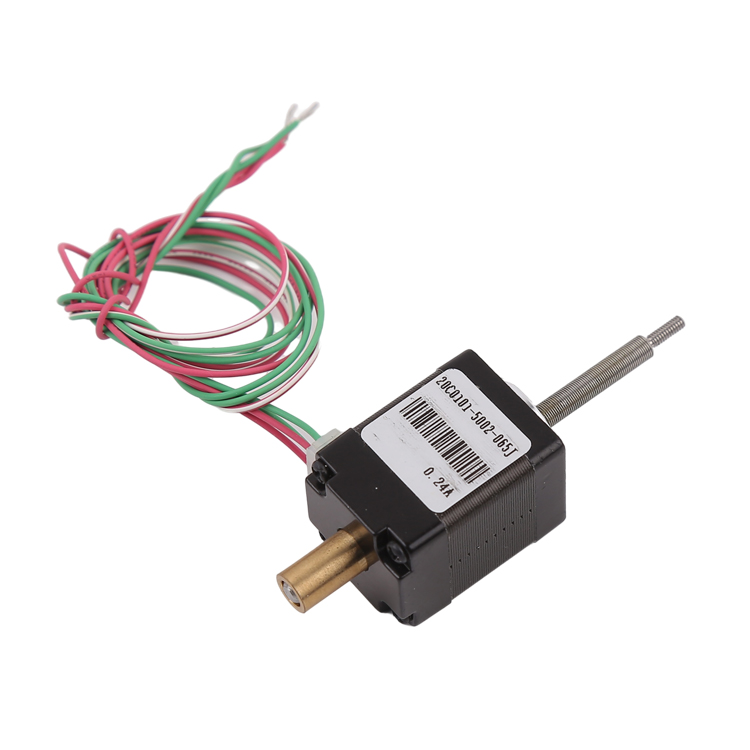

For example, a compact actuator may use a miniature stepper motor with a magnetic encoder to control a lead screw, gear mechanism, or precision positioning structure.
This architecture can provide a useful combination of:
Small size + feedback + controlled motion + cost efficiency
3D printing is an important application for closed-loop stepper motor technology.
Most 3D printers rely on motors to accurately control the movement of the X, Y, and Z axes, as well as extrusion mechanisms.
Traditional open-loop stepper motors are popular because they are economical and easy to integrate.
However, high-speed printing and demanding motion profiles can increase the risk of positioning errors.
Potential causes include:
l Excessive acceleration
l Mechanical friction
l Sudden load changes
l Improper current settings
l High-speed operation
l Mechanical interference
If an open-loop motor loses steps, the printer may not immediately recognize the problem.
The machine can continue printing while the actual position has shifted.
This can result in:
l Layer misalignment
l Dimensional errors
l Poor surface quality
l Failed prints
l Wasted material
A closed-loop stepper motor introduces encoder feedback into the motion system.
The magnetic encoder monitors actual motor position, allowing the drive to identify deviations and apply corrective control.
For professional and industrial 3D printing, this can help improve motion reliability while maintaining a cost structure that may be more attractive than a full servo architecture.
The benefits extend beyond 3D printing.
Small automation equipment often needs precise positioning but has strict limits on size, cost, and power consumption.
Closed-loop stepper motors can be considered for applications such as:
Compact inspection machines may use miniature positioning mechanisms for cameras, sensors, probes, or workpieces.
Position feedback can help maintain reliable movement when mechanical conditions change.
Dispensing equipment requires repeatable movement to control material quantity and position.
A closed-loop motor can provide additional feedback for mechanisms driven by screws, belts, or gears.
Small robotic mechanisms require repeatable positioning across multiple cycles.
Encoder feedback can help identify unexpected position deviations.
Laboratory instruments may use small actuators for sample handling, adjustment, or positioning.
Compact motors with feedback can help designers achieve controlled motion without using a larger servo system.
For compact CNC mechanisms, closed-loop stepper technology can provide a balance between positioning performance and equipment cost.
The decision should be based on application requirements.
An open-loop stepper motor may be appropriate when:
l Load conditions are predictable
l Position errors are acceptable within a defined range
l The motor has sufficient torque margin
l The machine operates at moderate speeds
l Low system cost is the primary consideration
l The application does not require position feedback
A closed-loop stepper motor becomes more attractive when:
l Lost steps cannot be tolerated
l Load conditions vary
l High positioning reliability is required
l The machine operates dynamically
l Temperature must be controlled
l Commissioning time needs to be reduced
l The application requires encoder feedback
l A servo system would be unnecessarily expensive
This makes closed-loop stepper technology particularly interesting for OEMs looking for a practical alternative between basic open-loop motors and full servo systems.
Selecting the correct motor should begin with the mechanical requirements.
Calculate the required torque throughout the operating cycle.
Consider:
l Static load
l Dynamic load
l Friction
l Inertia
l Transmission efficiency
l Acceleration
l External resistance
Do not select the motor only according to its rated holding torque.
Evaluate the motor's torque-speed curve.
A motor that provides sufficient holding torque may not provide sufficient torque at the required operating speed.
This is particularly important when replacing an open-loop stepper motor with a closed-loop design.
Select a magnetic encoder with appropriate feedback resolution for the required positioning performance.
Higher encoder resolution does not automatically produce higher machine accuracy.
The mechanical transmission, backlash, rigidity, and control algorithm also affect final system accuracy.

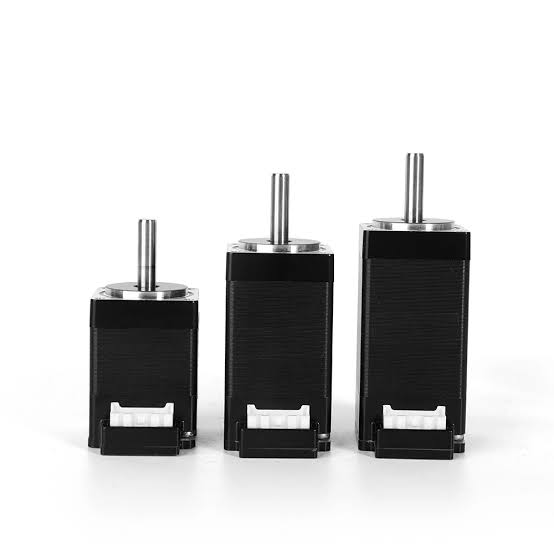

For compact equipment, evaluate whether a mini stepper motor or miniature stepper motor can provide sufficient torque while meeting the installation requirements.
Important dimensions include:
l Motor diameter
l Motor length
l Shaft diameter
l Shaft length
l Mounting pattern
l Connector position
l Cable routing
Check temperature rise under the actual operating cycle.
Continuous operation, high acceleration, frequent reversals, and high load can significantly affect motor temperature.
The motor and driver should be evaluated as one system.
Important factors include:
l Rated current
l Supply voltage
l Encoder interface
l Control mode
l Communication interface
l Protection functions
l Acceleration capability
l Firmware functions
For B2B equipment manufacturers, the value of a closed-loop stepper motor should be evaluated beyond its purchase price.
A low-cost open-loop motor may appear attractive initially.
But if the machine experiences repeated positioning failures, the resulting costs can include:
l Engineering debugging
l Production downtime
l Material waste
l Product rework
l Customer complaints
l Field-service visits
l Warranty costs
A closed-loop stepper motor adds encoder and control hardware, but it can reduce some of these risks in suitable applications.
Therefore, the real comparison should be:
Component Cost vs. Total Cost of Reliable Motion
This is particularly important for machines produced in medium or high volumes.
A small increase in actuator cost can be economically justified if it reduces commissioning time, improves machine reliability, or prevents expensive positioning failures.
Closed-loop stepper motors are unlikely to completely replace open-loop stepper motors.
Instead, the market is becoming more application-specific.
Open-loop stepper motors will continue to be useful where the load is predictable and cost is the dominant factor.
Closed-loop stepper motors are more suitable where reliability, feedback, thermal performance, and positioning accuracy are increasingly important.
For many compact machines, this creates three broad choices:
Open-Loop Stepper → Closed-Loop Stepper → Servo
The closed-loop stepper occupies the middle of this range.
It can provide more feedback and control capability than an open-loop motor while potentially requiring less investment and integration complexity than a servo system.
For engineers and procurement teams, this makes it an increasingly practical motion-control option.
A closed-loop stepper motor is a stepper motor system equipped with position feedback, typically through a magnetic encoder. The controller can compare commanded and actual position and perform corrective control when deviation occurs.
It can detect position deviation and provide corrective control, significantly reducing the risks associated with undetected lost steps. However, it cannot compensate for unlimited mechanical overload. Proper motor sizing remains essential.
Not necessarily for every application. Open-loop stepper motors remain attractive for simple, predictable, cost-sensitive applications. Closed-loop models are more suitable when position feedback and higher motion reliability are required.
The answer depends on the complete system configuration. In many applications, a closed-loop stepper can offer a lower-cost alternative to a servo system while providing feedback-based positioning. However, engineers should compare the complete motor, drive, controller, and integration costs.
The magnetic encoder provides actual rotor position information to the control system. This allows the drive to compare commanded and actual positions and respond to position errors.
Yes. A miniature stepper motor can be combined with a compact magnetic encoder and suitable driver to provide feedback-based motion control for space-constrained equipment.
The traditional open-loop stepper motor remains a reliable and economical solution for many applications. But when machines become faster, smaller, and more demanding, its limitations become increasingly important.
Undetected lost steps, high-speed torque drop, and excessive heat can create positioning problems and increase the engineering cost of automation equipment.
A closed-loop stepper motor addresses these challenges by adding real-time position feedback through a magnetic encoder.
The result is a motion-control architecture that can provide:
l More reliable positioning
l Real-time position correction
l Better control under changing loads
l Potentially lower temperature
l Reduced risk of undetected positioning errors
l Lower system cost than many servo solutions
l Compact integration for miniature applications
For 3D printing, inspection equipment, laboratory instruments, compact actuators, and other small automation equipment, closed-loop stepper technology offers an attractive balance between performance and cost.
The most important point for equipment designers is that closed-loop stepper technology does not need to replace every open-loop system.
Instead, it provides a practical upgrade path when the application has moved beyond what open-loop control can comfortably achieve.
If you are evaluating a closed-loop stepper motor for a new machine or considering replacing an open-loop stepper motor, contact our engineering team for motor selection and customization support. We can evaluate your required torque, speed, motor size, encoder configuration, duty cycle, and application conditions to help identify a suitable solution.
