Underwater equipment operates in an environment where motor reliability is directly affected by water pressure, moisture, corrosion, temperature, and mechanical contamination. For ROVs, AUVs, and underwater robots, a motor failure can result in loss of propulsion, inaccurate positioning, mission interruption, or costly equipment recovery. For this reason, selecting reliable waterproof underwater motors is a critical engineering decision rather than simply choosing a motor based on torque, speed, or power.
Unlike conventional motors designed for dry environments, an underwater motor must be engineered to prevent water ingress while maintaining stable electrical and mechanical performance. Depending on the application, engineers may consider an underwater brushless motor for propulsion, an ROV motor for continuous thrust, or a specialized actuator for underwater robotic mechanisms.
For deeper applications, additional requirements become important. A deep-sea pressure resistant motor must withstand the hydrostatic pressure associated with its operating depth, while a sealed underwater motor must maintain reliable protection around the housing, shaft, bearings, cables, and electrical interfaces.
This article explains the major technical requirements, applications, selection factors, and deployment challenges associated with waterproof motors for marine robotics. It is intended for ROV/AUV designers, underwater robotics engineers, marine equipment manufacturers, and purchasing teams evaluating motor solutions for new projects.

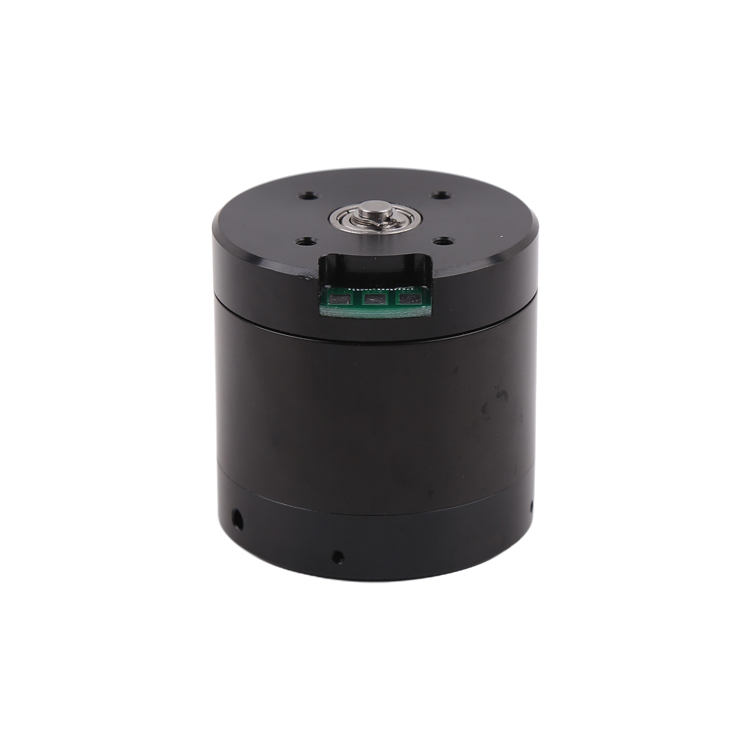

The performance of an underwater motor depends on more than its internal electromagnetic design. Sealing, pressure resistance, corrosion protection, thermal management, and mechanical durability all contribute to overall reliability.
When evaluating waterproof underwater motors, engineers should assess the motor as part of the complete underwater system rather than treating it as an isolated component.
Water ingress is one of the most common causes of failure in underwater electrical equipment.
Once water reaches the motor windings, bearings, magnets, or electrical connections, it can cause insulation degradation, corrosion, short circuits, bearing damage, and eventual motor failure.
A reliable sealed motor therefore requires careful attention to all potential water-entry paths.
Important sealing areas include:
l Motor housing joints
l Shaft and rotating interfaces
l Cable outlets
l Electrical connectors
l End covers
l Bearings
l O-ring or gasket interfaces
l Pressure-compensation structures, where applicable
The sealing structure should correspond to the intended operating conditions.
For example, a motor designed for occasional shallow-water immersion may have very different requirements from a motor intended for continuous operation at significant depth.
Engineers should also distinguish between waterproof protection and pressure-rated underwater operation. A motor that can resist water ingress under one test condition is not automatically suitable for continuous operation at deep-water pressure.
Hydrostatic pressure increases as operating depth increases. As a result, a motor designed for surface or shallow-water applications may not be suitable for deep subsea deployment.
Pressure can affect:
l Housing deformation
l Shaft seals
l Bearings
l Electrical insulation
l Connectors
l Internal air spaces
l Lubricants
l Mechanical clearances
A deep-water motor design may use pressure-resistant housings, specialized sealing structures, pressure compensation, or other engineering approaches depending on the application.
When purchasing a motor for an ROV or AUV, buyers should clearly specify the required operating depth rather than simply requesting a "waterproof motor."
Key questions include:
l What is the normal operating depth?
l What is the maximum deployment depth?
l Will the motor operate continuously at that depth?
l Is the motor exposed to pressure changes during repeated dives?
l Will it experience rapid ascent and descent cycles?
A deep-sea pressure resistant motor should be evaluated according to the actual pressure profile of the application.
Saltwater presents additional challenges because chloride-containing environments can accelerate corrosion of unsuitable metals and components.
An underwater motor intended for marine use may require corrosion-resistant materials or protective treatments for components such as:
l Motor housing
l Shaft
l Fasteners
l Bearings
l Connectors
l Mounting hardware
l Protective coatings
Material selection should also consider galvanic corrosion. When different metals are electrically connected in a conductive seawater environment, electrochemical corrosion can occur.
For this reason, a marine grade motor should be evaluated according to the actual environment rather than selected based solely on the label "marine."
Freshwater and seawater applications can have significantly different material requirements.
Water surrounding a motor does not automatically guarantee adequate thermal management.
Motor temperature depends on electrical losses, load, operating speed, housing construction, ambient water temperature, installation conditions, and duty cycle.
This becomes particularly important for ROVs and AUVs that may operate continuously for extended periods.
Engineers should evaluate:
l Continuous operating current
l Motor efficiency
l Thermal resistance
l Ambient water temperature
l Operating duty cycle
l Housing material
l Cooling path
l Maximum allowable winding temperature
A motor that performs well during a short laboratory test may behave differently during a long underwater mission.
For production equipment, continuous-duty testing under representative conditions can provide more useful information than short-duration performance testing alone.
The motor requirements of an underwater vehicle depend heavily on whether the motor is used for propulsion, positioning, or mechanical actuation.

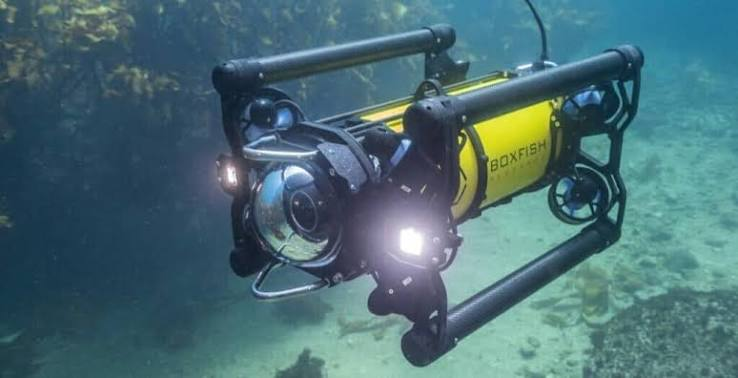

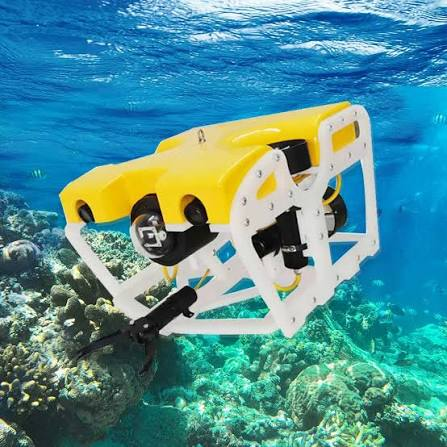

ROVs rely on electrically driven thrusters to move through the water and maintain position.

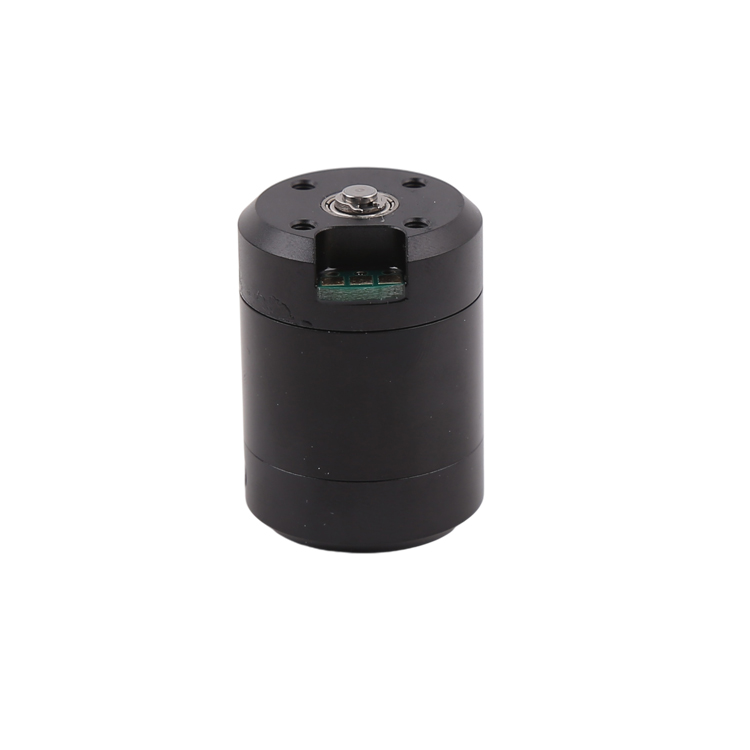

An ROV motor used for propulsion generally needs to provide continuous rotation, appropriate torque, and reliable operation under the vehicle's expected depth and environmental conditions.

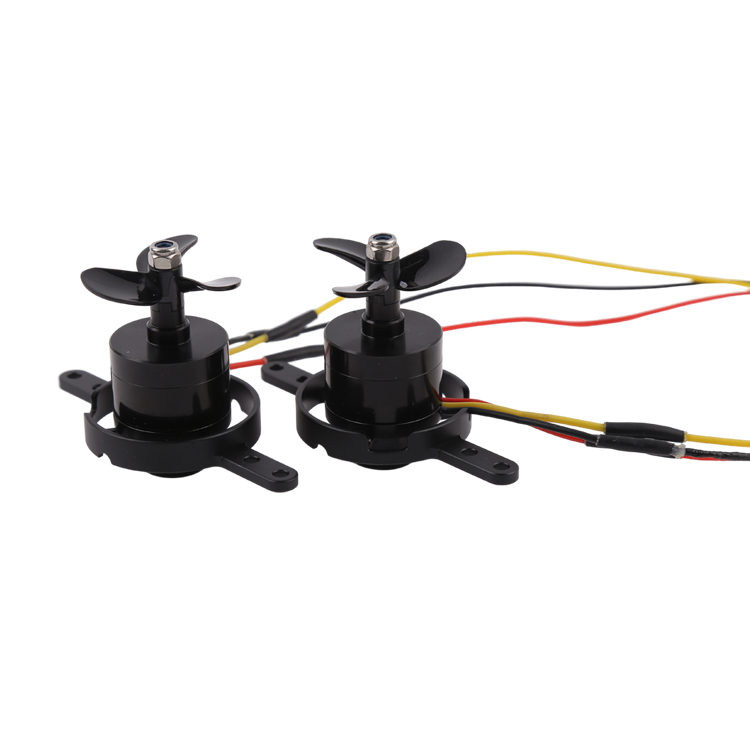

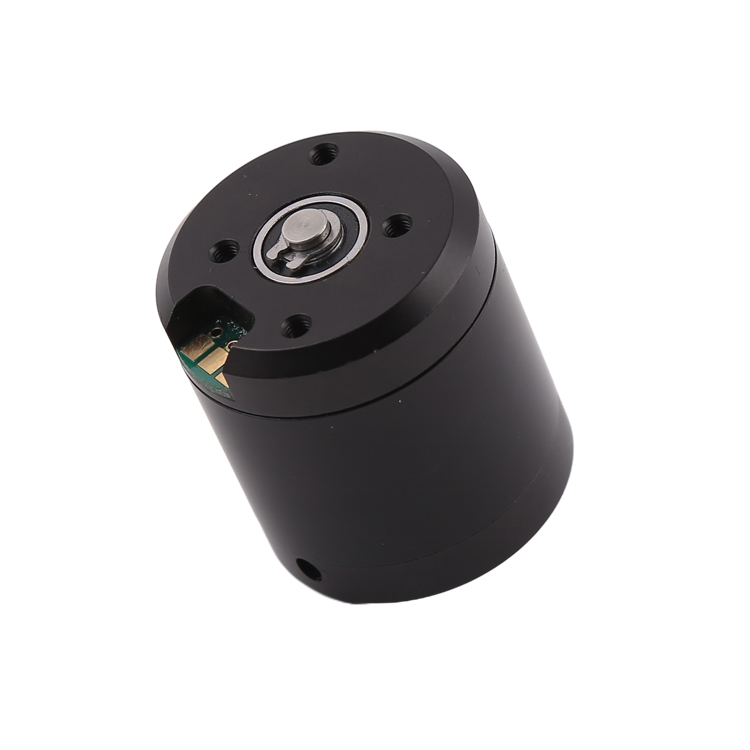

An underwater brushless motor is often considered for this type of application because brushless motor technology is well suited to continuous rotational operation.
A typical ROV propulsion system may include:
l Underwater motor
l Propeller or thruster
l Motor controller
l Power supply
l Mounting structure
l Protective housing
l Sealing or pressure-compensation system
The motor cannot be selected independently from the propeller.
Propeller diameter, pitch, water resistance, required thrust, and vehicle weight all affect the motor operating point.
For an ROV motor, engineers should therefore define both the electrical requirements and the required propulsion performance.
Important parameters may include:
l Rated voltage
l Continuous current
l Operating speed
l Continuous torque
l Peak torque
l Required thrust
l Maximum operating depth
l Mission duration

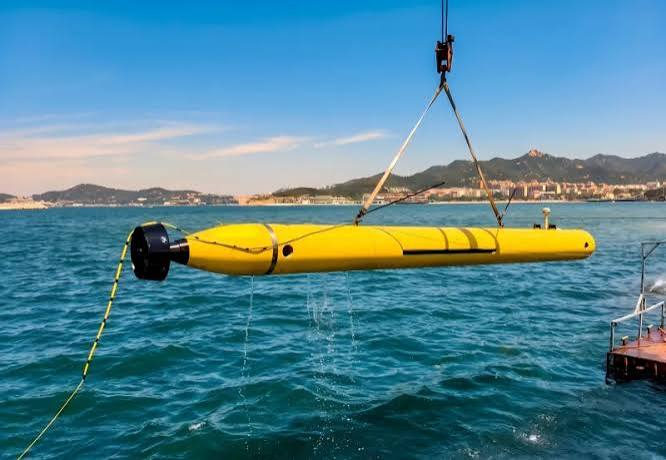

AUVs operate without continuous physical control from a surface operator, which makes energy efficiency and reliability especially important.
An AUV motor may be used for propulsion or for other automated mechanical functions.
Because AUV missions can last for extended periods, the motor should be evaluated based on the complete energy budget of the vehicle.
Motor selection may affect:
l Mission duration
l Propulsion efficiency
l Battery capacity requirements
l Thermal performance
l Vehicle size
l Payload capacity
For an AUV, a small improvement in motor efficiency can become meaningful when multiplied across a long operating period.
The motor and controller should therefore be matched to the expected operating speed rather than optimized only for maximum output.
Not all underwater motors are used to propel the vehicle.
Modern underwater robots may contain cameras, robotic arms, manipulators, sampling mechanisms, valves, grippers, and other moving components.
A dedicated underwater robot motor can provide mechanical movement for these systems.
Potential applications include:
l Robotic arm joints
l Grippers
l Camera positioning
l Sensor adjustment
l Sampling mechanisms
l Valve operation
l Equipment deployment
l Mechanical locking systems
Different mechanisms may require different motor technologies.
A brushless motor can be suitable for continuous rotation, while a servo system may be preferred where closed-loop positioning is essential. A stepper-based mechanism may be considered when controlled incremental positioning is required.
The correct technology depends on the load, speed, positioning accuracy, duty cycle, and control architecture.
Choosing the right motor requires a clear understanding of both the mechanical load and the underwater environment.
Operating depth should be one of the first specifications defined.
A useful motor specification should distinguish between:
l Maximum operating depth
l Test depth
l Continuous operating depth
l Short-term exposure depth
These values should not be treated as interchangeable.
For deep-water projects, pressure testing under representative conditions can be an important part of engineering validation.
IP protection ratings can provide useful information about resistance to water and dust under standardized test conditions.
However, an IP rating should not be used as the only criterion for underwater motor selection.
In particular, engineers should ask whether the motor is designed for:
l Temporary immersion
l Continuous immersion
l Pressurized immersion
l Saltwater operation
l Specific operating depths
A motor with a high IP rating may still require additional pressure validation before being used in deep subsea equipment.
If the motor will operate in seawater, corrosion resistance should be addressed from the beginning of the design process.
Consider:
l Housing material
l Shaft material
l Fastener material
l Bearing construction
l Coating
l Connector design
l Seal compatibility
For long-term marine equipment, material compatibility can have a major effect on maintenance requirements and service life.
Different ROV, AUV, and underwater robotic systems often have very different mechanical constraints.
A standard motor may not always provide the required combination of size, torque, speed, voltage, sealing, and mounting configuration.
A custom underwater motor solution may be considered when the project requires specific characteristics such as:
l Custom motor dimensions
l Special winding parameters
l Customized voltage
l Specific torque and speed
l Modified shaft configuration
l Custom cable length
l Specialized connector
l Enhanced sealing
l Corrosion-resistant materials
l Pressure-resistant construction
l Customized mounting structure
Early communication between the motor manufacturer and system designer can help prevent mechanical redesign later in the development process.
Even when a motor has been properly selected, underwater deployment introduces several challenges that should be addressed during engineering validation.
Seals can degrade over time due to wear, pressure cycling, temperature changes, or mechanical movement.
The sealing system should therefore be evaluated for the complete expected service life rather than only during initial assembly.
An ROV or AUV may repeatedly descend and ascend.
This creates repeated pressure cycles that can affect seals, housings, connectors, and internal components.
A design that performs well at constant pressure may require additional testing if it will experience frequent depth changes.
Even when the motor remains electrically sealed, external corrosion can affect shafts, fasteners, mounting surfaces, and mechanical interfaces.
Regular inspection and appropriate material selection can help reduce these risks.
High electrical load generates heat. Changes in water temperature and flow conditions can also influence cooling performance.
The motor should therefore be tested at realistic load and duty-cycle conditions.
The motor itself may be properly sealed while the cable connection becomes the weakest point in the system.
Cable glands, connectors, strain relief, and sealing interfaces should be treated as part of the underwater electrical system.
Propellers, robotic arms, pumps, and other underwater mechanisms experience load conditions that can differ substantially from dry testing.
For propulsion systems, hydrodynamic loading changes with speed. For robotic mechanisms, water resistance can affect required torque and acceleration.
Testing under realistic load conditions is therefore important.
A motor that is difficult to inspect or replace can increase lifecycle costs.
For commercial marine equipment, engineers should consider:
l Expected maintenance interval
l Seal replacement
l Bearing service
l Corrosion inspection
l Connector inspection
l Ease of motor replacement
Reliability should be evaluated together with maintenance requirements and total cost of ownership.
Before requesting a quotation or technical proposal, marine equipment buyers can prepare the following information:
l Application: ROV, AUV, underwater robot, pump, actuator, or other equipment
l Operating depth: Normal and maximum depth
l Water environment: Freshwater, seawater, or chemically treated water
l Motor type: Brushless, stepper, servo, induction, or other
l Required voltage: Nominal and allowable operating range
l Required speed: RPM or motion speed
l Required torque: Continuous and peak
l Duty cycle: Intermittent or continuous operation
l Motor dimensions: Maximum allowable diameter and length
l Installation: Shaft, flange, bracket, or custom mounting
l Cable requirements: Length, connector, and routing
l Environmental requirements: Temperature, corrosion, pressure, and vibration
l Expected service life: Required operating hours or mission cycles
Providing these parameters allows a motor manufacturer to evaluate the application more accurately and recommend a suitable configuration.
An underwater motor requires additional engineering to prevent water ingress and withstand the environmental conditions associated with immersion. Depending on the application, this can involve specialized sealing, corrosion-resistant materials, pressure-resistant housing, electrical insulation, and underwater-rated connectors.
An underwater brushless motor can be suitable for ROV propulsion when its torque, speed, power, sealing, pressure rating, and thermal characteristics match the thruster requirements. The motor should be evaluated together with the propeller and motor controller.
A deep-sea pressure resistant motor is designed or engineered to operate under the hydrostatic pressure associated with a specified underwater depth. Its housing, seals, electrical components, and mechanical interfaces need to be evaluated for the intended pressure environment.
It depends on the motor's actual design and rating. Continuous underwater operation requires appropriate sealing, thermal management, corrosion resistance, and mechanical durability. Buyers should confirm the manufacturer's continuous operating conditions rather than assuming that a general waterproof rating guarantees continuous immersion.
Yes. Depending on project requirements, a custom underwater motor may be developed around specific dimensions, torque, speed, voltage, cable configuration, sealing structure, materials, and depth requirements. Providing detailed mechanical and environmental specifications helps the manufacturer determine a suitable solution.
Reliable motor performance is fundamental to the operation of ROVs, AUVs, and underwater robotic systems. Water ingress, hydrostatic pressure, seawater corrosion, heat generation, and long-term mechanical wear can all affect motor performance if they are not addressed during the design stage.
For propulsion applications, an underwater brushless motor can provide efficient continuous rotation and can be integrated into an ROV or AUV thruster system. For specialized positioning and mechanical functions, other motor technologies may be more appropriate depending on the required motion and control method.
The selection of waterproof underwater motors should therefore consider more than power and dimensions. Working depth, pressure rating, sealing structure, IP protection, corrosion resistance, duty cycle, thermal performance, and mechanical load all need to be evaluated together.
For demanding marine projects, a sealed underwater motor or deep-sea pressure resistant motor should be matched to the actual operating environment. When standard components cannot meet the required combination of performance and mechanical constraints, a custom underwater motor can provide a more suitable path for system integration.
If you are developing an ROV, AUV, underwater robot, marine inspection system, aquaculture device, or subsea engineering platform, contact our engineering team for a customized waterproof underwater motor solution. Provide your required operating depth, voltage, speed, torque, dimensions, duty cycle, water environment, and installation requirements, and our engineers can help evaluate the appropriate motor configuration.
