Optical inspection systems demand more than high-resolution cameras. To capture accurate images, lenses, sensors, and workpieces must be positioned with exceptional precision and repeatability. Even a small positioning error can affect image quality, measurement accuracy, and inspection results.
This is where micro linear slider stepper motors provide an effective motion solution. By combining the precise control of a stepper motor with a compact linear sliding mechanism, these motors enable optical inspection equipment to achieve controlled, repeatable linear movement in a very limited installation space.
For manufacturers developing automated optical inspection machines, semiconductor inspection equipment, laboratory instruments, and compact vision systems, understanding how a micro linear slider stepper motor works—and how to select the right one—is essential.

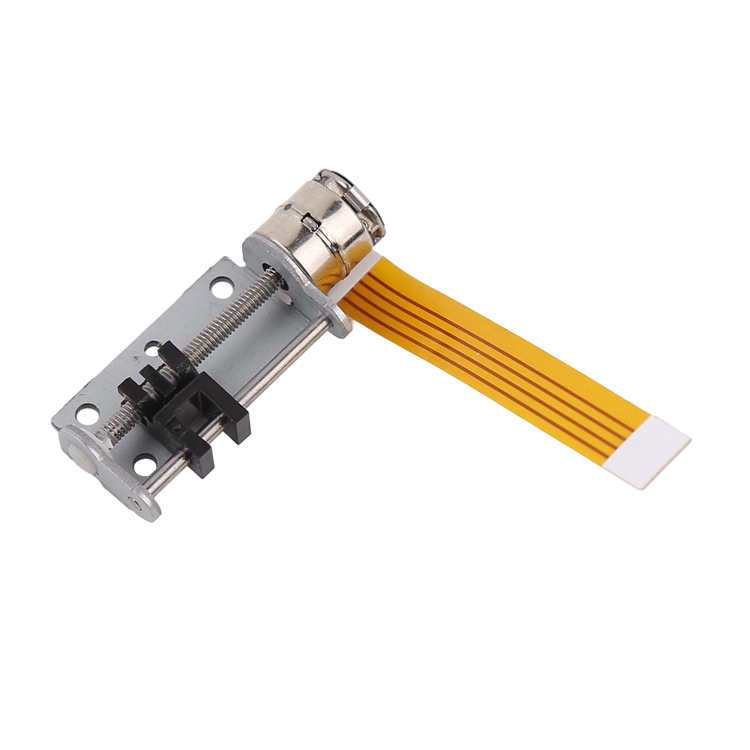

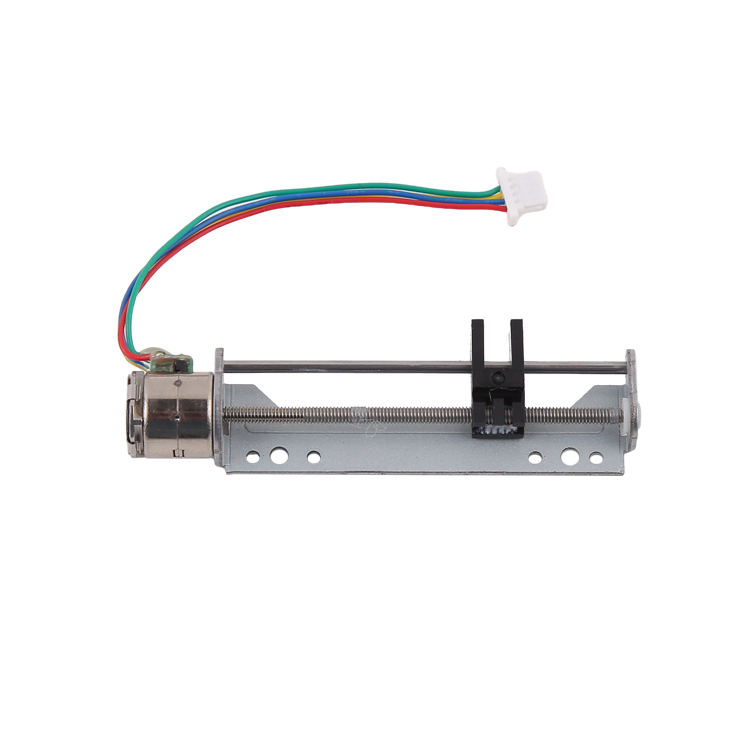

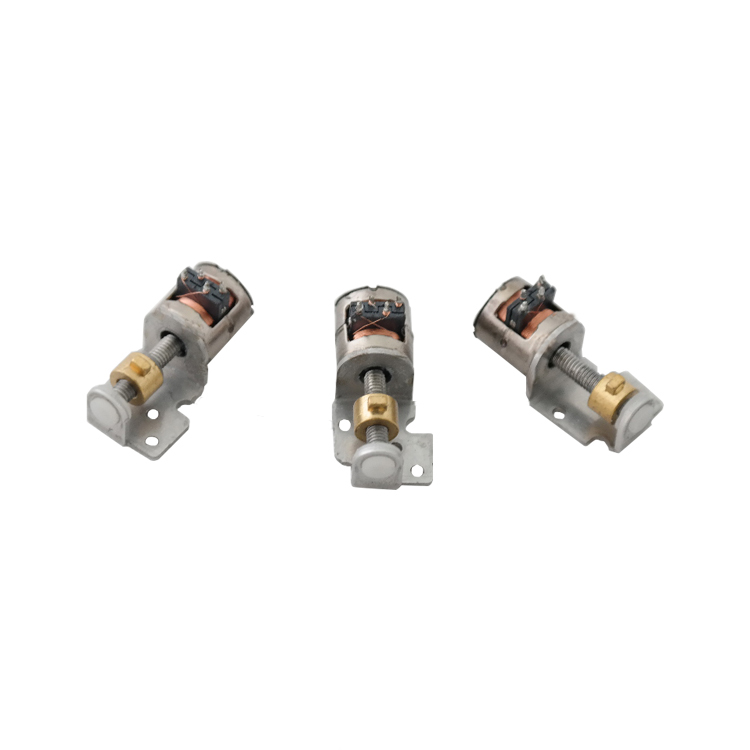

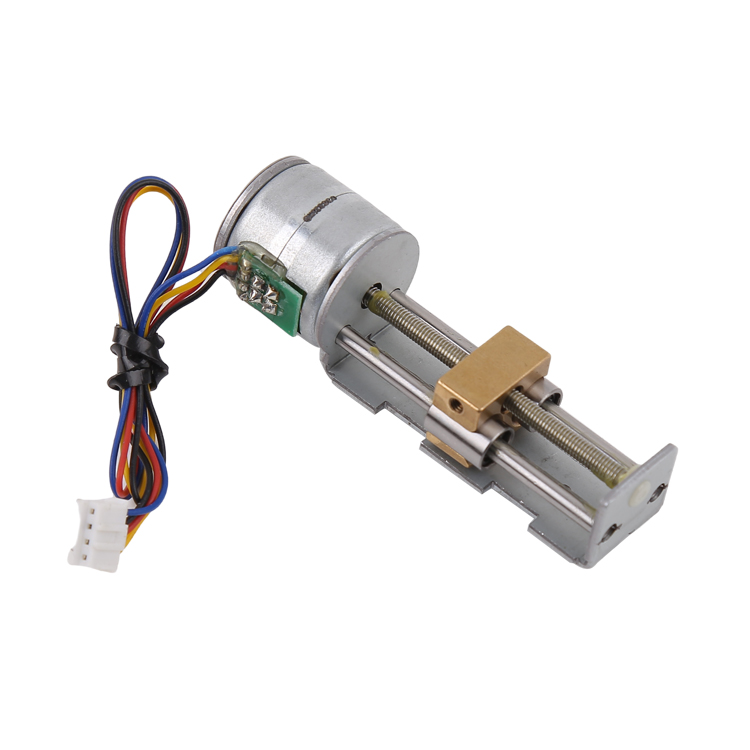

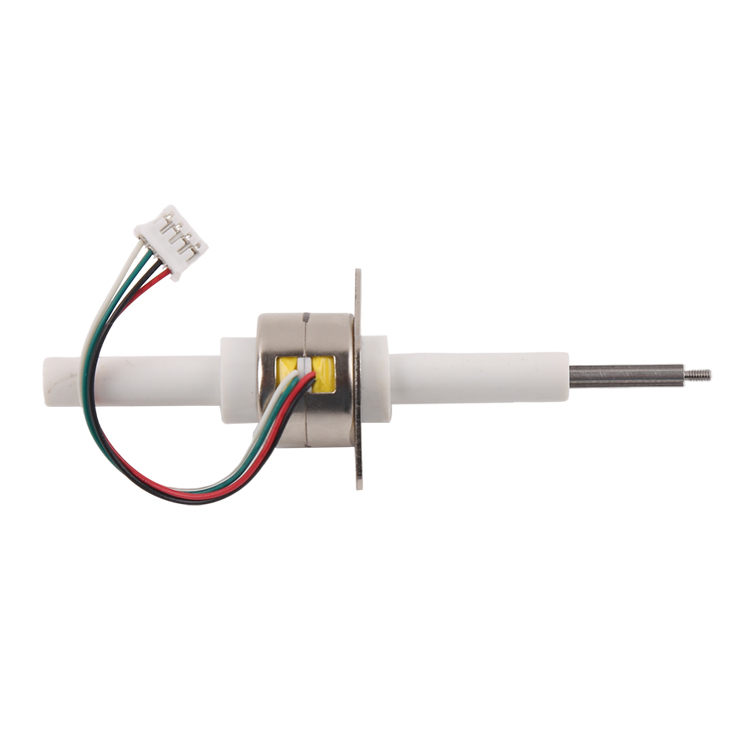

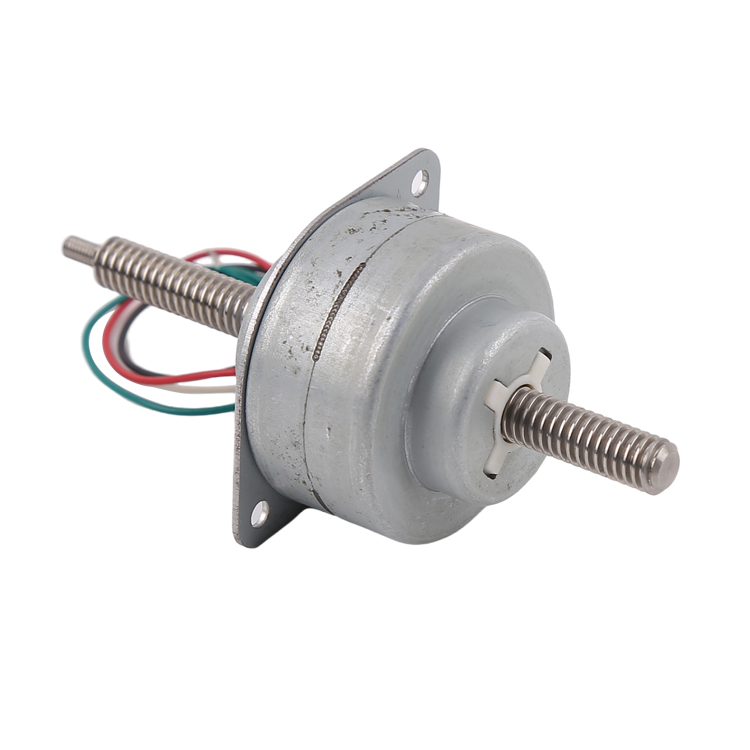

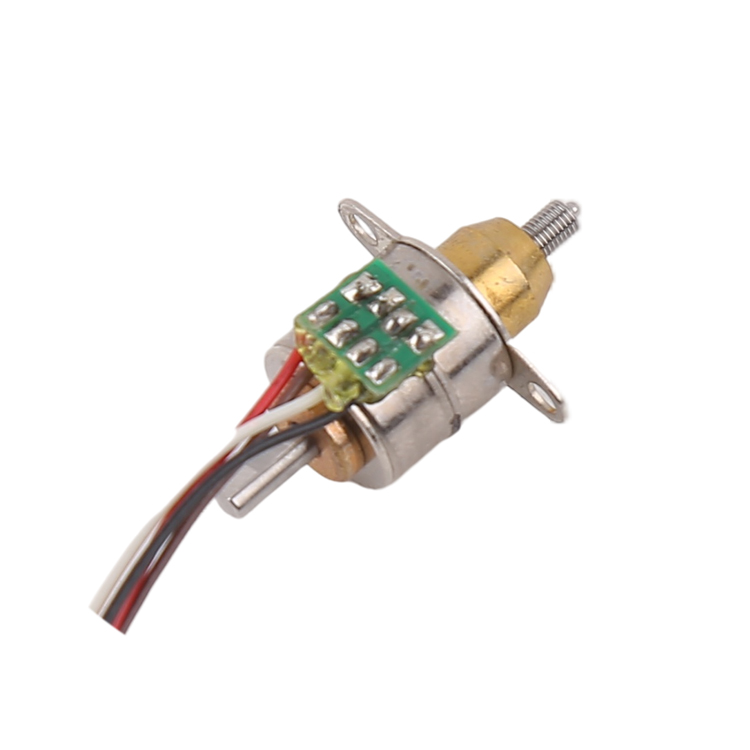

A micro linear slider stepper motor is a compact motion-control unit that converts the rotational movement of a stepper motor into controlled linear motion through an integrated sliding mechanism.
Unlike a conventional stepper motor that requires an external lead screw, guide rail, or linear actuator, a micro linear slider motor integrates multiple motion components into a compact structure. This can simplify mechanical design while reducing the overall footprint of the equipment.
l A miniature stepper motor
l A precision lead screw or transmission mechanism
l A linear slider or moving platform
l A guide structure
l Optional limit switches or position sensors
When the motor receives electrical pulses from a controller, it rotates through precise step angles. The transmission mechanism converts this rotation into linear displacement, allowing the slider to move to a specified position.
This compact architecture makes the micro linear slider stepper motor particularly suitable for applications where installation space is limited but positioning accuracy remains important.
Modern optical inspection equipment often combines cameras, lenses, lighting systems, sensors, and precision positioning mechanisms. The optical components must remain correctly aligned throughout the inspection process.
A small movement may be required to:
l Adjust the position of a camera
l Move an inspection lens
l Change the working distance
l Position a semiconductor wafer
l Move a sample under a microscope
l Adjust a lighting module
l Scan multiple inspection points
l Perform automatic focusing
In these applications, motion performance directly influences inspection efficiency and repeatability.
A positioning system that introduces excessive backlash, vibration, or inconsistent movement can make it difficult for the optical system to maintain a stable field of view.
A micro linear slider stepper motor addresses this requirement by providing controlled incremental movement in a compact package.
Optical inspection machines are increasingly becoming smaller. Portable inspection devices, laboratory instruments, and embedded vision systems may have very limited internal space.
The integrated design of a micro linear slider stepper motor eliminates the need for several external motion components. This can help engineers reduce the size and complexity of the mechanical assembly.
For compact optical equipment, every millimeter of installation space can matter.
Stepper motors are widely used when controlled incremental positioning is required. By controlling the number of electrical pulses delivered to the motor, the controller can command predictable movement.
With an appropriate transmission ratio and mechanical design, a micro linear slider stepper motor can provide fine linear positioning for optical adjustment and inspection tasks.
Repeatability is particularly important when the same inspection procedure must be performed hundreds or thousands of times.
Micro stepper motors can be controlled directly by common motion-control systems. Depending on the application, engineers can use microstepping drivers, PLCs, motion controllers, or embedded control systems.
This makes integration relatively straightforward for automated inspection equipment.
The motor can also be coordinated with cameras, sensors, and image-processing software to create a complete automated inspection sequence.
A conventional linear positioning mechanism may require a separate motor, coupling, lead screw, guide rail, mounting bracket, and other components.
An integrated micro linear slider motor can combine several of these functions into one compact unit.
This can reduce:
l Assembly time
l Mechanical interfaces
l Installation space
l Component count
l Potential alignment problems
For equipment manufacturers, this can contribute to a more compact and standardized product design.
Choosing the appropriate motion solution depends on the inspection requirements, available space, and required positioning performance.
Feature | Micro Linear Slider Stepper Motor | Conventional Linear Actuator | Servo Linear System |
Size | Very compact | Moderate | Usually larger |
Control | Simple pulse control | Depends on actuator | Advanced servo control |
Positioning | Good for incremental motion | Application dependent | High precision |
Cost | Generally economical | Moderate | Higher |
Integration | Simple | Moderate | More complex |
Low-speed control | Good | Depends on design | Excellent |
Feedback | Optional | Optional | Usually available |
Best application | Compact precision equipment | General automation | High-performance motion |
For optical inspection equipment that does not require extremely high acceleration or continuous high-speed motion, a micro linear slider stepper motor can offer an attractive balance between size, cost, control simplicity, and positioning performance.
Selecting a motor based only on physical dimensions can lead to poor performance. Engineers should evaluate the complete motion requirement.
Stroke determines how far the slider needs to travel.
Common optical applications may require relatively short movement ranges for lens adjustment, focusing, or component positioning. Choosing a stroke longer than necessary may increase the size of the mechanism without providing meaningful benefits.
Resolution determines the smallest commanded movement.
For optical inspection, fine positioning can be particularly important when adjusting focal distance or aligning an optical component.
Microstepping can further divide the motor's basic step angle, although the practical positioning accuracy depends on the entire mechanical system rather than microstepping alone.
The motor must generate sufficient force to move the optical component and associated mechanical load.
l Moving mass
l Friction
l Installation orientation
l Acceleration
l External resistance
l Safety margin
A motor that is too small may lose steps or fail to reach the required position.
Although many optical applications prioritize precision over speed, inspection throughput still matters.
The required speed should be evaluated together with load, stroke, acceleration, and torque/force characteristics.
A larger motor is not automatically faster. The complete motor and transmission design determines the achievable performance.
Backlash can become a critical issue when the slider repeatedly changes direction.
For optical inspection, engineers should pay particular attention to bidirectional positioning performance, repeatability, and mechanical stability.
Optical systems can be sensitive to vibration. Excessive mechanical vibration may affect image acquisition, focusing, or measurement stability.
Motor selection should therefore consider driving mode, mechanical resonance, mounting structure, and operating speed—not simply the motor's rated specifications.
The versatility of a micro linear slider stepper motor allows it to be used in several optical and imaging applications.
A slider motor can move a lens assembly along a controlled linear axis to adjust focal position.
This is useful for automated focusing systems where repeatable lens movement is required.
In machine vision systems, cameras may need to move to different positions depending on the inspection target.
A compact linear slider provides controlled movement without requiring a large external actuator.

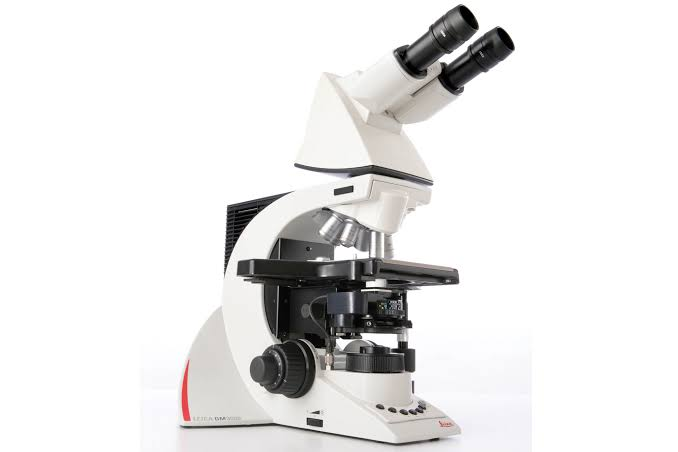

Microscopy systems frequently require precise positioning of samples, lenses, or optical components.
The compact form factor of a micro linear slider stepper motor makes it suitable for space-constrained laboratory instruments.
Automated inspection systems may need to scan different regions of a wafer, PCB, or electronic component.
Linear motion can coordinate the inspection target with the camera and lighting system, helping create repeatable scanning sequences.
In some optical inspection systems, illumination angle and distance affect image quality.
A miniature linear slider can provide controlled movement of lighting components to optimize inspection conditions.
Motor selection should not be isolated from the optical system. Mechanical motion and image processing work together.
1. Define the required stroke based on the actual optical adjustment range.
2. Calculate the moving load including the lens, camera, bracket, or sample.
3. Determine the required positioning resolution.
4. Evaluate operating speed and cycle time.
5. Check backlash and repeatability requirements.
6. Evaluate vibration and noise.
7. Select the appropriate motor and transmission ratio.
8. Test the complete assembly rather than the motor alone.
This approach helps prevent over-specification while ensuring sufficient motion performance.
Optical inspection equipment is rarely identical from one machine to another. Different cameras, lenses, sensors, and mechanical structures can require different motion specifications.
l Motor dimensions
l Stroke length
l Lead screw specifications
l Connector configuration
l Cable length
l Mounting structure
l Stepper motor winding
l Gear ratio
l Limit switch integration
l Special operating voltage
Working with a motor manufacturer that understands miniature motion systems can make the integration process easier.
For OEM equipment manufacturers, customized micro linear slider stepper motors can also help optimize the internal mechanical structure rather than forcing the equipment design around an off-the-shelf actuator.
l What is the required stroke?
l What is the total moving load?
l What positioning resolution is required?
l How important is bidirectional repeatability?
l What operating speed is required?
l How many cycles will the motor perform?
l Is vibration a critical concern?
l Is feedback required?
l What installation space is available?
l What voltage and driver are available?
l Are customized mounting dimensions required?
l Does the supplier provide engineering support and samples?
Answering these questions before purchasing can significantly reduce integration problems during development.
Optical inspection systems require accurate, repeatable, and reliable motion in increasingly compact equipment designs. A micro linear slider stepper motor combines miniature stepper motor technology with integrated linear movement, making it a practical solution for lens adjustment, camera positioning, focusing mechanisms, microscopy equipment, semiconductor inspection, and other precision applications.
The key is not simply choosing the smallest motor. Engineers need to balance stroke, load, resolution, speed, repeatability, vibration, installation space, and control requirements to achieve reliable system performance.
For equipment manufacturers developing next-generation optical inspection systems, the right micro linear slider stepper motor can simplify mechanical integration while providing the precise linear movement required for automated inspection.
As optical equipment continues to become smaller, smarter, and more automated, compact linear motion technology will play an increasingly important role in achieving higher inspection accuracy and productivity.
